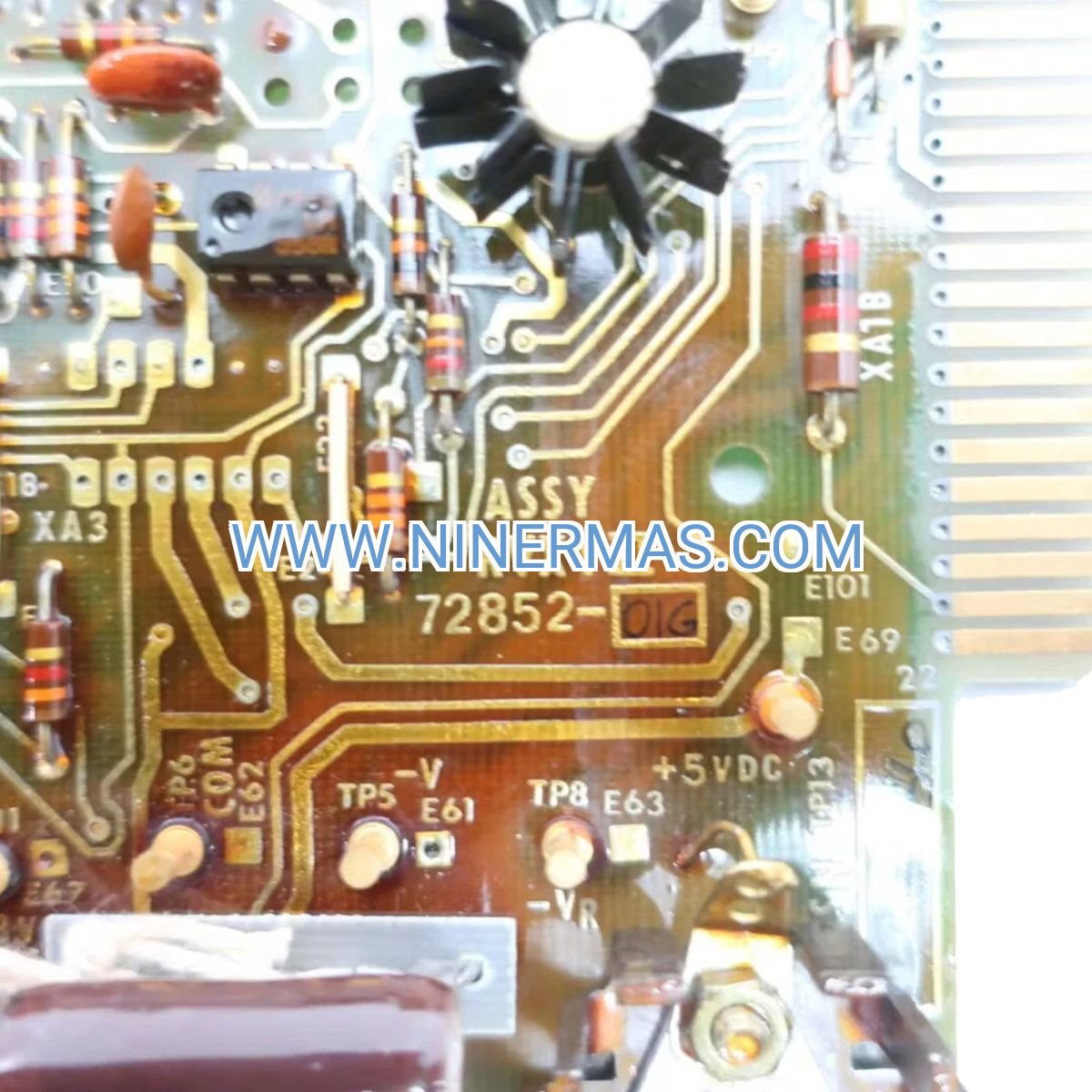

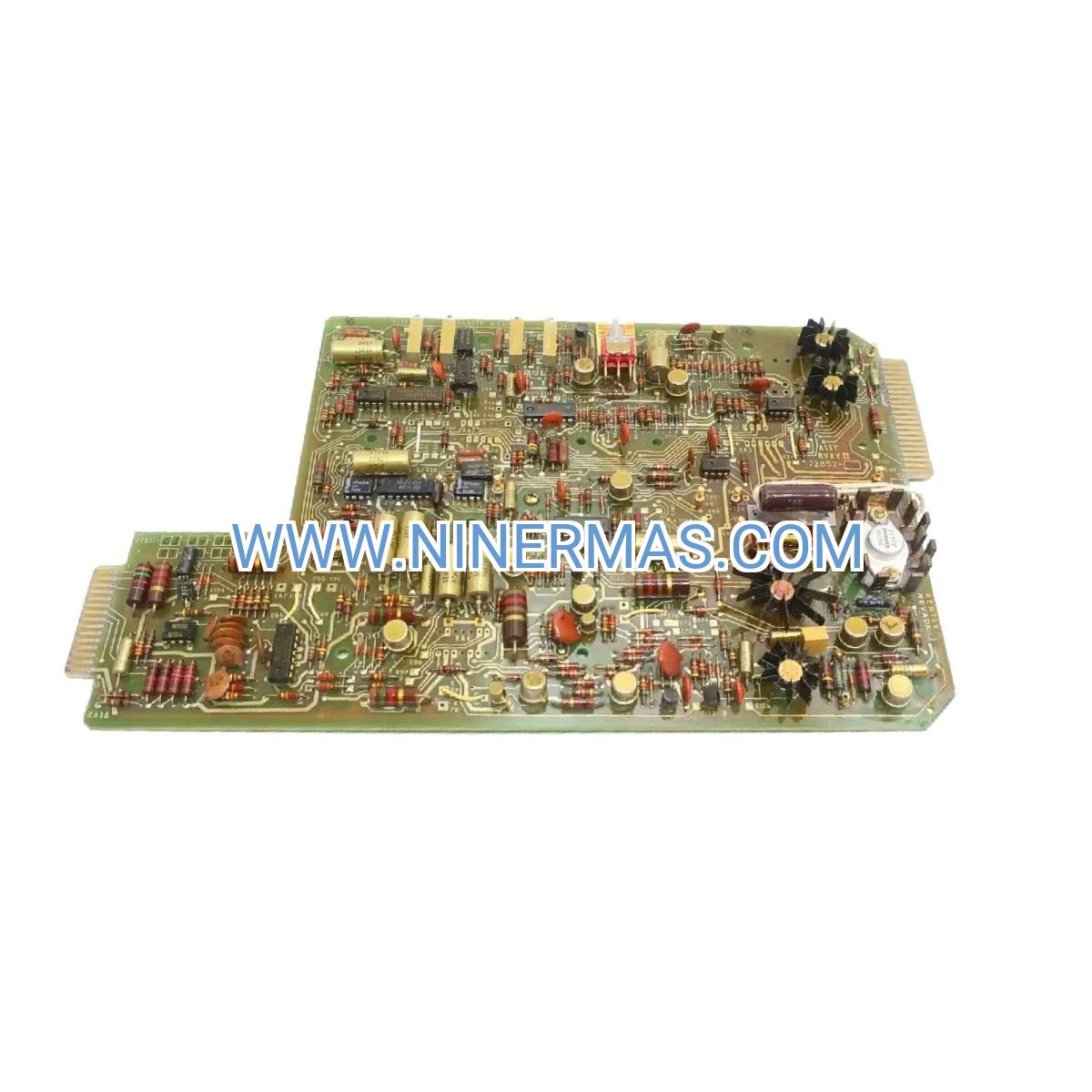

Bently Nevada 72852-01G Circuit Board Module (Industrial Monitoring System Component)

The Bently Nevada 72852-01G is a precision-engineered electronic circuit board module designed for critical machinery condition monitoring applications. Through advanced signal processing algorithms and real-time data acquisition technology, it delivers accurate vibration analysis, temperature monitoring, and alarm management for rotating equipment protection systems.

Specifically developed for power generation plants, petrochemical facilities, oil & gas refineries, steel mills, and heavy manufacturing operations, this module addresses challenges including equipment failure prediction delays, false alarm interference, multi-channel signal synchronization issues, and inadequate diagnostic data resolution in harsh industrial environments.

Featuring standardized design with flexible configuration options, the 72852-01G offers high reliability, seamless integration with existing DCS/SCADA systems, hot-swappable capability, and comprehensive self-diagnostics. Ideal for instrumentation engineers, plant maintenance teams, system integrators, and OEM equipment manufacturers. Contact our application engineers for customized configuration guidance and technical quotations.

Core Functions & Advantages

• Multi-Channel Signal Processing
  Simultaneous processing of up to 8 analog input channels with 24-bit ADC resolution, supporting 4-20mA, ±10V, and proximity probe signals. Advanced filtering algorithms eliminate industrial noise while preserving critical fault signatures.
• Intelligent Alarm Management
  Configurable multi-level alarm thresholds (Alert/Danger/Trip) with hysteresis control, reducing nuisance alarms by approximately 65%. Supports both rate-of-change and absolute value detection for early fault warning.
• Seamless System Integration
  Native compatibility with Bently Nevada 7200 and 3500 rack systems. Supports Modbus RTU/TCP, Ethernet/IP, and proprietary protocols for integration with Honeywell, Emerson, Siemens, and ABB control platforms.
• Comprehensive Protection Features
  Built-in overvoltage protection (up to 30V), reverse polarity safeguards, EMI/RFI shielding (EN 61000-6-2), and conformal coating for corrosive atmosphere resistance. Reduces unplanned downtime and maintenance costs.
• User-Friendly Diagnostics
  Front-panel LED indicators for channel status, fault codes, and communication health. Supports remote diagnostics via Ethernet interface with detailed event logging and waveform capture capabilities.
• Hot-Swap & Redundancy Ready
  Field-replaceable design with automatic configuration backup. Supports N+1 redundancy architecture for mission-critical applications requiring 99.9%+ uptime.

Typical Application Scenarios

This module is engineered for applications demanding high reliability, continuous operation, and precise condition monitoring, particularly in:

• Power Generation & Turbomachinery
  Steam turbines, gas turbines, and generator bearing monitoring in combined-cycle plants. Detects shaft vibration, thrust position, and differential expansion to prevent catastrophic failures in 500MW+ units.
• Oil & Gas Upstream/Midstream
  Compressor stations, pipeline pumps, and offshore platform rotating equipment. Monitors critical parameters in Zone 1/Division 1 hazardous areas (when paired with appropriate barriers), ensuring compliance with API 670 standards.
• Petrochemical & Refining
  Centrifugal compressors, cracked gas compressors, and reactor coolant pumps. Provides real-time protection for high-value assets operating at temperatures from -40°C to +85°C ambient.
• Steel & Metal Processing
  Rolling mill drives, blast furnace blowers, and continuous casting equipment. Withstands heavy electromagnetic interference and vibration environments typical of primary metal production.
• Pulp & Paper Mills
  Digester agitators, recovery boiler fans, and paper machine drives. Supports predictive maintenance programs to minimize production interruptions in 24/7 continuous processes.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide standard configuration parameters. Custom configurations available based on specific project requirements.

Key Specifications:

• Input Channels: 4 or 8 differential analog inputs (model-dependent)
• Signal Types: 4-20mA, ±10VDC, proximity probes (7.87V/-24VDC), accelerometers (IEPE)
• Sampling Rate: Up to 40 kHz per channel (configurable)
• Resolution: 24-bit ADC with 0.01% accuracy
• Power Supply: 18-30VDC, 15W typical consumption
• Operating Temperature: -30°C to +65°C (-22°F to +149°F)
• Protection Rating: IP20 (rack-mounted), IP54 optional for standalone enclosures
• Communication: RS-485, Ethernet 10/100Base-T, optional fiber optic
• Compliance: CE, UL508, RoHS, ATEX/IECEx (with approved barriers)
• MTBF: >150,000 hours (MIL-HDBK-217F)
• Dimensions: Single-slot 3U rack module (128mm H × 25mm W × 220mm D)

Selection Recommendations:
When specifying, consider: number of monitored bearing positions, sensor types (proximity/velocity/acceleration), required alarm outputs, communication protocol compatibility with existing DCS, environmental conditions (temperature/humidity/vibration), and available rack space. For assistance, provide equipment type, operating speed (RPM), bearing configuration, and control system details. Our engineers will recommend optimal module configuration and sensor pairing.

Extended Capabilities

• Advanced Analytics Integration: Compatible with Bently Nevada System 1 software for trend analysis, orbit plots, Bode/Nyquist diagrams, and machine learning-based anomaly detection.
• Cybersecurity Features: Supports secure boot, encrypted firmware updates, and role-based access control (RBAC) compliant with IEC 62443 industrial cybersecurity standards.
• Scalable Architecture: Daisy-chain up to 16 modules on single communication bus. Supports distributed monitoring across multi-unit facilities with centralized HMI.
• Customization Options: Factory configuration services for pre-programmed alarm setpoints, custom I/O scaling, and application-specific firmware. Consult engineering team for project-specific requirements.

Delivery, Service & Quality Assurance

Lead Time: Standard configurations ship within 3-5 business days from stock. Custom-configured modules require 10-15 business days. Expedited service available for critical outages.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available.

Technical Support: Complimentary remote commissioning assistance, configuration file backup/restore guidance, and troubleshooting support. On-site startup services available (region-dependent, quoted separately).

Documentation Package: Each module ships with detailed datasheet, wiring diagrams, Modbus register map, configuration software (where applicable), calibration certificate, and quick-start guide. CAD drawings (DWG/PDF) and 3D STEP models available upon request.

Quality Certifications: Manufactured in ISO 9001:2015 certified facilities. Modules undergo 100% functional testing, 48-hour burn-in, and vibration/thermal cycling per IEC 60068 standards before shipment.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 72852-01G integrate with existing monitoring systems?
A: The module supports multiple industrial protocols including Modbus RTU/TCP and Ethernet/IP. Integration requires confirming your DCS/PLC communication protocol, network architecture (star/daisy-chain), and IP addressing scheme. We provide pre-tested configuration files for common platforms (Honeywell Experion, Emerson DeltaV, Siemens PCS7).

Q: What is the maximum number of sensors this module can handle?
A: Standard configuration supports 4 or 8 differential input channels depending on model variant. Each channel can monitor one sensor (proximity probe, accelerometer, or 4-20mA transmitter). For larger machine trains, multiple modules can be rack-mounted and networked.

Q: What energy savings or efficiency improvements can be expected?
A: While the module itself is a monitoring device (not a control actuator), it enables predictive maintenance strategies that reduce unplanned downtime by 40-60% and extend equipment life by 20-30% according to industry studies. Energy savings are realized through optimized maintenance scheduling and early fault detection preventing catastrophic failures.

Q: What are the environmental requirements for installation?
A: Operating temperature range is -30°C to +65°C with 5-95% non-condensing humidity. Standard IP20 rating requires installation in clean control room environments. For harsh locations (high dust/moisture), specify IP54-rated enclosure option. Avoid direct exposure to corrosive gases or continuous vibration exceeding 2g RMS.

Q: Does the module support remote monitoring and data acquisition?
A: Yes. Ethernet interface enables connection to SCADA systems, cloud-based condition monitoring platforms, and mobile HMI applications. Supports OPC UA, MQTT, and RESTful API for Industry 4.0 integration. Data logging capacity: 10,000 events with timestamp resolution of 1ms.

Q: Is the module compatible with third-party sensors and systems?
A: Fully compatible with industry-standard sensors meeting API 670 specifications (proximity probes), IEPE accelerometers (100mV/g sensitivity), and 4-20mA transmitters. Interoperates with GE Bently Nevada, SKF, Emerson AMS, and Rockwell Automation monitoring ecosystems through standard protocols.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotations, please provide the following information: Project name, application type (turbine/compressor/pump/motor), number of monitoring points, sensor types and quantities, operating speed range (RPM), power supply availability, communication protocol requirements, and environmental conditions. Our certified engineers will deliver tailored selection recommendations and competitive pricing within 24 hours.
