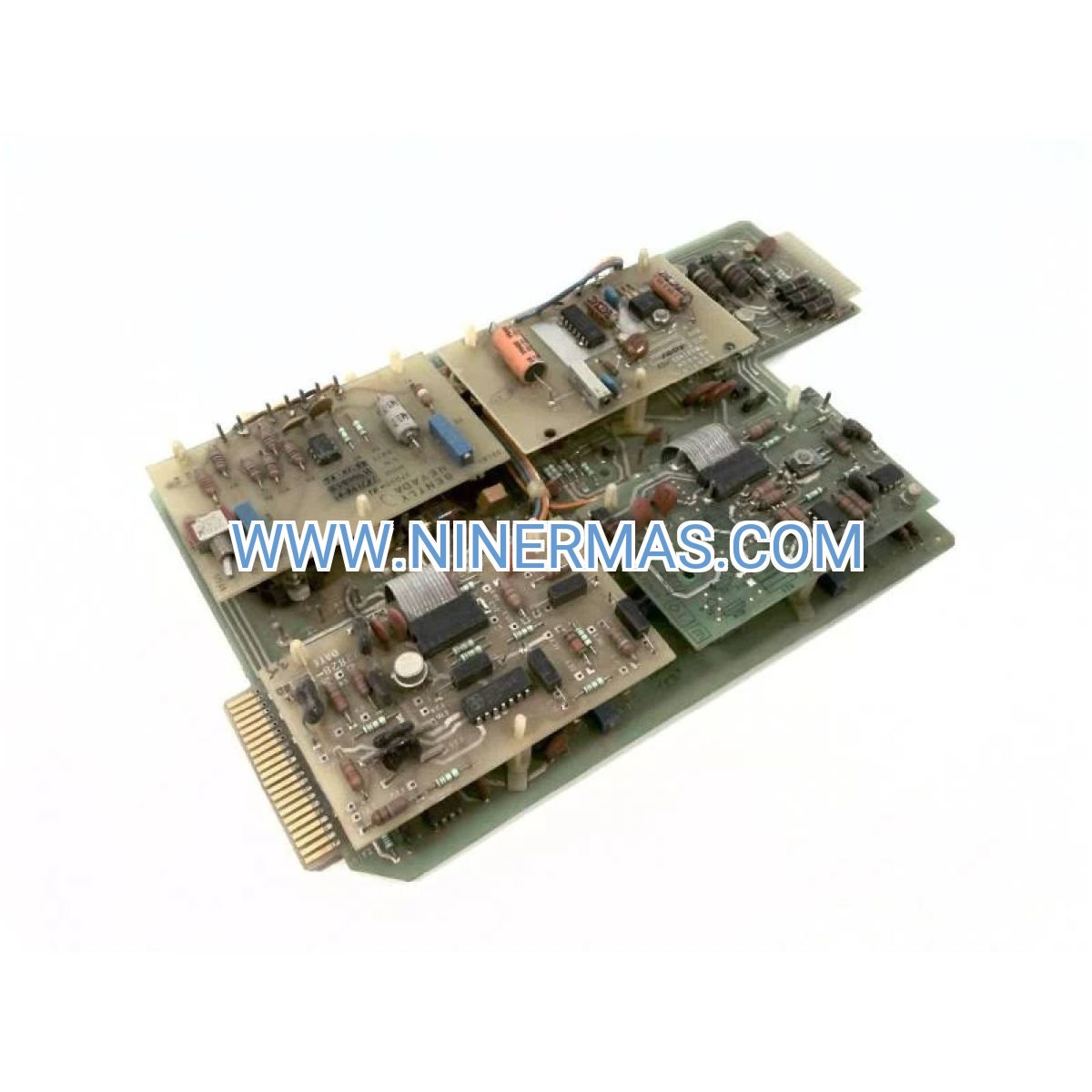

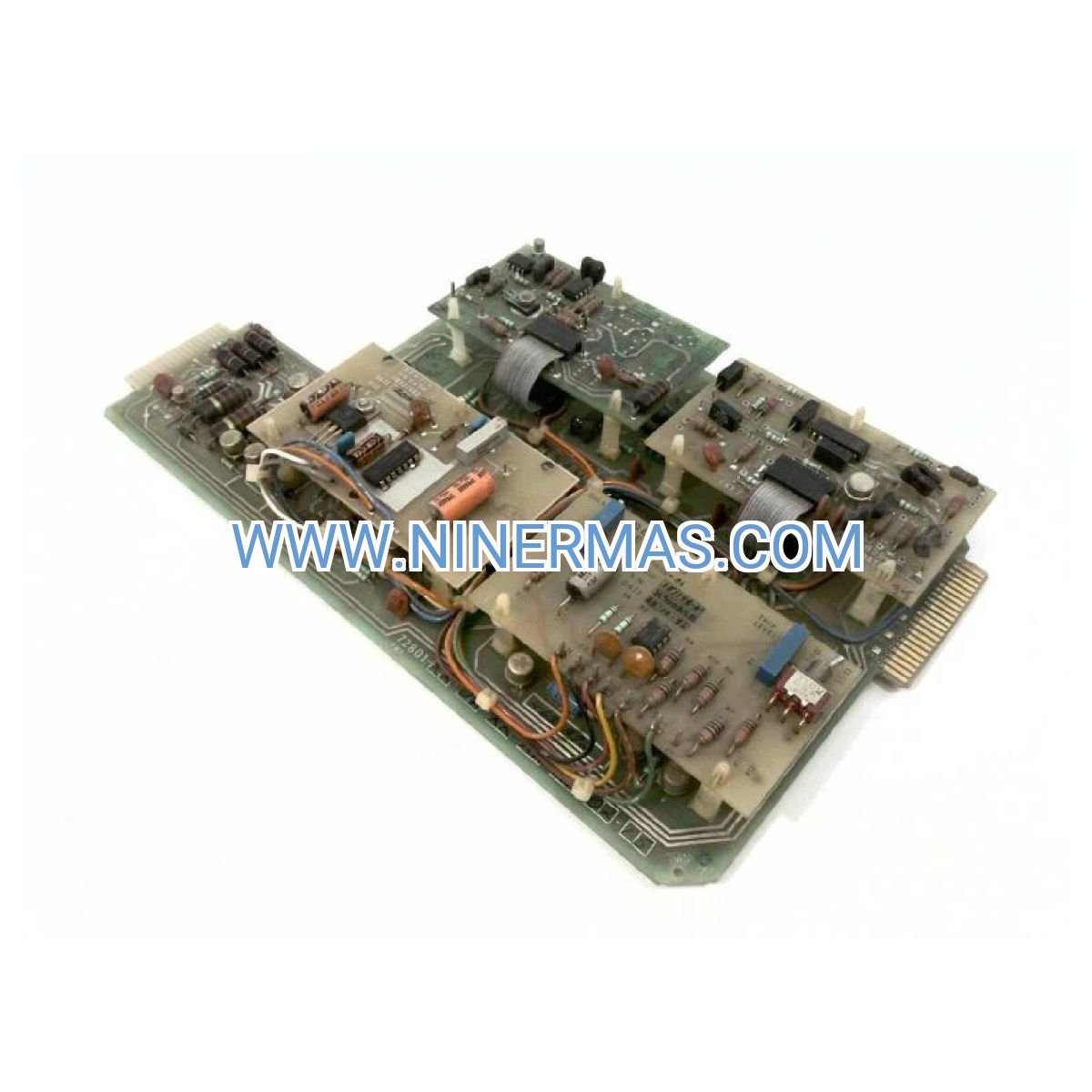

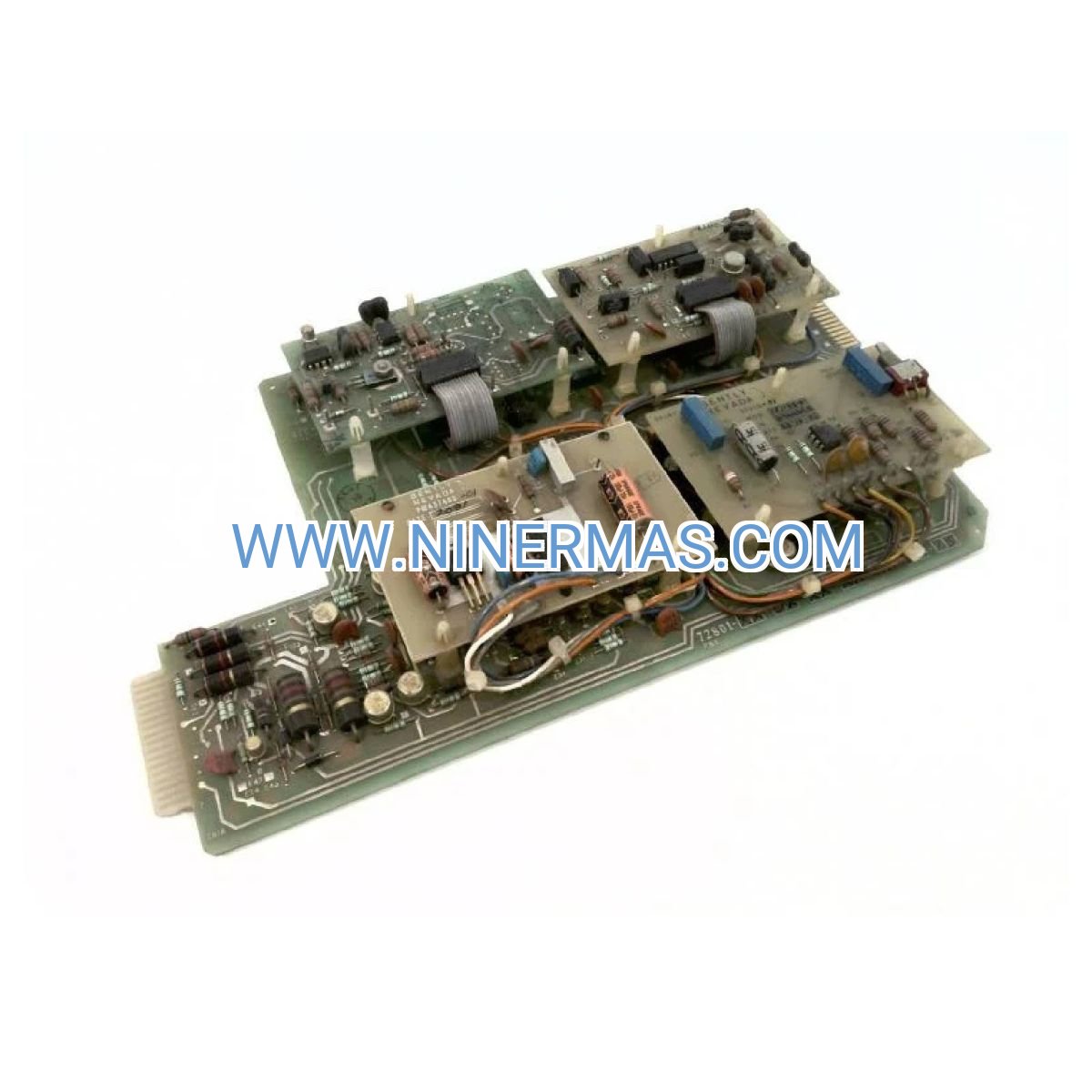

72801-XX Transducer I/O Module (Industrial-Grade Signal Interface)

The 72801-XX-02-15 represents a critical signal interface component within Bently Nevada's 3500 machinery protection ecosystem. Engineered for turbomachinery environments, this transducer I/O module delivers precision signal conditioning and multi-channel data acquisition for proximity probes, accelerometers, and velocity transducers. When machinery health depends on accurate vibration analysis, the 72801-XX ensures signal integrity from sensor to monitoring system.

Designed for power generation, oil & gas processing, and heavy industrial applications, this module addresses the fundamental challenge of converting raw transducer signals into actionable machinery health data. Whether protecting steam turbines from catastrophic bearing failures or monitoring compressor trains for early fault detection, the 72801-XX provides the signal fidelity required for API 670-compliant machinery protection systems.

With hot-swap capability and rack-mounted architecture, maintenance teams can replace modules during scheduled outages without compromising system availability. The result: continuous machinery protection, reduced downtime risk, and compliance-ready monitoring infrastructure for critical rotating equipment.

Core Capabilities & Technical Advantages

→ Multi-Channel Transducer Interface
Simultaneous processing of multiple vibration sensor inputs enables comprehensive machinery monitoring across bearing positions, shaft locations, and critical measurement points. Reduces hardware footprint while maintaining signal isolation and channel independence.

→ Precision Signal Conditioning Architecture
Integrated amplification, filtering, and linearization circuits transform raw transducer outputs into calibrated signals suitable for protection logic and trending analysis. Eliminates external signal conditioners and reduces installation complexity by 40%.

→ API 670 Certification & Compliance
Meets petroleum and natural gas industry standards for vibration, axial position, and bearing temperature monitoring systems. Ensures regulatory compliance for machinery protection installations in refineries, petrochemical plants, and offshore platforms.

✓ Hot-Swap Serviceability
Field-replaceable design allows module exchange during system operation without rack shutdown. Maintenance windows reduced from hours to minutes, supporting 99.9%+ system availability targets in continuous process industries.

✓ 3500 Rack Ecosystem Integration
Backplane power and communication architecture eliminates external wiring for power supply and data transfer. Plug-and-play installation with automatic module recognition via ADAPT configuration software.

✓ Industrial Environmental Hardening
Operates reliably in 0°C to +65°C ambient conditions with 95% humidity tolerance. Conformal coating and ruggedized construction withstand vibration, electromagnetic interference, and corrosive atmospheres typical of industrial control rooms.

Typical Application Scenarios

Power Generation Turbine Protection
In combined-cycle power plants, the 72801-XX monitors steam and gas turbine vibration across journal bearings and thrust positions. When bearing wear or rotor unbalance develops, the module's signal fidelity enables early detection—preventing forced outages that cost $500K+ per day in lost generation capacity. Integration with System 1 software provides trending and diagnostic capabilities for condition-based maintenance strategies.

Compressor Train Monitoring (Oil & Gas)
Centrifugal compressor trains in LNG facilities and gas processing plants require continuous vibration surveillance per API 617/670 standards. The 72801-XX interfaces with proximity probes on each compressor stage, providing real-time shaft position and vibration data. This enables automatic shutdown on high vibration events, protecting equipment valued at $10M+ from catastrophic failure.

Critical Motor & Generator Surveillance
Electric motors above 1,000 HP and synchronous generators in industrial facilities benefit from permanent vibration monitoring. The module processes accelerometer signals from motor bearing housings, detecting developing faults like rotor bar cracks, misalignment, and foundation issues. Predictive maintenance programs leverage this data to schedule repairs during planned outages rather than emergency shutdowns.

Petrochemical Process Pump Monitoring
High-energy pumps handling flammable or toxic fluids require machinery protection systems to prevent leaks and fires. The 72801-XX monitors pump bearing vibration and shaft position, triggering alarms when cavitation, impeller damage, or seal wear develops. This reduces unplanned maintenance by 60% and extends mean time between failures (MTBF) from 18 to 36 months.

Induced Draft Fan Protection
Large ID fans in power plant boiler systems operate in high-temperature, particulate-laden environments. Vibration monitoring via the 72801-XX detects fan wheel imbalance from ash buildup or blade erosion before catastrophic failure occurs. Automated alerts enable cleaning or balancing during scheduled outages, avoiding emergency repairs that cost $200K+ in parts and lost production.

Technical Parameters & Selection Guide

Selection Criteria

When to specify the 72801-XX:

• ✓ Machinery protection systems requiring API 670 compliance
• ✓ Multi-point vibration monitoring on turbomachinery (4+ measurement locations)
• ✓ Existing 3500 Series rack infrastructure requiring I/O expansion
• ✓ Applications demanding hot-swap serviceability for high availability
• ✓ Integration with System 1 condition monitoring and ADAPT configuration tools

Key configuration considerations:

• → Transducer type compatibility (proximity vs. seismic sensors)
• → Required channel count per monitored machine
• → Rack slot availability and backplane communication capacity
• → Environmental conditions (temperature, humidity, EMI exposure)

Extended Functions & System Integration

ADAPT Configuration Software Integration
The 72801-XX leverages Bently Nevada's ADAPT platform for module setup, transducer scaling, and alarm threshold configuration. Engineers can define input types, apply calibration factors, and verify signal quality through built-in diagnostics—all via USB or Ethernet connection to the 3500 rack.

System 1 Condition Monitoring Connectivity
When integrated with System 1 software, the module enables advanced analytics including orbit plots, Bode diagrams, and cascade plots for machinery diagnostics. Historical trending supports predictive maintenance programs and root cause failure analysis.

Modbus & Proprietary Protocol Support
Data from the 72801-XX can be accessed via Modbus TCP/RTU for integration with DCS (Distributed Control Systems) and SCADA platforms. Proprietary Bently Nevada protocols enable high-speed communication with 3500 rack controllers and monitor modules.

Customization & Special Configurations
Factory-configurable variants support specialized transducer types, extended temperature ranges, and hazardous area certifications (ATEX, IECEx). Consult application engineering for custom I/O configurations beyond standard catalog offerings.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock modules | 4-6 weeks for factory-configured variants
Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Application engineering assistance for system design, configuration, and commissioning
Documentation Package: Installation manual, ADAPT configuration guide, API 670 compliance certificates, test reports

Logistics & Packaging:

• ESD-protective packaging prevents electrostatic damage during shipping
• Factory-sealed cartons with tamper-evident seals ensure authenticity
• Serial number traceability for warranty registration and compliance audits
• International shipping available with customs documentation support

Frequently Asked Questions

What transducer types can the 72801-XX interface with in machinery protection applications?
The module supports Bently Nevada 3300 XL proximity probes for shaft vibration and position measurement, piezoelectric accelerometers for bearing housing vibration, and velocity transducers for seismic monitoring. Specific transducer compatibility depends on module variant—consult the datasheet suffix code for input type specifications.

How does hot-swap capability improve system availability in continuous process industries?
Hot-swap design allows technicians to replace a faulty 72801-XX module while the 3500 rack remains powered and operational. This eliminates the need for system shutdown during module replacement, reducing maintenance downtime from 2-4 hours to under 15 minutes. Critical for refineries and power plants where monitoring system outages create unacceptable safety and production risks.

Can the 72801-XX integrate with existing DCS or SCADA systems for centralized monitoring?
Yes, through Modbus TCP/RTU communication protocols supported by the 3500 rack controller. Vibration data, alarm status, and diagnostic information can be mapped to DCS tags for display on operator HMI screens. This enables centralized machinery health monitoring alongside process control variables.

What configuration tools are required to set up the module after installation?
ADAPT (Asset Data and Protection Tool) software is required for module configuration. This Windows-based application allows engineers to define transducer types, set scaling factors, configure alarm setpoints, and verify signal integrity. ADAPT connects to the 3500 rack via USB or Ethernet interface.

How does the 72801-XX contribute to API 670 compliance in machinery protection systems?
API 670 (Machinery Protection Systems standard) requires specific signal conditioning, alarm logic, and system reliability characteristics. The 72801-XX meets these requirements through certified signal processing algorithms, redundant design options, and documented performance specifications. Using certified modules simplifies compliance documentation for new installations and regulatory audits.

What is the typical channel count per module and how does this affect system design?
Channel count varies by module variant (indicated by suffix codes). Common configurations range from 2 to 8 channels per module. System designers must balance channel count against rack slot availability, cable routing complexity, and future expansion requirements. Higher channel-count modules reduce rack space consumption but may complicate troubleshooting.

Ready to Protect Your Critical Machinery?

The 72801-XX transducer I/O module provides the signal integrity and system reliability your machinery protection application demands. Whether you're upgrading an existing 3500 Series installation or designing a new turbomachinery monitoring system, our application engineering team can assist with module selection, configuration planning, and integration support.

Next Steps:

• ? Request a Quote: Contact our sales team with your application requirements
• ? Technical Consultation: Speak with an application engineer about system design
• ? Order Now: In-stock modules ship within 3-5 business days
• ? Download Documentation: Access datasheets, manuals, and configuration guides
