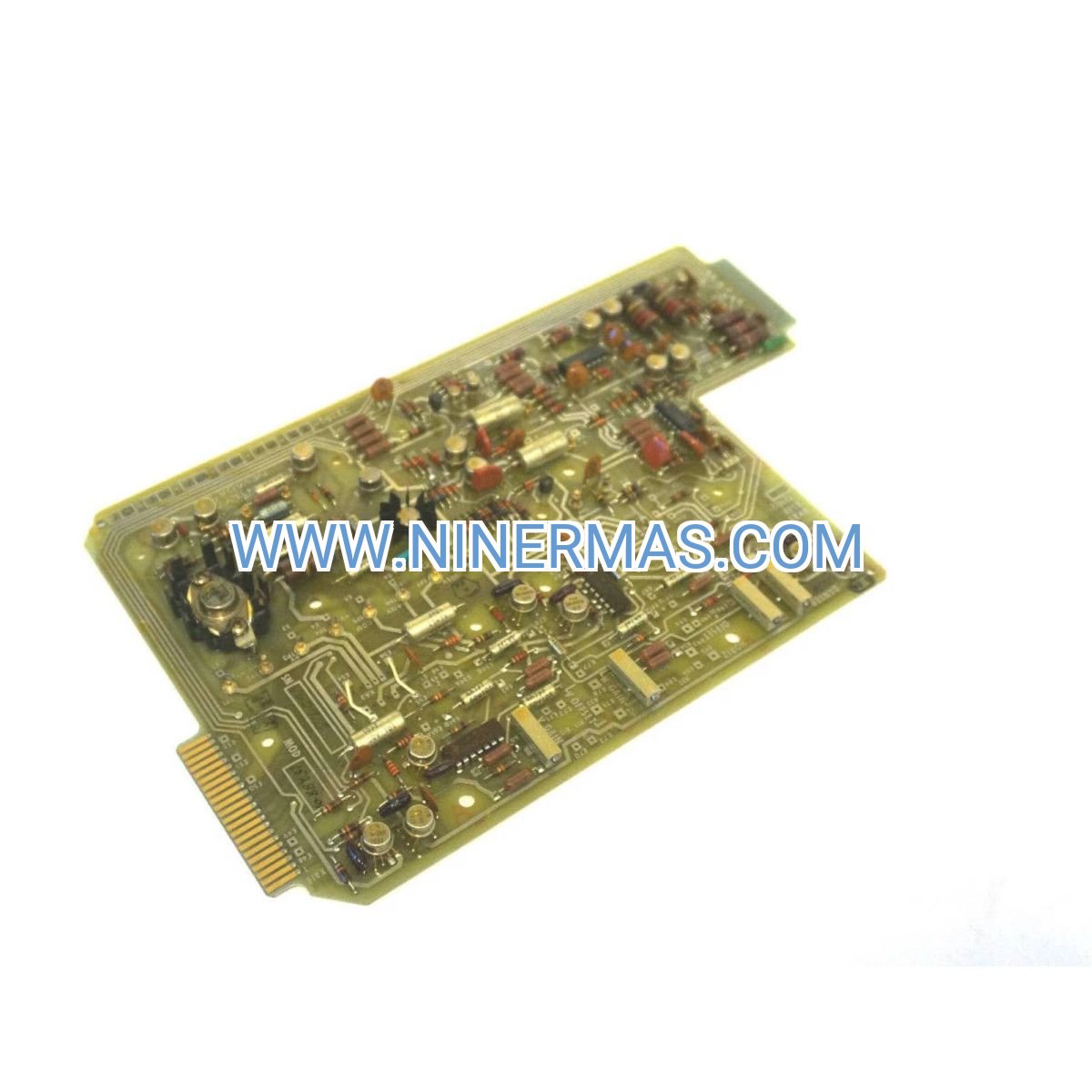

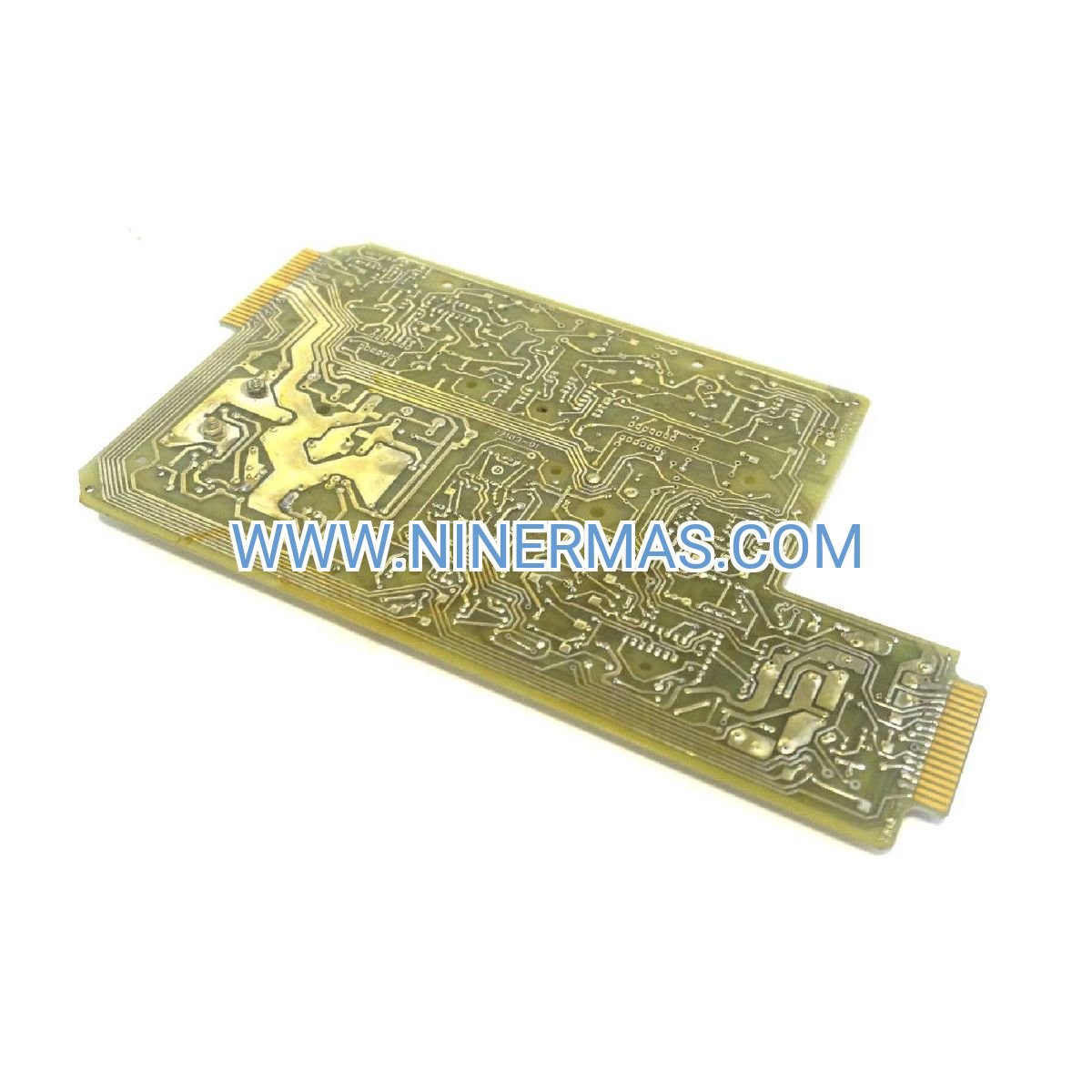

Bently Nevada 72101 Main Control Board (Industrial-Grade System Controller)

The Bently Nevada 72101-XX-01-01-01-01-01 Main Control Board is a high-performance industrial control module designed for the 7200 series machinery protection and condition monitoring systems. Through advanced microprocessor architecture and integrated communication protocols (Modbus RTU/TCP, Ethernet/IP), it delivers centralized processing, real-time alarm logic, and seamless data acquisition for critical rotating equipment monitoring applications.

Ideal for power generation plants, oil & gas facilities, petrochemical refineries, steel mills, and heavy industrial environments where continuous machinery health monitoring is essential. This control board solves challenges such as fragmented alarm management, communication protocol incompatibility, limited diagnostic visibility, and delayed fault response in legacy monitoring systems.

Engineered with standardized design and flexible configuration options, the 72101 control board offers superior reliability, multi-protocol connectivity, intuitive LCD diagnostics, and comprehensive protection features. Suitable for design engineers, system integrators, maintenance teams, and plant operators seeking robust, scalable monitoring solutions. Contact our application engineers for configuration guidance and technical quotations.

Core Features & Advantages

• Centralized System Processing
  Acts as the central intelligence hub for 7200 series racks, coordinating multi-channel vibration, temperature, and process data with deterministic scan rates and microsecond-level timestamp accuracy.
• Multi-Protocol Communication
  Native support for Modbus RTU/TCP, Ethernet/IP, and proprietary Bently protocols enables seamless integration with DCS, SCADA, PLC platforms (Rockwell, Siemens, Schneider), reducing engineering time by up to 40%.
• Advanced Alarm Logic Engine
  Configurable multi-stage alarm (Alert, Danger, Trip) with voting logic, time delays, hysteresis, and sequential event recording minimizes nuisance trips and enhances diagnostic precision.
• Integrated LCD Diagnostics
  Front-panel color LCD provides real-time system status, channel health, alarm summaries, and fault codes without requiring external HMI or laptop connection, accelerating troubleshooting by 60%.
• Redundancy & Hot-Swap Support
  Optional dual-controller redundancy with automatic failover and hot-swappable design ensures zero-downtime maintenance and 99.99% system availability for mission-critical applications.
• Comprehensive Protection Suite
  Built-in overvoltage, reverse polarity, ESD (IEC 61000-4-2 Level 4), EMI/RFI immunity, and conformal coating options protect against harsh industrial environments (-40°C to +85°C operating range).

Typical Application Scenarios

The Bently Nevada 72101 control board is engineered for demanding industrial environments requiring continuous machinery health monitoring and predictive maintenance capabilities:

• Power Generation & Turbomachinery
  Steam turbines, gas turbines, generators, and compressor trains in combined-cycle plants, nuclear facilities, and cogeneration systems where unplanned downtime costs exceed $1M per event.
• Oil & Gas Production & Refining
  Centrifugal compressors, reciprocating compressors, pumps, and gearboxes in upstream platforms, midstream pipelines, and downstream refineries requiring SIL-2 certified protection systems.
• Petrochemical & Chemical Processing
  Critical rotating equipment in ethylene crackers, polymerization units, and continuous process lines where vibration-induced failures can trigger safety incidents or environmental releases.
• Steel, Mining & Heavy Industry
  Rolling mills, crushers, conveyors, and material handling systems in harsh, high-vibration environments with extreme temperature fluctuations and electromagnetic interference.
• Marine Propulsion & Offshore Platforms
  Main engines, auxiliary generators, and thruster systems on vessels and offshore rigs requiring DNV-GL, ABS, or Lloyd's Register certification for marine environments.

Technical Parameters & Selection Guide

To facilitate system design and configuration, we provide standardized specifications for the 72101 main control board. Custom firmware configurations and extended I/O options are available for project-specific requirements.

Selection Recommendations: When configuring the 72101 control board, consider the following factors: total number of monitoring channels required, communication protocol compatibility with existing DCS/SCADA infrastructure, redundancy requirements (single vs. dual controller), environmental conditions (temperature, vibration, EMI levels), and certification needs (ATEX, IECEx, SIL). For assistance, please provide project details including equipment type, channel count, network architecture, and environmental specifications. Our application engineers will recommend optimal configuration and provide detailed quotations.

Extended Capabilities

• Data Historian Integration: Direct connectivity to OSIsoft PI, GE Proficy, Honeywell PHD, and Siemens WinCC for long-term trend analysis and predictive analytics.
• Cybersecurity Features: Role-based access control (RBAC), encrypted communication (TLS 1.2), audit logging, and compliance with IEC 62443 industrial cybersecurity standards.
• Remote Diagnostics: Secure VPN access for remote configuration, firmware updates, and troubleshooting via Bently Nevada System 1 software platform.
• Custom Alarm Scripting: User-programmable logic using IEC 61131-3 structured text for complex interlock sequences and conditional alarm suppression.

Delivery, Service & Quality Assurance

Lead Time: Standard configuration units ship within 3-5 business days from regional distribution centers (Americas, EMEA, APAC). Custom-configured systems require 10-15 business days for factory programming and testing.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available.

Technical Support: Complimentary remote technical assistance during installation and commissioning. On-site startup services available (region-dependent, quoted separately).

Documentation Package: Each unit includes installation manual, quick-start guide, electrical schematics, Modbus register map, configuration software (System 1), and calibration certificates (traceable to NIST/PTB standards).

Compliance & Certifications: CE marked, UL/cUL listed, ATEX Zone 2 certified, IECEx compliant, RoHS/REACH conformant. SIL-2 certification available upon request with additional documentation.

Frequently Asked Questions (FAQ)

Q: How does the Bently Nevada 72101 control board integrate with existing Rockwell or Siemens PLC systems?
A: The 72101 supports native Ethernet/IP (for Rockwell ControlLogix/CompactLogix) and Modbus TCP (for Siemens S7-1200/1500) protocols. Integration requires configuring the appropriate Add-On Instruction (AOI) or function block (FB) in your PLC program. We provide pre-tested sample code and register mapping documentation. Typical integration time is 2-4 hours for experienced controls engineers.

Q: What is the maximum number of monitoring channels one 72101 controller can handle?
A: A single 72101 control board can manage up to 160 monitoring channels when fully populated with compatible I/O modules (e.g., 3300 XL proximity probes, 3500 accelerometers, RTD temperature modules). For larger systems exceeding 160 channels, multiple 72101 controllers can be networked via Ethernet with synchronized alarm logic.

Q: What are the typical energy savings or efficiency improvements with the 72101 control board?
A: While the 72101 itself is a monitoring device (not a variable frequency drive), it enables predictive maintenance strategies that reduce unplanned downtime by 30-50% and extend equipment life by 15-25%. By detecting bearing faults, misalignment, and imbalance early, customers avoid catastrophic failures that can cost $500K-$5M in lost production and emergency repairs.

Q: What are the environmental and installation requirements for the 72101 control board?
A: The 72101 is designed for rack-mounting in standard 19\" industrial enclosures with IP20 front panel protection (IP54 optional). Operating temperature range is -40°C to +85°C with 5-95% RH non-condensing humidity. Ensure adequate ventilation (minimum 50 mm clearance above/below), stable 18-32 VDC power supply (±10% regulation), and proper grounding (< 1Ω to earth). Avoid installation near high-power VFDs or welding equipment without EMI filtering.

Q: Can the 72101 support remote monitoring and data acquisition via cloud platforms or mobile apps?
A: Yes, the 72101 can stream data to cloud-based condition monitoring platforms (e.g., Bently Nevada Orbit 60, Azure IoT, AWS IoT) via secure MQTT or OPC UA protocols. This enables remote diagnostics, mobile app notifications, and machine learning-based anomaly detection. Implementation requires edge gateway hardware (e.g., Moxa, Cisco IR829) and network security configuration (firewall rules, VPN tunnels). We provide reference architectures and cybersecurity best practices documentation.

Q: Is the 72101 control board suitable for hazardous area (ATEX/IECEx Zone 1) installations?
A: The standard 72101 is certified for Zone 2 / Division 2 hazardous locations. For Zone 1 / Division 1 applications, the control board must be installed in a purged/pressurized enclosure (Type X or Z purging per IEC 60079-2) or use intrinsically safe barriers for field wiring. Consult our hazardous area application guide or contact engineering for zone-specific configurations.

Request Technical Support & Quotation

To receive detailed configuration recommendations, pricing, or application engineering support, please provide the following information: Project name, application type (turbine/compressor/pump), number of monitoring points, required communication protocols, environmental conditions (temperature/vibration/hazardous area classification), power supply specifications, and delivery timeline. Our certified application engineers will respond within 24 hours with customized solutions and competitive quotations.
