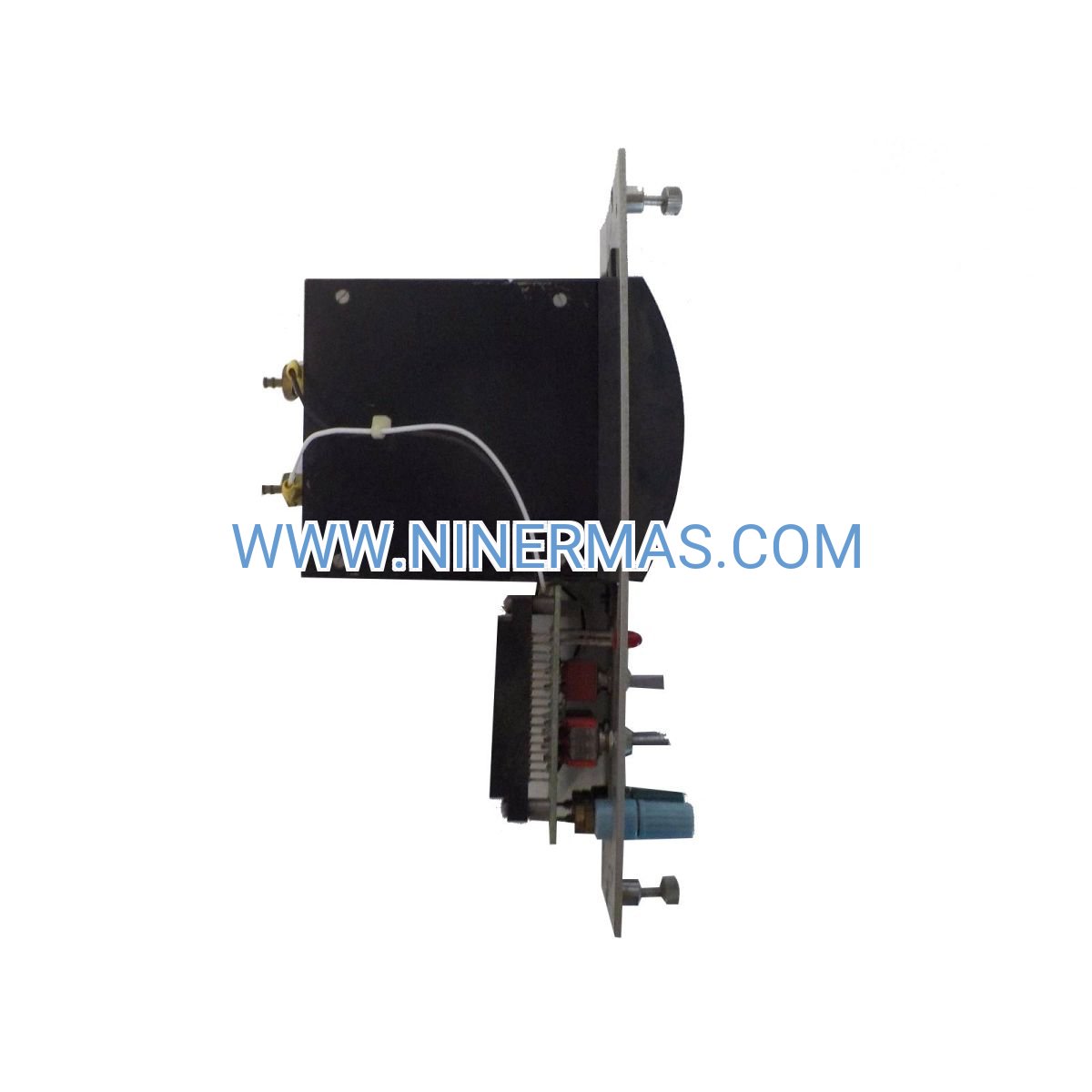

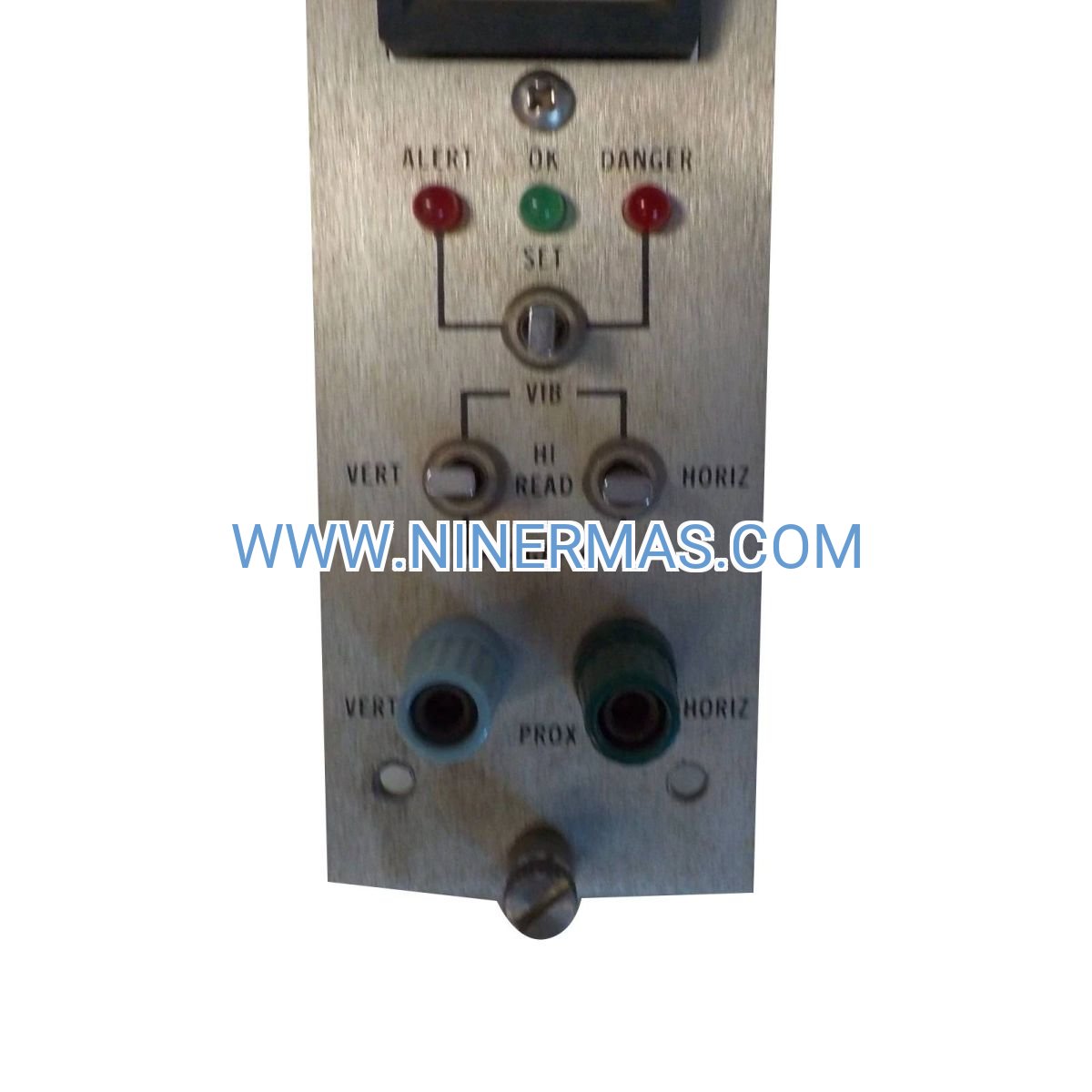

7200-RVXY-R Industrial Radial Vibration Monitor (Dual-Axis Configuration)

The 7200-RVXY-R represents Bently Nevada's advanced approach to rotating machinery protection through simultaneous X-Y axis vibration measurement. Engineered for critical turbomachinery applications, this monitor transforms proximity probe signals into actionable intelligence—delivering orbit visualization, multi-stage alarming, and network connectivity in a compact rack-mount platform.

Designed for facilities where unplanned downtime carries severe operational and financial consequences, the 7200-RVXY-R addresses the fundamental challenge of radial vibration monitoring: capturing complete shaft motion behavior. Single-axis monitors provide only partial visibility; dual-axis measurement reveals the full orbital pattern that distinguishes normal operation from developing mechanical faults requiring intervention.

Target users include reliability engineers managing turbine-generator sets, compressor trains, and large motor-driven equipment in power generation, oil & gas processing, petrochemical production, and industrial manufacturing environments. The monitor's API 670 certification ensures compliance with machinery protection standards governing critical rotating equipment installations worldwide.

Core Capabilities & Business Value

→ Simultaneous X-Y Measurement: Captures radial vibration in two perpendicular planes, enabling orbit analysis that identifies specific fault mechanisms—unbalance, misalignment, bearing wear, shaft cracks—impossible to distinguish with single-axis monitoring. Reduces diagnostic time from hours to minutes during machinery troubleshooting.

✓ Integrated Alarm Management: Three-stage alarm architecture (Alert/Danger/Not OK) per axis with configurable voting logic (1oo2, 2oo2) provides flexible protection schemes. Form C relay outputs interface directly with turbine trip systems, eliminating external alarm modules and reducing panel complexity by 40%.

✓ Real-Time Orbit Display: Front-panel LCD visualizes shaft centerline motion patterns, transforming abstract vibration numbers into intuitive graphical representations. Operators identify abnormal conditions without specialized training; maintenance teams diagnose root causes without external analyzers.

✓ Multi-Protocol Connectivity: Modbus RTU/TCP and Ethernet TCP/IP interfaces enable integration with SCADA, DCS, and condition monitoring platforms. 4-20mA analog outputs provide universal compatibility with legacy control systems, protecting existing infrastructure investments.

✓ Field-Configurable Parameters: Front-panel menu access to measurement ranges (0-500 mils pk-pk), alarm setpoints, relay logic, and communication settings eliminates laptop dependency. Configuration changes complete in minutes versus hours required for systems demanding external software.

✓ Gap Voltage Monitoring: Continuous verification of proximity probe installation quality and target surface condition prevents false alarms from sensor problems. Distinguishes actual machinery faults from measurement system issues, reducing unnecessary maintenance interventions by 60%.

Application Scenarios & Problem Resolution

Steam Turbine Generator Protection: Power plants deploy the 7200-RVXY-R on turbine-generator bearing pedestals where shaft vibration directly indicates mechanical health. Installation involves mounting X-Y proximity probe pairs at each bearing location, routing signals to the monitor, and configuring API 670-compliant alarm thresholds. The orbit display enables operators to distinguish between normal startup transients and genuine mechanical problems like bearing damage or rotor rubs that demand immediate shutdown. This capability prevents catastrophic failures while eliminating false trips that cost $500K+ per event in lost generation revenue.

Gas Compressor Train Surveillance: Petrochemical facilities monitor centrifugal compressor radial vibration to detect aerodynamic instabilities (surge, rotating stall), mechanical looseness, and bearing degradation before they escalate to failures. The 7200-RVXY-R's dual-axis measurement captures the elliptical orbit patterns characteristic of misalignment and the complex shapes indicating seal rubs or coupling problems. Early detection enables planned maintenance during scheduled shutdowns rather than emergency repairs costing 5-10× more in parts, labor, and production losses.

Critical Process Pump Monitoring: Refineries and chemical plants install the monitor on multi-stage pumps handling hazardous or high-value fluids. Radial vibration increases signal cavitation, impeller imbalance, and bearing wear—conditions that lead to seal failures, product contamination, and environmental releases. The 7200-RVXY-R's continuous surveillance with 4-20mA trending enables predictive maintenance strategies that extend pump life 30-50% while preventing unplanned shutdowns averaging $100K+ per incident.

Large Motor Condition Monitoring: Industrial facilities track radial vibration on motors driving fans, pumps, and compressors in critical processes. The monitor detects rotor bar cracks, bearing defects, and soft foot conditions through characteristic orbit patterns. Network connectivity enables centralized monitoring of dozens of motors from a single control room, optimizing maintenance resource allocation and preventing failures that cascade into process-wide shutdowns.

Centrifugal Fan Reliability: Cement plants, steel mills, and power stations monitor induced draft fans, forced draft fans, and primary air fans where vibration-induced failures cause immediate process disruptions. The 7200-RVXY-R identifies blade imbalance, bearing wear, and structural resonances, enabling condition-based maintenance that reduces fan downtime 40% compared to reactive repair strategies.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 7200-RVXY-R when applications require complete radial vibration visibility through dual-axis measurement. Single-axis monitors suffice for simple unbalance detection; orbit analysis capability becomes essential when diagnosing complex fault mechanisms (misalignment, bearing defects, shaft cracks, rubs) or when API 670 compliance mandates X-Y monitoring for critical machinery protection systems.

Consider measurement range requirements based on machinery type: 0-100 mils for small motors and pumps, 0-250 mils for medium turbines and compressors, 0-500 mils for large turbomachinery or equipment with flexible rotors. The 7200-RVXY-R's field-configurable range accommodates diverse applications without requiring different hardware models.

Advanced Integration Features

The monitor's Modbus interface supports both RTU (serial RS-485) and TCP (Ethernet) variants, enabling flexible network architectures. Connect multiple units via RS-485 multidrop for localized monitoring clusters, or deploy Ethernet TCP/IP for facility-wide networks spanning hundreds of measurement points. Register mapping follows industry-standard conventions, simplifying SCADA integration and reducing commissioning time.

Analog outputs provide buffered, isolated 4-20mA signals proportional to X and Y vibration amplitudes. These outputs drive chart recorders, PLC analog inputs, or DCS systems for continuous trending and historical analysis. The isolated design prevents ground loops and electrical noise from corrupting measurements in electrically harsh industrial environments.

Optional features include redundant power supplies for high-availability installations, fiber optic communication for electrically noisy environments or long-distance connections, and explosion-proof enclosures for hazardous area installations requiring Class I Division 2 or ATEX Zone 2 certification.

Delivery Timeline & Support Infrastructure

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking. Shipments include monitor, rack mounting hardware, power cord, Ethernet cable, Modbus termination resistors, quick-start guide, and comprehensive technical manual.

Custom Configuration: 10-15 business days for units requiring factory pre-configuration (alarm setpoints, communication parameters, custom firmware). Specify requirements at order placement; factory engineers validate configuration before shipment.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service—replacement units ship within 24 hours of failure notification, minimizing downtime for critical applications.

Technical Support: Lifetime access to Bently Nevada application engineering resources via phone, email, and web portal. Support includes configuration assistance, troubleshooting guidance, firmware updates, and application-specific recommendations for optimal performance.

Documentation Package: Installation manual with wiring diagrams, configuration guide with parameter descriptions, Modbus register map for SCADA integration, API 670 compliance verification procedures, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

What proximity probe systems are compatible with the 7200-RVXY-R radial vibration monitor?
The monitor accepts standard 200mV/mil proximitor outputs from Bently Nevada 3300 XL, 3300 NSv, and legacy 7200 series proximity probe systems. Third-party proximitors meeting the 200mV/mil sensitivity specification also work, though Bently Nevada probes ensure optimal performance and warranty coverage. Each axis requires one proximity probe and proximitor; a complete X-Y installation uses two probe/proximitor pairs.

How do I configure alarm setpoints for API 670 compliance on turbine applications?
API 670 specifies Alert alarms at 1.5× normal vibration and Danger alarms at 2.5× normal vibration for turbomachinery. Access the front-panel menu, navigate to Alarm Configuration, and set X-axis Alert (typically 2.0 mils), X-axis Danger (3.0 mils), Y-axis Alert (2.0 mils), and Y-axis Danger (3.0 mils). Configure voting logic as 1oo2 (either axis triggers alarm) for maximum protection or 2oo2 (both axes must exceed threshold) to reduce nuisance trips. Relay outputs connect to turbine trip systems per API 670 Section 5.8 requirements.

Can the monitor integrate with existing DCS systems lacking Modbus capability?
Yes, the 4-20mA analog outputs provide universal compatibility with any DCS, PLC, or control system accepting industry-standard current loop signals. Connect X-axis output to one analog input channel and Y-axis output to a second channel. The DCS reads vibration amplitude directly from the 4-20mA signal (4mA = 0 mils, 20mA = full scale). This approach works with legacy systems installed decades ago, protecting existing infrastructure investments while adding modern monitoring capability.

What orbit patterns indicate specific machinery faults during diagnostic analysis?
Circular orbits indicate pure unbalance—the most common rotating machinery fault. Elliptical orbits suggest misalignment or bearing problems; the ellipse major axis orientation reveals the fault direction. Figure-8 or banana-shaped orbits indicate looseness or cracked shafts. Orbits with multiple loops suggest subsynchronous vibration from oil whirl, rubs, or aerodynamic instabilities. The 7200-RVXY-R's real-time orbit display enables operators to recognize these patterns without specialized vibration analysis training.

How many monitors can connect to a single Modbus network for centralized surveillance?
Modbus RTU (RS-485) supports up to 32 devices per network segment using standard addressing. Modbus TCP (Ethernet) scales to hundreds of monitors limited only by network switch capacity and bandwidth. For large installations, deploy multiple RS-485 segments with Modbus-to-Ethernet gateways, or use native Ethernet connectivity for simplified architecture. Each monitor consumes minimal bandwidth (typically <1 kbps), enabling real-time polling of 100+ units from a single SCADA server.

What installation environment limitations apply to the rack-mount configuration?
The IP20-rated enclosure requires installation in climate-controlled control rooms or electrical enclosures protecting against dust, moisture, and temperature extremes. Operating temperature range is -30°C to +65°C; installations in ambient conditions exceeding 50°C should include forced ventilation or air conditioning. For outdoor or harsh environment installations, mount the monitor in a NEMA 4X or IP65-rated panel with environmental controls. The rack-mount format fits standard 19-inch equipment racks; allow 3U (5.25 inches) vertical space and 12 inches depth including cable clearance.
