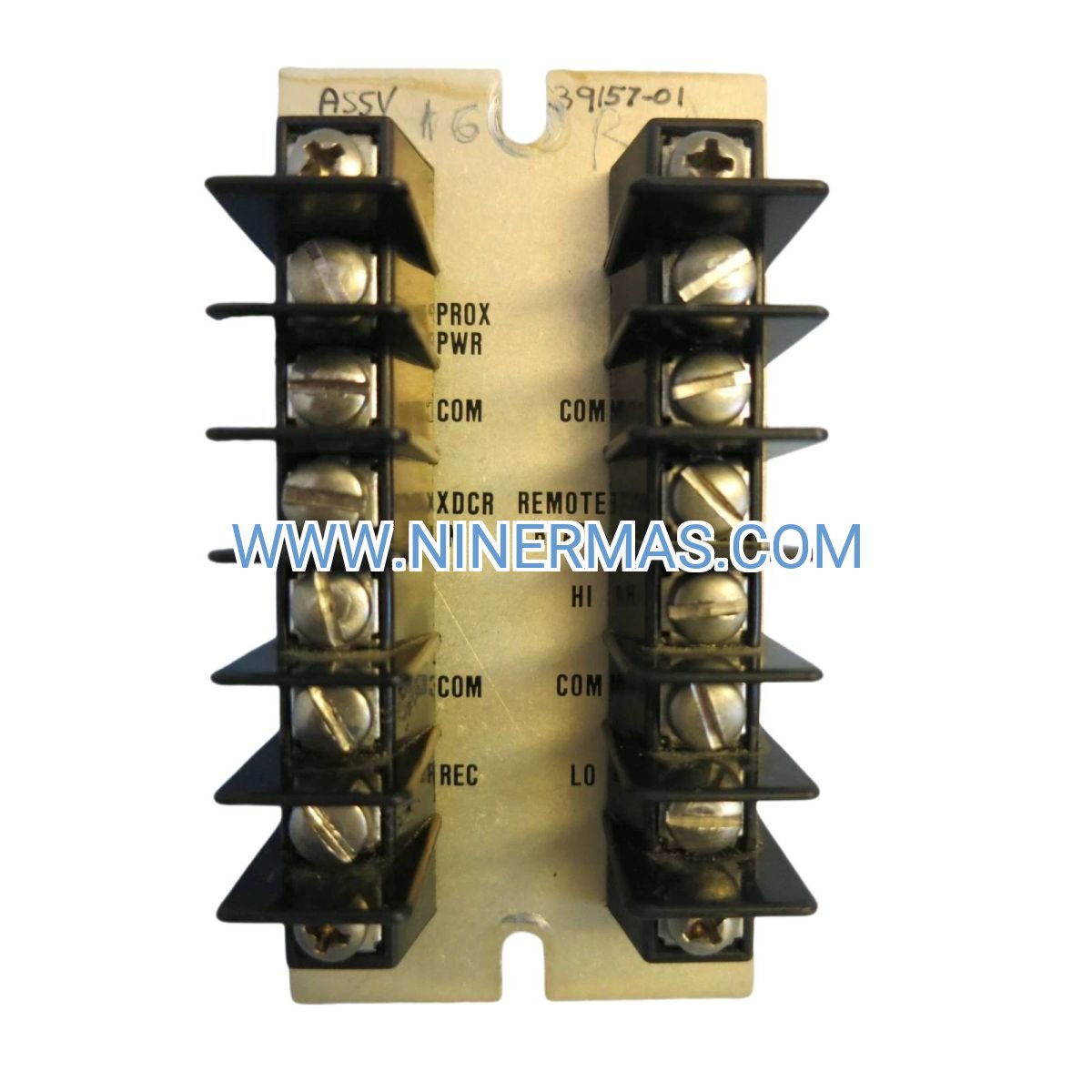

Bently Nevada 39157-01 Wiring Terminal Board (Industrial-Grade DIN Rail Interface)

The Bently Nevada 39157-01 Wiring Terminal Board is a professional-grade termination solution designed for industrial vibration monitoring systems, PLC integration, and distributed control applications. Through standardized DIN rail mounting and high-density screw terminals, it enables organized, reliable signal routing from proximity probes, accelerometers, and field sensors to monitoring racks or control cabinets.

Ideal for power generation plants, petrochemical facilities, steel mills, and heavy machinery installations where continuous condition monitoring is critical. This terminal board addresses common challenges including cable clutter, inconsistent termination quality, troubleshooting difficulty, and inadequate environmental protection in harsh industrial environments.

Featuring UL-recognized construction, 300V/10A terminal ratings, and compatibility with 12–24 AWG conductors, the 39157-01 delivers field-proven performance for OEMs, system integrators, maintenance teams, and automation engineers. Contact our technical team for application-specific wiring diagrams, compatibility verification, and volume pricing.

Core Features & Advantages

• Standardized DIN Rail Mounting
  Snap-on installation to 35mm DIN rail (EN 60715 compliant) enables fast deployment and flexible cabinet layout, reducing installation time by up to 40% compared to custom backplanes.
• High-Density Screw Terminals
  Dual-level terminal blocks with captive screws accommodate 12–24 AWG solid or stranded wire, ensuring vibration-resistant connections and simplified field wiring in multi-channel systems.
• Clear Channel Identification
  Silk-screened terminal labels and optional color-coded markers streamline commissioning, reduce wiring errors, and accelerate troubleshooting during maintenance or system expansion.
• Robust Electrical Ratings
  300V AC/DC voltage rating and 10A current capacity per terminal support a wide range of sensor types (proximity probes, 4-20mA transmitters, thermocouples) and power distribution requirements.
• Industrial-Grade Construction
  Flame-retardant thermoplastic housing (UL94 V-0), nickel-plated brass terminals, and conformal coating options ensure reliable operation in temperatures from -40°C to +85°C with resistance to moisture, dust, and chemical exposure.
• Flexible System Integration
  Compatible with Bently Nevada 3300, 3500 series monitors, as well as third-party PLCs (Allen-Bradley, Siemens, Schneider), DCS platforms, and SCADA systems via standard wiring practices.

Typical Application Scenarios

This terminal board is engineered for installations demanding organized signal management, environmental resilience, and long-term reliability:

• Turbine & Compressor Monitoring
  Centralized termination for vibration probes, thrust position sensors, and speed pickups in steam turbines, gas turbines, centrifugal compressors, and rotating equipment protection systems.
• Motor Control Centers & VFD Panels
  Interface between field sensors (temperature, pressure, flow) and variable frequency drives or motor protection relays, supporting predictive maintenance and automated shutdown sequences.
• Petrochemical & Refinery Installations
  Hazardous area signal marshalling (when paired with appropriate barriers), enabling safe connection of intrinsically safe sensors to control room equipment in Zone 2 / Division 2 environments.
• Power Plant Auxiliary Systems
  Boiler feed pumps, cooling water systems, and generator excitation monitoring, where cable runs exceed 100 meters and intermediate termination points reduce voltage drop and noise susceptibility.
• OEM Machinery & Skid Packages
  Pre-wired terminal boards in packaged equipment (pump skids, air handling units, process modules) simplify field installation and meet UL508A panel shop requirements.

Technical Parameters & Selection Guide

To ensure optimal performance and code compliance, the following specifications apply to the Bently Nevada 39157-01:

Selection Recommendations: When specifying, consider total channel count, sensor signal types (voltage, current, contact closure), cable entry direction (top/bottom/side), and whether removable terminal blocks are required for maintenance. For systems with more than 16 channels, evaluate multi-board configurations with common ground bus. Our engineering team can provide CAD drawings, terminal assignment templates, and compatibility verification for your specific monitoring platform.

Extended Capabilities

• Modular Expansion: Multiple boards can be ganged on a single DIN rail with jumper links for common power or ground distribution.
• Labeling Systems: Compatible with Brady, Panduit, and Phoenix Contact label printers for permanent channel identification.
• Accessory Integration: End brackets, grounding bars, and cable management clips available for complete panel assembly.
• Custom Configurations: Factory pre-wiring, custom terminal counts, and application-specific testing available for OEM and project orders (MOQ applies).

Delivery, Service & Quality Assurance

Lead Time: Stock items ship within 1–3 business days; custom configurations require 10–15 business days depending on complexity.

Warranty: 24-month warranty covering material and workmanship defects under normal operating conditions.

Technical Support: Remote application assistance, wiring diagram review, and compatibility verification included. On-site commissioning support available in select regions (travel charges apply).

Documentation Package: Each unit ships with dimensional drawings, terminal layout diagrams, torque specifications, and installation instructions. CAD models (STEP, DWG) available upon request.

Frequently Asked Questions (FAQ)

Q: How do I integrate the Bently Nevada 39157-01 terminal board with existing PLC systems?
A: The board provides standard screw terminals compatible with any PLC I/O module. Verify your PLC input voltage/current specifications, then wire sensor outputs to the terminal board and run shielded cables to the PLC rack. Consult your PLC manufacturer's wiring manual for grounding and shielding best practices.

Q: What is the maximum number of sensors I can connect to one terminal board?
A: Terminal count varies by model configuration (typically 8–24 positions). For larger systems, multiple boards can be mounted side-by-side on the same DIN rail with common power distribution.

Q: Can this terminal board be used in hazardous area applications?
A: The 39157-01 itself is not intrinsically safe rated. For Zone 1/Division 1 installations, it must be used in conjunction with approved galvanic isolators or zener barriers mounted in the safe area. Contact us for barrier selection guidance.

Q: What environmental protection does the terminal board offer?
A: Standard configuration is IP20 (finger-safe, indoor use). Optional snap-on covers provide IP65 protection against dust and water jets for wash-down environments or outdoor enclosures.

Q: Does the board support remote monitoring or data logging?
A: The terminal board is a passive wiring interface. Remote monitoring requires connection to a PLC, DCS, or dedicated monitoring system (e.g., Bently Nevada 3500 rack) that supports Modbus, OPC UA, or Ethernet/IP protocols.

Q: Are replacement terminal blocks available if damaged during maintenance?
A: Yes, individual terminal blocks are available as spare parts. Specify the model number and terminal position when ordering. Removable terminal block versions simplify replacement without disturbing field wiring.

Request a Quote or Technical Consultation

For detailed application engineering, custom configurations, or volume pricing, please provide the following information:

• Project name and application type (e.g., turbine monitoring, motor control)
• Total number of sensor channels and signal types (voltage, current, contact)
• Environmental conditions (temperature range, enclosure rating, hazardous area classification)
• Preferred delivery timeline and quantity requirements
• Existing monitoring system or PLC platform (for compatibility verification)

Our application engineers will respond within 24 hours with a tailored solution, wiring recommendations, and competitive pricing.
