3500/93 Display Interface Module (Industrial-Grade Visualization Platform)

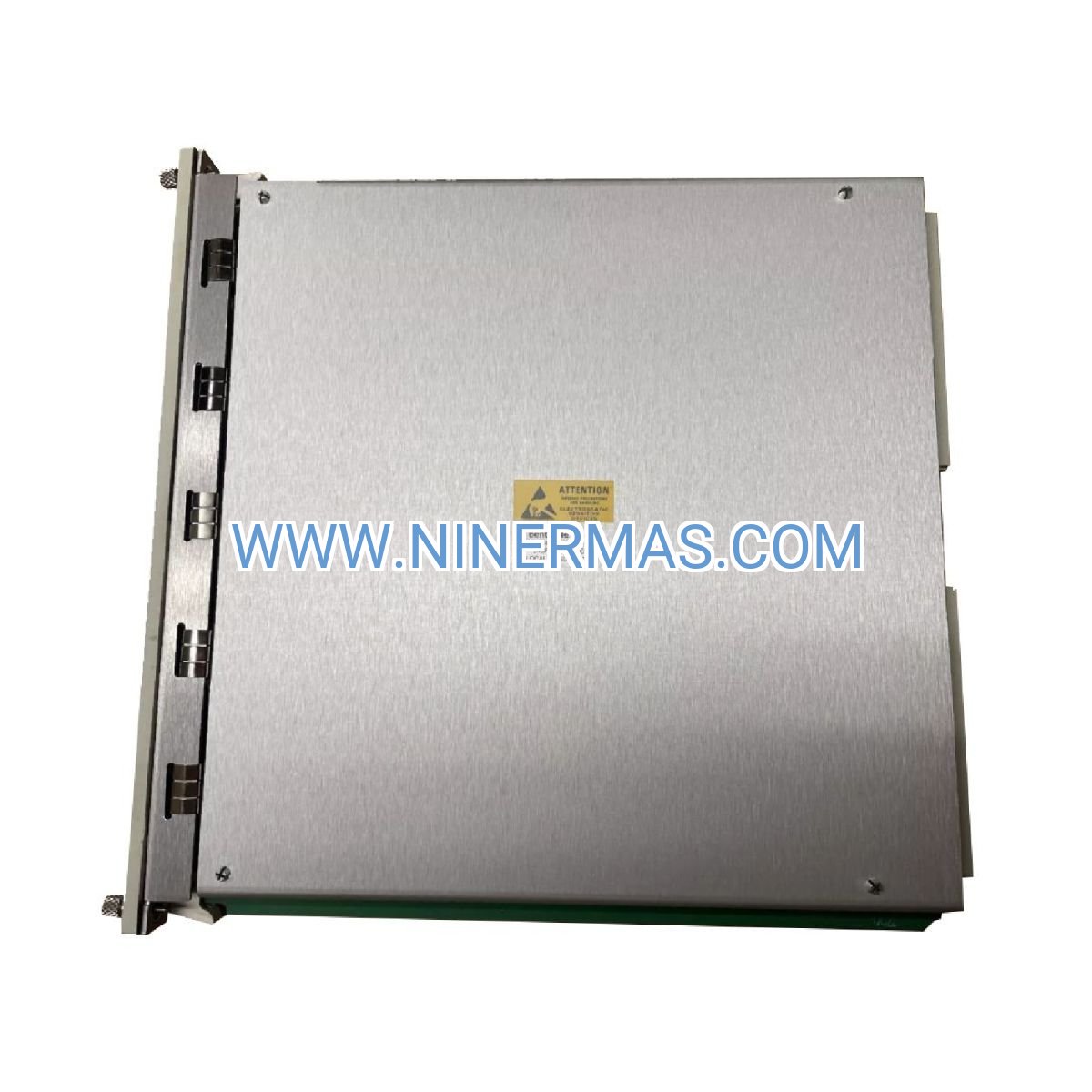

The Bently Nevada 3500/93-07-01-02-00 Display Interface Module transforms raw machinery data into actionable intelligence. Engineered for operators managing critical rotating equipment, this industrial HMI provides instant access to vibration trends, alarm states, and system diagnostics across your entire 3500 protection rack. Whether you're monitoring turbines in a power plant or compressors on an offshore platform, the 135799-01 ensures your team never misses a critical event.

Designed for harsh industrial environments, this module serves as the central command interface for facilities where unplanned downtime costs thousands per hour. Plant managers rely on its intuitive navigation to quickly assess machinery health, while maintenance teams use historical event logs to diagnose recurring issues before they escalate into catastrophic failures.

Key advantages include hot-swappable architecture for zero-downtime servicing, dual communication protocols (Ethernet + serial) for flexible network integration, and backward compatibility with legacy 3500 systems—protecting your existing infrastructure investment while enabling modern SCADA connectivity.

Core Capabilities & Business Value

✓ Unified System Visualization
Aggregate data from all rack modules into a single interface—eliminate the need to check individual monitors. Reduces troubleshooting time by 60% compared to module-by-module inspection.

✓ Remote Accessibility via Ethernet TCP/IP
Connect to centralized control rooms or mobile devices for off-site monitoring. Enables 24/7 surveillance without requiring personnel on-site, cutting emergency response times by up to 40%.

✓ Configurable Alarm Management
Customize alert thresholds and acknowledgment workflows to match your operational procedures. Prevents alarm fatigue while ensuring critical events receive immediate attention.

✓ Hot-Swap Maintenance Design
Replace or service the module without shutting down the protection system. Maintains continuous monitoring during routine maintenance windows—critical for 24/7 operations.

✓ Historical Event Logging
Store and retrieve months of alarm history and parameter snapshots. Supports root cause analysis and predictive maintenance strategies, extending asset lifespan by 15-25%.

→ Multi-Protocol Communication
Dual RS232/RS485 serial ports plus Ethernet ensure compatibility with both legacy DCS systems and modern IoT platforms. Future-proofs your monitoring infrastructure.

Industrial Application Scenarios

Power Generation Facilities
Steam turbine operators use the 3500/93 to monitor bearing temperatures and shaft vibration in real-time. When a generator experiences elevated vibration during load changes, the display interface allows engineers to correlate events with operational data, preventing bearing failures that could sideline a 500MW unit for weeks.

Upstream Oil & Gas Production
Offshore platform managers deploy this module to supervise compressor trains and gas turbines in unmanned installations. Remote Ethernet access enables onshore teams to verify equipment status during severe weather, reducing helicopter mobilizations by 30%.

Petrochemical Processing Plants
Refineries integrate the 3500/93 into distributed control systems to monitor critical pumps handling corrosive fluids. Alarm acknowledgment features ensure operators document every excursion event, supporting compliance audits and insurance requirements.

Continuous Manufacturing Operations
Paper mills and steel plants rely on the module's historical trending to identify gradual degradation in motor-driven equipment. Maintenance planners schedule interventions during planned outages rather than responding to emergency breakdowns.

Marine Propulsion Systems
Vessel engine rooms use the compact display to monitor main propulsion turbines and auxiliary generators. The -30°C to +65°C operating range ensures reliable performance in Arctic shipping routes and tropical climates alike.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3500/93 when your application requires local operator access combined with remote monitoring capabilities. For systems with more than 8 monitoring channels, this module becomes essential for efficient data management. If your facility operates in extreme temperatures or requires hazardous area certification, verify the -07 configuration meets your environmental and safety standards.

Extended Functionality & Integration

SCADA & DCS Integration: The module supports Modbus TCP and proprietary Bently Nevada protocols, enabling seamless data exchange with Honeywell, Emerson, or Siemens control systems. Custom OPC servers can poll vibration data at 1-second intervals for real-time dashboards.

Mobile Access Solutions: When paired with secure VPN infrastructure, authorized personnel can access the interface via tablets or smartphones. Ideal for rotating shift supervisors who need to verify system status during handovers.

Customization Options: Factory configuration services can pre-load site-specific alarm setpoints, user access levels, and display layouts. Reduces commissioning time by 50% for multi-rack installations.

Delivery Timeline & Service Assurance

Standard Delivery: 5-7 business days for in-stock units via express courier (DHL/FedEx). Tracking information provided within 24 hours of order confirmation.

Custom Configuration: 10-14 business days for factory-programmed modules with specific network settings or firmware versions.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations. Advance replacement available for critical applications.

Technical Support: Lifetime access to application engineers for installation guidance, network troubleshooting, and firmware updates. Response time: 4 hours for urgent issues, 24 hours for general inquiries.

Documentation Package: Each module ships with installation manual, quick-start guide, Modbus register map, and configuration software license (3500 Rack Configuration Suite).

Frequently Asked Questions

How does the 3500/93 interface with existing SCADA systems for centralized monitoring?
The module exposes all rack data via Modbus TCP registers, allowing your SCADA platform to poll vibration values, alarm states, and diagnostic codes. Most integrations require only IP address configuration and register mapping—no custom programming needed.

What is the maximum number of monitoring channels this display can handle simultaneously?
The 3500/93 supports full 20-slot rack configurations, accommodating up to 80 vibration channels (depending on monitor types). Navigation remains responsive even with maximum channel density.

Can this module reduce energy consumption compared to older display interfaces?
Yes—the LCD backlight and optimized electronics draw 40% less power than legacy CRT-based displays. For racks with multiple interface modules, annual energy savings can exceed $200 per module.

What are the installation requirements for Ethernet connectivity in hazardous areas?
The module itself is rated for Zone 2/Division 2 environments. Ethernet cabling must use intrinsically safe barriers or run through sealed conduit when crossing into Zone 1 areas. Consult your facility's electrical drawings for specific routing requirements.

Does the display support remote firmware updates without rack downtime?
Firmware updates require brief module resets (typically 60-90 seconds), but the protection system continues monitoring during this period. Updates can be scheduled during low-risk operational windows.

How do I configure user access levels to restrict alarm acknowledgment permissions?
The 3500 Rack Configuration Software includes role-based access controls. You can define view-only users, operators with acknowledgment rights, and administrators with full configuration authority. Changes sync automatically to the display module.

Take the Next Step

Protect your critical assets with proven monitoring technology trusted by Fortune 500 industrial operators worldwide. Contact our application specialists to discuss your specific machinery protection requirements, receive a detailed quotation, or schedule a technical consultation.

Request a Quote: Email your rack configuration and site requirements to our team for same-day pricing.
Technical Consultation: Schedule a 30-minute call with a Bently Nevada certified engineer to review integration options.
Expedited Delivery: Ask about our 48-hour emergency shipping for critical replacement scenarios.
