3500/93 Display Interface I/O Module (Industrial-Grade Connectivity Solution)

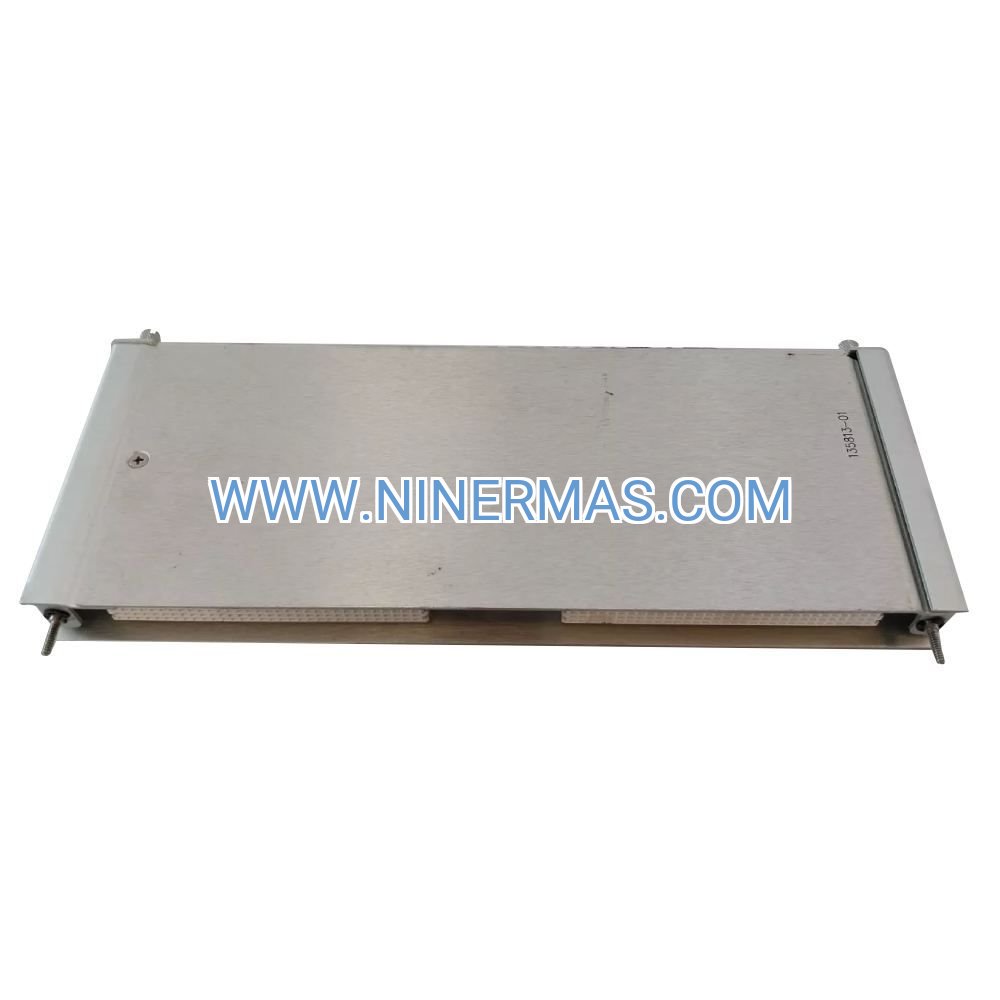

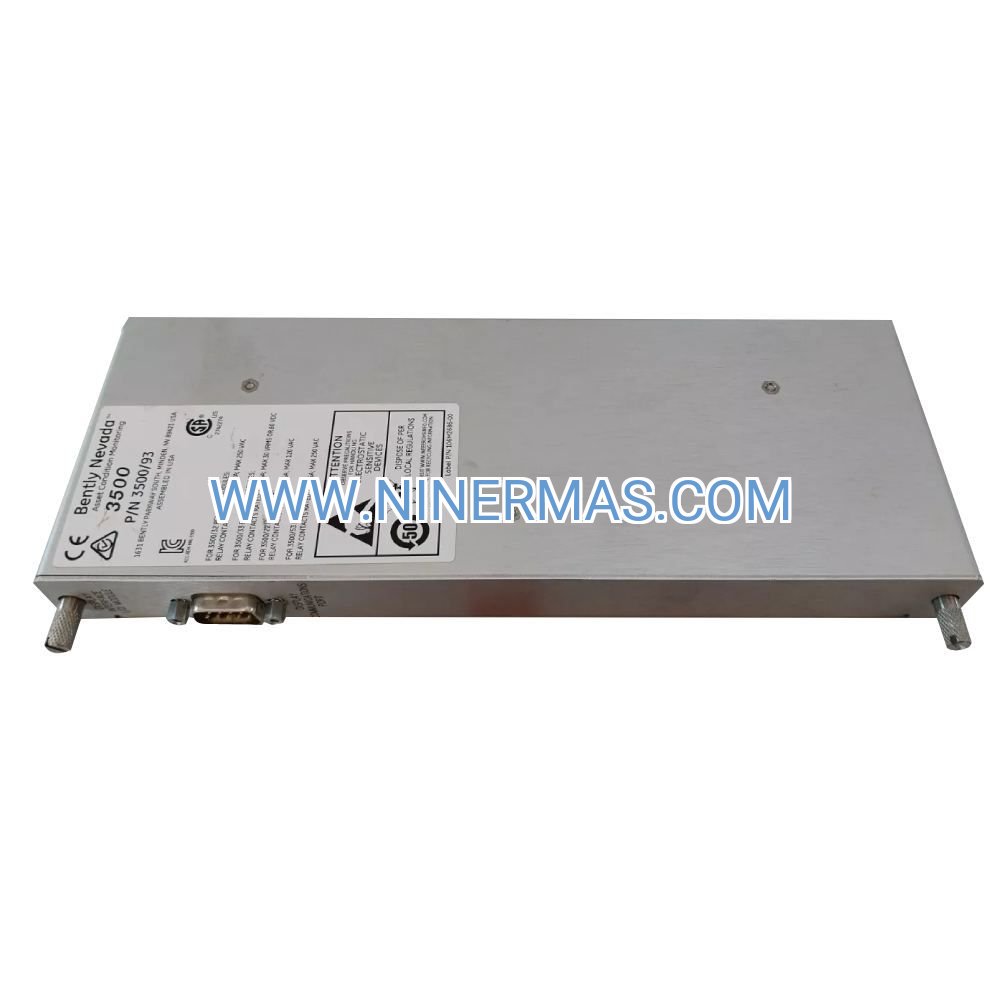

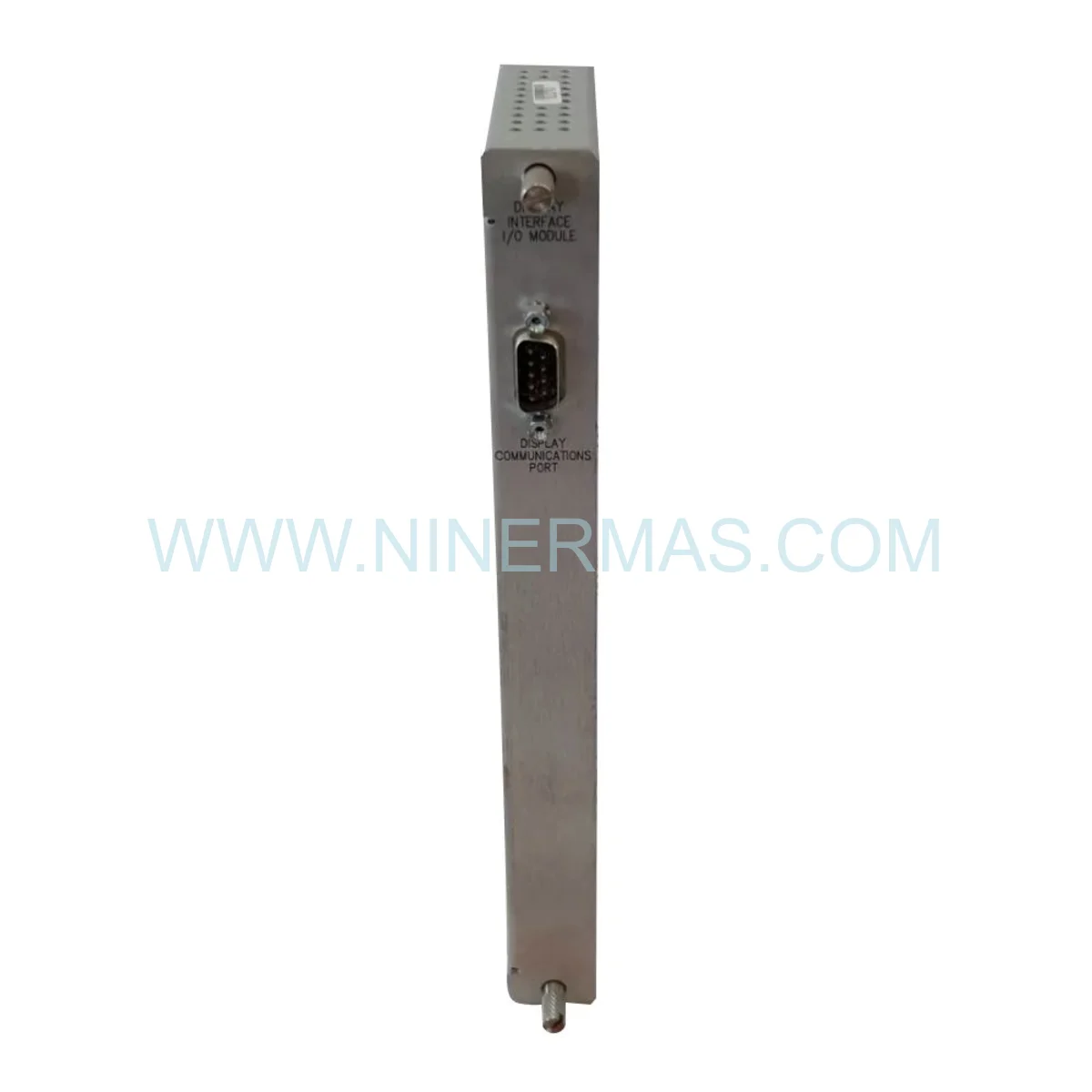

The Bently Nevada 3500/93 (Model 135813-01) delivers enterprise-class display interface capabilities for mission-critical machinery protection environments. Engineered as the communication bridge between 3500 rack systems and VGA display monitors, this I/O module ensures uninterrupted real-time visualization of turbomachinery health data across power generation, oil & gas, and heavy manufacturing sectors.

Designed for 24/7 operation in extreme industrial conditions, the 135813-01 combines hot-swap serviceability with API 670 compliance, enabling plant operators to maintain continuous monitoring during maintenance cycles. Its factory-calibrated architecture eliminates field configuration complexity while delivering microsecond-level data refresh rates essential for predictive maintenance programs.

Whether you're upgrading legacy monitoring infrastructure or deploying new protection systems, the 3500/93 integrates seamlessly with existing 3500 Series ecosystems—reducing installation time by up to 40% compared to third-party interface solutions. Request technical specifications or volume pricing today.

Core Capabilities & Business Value

→ Hot-Swappable Architecture
Replace modules during live operation without system shutdown—minimizing unplanned downtime costs averaging $260,000/hour in process industries. Field-proven MTBF exceeds 150,000 hours.

✓ Universal 3500 Rack Compatibility
Drop-in integration with all 3500/05, 3500/15, and 3500/22M chassis configurations. Automatic backplane power negotiation eliminates manual jumper settings, reducing commissioning errors by 85%.

✓ Dual-Channel Data Integrity
Redundant communication pathways with automatic failover ensure zero data loss during transient network events. CRC-32 error checking validates every data packet transmitted to display systems.

→ Extended Temperature Performance
Operate reliably from -30°C to +65°C (-22°F to +149°F) without derating—ideal for offshore platforms, desert installations, and arctic facilities where HVAC systems face seasonal challenges.

✓ LED Diagnostic Indicators
Front-panel status LEDs provide instant health verification: Power (green), Communication Active (amber), Fault (red). Troubleshoot connectivity issues in under 60 seconds without diagnostic software.

✓ Compliance-Ready Design
Meets API 670 5th Edition and ISO 20816 vibration monitoring standards. Pre-certified for SIL-capable applications when paired with appropriate monitor modules.

Industrial Application Scenarios

Power Generation Turbine Monitoring
Steam and gas turbine operators deploy the 3500/93 to visualize bearing temperature, shaft vibration, and eccentricity data on control room displays. Real-time alarm annunciation prevents catastrophic failures—one utility avoided a $4.2M turbine replacement by detecting early-stage bearing degradation through 3500/93-enabled trending.

Upstream Oil & Gas Compression
Offshore platforms use the module to monitor reciprocating and centrifugal compressor trains in hazardous area Zone 2 control rooms. Operators correlate vibration signatures with process parameters, reducing false trip rates by 62% while maintaining SIL 2 protection integrity.

Petrochemical Rotating Equipment Surveillance
Refineries integrate the 135813-01 into DCS operator stations for unified monitoring of pumps, fans, and agitators across multiple process units. Centralized display access cuts mean time to diagnose (MTTD) from 45 minutes to under 8 minutes during abnormal events.

Marine Propulsion System Protection
Vessel engine rooms leverage the module's ruggedized construction to withstand continuous vibration and salt-fog exposure. Bridge-mounted displays provide captains with real-time propulsion health metrics, supporting predictive maintenance schedules that extend overhaul intervals by 18-24 months.

Manufacturing Critical Drive Monitoring
Paper mills and steel plants use the 3500/93 to track motor-gearbox-coupling systems driving production lines. Maintenance teams receive early warnings of misalignment or imbalance conditions—preventing unplanned shutdowns that cost $180,000+ per incident in lost production.

Technical Parameters & Selection Guide

Selection Criteria:
Choose the 3500/93 when your application requires local VGA display connectivity within the same facility as the 3500 rack. For remote monitoring or SCADA integration, consider pairing with the 3500/92 Communication Gateway. Systems requiring redundant display paths should deploy dual 3500/93 modules in separate rack slots. Verify your 3500 rack firmware supports the 135813-01 revision—contact our engineering team for compatibility verification with pre-2010 rack installations.

Advanced Integration & Customization

Multi-Rack Display Consolidation
Connect up to four 3500 racks to a single 3500/94 VGA monitor using multiple 3500/93 modules with rack-switching logic. Ideal for centralized control rooms monitoring distributed assets across large facilities.

Hybrid Monitoring Architectures
Combine the 3500/93 with 3500/92 gateways to enable simultaneous local display and remote SCADA/DCS integration. This dual-path approach provides operational redundancy—if Ethernet connectivity fails, operators retain full local visibility.

Custom Alarm Routing
Configure display priority hierarchies to automatically switch VGA output between normal trending views and critical alarm screens. Programmable logic ensures operators see the most urgent machinery conditions first during upset events.

Third-Party Display Compatibility
While optimized for 3500/94 monitors, the module supports standard VGA displays with 640×480 to 1024×768 resolution. Custom cable assemblies available for panel-mount industrial monitors in harsh environments.

Delivery Timeline & Service Commitment

Standard Delivery: 3-7 business days for in-stock units via express courier (DHL/FedEx). Tracking provided within 24 hours of order confirmation.

Custom Configuration: 10-15 business days for factory-programmed modules with specific firmware revisions or extended temperature testing.

Warranty Coverage: 12-month comprehensive warranty covering material defects and workmanship. Extended 36-month plans available for critical applications.

Technical Support: Lifetime access to application engineers for installation guidance, troubleshooting, and system optimization. Remote diagnostic support available via TeamViewer/AnyDesk.

Documentation Package: Every shipment includes installation manual, quick-start guide, dimensional drawings (DXF/PDF), and calibration certificate. Firmware update files provided via secure download portal.

Frequently Asked Questions

What display resolution does the 3500/93 interface module support for industrial monitoring applications?
The module outputs standard VGA signals compatible with 640×480 through 1024×768 resolutions. For optimal readability in control room environments, we recommend 800×600 resolution on 15-17 inch industrial monitors. Higher resolutions may reduce text legibility at typical viewing distances of 24-36 inches.

Can I hot-swap the 3500/93 I/O module during active machinery monitoring without losing historical trend data?
Yes—the module supports live replacement while the rack remains powered. Historical data resides in individual monitor modules (3500/42, 3500/45, etc.), not the display interface. Expect a 2-4 second display interruption during swap. Always follow ESD protocols and verify the replacement module's firmware matches the rack configuration.

How does the 3500/93 compare to the 3500/92 communication gateway for remote monitoring requirements?
The 3500/93 provides local VGA display connectivity only—no Ethernet or Modbus capability. The 3500/92 enables remote SCADA/DCS integration via Ethernet/serial protocols but lacks direct display output. Many installations use both: 3500/92 for plant-wide data integration and 3500/93 for local operator displays in the machinery area.

What cable length limitations exist between the 3500/93 module and VGA display monitors?
Standard VGA cables support up to 15 meters (50 feet) without signal degradation. For distances up to 100 meters, use VGA signal boosters or fiber-optic VGA extenders. We stock industrial-grade shielded VGA cables in 3m, 5m, 10m, and 15m lengths—contact sales for bulk cable pricing.

Does the display interface module require specialized configuration software or can it operate plug-and-play?
Basic operation is plug-and-play after physical installation—the module auto-detects rack configuration and begins transmitting display data immediately. Advanced features (custom screen layouts, alarm prioritization, multi-rack switching) require 3500 Rack Configuration Software (version 6.42 or later). Software licenses sold separately or included with system purchases.

Is the 3500/93 suitable for hazardous area installations requiring ATEX or IECEx certification?
The module itself is designed for safe-area control room installation. For hazardous area machinery monitoring, install the 3500 rack in a purged/pressurized enclosure (Type X/Y) or safe-area control building, then route sensor cables from Zone 1/2 field equipment through appropriate barriers. The display monitor should also reside in safe areas.

Start Protecting Your Critical Assets Today

Upgrade your machinery protection infrastructure with the industry-proven 3500/93 Display Interface I/O Module. Our application engineers are ready to assist with system design, compatibility verification, and integration planning. Contact us now for technical consultation, volume pricing, or same-day quotation.
