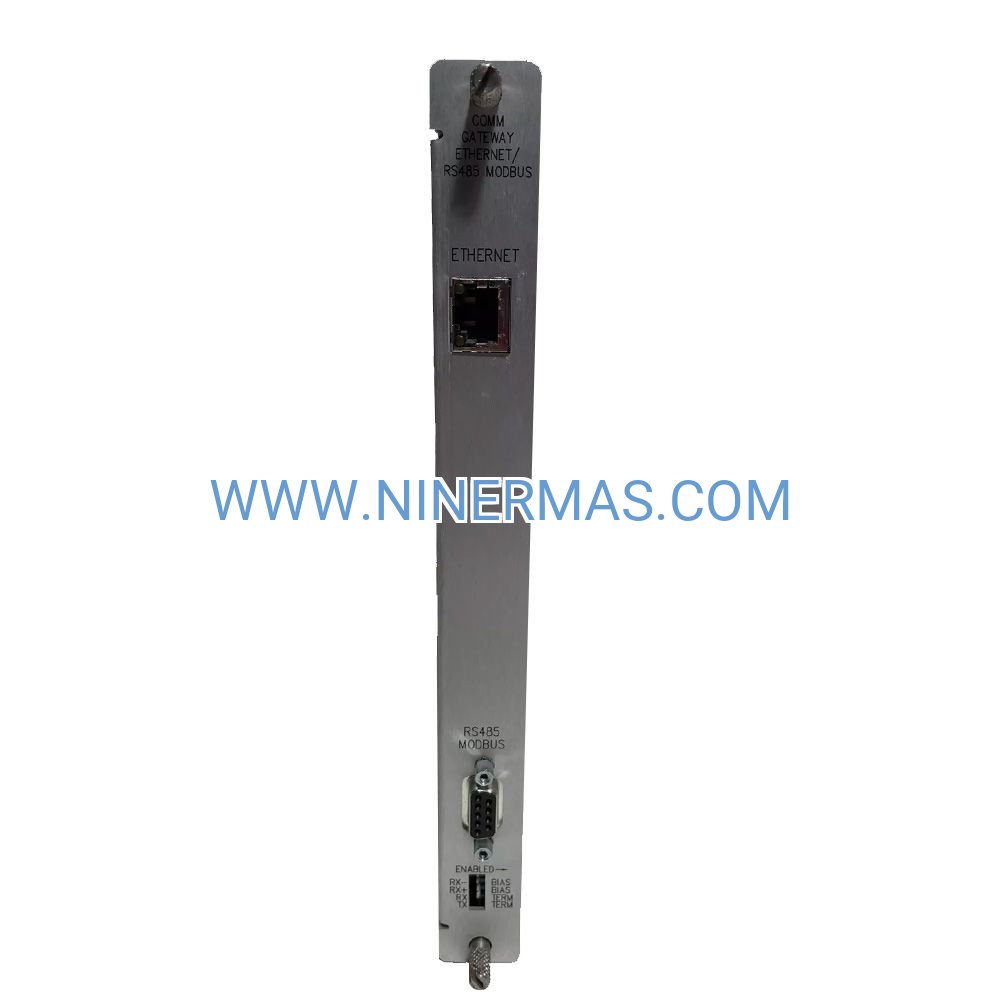

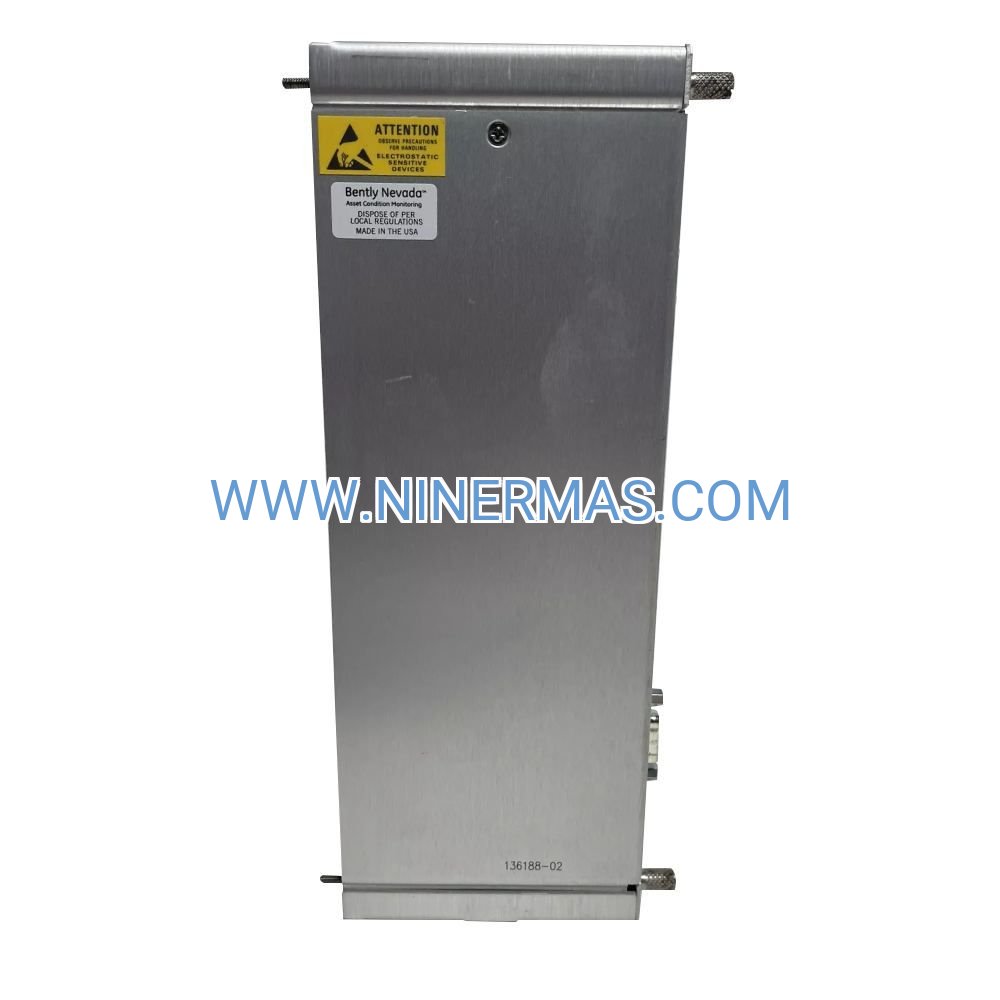

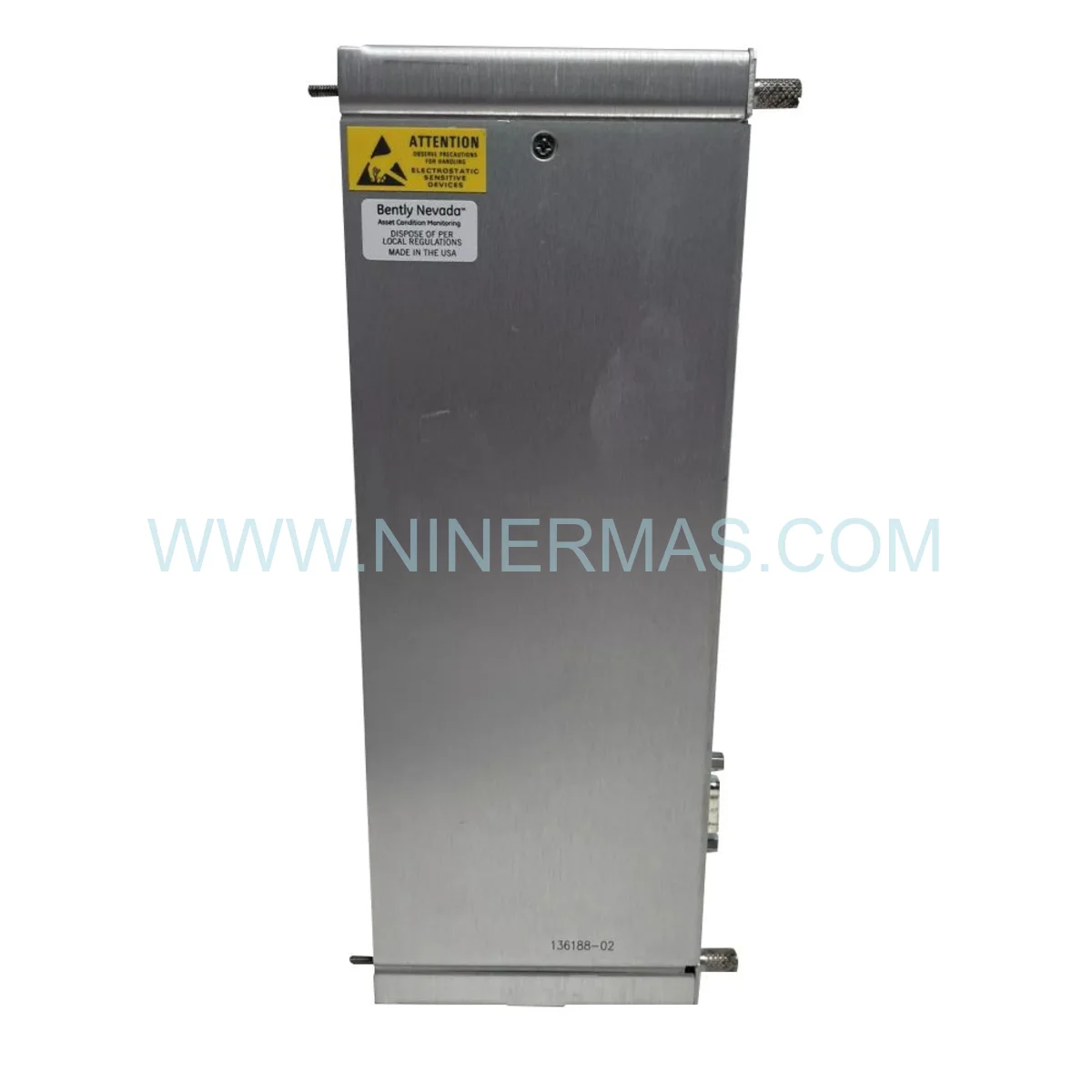

Industrial-Grade Communication Gateway for Machinery Protection Systems

The Bently Nevada 136188-02 represents a critical infrastructure component for industrial facilities requiring seamless integration between machinery protection systems and enterprise control networks. This dual-protocol communication gateway delivers real-time vibration data, alarm notifications, and diagnostic information from 3500 Series monitoring racks to SCADA platforms, DCS networks, and data historians through both Ethernet TCP/IP and RS485 Modbus RTU interfaces.

Designed for mission-critical applications in power generation, oil & gas, petrochemical, and heavy manufacturing sectors, this module eliminates data silos by providing continuous access to equipment health parameters. Plant operators gain immediate visibility into rotating machinery conditions, enabling predictive maintenance strategies that reduce unplanned downtime by up to 40% and extend asset service life.

With API 670 certification and support for 65,535 Modbus registers, the 136188-02 gateway serves facilities managing complex turbomachinery installations where comprehensive data access and network reliability are non-negotiable requirements.

Core Capabilities & Business Value

→ Dual-Protocol Connectivity
Simultaneous Ethernet Modbus TCP/IP (10/100 Mbps) and RS485 Modbus RTU operation enables integration with both modern DCS platforms and legacy serial-based systems without protocol conversion hardware. Reduces infrastructure costs while maintaining backward compatibility with existing installations.

→ Comprehensive Data Access
Expose all 3500 rack monitoring data—vibration amplitudes, phase angles, temperature readings, alarm states, and diagnostic codes—through standardized Modbus registers. Maintenance teams access critical equipment health metrics directly from CMMS platforms, eliminating manual data collection and reducing response time to developing faults.

✓ Real-Time Alarm Distribution
Instant transmission of alert, danger, and OK status changes to control room HMI systems ensures operators receive immediate notification of abnormal machinery conditions. Configurable alarm mapping allows prioritization of critical equipment and integration with plant-wide alarm management systems.

✓ Remote Configuration Capability
Network-based parameter adjustment and diagnostic access eliminate the need for physical rack visits during commissioning and troubleshooting. Engineering teams modify monitoring thresholds, adjust alarm setpoints, and retrieve diagnostic data from centralized workstations, reducing mean time to repair (MTTR) by 30-50%.

✓ High-Capacity Register Architecture
Support for 65,535 Modbus registers accommodates large-scale installations with multiple monitoring modules across 14-slot or 19-slot racks. Single gateway handles complete turbine train monitoring systems, compressor stations, or multi-unit production lines without data throughput limitations.

✓ Industrial-Hardened Design
Operating temperature range of -30°C to +65°C and 5-95% humidity tolerance ensure reliable performance in harsh industrial environments including offshore platforms, desert facilities, and arctic installations. Low power consumption (7.5W typical) and compact form factor (241.8mm × 24.4mm × 241.3mm) simplify rack integration.

Industry Applications & Problem Resolution

Power Generation Facilities
Turbine monitoring systems in combined-cycle plants, coal-fired stations, and nuclear facilities require continuous data flow to plant DCS networks. The 136188-02 module integrates with proximitor monitors, tachometer modules, and temperature sensors to provide comprehensive turbomachinery health data. Operators correlate vibration trends with process parameters, identifying developing issues before they escalate to forced outages. Typical deployment: 2-4 gateways per generating unit covering gas turbine, steam turbine, and generator monitoring.

Upstream Oil & Gas Operations
Offshore platforms and remote wellhead facilities face unique challenges: limited personnel, harsh environments, and critical uptime requirements. Communication gateways enable centralized monitoring of compressors, pumps, and turbines from onshore control centers via satellite or fiber links. Predictive analytics platforms consume real-time vibration data to schedule maintenance during planned shutdowns rather than responding to emergency failures. Reduces helicopter mobilizations and minimizes production deferrals.

Refining & Petrochemical Complexes
Large-scale process facilities operate hundreds of critical rotating assets across multiple process units. Integration between machinery protection systems and process control networks allows correlation of equipment health with process conditions. When a compressor shows elevated vibration, operators immediately assess upstream/downstream process variables to determine root cause—fouling, surge, misalignment, or process upset. Prevents cascade failures and improves first-time fix rates.

Manufacturing & Heavy Industry
Paper mills, steel plants, cement facilities, and chemical manufacturers depend on large motors, fans, pumps, and compressors for continuous production. Centralized condition monitoring systems fed by Modbus gateways enable maintenance teams to manage hundreds of assets from a single interface. Vibration analysts prioritize field inspections based on real-time data severity, optimizing resource allocation and preventing catastrophic failures that halt production lines.

Marine Propulsion & Power Systems
Vessel engine rooms and propulsion systems benefit from integration between machinery monitoring and ship automation systems. Communication gateways provide bridge officers and engine room personnel with real-time visibility into main engine, auxiliary engine, and generator vibration conditions. Early detection of bearing wear, misalignment, or foundation issues prevents at-sea failures and costly port diversions.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the 136188-02 variant when your application requires both Ethernet and RS485 connectivity. For Ethernet-only installations, consider the 136180-01 variant. For systems requiring proprietary protocols beyond Modbus, evaluate the 3500/92 variants with DNP3 or OPC support.

Network bandwidth planning: Each gateway can support 10-20 simultaneous Modbus TCP connections. For installations with more than 15 concurrent clients, deploy multiple gateways or implement Modbus master polling optimization to reduce network traffic.

RS485 network topology: Maximum cable length of 1200 meters (4000 feet) at 9600 bps. For longer distances, use RS485 repeaters at 1000-meter intervals or transition to Ethernet infrastructure. Maximum 32 devices per RS485 segment without repeaters.

Advanced Integration Features

Modbus Function Code Support
The gateway implements standard Modbus function codes including FC03 (Read Holding Registers), FC04 (Read Input Registers), FC06 (Write Single Register), and FC16 (Write Multiple Registers). This comprehensive function set enables both data acquisition and remote configuration capabilities through a single communication interface.

Register Mapping Flexibility
Bently Nevada 3500 Rack Configuration Software provides graphical register mapping tools that allow engineers to customize which monitoring parameters appear at specific Modbus addresses. Create application-specific register maps that align with existing SCADA tag databases, minimizing integration effort and reducing commissioning time.

Network Security Considerations
While the module supports IP address filtering and read-only register access modes, deploy industrial firewalls and VLAN segmentation for critical infrastructure applications. Implement network monitoring to detect unauthorized access attempts and configure SCADA systems to use read-only Modbus function codes where write access is not required.

Redundancy & High Availability
For applications requiring fault-tolerant communication, deploy dual 3500/92 modules in separate rack slots. Configure SCADA systems with failover logic to automatically switch to the backup gateway if the primary module becomes unavailable. This architecture ensures continuous data access even during module replacement or network maintenance.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock modules ship within 1-2 business days via express courier. Typical transit time: 3-5 business days for domestic shipments, 5-7 business days for international destinations. All shipments include tracking information and signature confirmation.

Custom Configuration: Modules requiring pre-configured network parameters or custom register mapping ship within 5-7 business days. Our application engineers perform factory configuration, testing, and documentation before shipment.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service—receive a replacement module before returning the defective unit, minimizing system downtime.

Technical Support: Unlimited phone and email support for installation assistance, network configuration, Modbus register mapping, and troubleshooting. Our certified Bently Nevada specialists provide guidance on rack integration, SCADA system configuration, and performance optimization.

Documentation Package: Each module ships with installation manual, quick start guide, Modbus register reference, and network configuration examples. Digital documentation includes AutoCAD drawings, wiring diagrams, and sample SCADA configuration files.

Frequently Asked Questions

Can this gateway operate both communication protocols at the same time?
Yes, the 136188-02 supports concurrent Ethernet Modbus TCP/IP and RS485 Modbus RTU operation. You can connect to a DCS via Ethernet while simultaneously providing data to a legacy SCADA system via RS485, with no performance degradation or data conflicts.

What is the maximum RS485 network distance supported?
The RS485 interface supports cable runs up to 1200 meters (4000 feet) when operating at 9600-19200 bps. Higher baud rates (38400-115200 bps) reduce maximum distance to 600-800 meters. For extended distances, deploy RS485 repeaters or use Ethernet infrastructure with fiber optic converters.

How many monitoring parameters can be accessed through Modbus?
The gateway provides access to 65,535 Modbus registers, encompassing all vibration measurements, temperature readings, alarm states, configuration parameters, and diagnostic data from every module in the 3500 rack. A fully populated 14-slot rack typically uses 8,000-12,000 registers.

Is configuration software required for initial setup?
Yes, Bently Nevada 3500 Rack Configuration Software is required to configure network parameters (IP address, subnet mask, gateway), select communication protocols, and map monitoring data to Modbus registers. The software runs on Windows 7/10/11 and connects to the rack via Ethernet or serial interface.

Can I replace an older 3500/92 module with this version?
The 136188-02 is backward compatible with existing 3500 rack systems. However, verify that your rack firmware version supports the module (typically firmware v3.0 or later). Update the rack configuration file to recognize the new module and verify Modbus register mappings remain consistent with your SCADA system.

What cybersecurity measures should be implemented?
Deploy the module behind industrial firewalls with stateful packet inspection. Implement VLAN segmentation to isolate monitoring networks from enterprise IT infrastructure. Configure IP address whitelisting to restrict access to authorized SCADA servers. Use read-only Modbus function codes where write access is not required. Regularly audit network traffic for unauthorized access attempts.

System Architecture & Complementary Products

The 136188-02 communication gateway integrates into comprehensive machinery protection systems alongside monitoring modules, power supplies, and rack infrastructure. Typical system configurations include:

Essential Rack Components:
• 3500 Series 14-slot or 19-slot rack chassis (houses all monitoring modules)
• AC or DC power supply module (provides regulated power to all rack components)
• TDI (Transient Data Interface) module for waveform capture and analysis

Monitoring Modules:
• Proximitor monitors for radial vibration measurement (shaft displacement)
• Seismic monitors for casing vibration measurement (velocity/acceleration)
• Tachometer modules for speed measurement and phase reference
• Temperature monitors for bearing metal temperature and process temperature
• Keyphasor modules for phase reference and rotational speed

Network Infrastructure:
• Industrial Ethernet switches with IGMP snooping for multicast traffic management
• Fiber optic media converters for long-distance or electrically noisy environments
• RS485 repeaters for extended serial network distances
• Protocol gateways for integration with non-Modbus control systems

Why Partner with NINERMAS for Critical Infrastructure Components

As a specialized distributor of industrial automation and machinery protection systems, we maintain deep inventory of Bently Nevada 3500 Series components with same-day shipping for urgent requirements. Our application engineering team provides pre-sales consultation, system design assistance, and post-installation support to ensure successful deployment of your condition monitoring infrastructure.

Our technical specialists have configured communication gateways for power plants, offshore platforms, refineries, and manufacturing facilities across 40+ countries. We understand the unique challenges of integrating machinery protection systems with diverse control platforms—from legacy DCS installations to modern IIoT architectures.

Every module undergoes incoming inspection and functional testing before shipment. We verify firmware versions, test communication interfaces, and provide configuration documentation tailored to your specific application requirements.

Ready to integrate real-time machinery health data into your control systems? Contact our application engineers to discuss your communication requirements, network architecture, and system integration strategy. We'll help you select the optimal gateway configuration and provide comprehensive support from initial design through commissioning and beyond.
