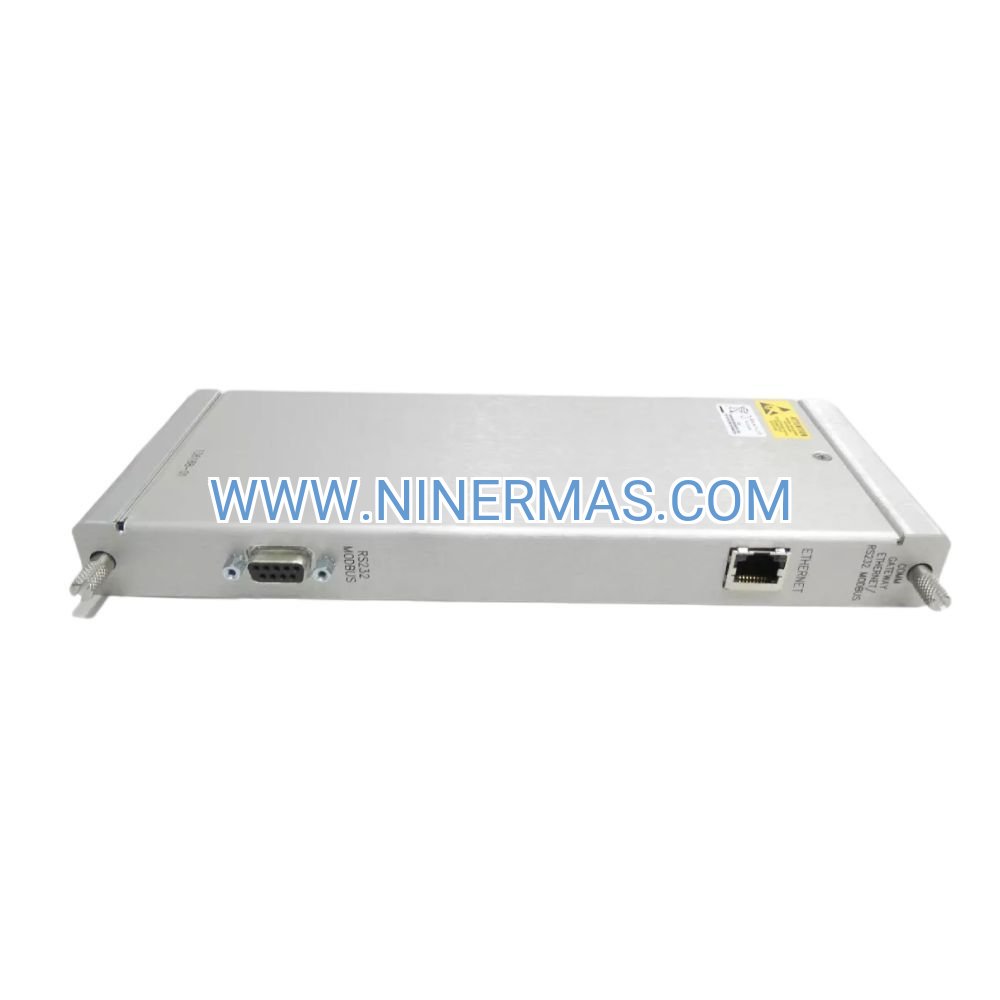

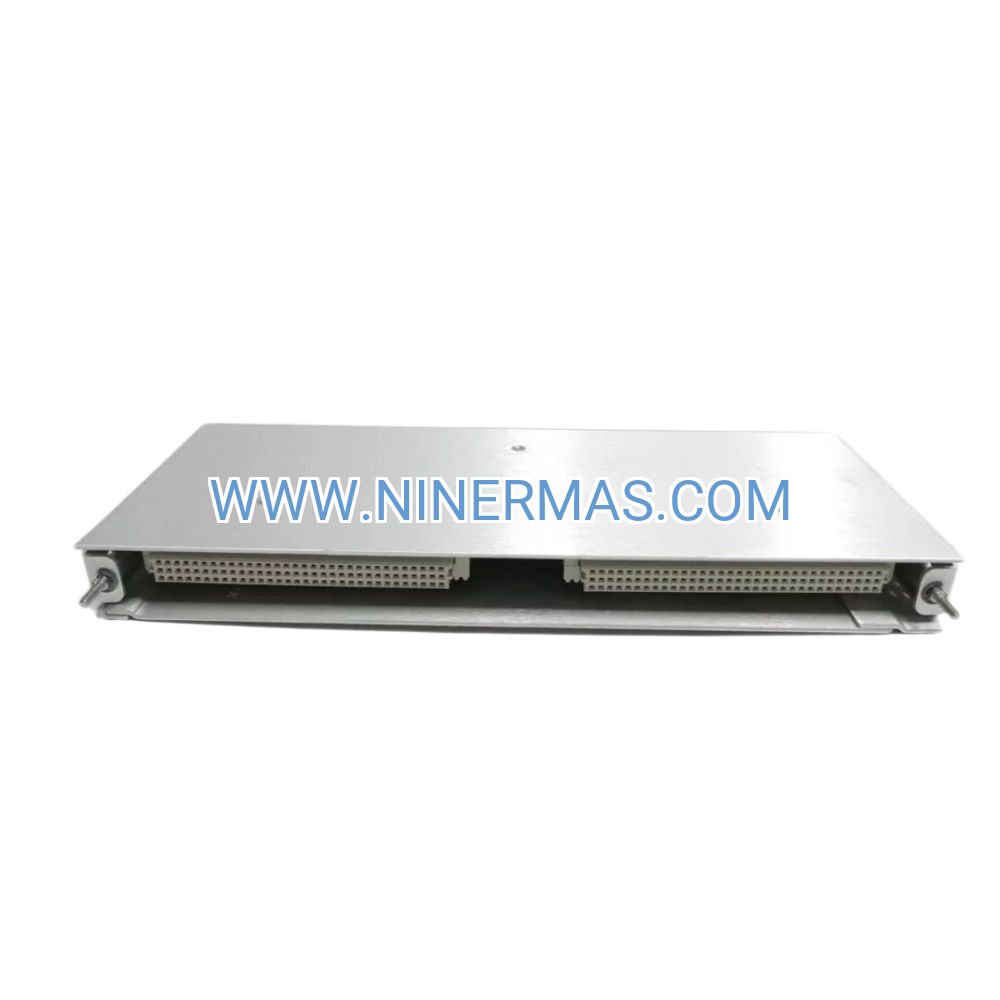

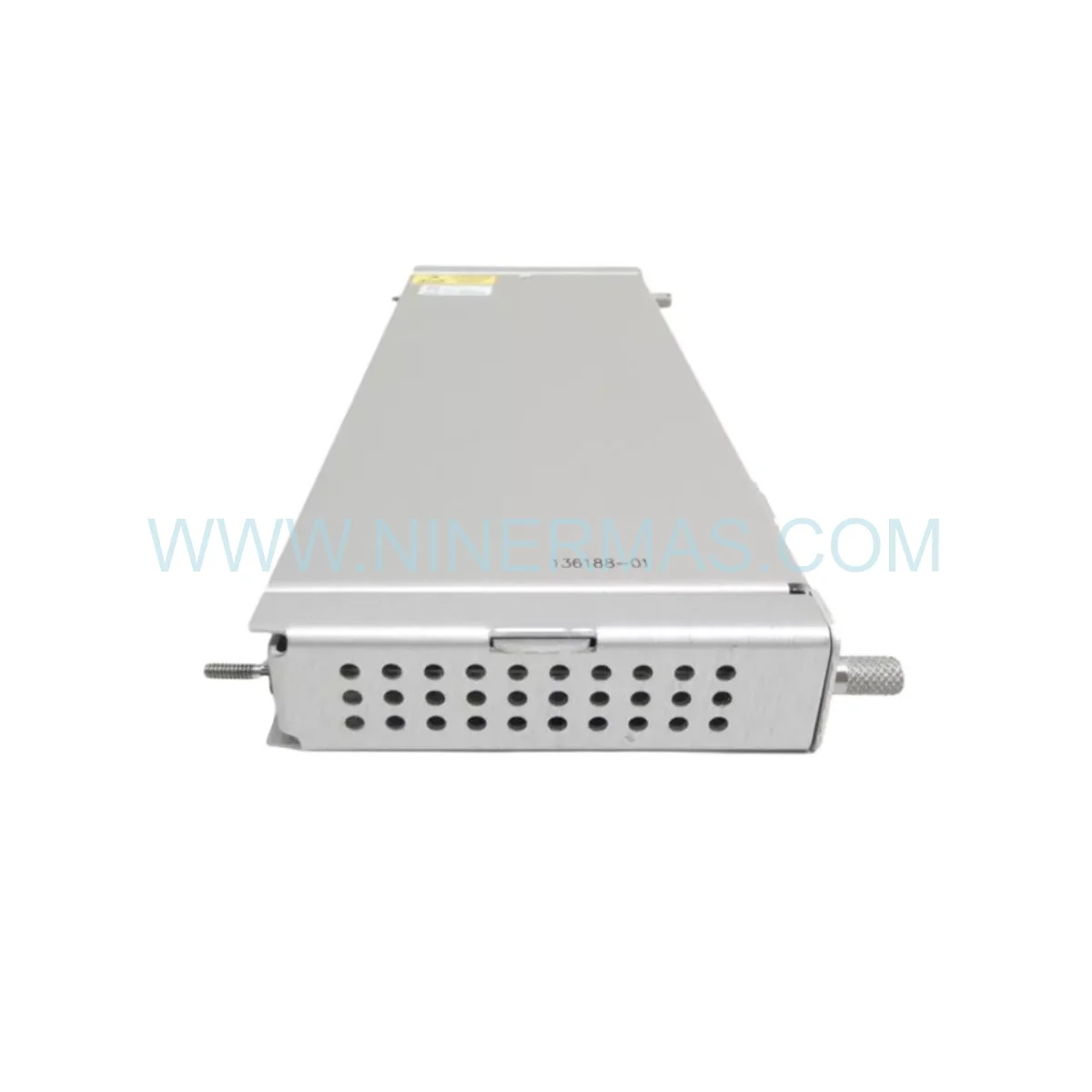

136188-01 Modbus I/O Module (Industrial-Grade Communication Interface)

The 136188-01 Modbus I/O Module delivers enterprise-level connectivity for Bently Nevada 3500/92 Communication Gateway systems, enabling seamless data exchange between machinery protection racks and plant automation infrastructure. This industrial-grade interface module supports multi-protocol communication across RS232, RS422, RS485 serial standards and Ethernet TCP/IP networks, providing flexible integration pathways for DCS, SCADA, and historian platforms in mission-critical environments.

Designed for continuous operation in harsh industrial settings, the 136188-01 bridges legacy serial architectures with modern Ethernet-based control systems. Whether connecting to DeltaV distributed control systems, Ovation automation platforms, or third-party SCADA networks, this module ensures deterministic data delivery of vibration monitoring parameters, alarm statuses, and diagnostic information without compromising 3500 rack performance.

With proven reliability in power generation, oil & gas, and process manufacturing facilities worldwide, the 136188-01 represents the industry standard for integrating Bently Nevada machinery protection systems into comprehensive plant-wide condition monitoring architectures. Low power consumption (5.0-5.6W), robust electrical isolation, and compatibility with 3500 Rack Configuration Software ensure straightforward commissioning and long-term operational stability.

Core Features & Benefits

✓ Multi-Protocol Flexibility: Simultaneous support for RS232/RS422/RS485 serial communication and Ethernet TCP/IP Modbus protocols eliminates the need for external protocol converters, reducing system complexity and potential failure points while enabling connectivity to both legacy and modern automation platforms.

✓ Real-Time Data Integration: Access all rack-monitored vibration values, temperature readings, position measurements, and alarm statuses through standardized Modbus register mapping, enabling unified visualization of machinery health data alongside process variables in DCS operator displays and SCADA dashboards.

✓ Extended Distance Capability: RS422/RS485 multi-drop configurations support communication distances up to 1200 meters, allowing centralized data acquisition from distributed 3500 racks without requiring intermediate network infrastructure or fiber optic conversion equipment.

✓ Electrical Isolation Protection: Robust galvanic isolation between communication interfaces and 3500 rack backplane circuits protects sensitive monitoring electronics from ground loops, electrical noise, and transient voltage events common in industrial electrical environments.

→ Low Power Operation: 5.0W typical power consumption (RS232/RS422) or 5.6W (RS485) minimizes heat generation within rack enclosures, supporting high-density monitoring configurations and reducing cooling requirements in temperature-controlled environments.

→ Seamless Configuration: Full integration with 3500 Rack Configuration Software enables graphical definition of Modbus register maps, communication parameter setup, and data integrity validation during commissioning, accelerating deployment timelines and reducing engineering effort.

Typical Application Scenarios

Power Generation Turbine Monitoring:
In combined-cycle power plants, the 136188-01 connects steam and gas turbine vibration monitoring racks to plant DCS systems, enabling operators to correlate machinery health trends with load changes, startup sequences, and operational events. Real-time alarm integration triggers automated load reduction protocols when vibration thresholds are exceeded, protecting critical rotating equipment from catastrophic failure.

Refinery Process Unit Integration:
Petroleum refineries deploy the 136188-01 to stream compressor, pump, and fan vibration data from distributed 3500 racks to centralized SCADA platforms. Modbus TCP connectivity over existing plant Ethernet infrastructure eliminates dedicated serial cabling, while configurable polling rates optimize bandwidth utilization across hundreds of monitoring points without impacting control system performance.

Chemical Plant Predictive Maintenance:
Chemical manufacturing facilities leverage the 136188-01 to interface 3500 machinery protection systems with OSIsoft PI or Wonderware Historian platforms for long-term trending and predictive analytics. Continuous data streaming enables machine learning algorithms to detect subtle degradation patterns weeks before traditional alarm thresholds are reached, facilitating condition-based maintenance scheduling.

Offshore Platform Remote Monitoring:
Oil & gas production platforms utilize RS485 multi-drop configurations to consolidate vibration data from multiple 3500 racks distributed across processing modules, compression trains, and power generation equipment. Ethernet uplink to onshore monitoring centers provides real-time visibility into critical machinery health for remote diagnostics and maintenance planning.

Pulp & Paper Mill Integration:
Paper mills connect the 136188-01 to ABB or Honeywell DCS platforms to integrate vibration monitoring of critical dryer sections, refiners, and stock preparation equipment. Unified alarm management across process control and machinery protection systems reduces operator workload and ensures coordinated response to abnormal operating conditions.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 136188-01 when your application requires RS232 point-to-point connectivity for local HMI panels or data loggers, or when integrating with legacy DCS systems that utilize serial Modbus RTU communication. For applications demanding simultaneous serial and Ethernet connectivity, or when connecting to modern SCADA platforms with Modbus TCP capability, the 136188-01 provides the most cost-effective solution without requiring external protocol gateways.

Consider the 136188-02 variant for applications requiring enhanced protocol support or additional communication channels. Evaluate your network architecture, distance requirements, and existing automation platform capabilities to determine optimal configuration.

Extended Functions

Advanced Register Mapping: The 136188-01 supports custom Modbus register mapping configurations, enabling engineers to organize vibration data, alarm statuses, and diagnostic parameters according to specific DCS or SCADA platform requirements. Flexible addressing schemes accommodate multiple gateways on shared networks, while configurable data formats (IEEE floating point, scaled integers) ensure compatibility with diverse automation systems.

Redundant Communication Paths: Deploy dual 136188-01 modules in separate 3500 racks to establish redundant communication paths for critical machinery protection applications. Automatic failover capabilities ensure continuous data availability even during network maintenance or communication infrastructure failures.

IoT Gateway Integration: Interface the 136188-01 with industrial IoT gateways to enable cloud-based condition monitoring, remote diagnostics, and predictive maintenance analytics. Modbus TCP connectivity simplifies integration with edge computing platforms running machine learning algorithms for anomaly detection and remaining useful life prediction.

Custom Protocol Development: For specialized integration requirements, the module's open Modbus architecture supports custom protocol development and third-party software integration. Our engineering team provides application-specific support for unique automation platforms and legacy system connectivity challenges.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units with complete factory documentation and calibration certificates. Express shipping available for urgent machinery protection system upgrades or emergency replacement requirements.

Custom Configuration: 7-10 business days for pre-configured modules with customer-specific Modbus register maps, communication parameters, and tested integration profiles for target DCS/SCADA platforms.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and communication performance issues. Extended warranty programs available for critical applications requiring long-term spare parts availability and priority technical support.

Technical Support: Unlimited access to our automation engineering team for Modbus register mapping assistance, network architecture design consultation, and troubleshooting communication issues. Remote diagnostic support available for integration challenges and performance optimization.

Documentation Package: Every 136188-01 module ships with complete OEM technical manuals, Modbus register reference guides, 3500 Rack Configuration Software installation media, and application-specific integration examples for common DCS/SCADA platforms.

Frequently Asked Questions

Q: Can the 136188-01 module communicate simultaneously via RS232 serial and Ethernet TCP/IP protocols?
A: Yes, the 136188-01 supports concurrent operation of serial Modbus RTU (RS232/RS422/RS485) and Ethernet Modbus TCP communication channels. This enables local HMI connectivity via serial interface while simultaneously streaming data to plant-wide SCADA systems over Ethernet, without requiring external protocol converters or communication multiplexers.

Q: What is the maximum communication distance supported by RS485 multi-drop configuration?
A: The 136188-01 supports RS485 multi-drop networks up to 1200 meters (approximately 4000 feet) using standard twisted-pair cabling. For extended distances beyond this range, consider implementing Ethernet TCP/IP connectivity or deploying fiber optic serial converters to maintain signal integrity and communication reliability.

Q: How many Modbus registers can be accessed from a single 3500 rack through the 136188-01 module?
A: The module provides access to all monitored parameters within the 3500 rack, typically ranging from 200-500 Modbus registers depending on rack configuration and installed monitor modules. Register count varies based on the number of monitoring channels, alarm setpoints, and diagnostic parameters configured in the 3500 Rack Configuration Software.

Q: Does the 136188-01 require external power supply or does it draw power from the 3500 rack backplane?
A: The 136188-01 draws all required power (5.0-5.6W) directly from the 3500 rack backplane through standard slot connector. No external power supply is required, simplifying installation and reducing potential failure points. Ensure adequate power budget in the 3500 rack power supply when adding communication modules to existing configurations.

Q: Can the 136188-01 integrate with non-Bently Nevada DCS platforms such as Siemens PCS7 or Yokogawa Centum?
A: Absolutely. The 136188-01 utilizes industry-standard Modbus RTU and Modbus TCP protocols, ensuring compatibility with virtually all modern DCS and SCADA platforms including Siemens PCS7, Yokogawa Centum, Emerson DeltaV, ABB 800xA, Honeywell Experion, and Schneider Electric EcoStruxure. Our engineering team provides platform-specific register mapping documentation and integration support.

Q: What configuration software is required to set up Modbus register mapping and communication parameters?
A: The 136188-01 is configured using Bently Nevada 3500 Rack Configuration Software, which provides graphical tools for defining Modbus register assignments, setting communication parameters (baud rate, parity, stop bits), and validating data integrity. The software runs on Windows platforms and connects to the 3500 rack via Ethernet or serial interface for configuration upload and monitoring.

Ready to Integrate Your Machinery Protection System?

Contact our automation specialists today for application-specific guidance on integrating the 136188-01 Modbus I/O Module into your DCS or SCADA infrastructure. We provide comprehensive support including Modbus register mapping documentation, network architecture design consultation, and commissioning assistance to ensure seamless connectivity and reliable data delivery.

Request a Quote: Email your system requirements, target automation platform, and communication architecture details to our engineering team for customized integration recommendations and competitive pricing.

Technical Consultation: Schedule a call with our Bently Nevada specialists to discuss protocol conversion requirements, redundant communication strategies, or complex multi-rack integration scenarios.
