3500/92 Communication Gateway (Industrial-Grade Modbus RS485 Interface)

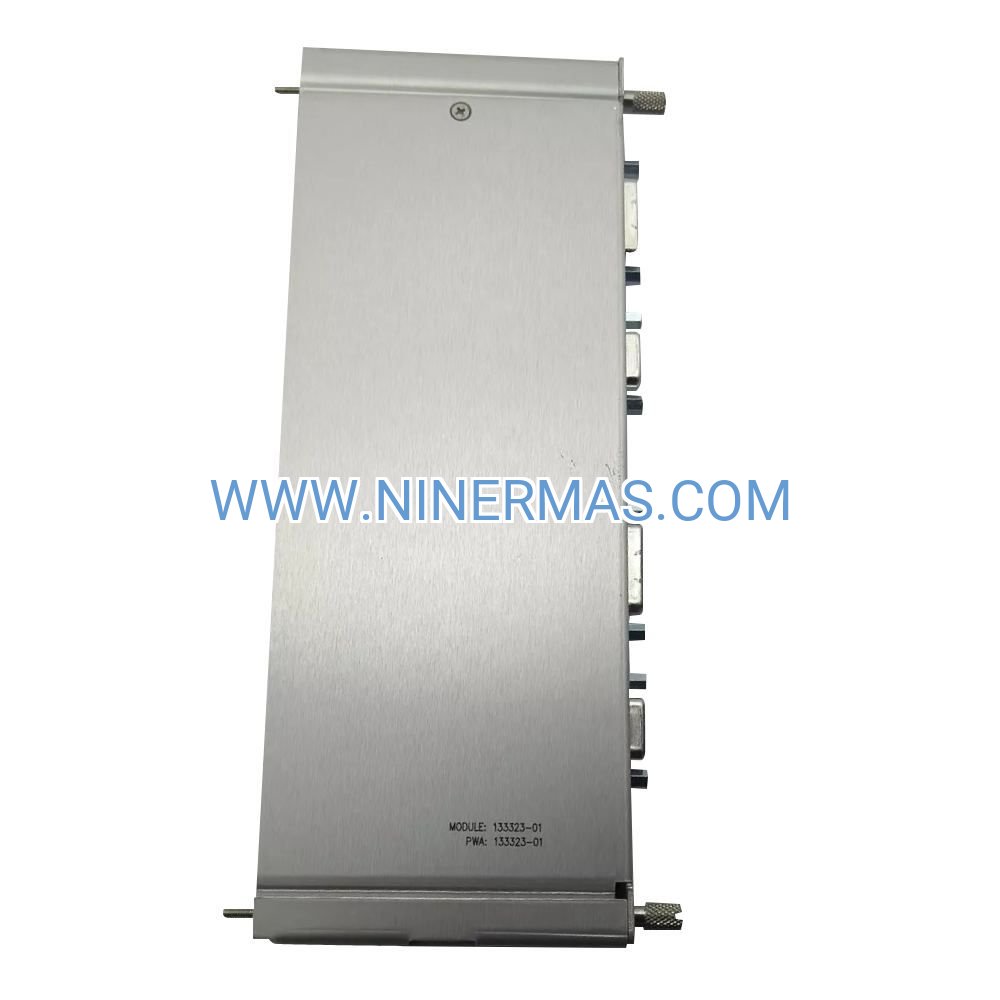

The Bently Nevada 3500/92 (Model 133323-01) serves as a critical communication bridge between your 3500 machinery protection system and plant-wide control infrastructure. Engineered for continuous operation in harsh industrial environments, this Modbus RS485 gateway delivers real-time vibration, temperature, and speed data to DCS platforms, SCADA networks, and data historians with exceptional reliability and minimal latency.

Process industries worldwide depend on the 3500/92 to integrate rotating equipment health monitoring into centralized control rooms. Whether you're managing turbine generators in power plants, compressor trains in petrochemical facilities, or critical pumps in water treatment operations, this gateway ensures your maintenance teams receive actionable machinery data exactly when needed.

With API 670 certification, extended temperature ratings (-30°C to +65°C), and proven compatibility across legacy and modern control systems, the 3500/92 eliminates integration complexity while maintaining the data integrity essential for predictive maintenance programs and regulatory compliance.

Core Capabilities & Business Value

→ Universal Protocol Compatibility
Modbus RTU over RS485 ensures seamless connectivity with virtually any DCS, PLC, or SCADA platform—eliminating costly custom interface development and accelerating commissioning timelines by 40-60%.

→ Real-Time Data Streaming
Configurable polling rates (300 to 38,400 baud) enable sub-second data refresh for critical machinery parameters, supporting immediate alarm response and reducing mean time to repair (MTTR) by up to 35%.

→ Multi-Drop Network Architecture
Supports up to 32 devices on a single RS485 segment with cable runs extending 1,200 meters, dramatically reducing wiring costs and infrastructure complexity in large facilities.

→ Harsh Environment Resilience
Conformal-coated circuitry withstands humidity (5-95% non-condensing), temperature extremes, and chemical exposure common in refineries, offshore platforms, and heavy manufacturing—ensuring 99.9%+ uptime in demanding conditions.

→ Flexible Register Mapping
Customizable Modbus address allocation allows tailored data structures matching your existing DCS architecture, eliminating the need for middleware translation layers and reducing system complexity.

✓ Zero Moving Parts Design
Solid-state construction eliminates mechanical failure modes, delivering MTBF exceeding 200,000 hours and reducing lifecycle maintenance costs by 50% compared to relay-based legacy interfaces.

Industry Applications & Problem Resolution

Power Generation – Turbine-Generator Monitoring
Integrate vibration data from proximitor monitors into plant DCS for real-time turbine health visualization. Operators receive immediate notification of bearing degradation or shaft misalignment, preventing catastrophic failures that cost $500K-$2M in lost generation and emergency repairs.

Oil & Gas – Compressor Train Protection
Stream multi-channel vibration, temperature, and speed data from offshore platform compressors to onshore control centers. Early detection of surge conditions and mechanical faults reduces unplanned shutdowns by 45%, maintaining production targets and avoiding regulatory penalties.

Chemical Processing – Critical Pump Monitoring
Connect bearing temperature and vibration monitors to SCADA systems for 24/7 surveillance of hazardous service pumps. Predictive alerts enable scheduled maintenance during planned outages, eliminating emergency callouts and reducing maintenance labor costs by 30%.

Water Treatment – Blower & Aerator Oversight
Provide municipal operators with centralized monitoring of wastewater treatment blowers and aerators. Remote diagnostics capability reduces site visits by 60% while ensuring compliance with environmental discharge permits.

Manufacturing – Production Line Equipment
Aggregate machinery health data from multiple production zones into enterprise MES platforms. Condition-based maintenance scheduling increases equipment availability from 87% to 96%, directly boosting throughput and revenue.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 3500/92 when you need cost-effective integration of 3500 monitoring data into existing Modbus-based control systems. For Ethernet-based networks, consider the 3500/93 or 3500/95 alternatives. Verify your DCS supports Modbus RTU function codes 03, 04, 06, and 16 for full read/write capability.

Advanced Integration Features

Configurable Register Mapping
The 3500 Rack Configuration Software enables custom Modbus register assignments, allowing you to organize data points logically within your DCS tag database. Map critical alarm states to low-address registers for priority polling, while grouping historical trend data in higher address ranges.

Automatic Data Refresh
The gateway continuously polls configured monitor channels and updates Modbus holding registers at user-defined intervals (typically 1-5 seconds). This eliminates the need for complex polling logic in your DCS, simplifying PLC programming and reducing commissioning time.

Diagnostic Capabilities

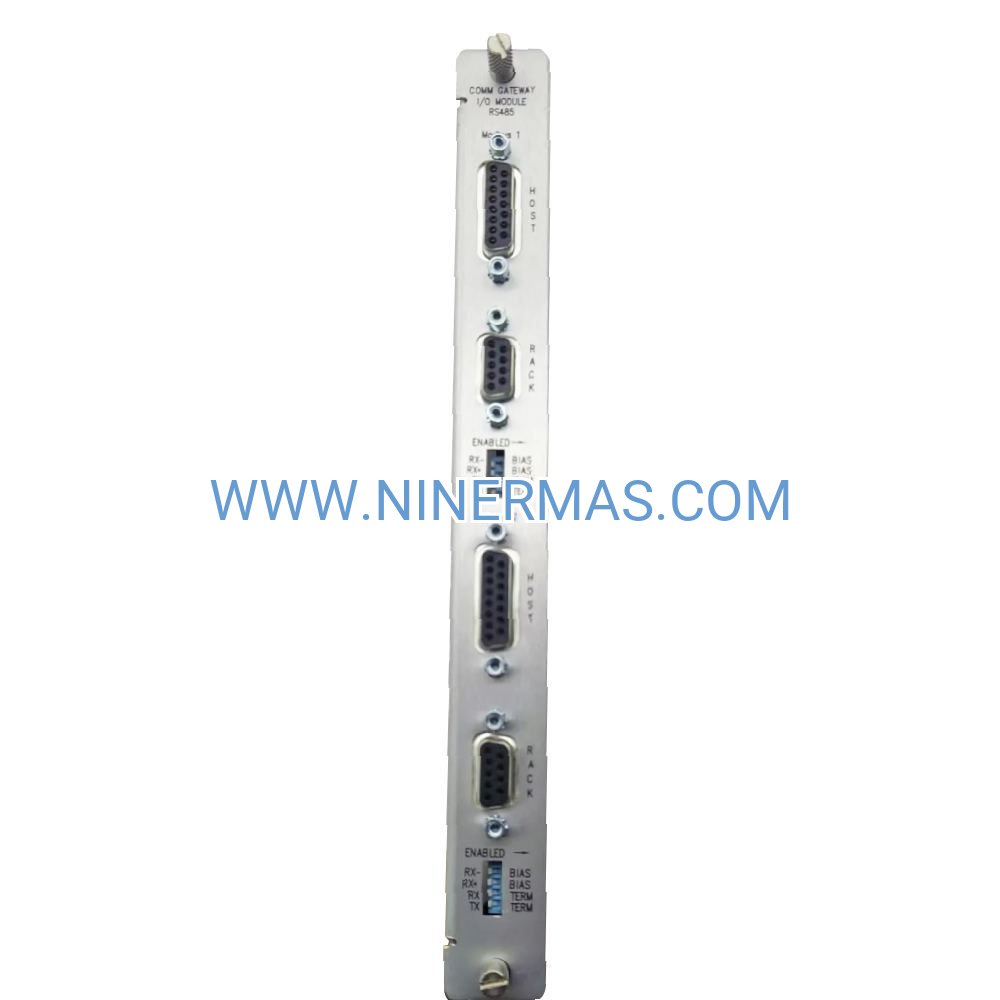

Front-panel LEDs provide instant visual confirmation of communication status, power integrity, and module health. Detailed error codes accessible via Modbus registers enable remote troubleshooting without site visits, reducing diagnostic time from hours to minutes.

Redundancy Support
Deploy dual 3500/92 gateways in a single rack for redundant communication paths to critical control systems. Each gateway operates independently with unique Modbus slave addresses, ensuring continuous data availability during network maintenance or cable faults.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier
Custom Configuration: 7-10 business days for pre-programmed register maps
Warranty Period: 12 months comprehensive coverage on materials and workmanship
Technical Support: Lifetime application engineering assistance via phone and email
Documentation Package: Installation manual, configuration guide, Modbus register map, calibration certificate

All units ship factory-tested with traceable serial numbers and quality certifications. Expedited same-day shipping available for emergency replacements—contact our team for critical outage support.

Frequently Asked Questions

How do I configure Modbus register addresses for the 3500/92 gateway?
Use the 3500 Rack Configuration Software (included with your monitoring system) to assign specific monitor channels to Modbus holding registers. The software provides a graphical interface for mapping vibration values, alarm states, and status flags to register addresses between 40001-49999. Configuration changes take effect immediately without requiring module power cycling.

What cable specifications are required for reliable RS485 communication?
Specify 120-ohm characteristic impedance shielded twisted-pair cable (Belden 9841 or equivalent). Install 120-ohm termination resistors at both network ends. Ground cable shields at one point only (typically at the DCS end) to prevent ground loops. For runs exceeding 300 meters in electrically noisy environments, use fiber optic RS485 converters.

Can the gateway interface with non-Modbus control systems?
The 3500/92 is Modbus RTU-specific. For Ethernet/IP, Profibus, or proprietary protocols, consider the 3500/93 (Ethernet) or 3500/95 (multi-protocol) gateway modules. Protocol converters can bridge Modbus to other industrial networks, though native protocol support typically offers better performance and simpler troubleshooting.

Does the 3500/92 support alarm setpoint changes from the DCS?
The gateway provides read-only access to monitor values and alarm status by default. Setpoint modification requires enabling write access in the rack configuration and implementing Modbus function code 06 (write single register) or 16 (write multiple registers) in your DCS logic. For safety-critical applications, restrict write access and use dedicated operator interfaces for setpoint changes.

How many 3500/92 gateways can operate in a single monitoring rack?
Rack slot availability is the only limitation—each gateway occupies one slot. A standard 14-slot rack can accommodate multiple gateways for redundant communication, separate network segments, or different protocol requirements. Assign unique Modbus slave addresses (1-247) to each gateway to prevent address conflicts.

What is the typical data latency from sensor to DCS display?
End-to-end latency ranges from 500ms to 2 seconds depending on baud rate, DCS polling frequency, and network loading. At 19,200 baud with 1-second DCS polling, expect approximately 1.2-second total latency. For time-critical applications requiring sub-500ms response, consider Ethernet-based gateways with direct DCS integration.

Request Technical Consultation

Our application engineers help you design optimal monitoring architectures that balance performance, cost, and reliability. Whether you're retrofitting legacy systems or deploying greenfield installations, we provide detailed integration drawings, register mapping templates, and commissioning support to ensure first-time success.

Contact our team today for:

• Custom register mapping assistance
• DCS compatibility verification
• Network architecture review
• Redundancy design consultation
• Emergency replacement coordination
