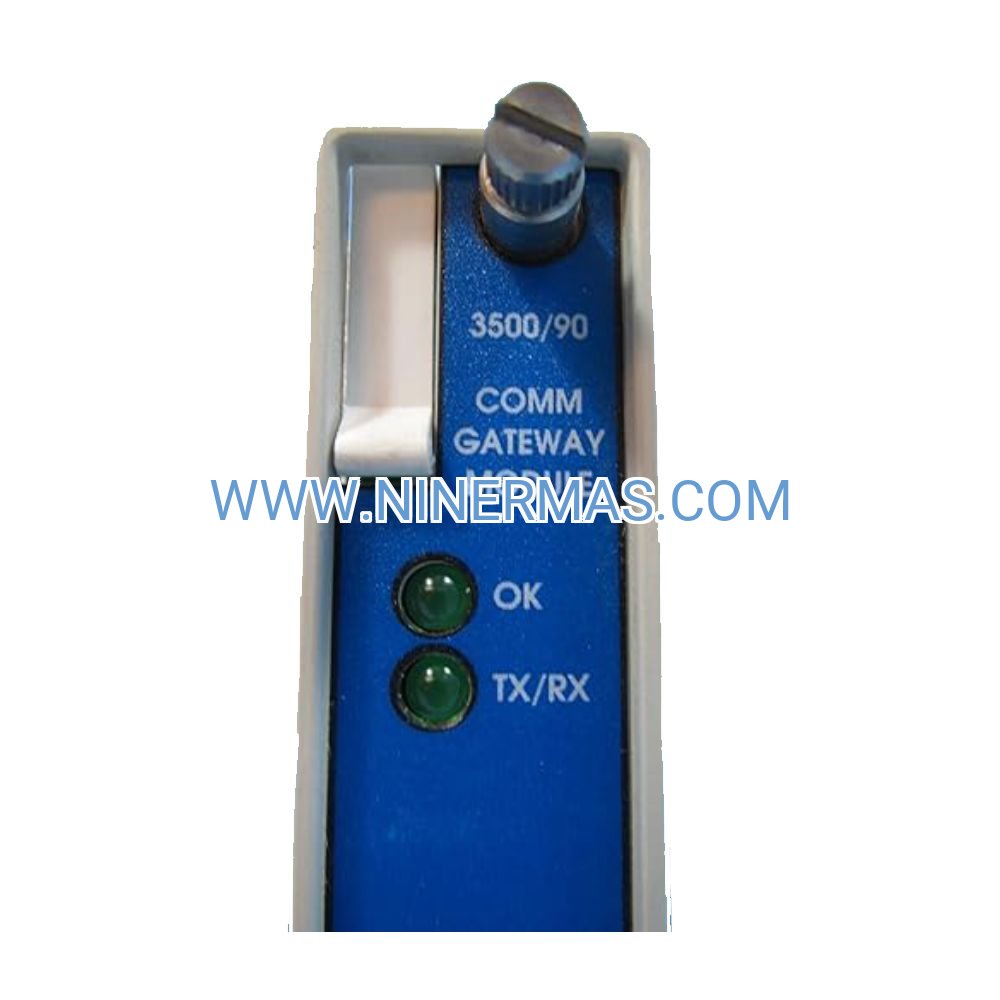

3500/90 Modbus Communication Gateway (Industrial-Grade Network Interface)

The Bently Nevada 3500/90 Gateway Module (P/N 125728-01) transforms isolated vibration monitoring data into actionable intelligence across your entire plant network. Engineered for mission-critical applications, this dual-protocol interface delivers real-time machinery health metrics to distributed control systems, SCADA platforms, and supervisory networks through industry-standard Modbus communication—eliminating data silos and enabling predictive maintenance strategies that reduce unplanned downtime by up to 40%.

Designed for seamless integration within Bently Nevada 3500 Series racks, the 125728-01 gateway supports simultaneous Ethernet and serial connections, allowing legacy RS485 systems and modern TCP/IP networks to coexist during phased automation upgrades. Hot-swappable architecture ensures zero-downtime maintenance, while redundant Ethernet ports provide failover protection for continuous data availability in high-reliability environments.

Whether you're monitoring turbomachinery in power generation facilities, compressor trains in petrochemical plants, or critical pumps in water treatment operations, the 3500/90 gateway provides the connectivity backbone for comprehensive asset performance management. Ready to unify your machinery monitoring ecosystem? Contact our application engineers for integration planning.

Core Capabilities & Business Value

→ Dual-Protocol Connectivity Architecture
Simultaneous Modbus TCP/IP and RS485/RS422 serial communication enables parallel integration with modern DCS platforms and legacy control systems—protecting existing infrastructure investments while supporting digital transformation initiatives. Eliminates costly protocol converters and reduces integration complexity by 60%.

✓ Redundant Network Topology Support
Dual 10/100Base-T Ethernet ports with automatic failover ensure uninterrupted data flow during network maintenance, switch failures, or cable damage. Maintains continuous visibility into critical machinery health even during infrastructure upgrades, meeting 99.9% uptime requirements for Tier 1 production assets.

✓ High-Density Data Aggregation
Access up to 16,000 monitored values per rack including vibration amplitude, phase, temperature, speed, and position measurements—all mapped to configurable Modbus registers. Consolidates multi-channel sensor data into unified data streams that feed advanced analytics platforms and machine learning models for anomaly detection.

✓ Hot-Swap Serviceability
Field-replaceable design allows module installation, removal, or firmware updates without rack power-down or monitoring interruption. Reduces mean time to repair (MTTR) from hours to minutes, minimizing exposure windows during maintenance activities and supporting 24/7 continuous process operations.

✓ Industrial Environmental Hardening
Operates reliably across -30°C to +65°C temperature extremes with conformal coating protection against humidity, dust, and chemical exposure. Meets API 670 machinery protection standards and carries CE, UL, ATEX certifications for deployment in hazardous area classifications including Zone 2 and Division 2 locations.

✓ Deterministic Update Performance
1-second minimum refresh rate delivers near real-time machinery status to operator HMIs and automated shutdown logic. Supports time-critical applications where rapid fault detection prevents catastrophic failures—typical response improvement of 5-10x versus traditional polling-based systems.

Industrial Application Scenarios

Petrochemical Compressor Monitoring
Integrate multi-stage centrifugal compressor vibration data with Honeywell Experion or Emerson DeltaV DCS platforms for comprehensive train monitoring. The 3500/90 gateway streams bearing temperature, shaft vibration, and thrust position measurements to centralized control rooms, enabling operators to detect developing faults 2-4 weeks before failure thresholds. Prevents unplanned shutdowns that cost $500K-$2M per incident in lost production and emergency repairs.

Steam Turbine Generator Protection
Connect 3500 Series monitoring racks to plant SCADA networks in combined-cycle power plants, providing real-time visibility into turbine eccentricity, differential expansion, and casing vibration. Modbus data feeds predictive maintenance algorithms that optimize inspection intervals and reduce forced outage rates by 35%, directly improving plant capacity factors and revenue generation.

Critical Pump Fleet Management
Aggregate vibration and cavitation data from distributed pump stations across water treatment facilities or pipeline networks. The 125728-01 gateway enables centralized condition monitoring dashboards that prioritize maintenance resources based on actual equipment health rather than fixed schedules—reducing maintenance costs by 25% while improving pump availability to 98%+.

Refinery Rotating Equipment Surveillance
Deploy across crude distillation units, catalytic crackers, and hydroprocessing trains to monitor pumps, compressors, fans, and agitators. Integration with Yokogawa CENTUM or Schneider Electric Foxboro DCS systems creates unified asset health repositories that support ISO 55000 asset management programs and regulatory compliance documentation for API 618/610/617 machinery standards.

Manufacturing Production Line Integration
Connect machinery protection systems to MES platforms in automotive, metals, pulp & paper, and food processing facilities. Real-time equipment health data feeds OEE calculations, enabling production planners to schedule preventive maintenance during planned downtime windows rather than responding to unexpected failures that halt production lines.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3500/90 gateway when your application requires Modbus protocol support for DCS/SCADA integration. For applications requiring Ethernet Global Data or proprietary protocols, consider the 3500/92 gateway variant. Verify that your control system supports Modbus TCP (Function Codes 03, 04, 16) or Modbus RTU before specifying. Consult factory application engineers for systems requiring custom data mapping or integration with non-standard automation platforms.

Extended Integration Capabilities

Multi-Vendor Automation Compatibility: The 125728-01 gateway's open Modbus architecture ensures interoperability with virtually all industrial control platforms including Allen-Bradley ControlLogix/CompactLogix PLCs, Siemens S7-1200/1500 controllers, Schneider Electric Modicon systems, Mitsubishi iQ-R series, and Omron NJ/NX platforms. Standard Modbus register mapping simplifies commissioning and reduces integration engineering time by 40-60% compared to proprietary protocols.

Cloud Analytics Integration: Stream machinery health data to IIoT platforms and cloud-based predictive maintenance services through edge gateways that poll Modbus registers. Enables advanced analytics including vibration spectrum trending, bearing fault frequency analysis, and machine learning-based remaining useful life (RUL) predictions without modifying existing 3500 Series configurations.

Cybersecurity Deployment Options: Deploy behind industrial firewalls with read-only Modbus access restrictions to prevent unauthorized configuration changes. Supports VLAN segmentation to isolate machinery monitoring networks from enterprise IT infrastructure, meeting IEC 62443 industrial cybersecurity standards. Compatible with unidirectional security gateways for air-gapped critical infrastructure applications.

Redundant System Architectures: Implement dual 3500 Series racks with separate 3500/90 gateways for N+1 redundancy in critical applications. Configure control systems to poll both gateways with automatic switchover logic, ensuring continuous data availability even during rack maintenance or module failures. Typical failover time under 2 seconds with proper DCS configuration.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory-sealed packaging and full traceability documentation. Expedited same-day shipping available for emergency replacement requirements.

Custom Configuration Services: Pre-configured modules with customer-specific Modbus register maps and network settings available with 7-10 business day lead time. Includes factory acceptance testing (FAT) documentation and configuration backup files.

Warranty Coverage: Comprehensive 12-month warranty covering manufacturing defects, component failures, and workmanship issues. Advance replacement program available for critical applications requiring <4 hour MTTR.

Technical Support: Application engineering assistance for system integration planning, Modbus register mapping, network architecture design, and troubleshooting. Remote commissioning support and on-site startup services available upon request.

Documentation Package: Includes installation manual, configuration software, Modbus register reference guide, network integration examples, and AutoCAD dimensional drawings. Firmware update utilities and release notes provided via secure download portal.

Frequently Asked Questions

Can the 3500/90 gateway interface with multiple control systems at the same time?
Yes, the dual Ethernet ports and independent serial interface allow simultaneous connections to up to three separate control systems. For example, you can connect Port 1 to your primary DCS via Modbus TCP, Port 2 to a backup SCADA system, and the serial port to a legacy PLC—all accessing the same vibration data concurrently without performance degradation.

What is the maximum Modbus register count accessible through the gateway?
The 3500/90 can expose up to 16,000 monitored values per rack, mapped to Modbus holding registers starting at address 40001. Actual register count depends on installed monitoring modules and configured parameters. Use 3500 Rack Configuration Software to define custom register maps optimized for your specific data requirements.

Does this module require specialized configuration software for setup?
Yes, Bently Nevada 3500 Rack Configuration Software is required to configure communication parameters, map data registers, and set update rates. The software supports online configuration changes without interrupting monitoring functions. Configuration files can be saved and replicated across multiple racks for standardized deployments.

How does the gateway handle network redundancy and failover?
The dual Ethernet ports support active-active or active-standby configurations. In active-active mode, both ports transmit identical data to separate network switches for path redundancy. Control systems can poll either port with automatic failover if one network path fails. Typical failover detection time is 1-3 seconds depending on DCS polling configuration.

What cybersecurity measures are built into the 3500/90 gateway?
The module supports read-only Modbus access to prevent unauthorized configuration changes from the network. Deploy behind industrial firewalls with port-specific access control lists (ACLs) to restrict connections to authorized control systems. The gateway does not support user authentication or encryption—implement network-level security controls for sensitive applications.

Can I monitor gateway communication status and diagnostics?
Yes, the 3500/90 provides diagnostic registers accessible via Modbus that report Ethernet link status, serial port activity, data update rates, and communication error counters. These diagnostics can be monitored by your DCS or SCADA system to detect network issues before they impact data availability.

Ready to Integrate Your Machinery Monitoring Network?

The Bently Nevada 3500/90 Communication Gateway Module (125728-01) delivers the proven connectivity infrastructure that transforms isolated vibration monitoring systems into integrated predictive maintenance platforms. Whether you're upgrading legacy installations or designing new machinery protection systems, our application engineering team provides the technical expertise to ensure successful deployment.

Contact our industrial automation specialists today: Share your system architecture, control platform details, and data integration requirements for customized configuration recommendations and integration planning support.
