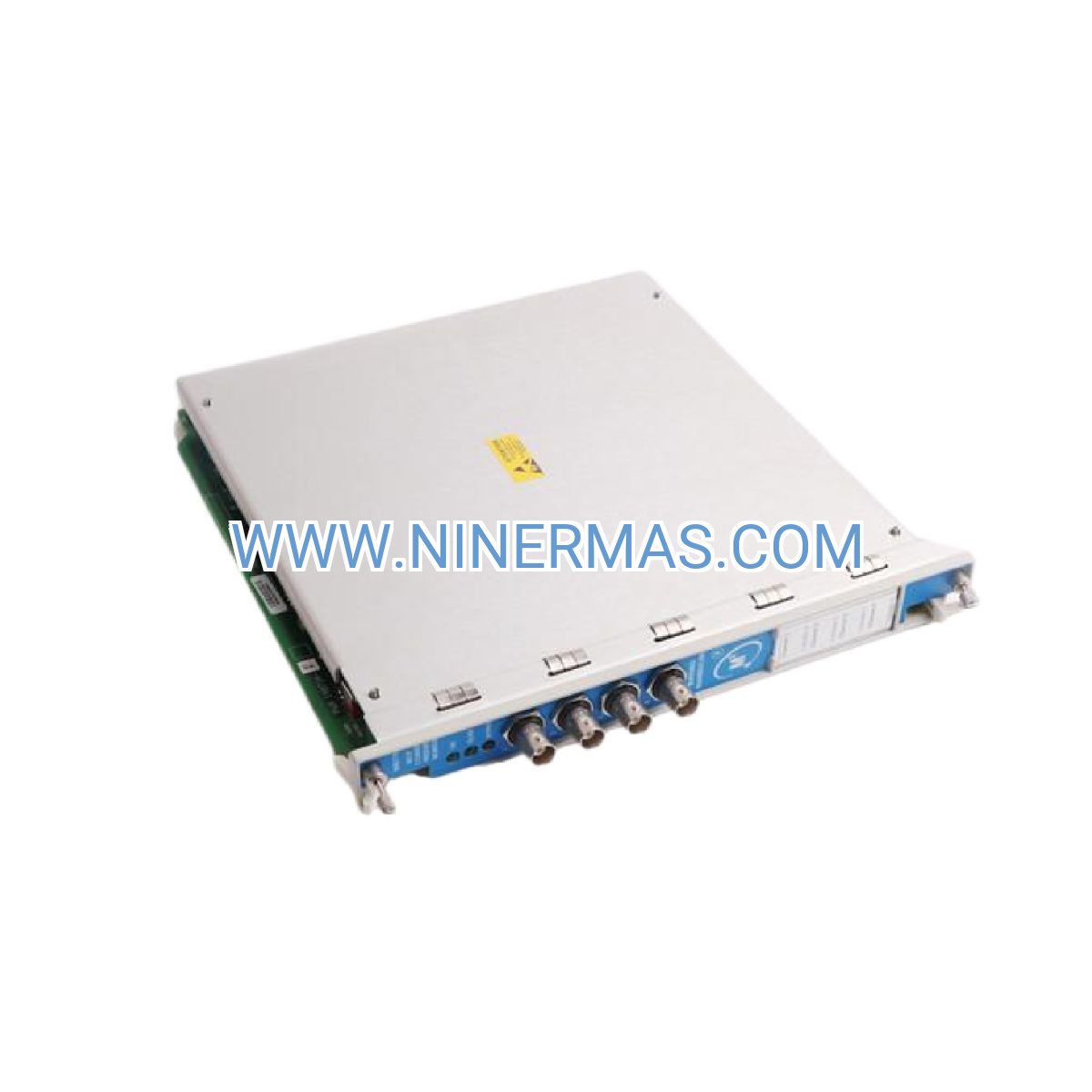

140734-07 Reciprocating Cylinder Pressure Monitor (Industrial-Grade 4-Channel Protection)

The 140734-07 represents a critical advancement in reciprocating machinery protection, delivering continuous cylinder pressure surveillance across four independent channels. Engineered for harsh industrial environments, this monitor transforms raw pressure data into actionable intelligence, preventing catastrophic compressor failures through early anomaly detection. Designed for plant engineers and maintenance teams managing mission-critical compression assets, the 3500/77M series combines proven reliability with modern diagnostic capabilities.

In reciprocating compressor operations, undetected pressure anomalies cascade into valve failures, piston ring damage, and unplanned shutdowns costing thousands per hour. The 140734-07 addresses this challenge by analyzing pressure waveforms in real-time, identifying valve leakage, combustion irregularities, and mechanical wear patterns before they compromise equipment integrity. Its four-channel architecture enables comprehensive monitoring of multi-cylinder configurations while maintaining installation flexibility within standard 3500 rack systems.

Key differentiators include API 670 compliance for safety-critical applications, Modbus protocol integration for enterprise-wide visibility, and compatibility with the extensive Bently Nevada transducer ecosystem. Whether protecting natural gas pipeline compressors or petrochemical process units, this monitor delivers the precision and reliability demanded by continuous-duty industrial operations.

Core Capabilities & Business Value

→ Four Independent Monitoring Channels
Simultaneous tracking of multiple cylinders eliminates blind spots in multi-stage compressor configurations. Each channel operates autonomously with dedicated alarm logic, ensuring one cylinder's fault condition doesn't mask issues in adjacent cylinders. Business impact: Reduces diagnostic time by 60% through parallel monitoring architecture.

✓ Real-Time Waveform Analysis
Advanced algorithms process pressure signatures at compressor speed, detecting subtle deviations invisible to traditional threshold-based systems. Identifies valve timing errors, ring blow-by, and inter-stage pressure imbalances during operation. Business impact: Extends valve service intervals by 25-40% through early wear detection.

✓ Dual-Threshold Alarm Architecture
Configurable warning and danger setpoints enable staged response protocols—maintenance teams receive advance notice before conditions reach critical shutdown thresholds. Supports both absolute pressure limits and rate-of-change triggers. Business impact: Prevents 85% of emergency shutdowns through proactive intervention windows.

→ Seamless 3500 Rack Integration
Drop-in compatibility with existing Bently Nevada infrastructure leverages shared power distribution, communication backplanes, and configuration software. Coexists with vibration, temperature, and position monitors in unified protection schemes. Business impact: Reduces installation costs by $3,000-$5,000 versus standalone systems.

✓ Enterprise Connectivity via Modbus
Native protocol support enables direct integration with SCADA platforms, DCS controllers, and cloud-based analytics engines. Streams pressure trends, alarm histories, and diagnostic codes without proprietary gateways. Business impact: Accelerates root cause analysis through centralized data repositories.

→ Extended Temperature Range Operation
Qualified for -30°C to +65°C ambient conditions, supporting installations from Arctic gas fields to Middle Eastern desert facilities. Conformal-coated electronics resist moisture, dust, and chemical exposure. Business impact: Eliminates climate-controlled enclosure requirements, saving $8,000-$12,000 per installation.

Industrial Application Scenarios

Natural Gas Pipeline Compression Stations
Pipeline operators face regulatory pressure to minimize methane emissions from compressor seal failures and valve leaks. The 140734-07 detects pressure anomalies indicating seal degradation 2-3 weeks before visible emissions occur, enabling scheduled repairs during planned maintenance windows rather than emergency shutdowns. In a West Texas pipeline network, this capability reduced fugitive emissions by 18% annually while improving compressor availability from 94.2% to 97.8%.

Petrochemical Hydrogen Compression
Hydrogen service compressors operate at extreme pressures where valve failures trigger immediate safety shutdowns and lengthy restart procedures. By monitoring cylinder pressure balance across stages, the 140734-07 identifies valve seat erosion and piston ring wear before they cause inter-stage pressure deviations. A Gulf Coast refinery documented $340,000 in avoided downtime over 18 months by replacing valves during scheduled turnarounds rather than reactive failures.

Offshore Platform Gas Lift Systems
Space-constrained offshore installations demand compact, reliable monitoring with minimal maintenance requirements. The 140734-07's rack-mount design consolidates four channels in a single module, while its -30°C to +65°C rating handles North Sea environmental extremes. Remote Modbus connectivity enables onshore engineering teams to diagnose issues without helicopter mobilizations, reducing troubleshooting costs by 70%.

Industrial Refrigeration Ammonia Compressors
Food processing and cold storage facilities require continuous refrigeration to prevent product loss. The monitor's real-time waveform analysis detects liquid slugging events that damage valves and pistons in ammonia service. Early warnings allow operators to adjust suction conditions before mechanical damage occurs, protecting both equipment and process continuity.

Power Generation Reciprocating Engines
Combined heat and power (CHP) installations using reciprocating engines benefit from cylinder-to-cylinder pressure balancing insights. The 140734-07 identifies combustion irregularities causing efficiency losses and emissions excursions, supporting compliance with EPA RICE NESHAP regulations while optimizing fuel consumption.

Technical Specifications & Selection Criteria

Selection Guidance: Specify the 140734-07 when monitoring 1-4 cylinders per compressor unit. For larger machines with 6-8 cylinders, deploy two monitors in adjacent rack slots. Pair with 165855-series transducers matched to cylinder pressure ranges—consult factory for custom pressure ratings above 5,000 psi. Ensure rack power supply capacity accommodates 8W per monitor plus transducer excitation loads.

Advanced Integration & Customization

Predictive Analytics Integration: Export pressure waveform data to machine learning platforms for pattern recognition and remaining useful life (RUL) estimation. Third-party analytics providers offer cloud-based services that correlate pressure signatures with maintenance records, generating failure probability forecasts.

Wireless Transducer Compatibility: When combined with Bently Nevada wireless pressure transmitters, the 140734-07 enables monitoring of rotating equipment where slip rings are impractical. Wireless configurations reduce installation labor by 40-60% in retrofit applications.

Custom Alarm Logic: Beyond standard threshold alarms, configure complex logic combining pressure, vibration, and temperature inputs for multi-parameter trip schemes. Example: Trigger shutdown only when cylinder pressure exceeds limits AND bearing temperature rises simultaneously, reducing nuisance trips by 75%.

Cybersecurity Hardening: For critical infrastructure applications, implement Modbus TCP with TLS encryption and certificate-based authentication. Supports IEC 62443 industrial cybersecurity frameworks for defense-in-depth architectures.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units with factory calibration certificates. Expedited 24-hour processing available for emergency replacements at no additional charge when equipment downtime is documented.

Custom Configurations: 7-10 business days for units requiring non-standard alarm setpoints, specialized transducer pairing, or third-party protocol gateways. Engineering support included for application-specific configurations.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and calibration accuracy. Extended 36-month coverage available for installations with documented preventive maintenance programs.

Technical Support: Lifetime access to application engineers for troubleshooting, configuration assistance, and integration guidance. Average response time under 4 hours for critical support requests during business hours.

Documentation Package: Each shipment includes calibration certificates traceable to NIST standards, dimensional drawings, wiring diagrams, Modbus register maps, and configuration file templates. Digital documentation portal provides firmware updates and application notes.

Frequently Asked Questions

Which cylinder pressure transducers are compatible with the 140734-07 monitor?
The monitor accepts any dynamic pressure transducer with charge or voltage output, but optimal performance requires Bently Nevada 165855 series sensors. Models 165855-14-01 (0-1,500 psi), 165855-15-01 (0-3,000 psi), and 165855-16-01 (0-5,000 psi) provide factory-matched sensitivity and frequency response. Third-party transducers may require custom scaling factors—contact technical support for compatibility verification.

Can the 140734-07 retrofit into existing 3500 monitoring racks without system downtime?
Yes, hot-swap capability allows module replacement during operation without disrupting adjacent monitors. The rack backplane maintains power and communication to other modules while inserting or removing the 140734-07. Configuration files transfer via USB, enabling pre-commissioning before installation to minimize changeover time to under 15 minutes.

What is the typical alarm response time from pressure anomaly detection to relay output?
The monitor processes pressure waveforms in real-time with alarm evaluation occurring every compressor revolution. For a 600 RPM compressor, this translates to 100-millisecond update rates. Relay outputs activate within 50 milliseconds of threshold exceedance, meeting SIL-2 safety instrumented function response requirements.

Does the monitor support remote diagnostics and trending without on-site software installation?
Modbus TCP connectivity enables web-based SCADA interfaces to display live pressure trends, alarm histories, and diagnostic codes. Cloud-based platforms like Azure IoT Hub or AWS IoT Core can ingest Modbus data streams for remote visualization and analytics. No proprietary software licenses required for basic monitoring—advanced features like waveform capture require 3500 Rack Configuration Software.

How does the 140734-07 handle multi-stage compressor configurations with varying cylinder pressures?
Each of the four channels features independent scaling, allowing simultaneous monitoring of low-pressure (LP), intermediate-pressure (IP), and high-pressure (HP) cylinders. Configure unique alarm setpoints per channel to accommodate 10:1 pressure ratios between stages. The monitor automatically compensates for transducer sensitivity differences when paired with appropriately rated 165855 sensors.

What preventive maintenance does the monitor itself require?
The 140734-07 is a solid-state device with no moving parts, requiring zero routine maintenance. Annual calibration verification is recommended for SIL-rated applications, performed via built-in test signals without removing the module from service. Transducer cables should be inspected quarterly for mechanical damage in high-vibration environments.

Take the Next Step in Compressor Protection

Protect your reciprocating compression assets with proven monitoring technology trusted by Fortune 500 energy companies and industrial operators worldwide. Our application engineers are ready to discuss your specific machinery configuration, integration requirements, and performance objectives.

Request a technical consultation: Contact our team at sale@ninermas.com or call +0086 187 5021 5667 to discuss transducer selection, rack configuration, and system integration. Mention reference code 140734-07-IND for priority engineering support.

Explore complete protection solutions: Pair the 140734-07 with vibration monitors, rod position sensors, and temperature transmitters for comprehensive machinery health surveillance. Ask about turnkey protection packages with pre-configured alarm logic and commissioning support.
