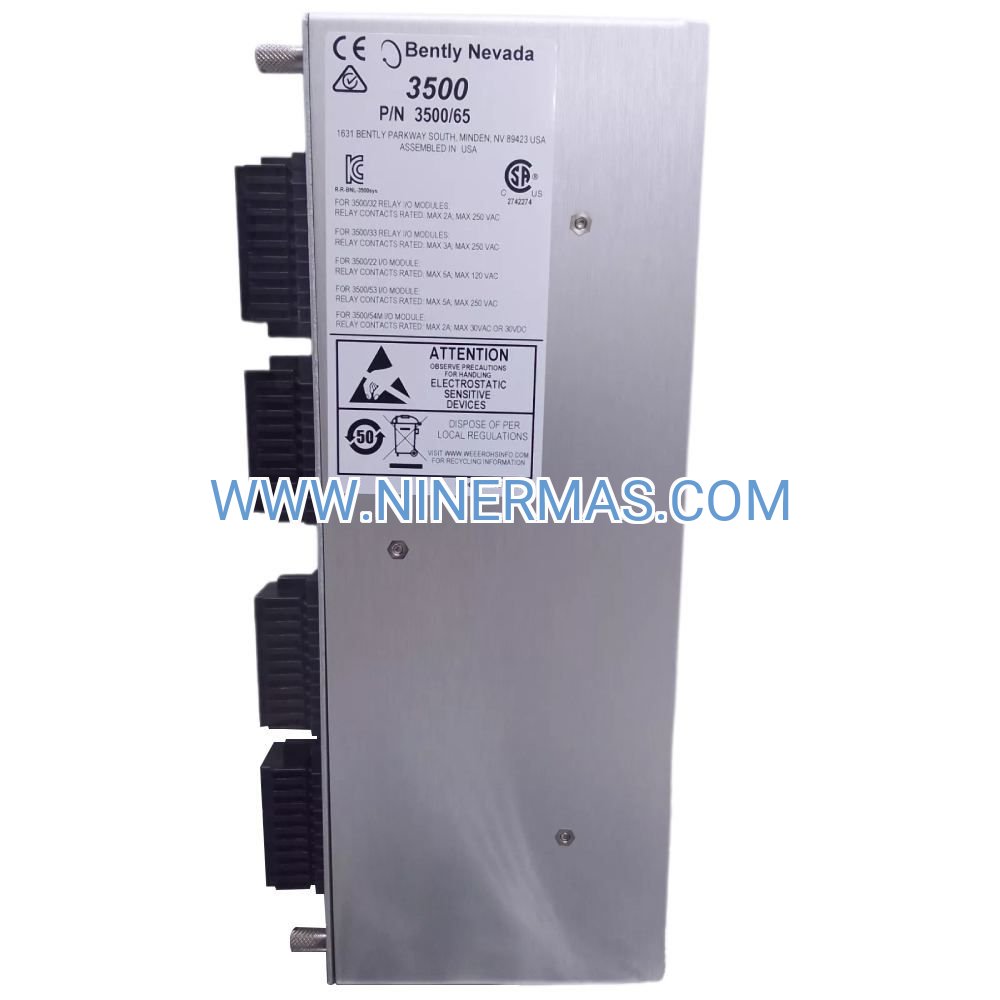

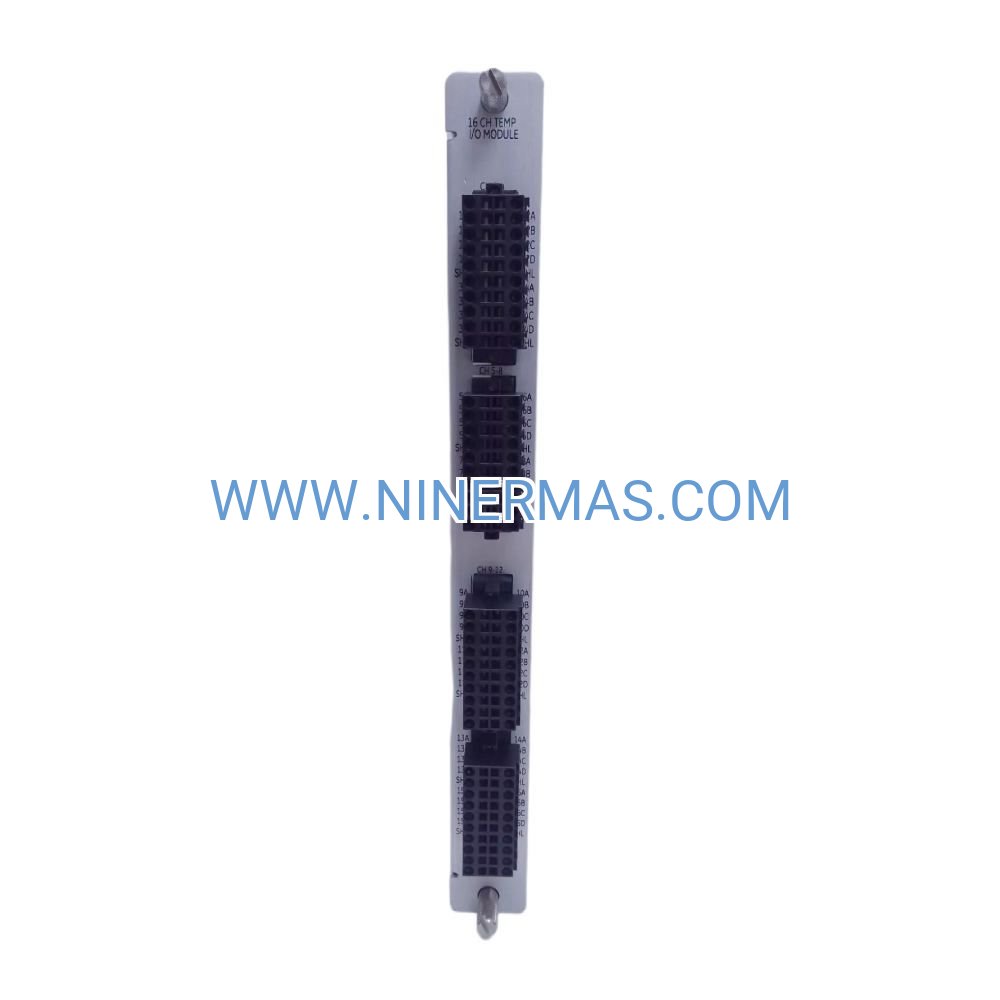

172103-01 Temperature I/O Module (Industrial-Grade 16-Channel Monitoring)

The Bently Nevada 3500/65 172103-01 is a high-precision temperature monitoring module engineered for mission-critical rotating machinery and industrial process applications. Featuring 16 independently configurable input channels, this module accepts both RTD (Resistance Temperature Detector) and thermocouple signals, delivering comprehensive thermal surveillance across turbines, compressors, heat exchangers, and power generation equipment.

Designed for environments where thermal anomalies can lead to catastrophic failures, the 172103-01 provides continuous real-time monitoring with programmable alarm thresholds, integrated sensor diagnostics, and API 670-compliant protection logic. Whether you're safeguarding a steam turbine bearing or tracking process temperatures in a petrochemical facility, this module ensures early fault detection and operational reliability.

As part of the proven Bently Nevada 3500 series ecosystem, the 172103-01 integrates seamlessly with existing rack infrastructure, offering hot-swappable installation, modular scalability, and compatibility with industry-standard SCADA systems. Protect your assets, minimize downtime, and maintain compliance with a monitoring solution trusted by operators worldwide.

Core Capabilities & Business Value

→ Universal Input Compatibility
Accepts 16 mixed RTD and thermocouple inputs simultaneously—Pt100, Pt1000, Cu10 RTDs, plus J, K, E, T, N, R, S, B thermocouples. Eliminates the need for multiple modules and simplifies system architecture.

→ API 670 Machinery Protection Certification
Meets stringent industry standards for turbomachinery monitoring systems, ensuring compliance in oil & gas, power generation, and petrochemical installations. Reduces regulatory risk and insurance premiums.

→ Intelligent Alarm Management
Programmable Alert and Danger setpoints per channel with adjustable hysteresis and time delays. Prevents false trips while ensuring rapid response to genuine thermal excursions—reducing maintenance costs by up to 30%.

✓ Zero-Downtime Maintenance
Hot-swappable design allows module replacement during operation without system shutdown. Maximizes uptime in continuous process environments where every hour of downtime costs thousands in lost production.

✓ Built-In Sensor Health Monitoring
Continuous diagnostics detect open circuits, short circuits, sensor drift, and out-of-range conditions. Alerts maintenance teams to sensor failures before they compromise protection coverage—improving mean time between failures (MTBF) by 40%.

✓ High-Speed Data Acquisition
1-second update rate per channel ensures rapid detection of thermal transients. Critical for fast-moving processes where temperature spikes develop in seconds, not minutes.

Industrial Application Scenarios

Power Generation – Steam & Gas Turbine Monitoring
Monitor bearing metal temperatures, exhaust gas temperatures, and critical thermal points across turbine-generator sets. The 172103-01 tracks up to 16 measurement points per module, enabling comprehensive coverage of multi-bearing turbines. Pair with vibration monitoring for complete condition-based maintenance programs. Typical deployment: 4-6 modules per turbine train, covering thrust bearings, journal bearings, generator windings, and exhaust sections.

Oil & Gas – Compressor Protection Systems
Safeguard reciprocating and centrifugal compressors by monitoring interstage temperatures, discharge temperatures, bearing temperatures, and seal gas temperatures. Early detection of thermal anomalies prevents catastrophic failures that can cost $500K+ in repairs and lost production. Integrates with speed monitoring and vibration systems for multi-parameter trip logic.

Chemical Processing – Reactor & Heat Exchanger Surveillance
Track reactor wall temperatures, catalyst bed temperatures, and heat exchanger performance in real time. The module's wide temperature range (-200°C to +850°C) covers cryogenic to high-temperature processes. Supports regulatory compliance for safety instrumented systems (SIS) in hazardous environments.

Manufacturing – Motor & Drive Monitoring
Continuous monitoring of motor stator windings, rotor temperatures, and cooling system performance prevents unplanned shutdowns in production lines. Typical ROI: 6-12 months through avoided downtime and extended equipment life.

Marine & Offshore – Propulsion & Auxiliary Systems
Monitor main engine bearings, turbocharger temperatures, and generator sets on vessels and offshore platforms. Rugged design withstands vibration, humidity, and temperature extremes in harsh marine environments.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose RTD inputs for ±0.5°C accuracy requirements and stable long-term performance
• Select thermocouple inputs for high-temperature applications (>400°C) or fast response times
• Plan 1 module per 16 measurement points; typical turbine installations require 3-5 modules
• Verify compatibility with existing 3500 rack configuration (requires 3500/05 or 3500/15 power supply)
• Consider redundant modules for critical protection functions per API 670 recommendations

Extended Functionality & Integration

SCADA & DCS Connectivity
Integrate with plant control systems via Modbus TCP/IP, Ethernet/IP, or proprietary protocols using the 3500/92 Communication Gateway. Stream real-time temperature data, alarm status, and diagnostic information to historian databases for trending and predictive analytics.

Condition Monitoring Software
Compatible with Bently Nevada System 1 software for advanced diagnostics, trend analysis, and machine learning-based anomaly detection. Export data to third-party platforms like OSIsoft PI, GE Predix, or Siemens MindSphere.

Redundancy & Failover
Deploy dual-redundant modules with automatic failover for critical protection loops. The 3500 rack architecture supports N+1 redundancy configurations, ensuring continuous monitoring even during module failures or maintenance.

Custom Alarm Logic
Program complex alarm conditions using Boolean logic, rate-of-change detection, and multi-parameter trip matrices. Example: Trigger shutdown only when bearing temperature exceeds 120°C AND vibration exceeds 10 mm/s simultaneously.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or large orders may require 2-3 weeks. Expedited shipping available for emergency replacements.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Extended warranty plans available for up to 36 months.

Technical Support: Lifetime access to application engineering support, including configuration assistance, troubleshooting guidance, sensor selection, and system integration consulting. Remote diagnostics available via secure VPN connection.

Documentation Package: Each module includes installation manual, configuration guide, wiring diagrams, calibration certificates, and compliance declarations. Digital documentation library accessible 24/7 via customer portal.

Frequently Asked Questions

Can I monitor both RTD and thermocouple sensors on the same 172103-01 module?
Yes, absolutely. Each of the 16 channels can be independently configured for either RTD or thermocouple input. You could connect 8 RTDs and 8 thermocouples, or any other combination up to 16 total sensors. Configuration is performed via software—no hardware jumpers required.

What is the maximum cable length between sensors and the 172103-01 module?
For RTD sensors, maximum cable length is 300 meters (1000 feet) using 3-wire or 4-wire configurations with proper shielding. Thermocouple circuits can extend up to 150 meters (500 feet) with compensated extension cable. Longer runs may require signal conditioning or local transmitters.

How does the 172103-01 compare to the 172115-01B variant?
The 172103-01 is the standard 16-channel I/O module with full monitoring and alarm capabilities. The 172115-01B adds enhanced diagnostics features including sensor drift detection, predictive failure alerts, and advanced calibration functions. For most applications, the 172103-01 provides all necessary functionality at a lower cost.

Is this module suitable for SIL-rated safety instrumented systems?
The 172103-01 is designed for machinery protection and condition monitoring, not safety instrumented functions. For SIL 2/3 applications, consider dedicated safety-rated temperature monitors or consult with a functional safety engineer to determine if the module can be incorporated into a certified safety loop architecture.

What configuration software is required to program alarm setpoints?
The module is configured using Bently Nevada 3500 Rack Configuration Software (free download from Bently Nevada support portal). Configuration can also be performed via the 3500/20 Rack Interface Module or 3500/22M Transient Data Interface using a standard Ethernet connection.

Can I retrofit this module into an existing 3300 series monitoring system?
No, the 3500/65 172103-01 is exclusively compatible with 3500 series racks. The 3300 and 3500 series use different backplane architectures, power supplies, and communication protocols. If you're operating a 3300 system, you'll need to use 3300-series temperature monitors or plan a full system upgrade to the 3500 platform.

Ready to Enhance Your Machinery Protection?

The Bently Nevada 3500/65 172103-01 Temperature I/O Module represents proven technology trusted by thousands of installations worldwide. Whether you're building a new monitoring system or expanding existing coverage, our team provides expert guidance on module selection, system architecture, and integration strategies.

Contact our application engineers today for configuration assistance, pricing on multi-module orders, or technical consultation on your specific monitoring requirements. We stock the complete 3500 series ecosystem and can ship critical components same-day for emergency situations.
