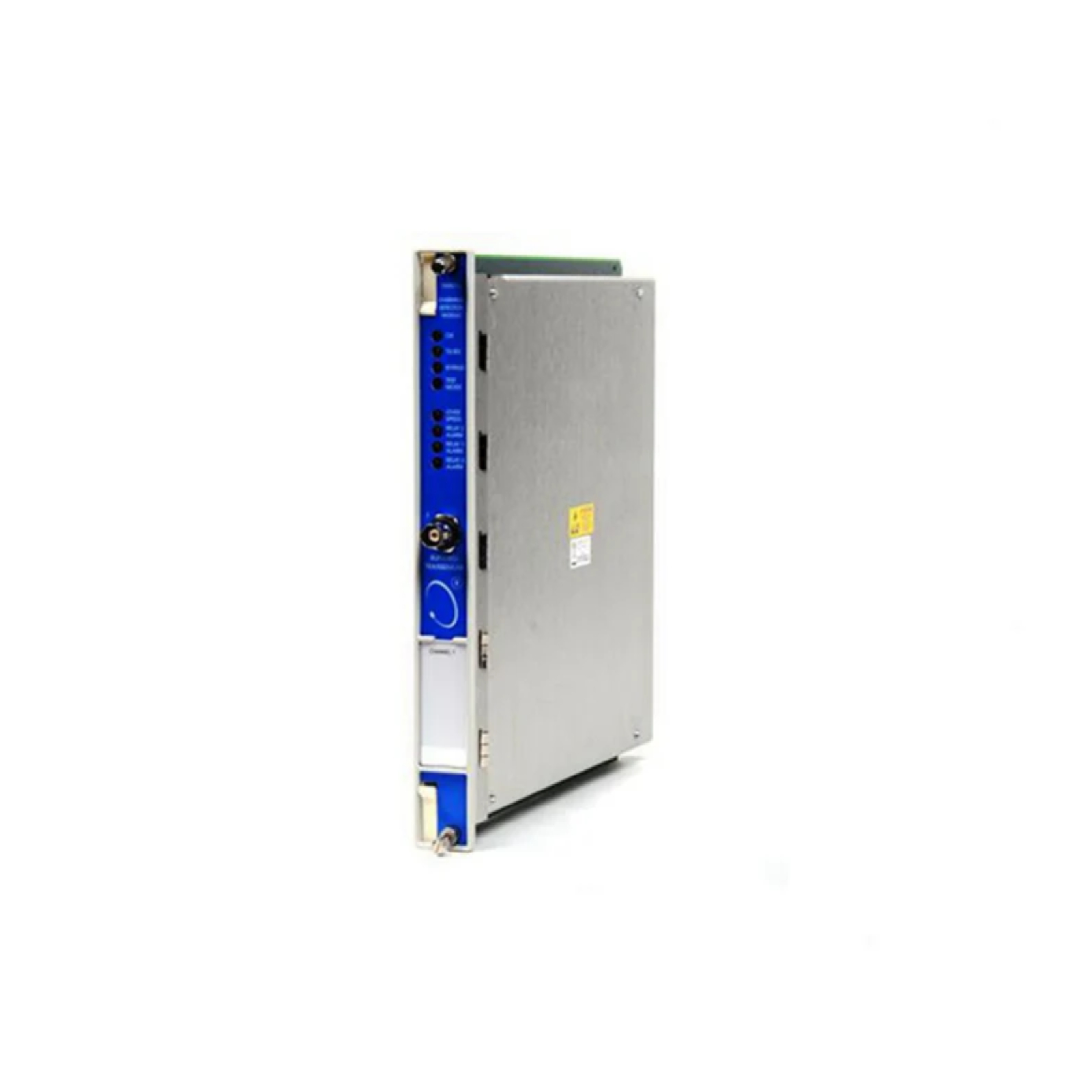

Industrial 4-Channel Pressure Monitor (Bently Nevada 3500/64M)

The Bently Nevada 3500/64M Dynamic Pressure Monitor (Model 140734-05) represents a critical advancement in turbomachinery protection technology. This industrial-grade monitoring solution processes four independent pressure channels simultaneously, delivering real-time combustion dynamics analysis and surge event detection for gas turbines, steam turbines, and centrifugal compressors. Designed for continuous operation in harsh industrial environments, the 3500/64M integrates seamlessly into existing Bently Nevada 3500 Series monitoring frameworks, providing operators with actionable intelligence to prevent catastrophic equipment failures and optimize asset performance.

Target users include power generation facilities, oil & gas processing plants, petrochemical refineries, and industrial manufacturing operations requiring API 670-compliant machinery protection systems. The monitor's advanced signal processing capabilities enable early detection of thermoacoustic instabilities, lean blowout conditions, and compressor surge events—delivering measurable reductions in unplanned downtime and maintenance costs.

Key advantages include hot-swappable installation for zero-downtime maintenance, configurable bandpass filtering (0.5 Hz to 10 kHz) for application-specific tuning, dual-setpoint alarm architecture per channel, and native compatibility with high-temperature dynamic pressure transducers rated for extreme combustion environments.

Core Features & Benefits

✓ Quad-Channel Independent Processing
Four isolated measurement channels with dedicated RMS calculation engines enable simultaneous monitoring of multiple combustion zones or compressor stages. Each channel operates autonomously, ensuring that sensor failures or maintenance activities on one input do not compromise protection on remaining channels—critical for maintaining SIL-rated safety functions.

✓ Configurable Frequency Analysis
User-defined bandpass filters isolate specific frequency ranges associated with combustion instabilities (typically 50-500 Hz) or surge events (5-50 Hz). This precision filtering eliminates background noise and mechanical vibration interference, reducing false alarms by up to 85% compared to broadband monitoring approaches.

✓ Dual-Setpoint Alarm Management
Each channel supports independent Alert and Danger thresholds with programmable time delays and voting logic. Alarm outputs integrate directly with relay modules for automated shutdown sequences or operator notification systems, meeting API 670 machinery protection requirements.

✓ High-Temperature Transducer Compatibility
Native support for charge-output and voltage-output pressure transducers rated to 650°C (1200°F) enables direct combustion chamber monitoring without cooling systems. Built-in IEPE power conditioning eliminates the need for external signal conditioners, simplifying installation and reducing system complexity.

✓ Hot-Swappable Architecture
Field-replaceable design allows module installation or removal from energized 3500 racks without system shutdown when redundant power supplies are deployed. This capability reduces planned maintenance windows from hours to minutes, directly improving asset availability metrics.

✓ Enterprise Data Integration
Modbus TCP/IP and proprietary protocol support enable seamless connectivity to DCS, SCADA, and condition monitoring platforms. Real-time pressure data, alarm status, and diagnostic information stream continuously to plant historians for trend analysis and predictive maintenance applications.

Typical Application Scenarios

→ Gas Turbine Combustion Stability Monitoring
In combined-cycle power plants and mechanical drive applications, the 3500/64M detects combustion dynamics issues before they escalate into hardware damage. By monitoring pressure oscillations in each combustion can, operators receive early warning of lean blowout conditions, flashback events, and thermoacoustic resonances. This proactive approach prevents turbine trips, extends hot gas path component life by 15-25%, and maintains emissions compliance during load transients.

→ Centrifugal Compressor Surge Protection
Petroleum refining and natural gas processing facilities deploy the 3500/64M for real-time surge detection across multi-stage compressor trains. The monitor analyzes discharge pressure fluctuations to identify incipient surge conditions 2-3 seconds before flow reversal occurs, providing sufficient time for automated anti-surge valve actuation. This rapid response capability prevents mechanical damage to impellers, seals, and bearings while maintaining process stability.

→ Steam Turbine Blade Pass Frequency Analysis
Utility-scale steam turbines utilize the 3500/64M to monitor stage pressure variations associated with blade vibration and flow disturbances. By tracking blade pass frequency harmonics, maintenance teams identify developing issues such as blade cracking, fouling, or seal degradation weeks before traditional vibration monitoring detects problems—enabling condition-based maintenance scheduling that reduces forced outages.

→ Aeroderivative Engine Health Monitoring
Offshore platforms and pipeline compression stations leverage the 3500/64M's wide frequency range to monitor both combustion dynamics and compressor aerodynamics in aeroderivative gas turbines. The monitor's ability to simultaneously track low-frequency surge events and high-frequency combustion instabilities provides comprehensive protection for these high-value assets operating in remote, unmanned environments.

→ Industrial Gas Turbine Emissions Compliance
Facilities operating under strict NOx emission limits use the 3500/64M to maintain optimal combustion tuning. By continuously monitoring combustion dynamics, operators can operate closer to lean blowout limits—maximizing emissions performance while maintaining adequate safety margins. This capability is particularly valuable during load following operations where combustion stability margins vary significantly.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3500/64M when your application requires simultaneous monitoring of multiple pressure measurement points with independent alarm management. For single-channel applications or basic pressure monitoring, consider alternative solutions. The 3500/64M is optimized for dynamic pressure analysis (AC-coupled signals) rather than static pressure measurement. Ensure your transducers provide AC output signals in the 0.5 Hz to 10 kHz range for optimal performance.

Extended Functions

Advanced Diagnostic Capabilities: The 3500/64M includes built-in transducer health monitoring that detects open circuits, short circuits, and out-of-range signals. These diagnostic functions generate discrete alarm outputs separate from process alarms, enabling maintenance teams to address sensor issues before they impact machinery protection.

Transient Data Recording: When paired with 3500/22M Transient Data Interface modules, the 3500/64M captures high-resolution waveform data during alarm events. This capability supports root cause analysis of combustion instabilities and surge events, providing engineering teams with detailed forensic data for process optimization.

Customizable Alarm Logic: Advanced users can implement voting schemes across multiple channels (2-out-of-3, 2-out-of-4) to meet SIL 2/3 safety requirements. Time-delay functions prevent nuisance trips during normal transient operations such as startup, shutdown, and load changes.

Remote Configuration: All monitor parameters—including filter settings, alarm setpoints, and scaling factors—can be modified remotely via 3500 Rack Configuration Software. This capability eliminates the need for field visits during commissioning or tuning activities, reducing engineering costs and accelerating project schedules.

Delivery & Service Assurance

Lead Time: Standard configuration units (140734-05) ship within 3-5 business days from our regional distribution centers. Custom configurations requiring specific firmware versions or factory testing may require 2-3 weeks. Expedited shipping options available for critical outage support.

Warranty Coverage: All Bently Nevada 3500/64M monitors include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for up to 60 months, including advance replacement and priority technical support.

Technical Support: Our application engineering team provides pre-sale consultation for system design, transducer selection, and integration planning. Post-sale support includes configuration assistance, troubleshooting guidance, and on-site commissioning services. Support available via phone, email, and remote desktop sessions during extended business hours.

Documentation Package: Each monitor ships with installation manual, configuration guide, wiring diagrams, and dimensional drawings. Digital documentation includes 3D CAD models (STEP format), configuration file templates, and integration guides for common DCS platforms.

Frequently Asked Questions

Q: What transducer types are compatible with the 3500/64M pressure monitor?
A: The monitor accepts both charge-output (piezoelectric) and voltage-output (IEPE/ICP) dynamic pressure transducers. Sensitivity range is 1 mV/psi to 500 mV/psi. For high-temperature combustion applications above 400°C, we recommend charge-output transducers with remote charge amplifiers. Contact our technical team for specific transducer recommendations based on your temperature and pressure range requirements.

Q: Can the 3500/64M monitor static pressure or only dynamic pressure fluctuations?
A: The 3500/64M is designed exclusively for dynamic (AC-coupled) pressure measurement. It measures pressure fluctuations and oscillations, not absolute or static pressure levels. For static pressure monitoring, consider traditional pressure transmitters with 4-20mA outputs connected to 3500/60 or 3500/61 temperature monitors configured for process variable inputs.

Q: How does the monitor integrate with existing DCS or SCADA systems?
A: Integration requires a 3500/92 Communication Gateway or 3500/95 Integra Series module installed in the same 3500 rack. These communication modules provide Modbus TCP/IP, Modbus RTU, or proprietary protocol outputs that connect to your plant network. All pressure values, alarm states, and diagnostic data are accessible via standard industrial protocols—no custom programming required.

Q: What is the typical installation time for adding a 3500/64M to an existing rack?
A: Physical installation takes 15-20 minutes for a qualified technician. Configuration and commissioning typically require 2-4 hours depending on application complexity and number of channels being deployed. Hot-swappable design allows installation without rack shutdown when redundant power supplies are present. We recommend scheduling configuration activities during planned maintenance windows to allow adequate time for transducer verification and alarm testing.

Q: Does this monitor meet API 670 machinery protection system requirements?
A: Yes, the 3500/64M is designed and tested to meet API 670 5th Edition requirements for machinery protection systems. The monitor provides the required dual-setpoint alarm capability, diagnostic coverage, and reliability metrics specified in API 670. When configured with appropriate voting logic and integrated with certified relay modules, the system can achieve SIL 2 safety integrity levels per IEC 61508.

Q: What preventive maintenance is required for the 3500/64M monitor?
A: The monitor itself requires no routine maintenance—it is a solid-state electronic module with no moving parts or consumables. We recommend annual verification of alarm setpoints and calibration checks of connected transducers. The monitor includes self-diagnostic functions that continuously verify internal operation and transducer health. Most maintenance activities focus on the pressure transducers and associated impulse tubing rather than the monitor electronics.

Request Technical Consultation

Our machinery protection specialists are available to discuss your specific application requirements, recommend optimal system configurations, and provide detailed integration planning support. Whether you're designing a new monitoring system or upgrading existing infrastructure, we'll ensure the 3500/64M delivers maximum value for your turbomachinery protection needs.

Contact our team today: Share your equipment specifications, operating conditions, and protection objectives—we'll respond within 4 business hours with a tailored solution proposal including system architecture, component selection, and project timeline.
