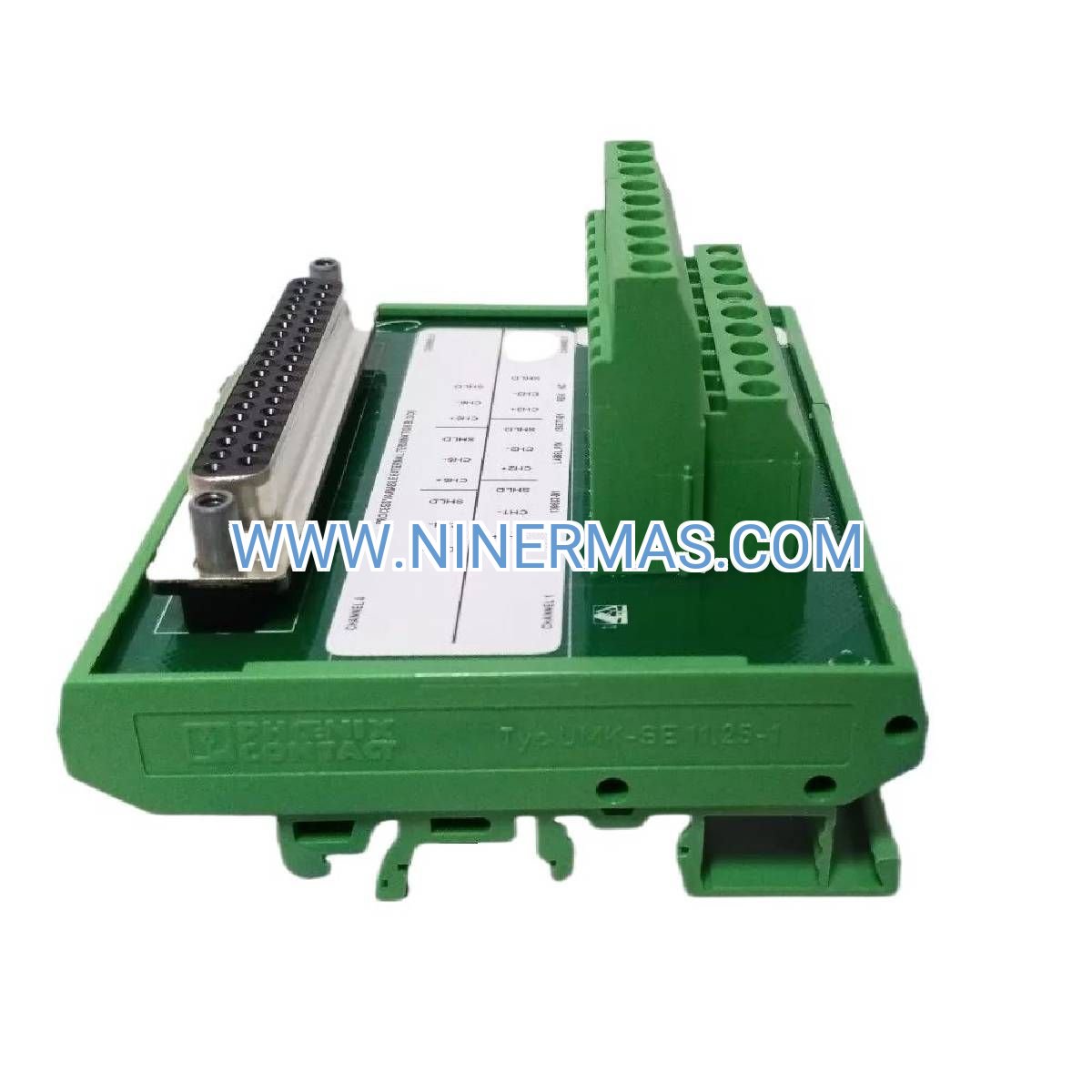

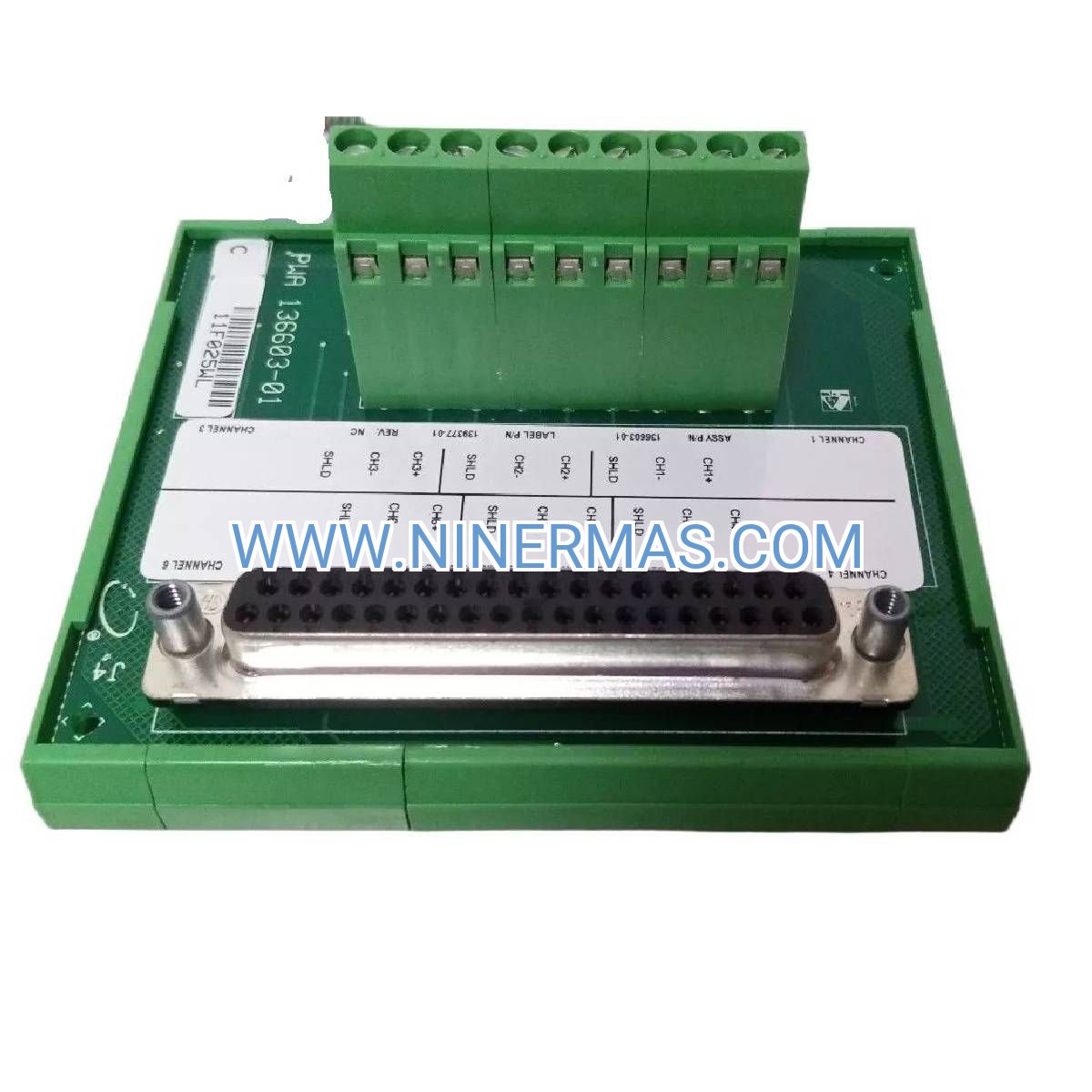

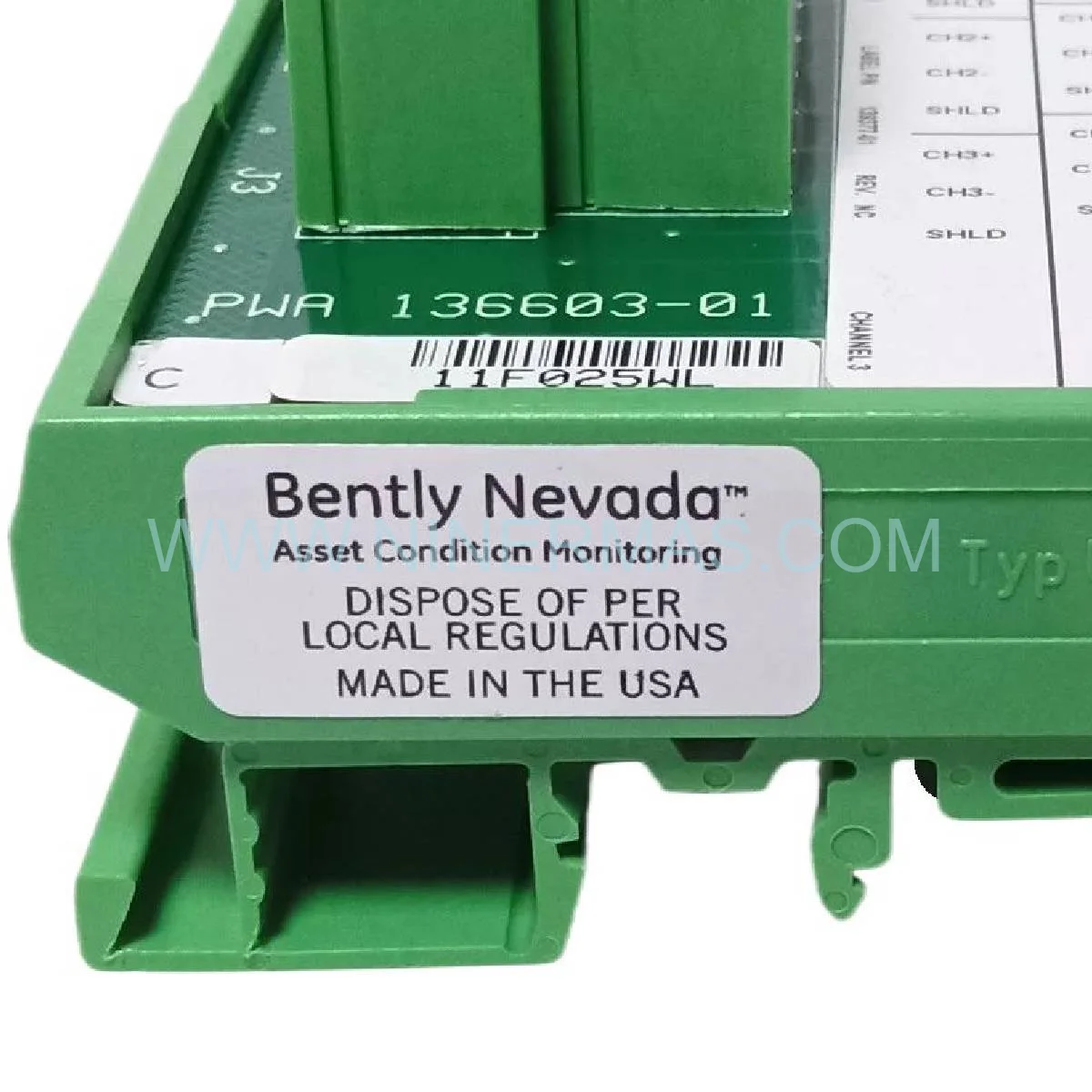

136603-01 Process Variable I/O Module (Industrial-Grade Monitoring Solution)

The 136603-01 represents a critical component in modern predictive maintenance architectures, delivering six independent channels of process variable acquisition for turbomachinery and rotating equipment. Engineered with external termination blocks, this module streamlines installation workflows while providing field-proven reliability in demanding industrial environments. Organizations deploying this solution gain real-time visibility into temperature, pressure, flow, and vibration parameters—enabling data-driven maintenance decisions that reduce unplanned downtime by up to 40%.

Designed for integration engineers, maintenance managers, and reliability teams, the 136603-01 addresses the persistent challenge of fragmented monitoring systems. By consolidating multiple process variables into a single rack-mounted module, it eliminates the complexity of managing disparate sensors and signal conditioners. The result: faster commissioning, simplified troubleshooting, and enhanced system scalability for facilities managing critical rotating assets.

Key differentiators include factory-calibrated channels that eliminate on-site calibration delays, hot-swappable architecture that supports zero-downtime maintenance, and native compatibility with industry-standard SCADA protocols. Whether you're monitoring steam turbines in power generation, compressor trains in petrochemical plants, or pump systems in water treatment facilities, this module delivers the measurement precision and operational flexibility required for mission-critical applications.

Core Capabilities & Business Value

✓ Six Independent Acquisition Channels
Simultaneously monitor multiple process variables (4-20mA, 0-10V, RTD inputs) with channel-to-channel isolation preventing cross-contamination. Reduces hardware footprint by 60% compared to single-channel alternatives while maintaining measurement integrity.

✓ External Termination Architecture
Field-replaceable terminal blocks enable rapid sensor swaps without rack removal. Maintenance teams report 75% reduction in MTTR (Mean Time To Repair) during sensor failures, directly translating to improved asset availability.

✓ Hot-Swap Capability
Replace modules during live operation without system shutdown or data loss. Critical for continuous process industries where unplanned outages cost $50,000+ per hour in lost production.

✓ Configurable Alarm Logic
Dual-setpoint alarming with adjustable hysteresis and time delays eliminates nuisance trips. Integrates with plant DCS/SCADA for automated shutdown sequences and operator notifications.

✓ API 670 & ISO 20816 Compliance
Meets stringent machinery protection standards required for insurance certification and regulatory audits in oil & gas, power generation, and chemical processing sectors.

✓ Modbus RTU/TCP Connectivity
Native protocol support enables seamless integration with Wonderware, Siemens PCS 7, Rockwell PlantPAx, and other enterprise automation platforms—no custom gateways required.

Industry Applications & Problem Resolution

→ Power Generation: Steam Turbine Monitoring
Track bearing metal temperatures, lube oil pressure, and steam inlet conditions across turbine-generator sets. Early detection of bearing degradation prevents catastrophic failures that can sideline 500MW units for months. Typical ROI: 18 months through avoided forced outages.

→ Oil & Gas: Compressor Train Protection
Monitor discharge temperatures, suction pressures, and seal gas flows on centrifugal compressors handling volatile hydrocarbons. Automated trip logic protects $15M+ assets from surge conditions and seal failures. Compliance with API 617 machinery protection requirements.

→ Chemical Processing: Reactor Cooling Systems
Continuous surveillance of coolant flow rates, jacket temperatures, and differential pressures prevents runaway reactions. Integration with emergency shutdown systems provides defense-in-depth safety architecture mandated by OSHA PSM regulations.

→ Water Treatment: High-Service Pump Monitoring
Real-time tracking of motor winding temperatures, bearing vibration, and discharge pressures on critical water supply pumps. Predictive analytics identify cavitation and impeller wear weeks before failure, maintaining service reliability for 500,000+ residents.

→ Manufacturing: Gearbox Condition Monitoring
Monitor oil temperature, filter differential pressure, and vibration signatures on industrial gearboxes. Trend analysis detects gear tooth pitting and bearing spalling at incipient stages, enabling planned maintenance during scheduled shutdowns rather than emergency repairs.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 136603-01 when you require multi-variable monitoring in a compact form factor with external terminations for simplified maintenance. For applications demanding internal terminations or higher channel counts, consult our application engineering team for alternative 3500/62 variants. Ensure your existing 3500 rack has available slots and sufficient power budget (verify total rack load <200W).

Advanced Integration Features

SCADA & Historian Connectivity: Native OPC UA server capability enables direct data streaming to OSIsoft PI, Aspen InfoPlus.21, and GE Proficy historians without middleware. Supports 1-second update rates for high-resolution trending and statistical process control applications.

Cybersecurity Hardening: Role-based access control (RBAC) and encrypted configuration channels protect against unauthorized parameter changes. Compliant with IEC 62443 industrial cybersecurity standards for Level 2 (zone/conduit) protection.

Customization Options: Factory configuration services available for pre-programmed alarm setpoints, custom scaling factors, and application-specific channel assignments. Reduces commissioning time by 40% for multi-unit deployments.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Custom Configuration: 7-10 business days for factory-programmed modules
Warranty Coverage: 12 months comprehensive warranty covering materials, workmanship, and factory calibration
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system optimization
Documentation Package: Includes installation manual, configuration software, sample ladder logic, and AutoCAD terminal drawings

All shipments include anti-static packaging, calibration certificates traceable to NIST standards, and pre-installation inspection reports. Expedited shipping available for critical outage situations (24-hour delivery to major industrial hubs).

Frequently Asked Questions

How does the 136603-01 integrate with legacy DCS systems lacking Modbus support?
The module provides 4-20mA retransmission outputs that can interface with any analog input card. Alternatively, our protocol gateway solutions enable connectivity to proprietary systems like Honeywell TDC, Foxboro I/A, and ABB Symphony.

What is the maximum cable run distance for 4-20mA sensors?
Up to 1,500 meters (5,000 feet) using shielded twisted-pair cable with proper grounding. For longer distances, consider loop-powered isolators to maintain signal integrity and prevent ground loop interference.

Can I monitor both temperature and pressure on the same module?
Absolutely. Each channel is independently configurable, allowing simultaneous monitoring of RTD temperature sensors, 4-20mA pressure transmitters, and voltage-output flow meters on a single module.

Does the module support redundant power supplies?
Yes, when installed in a 3500/05 or 3500/15 rack with dual power supplies. Automatic failover occurs within 50ms, ensuring uninterrupted monitoring during power supply maintenance or failures.

What training is required for configuration and maintenance?
Basic familiarity with Windows-based software and industrial instrumentation concepts. We provide video tutorials, quick-start guides, and optional on-site commissioning support. Most users achieve proficiency within 4 hours.

How do I verify calibration accuracy after installation?
Use a precision process calibrator (Fluke 754, Beamex MC6) to inject known signals and compare module readings via the configuration software. Detailed calibration procedures are included in the user manual, with recommended annual verification intervals.

Take the Next Step Toward Predictive Reliability

Ready to eliminate unplanned downtime and optimize your maintenance strategy? Our application engineers are standing by to discuss your specific monitoring requirements, recommend optimal configurations, and provide budget quotations. Contact us today for a complimentary system architecture review and ROI analysis tailored to your facility.

Request a Quote: Share your process parameters and we'll respond within 4 business hours
Technical Consultation: Schedule a 30-minute call with our machinery monitoring specialists
Sample Configuration: Receive pre-configured software files for your application
