Industrial 6-Channel Process Monitor (Bently Nevada 3500/62 Series)

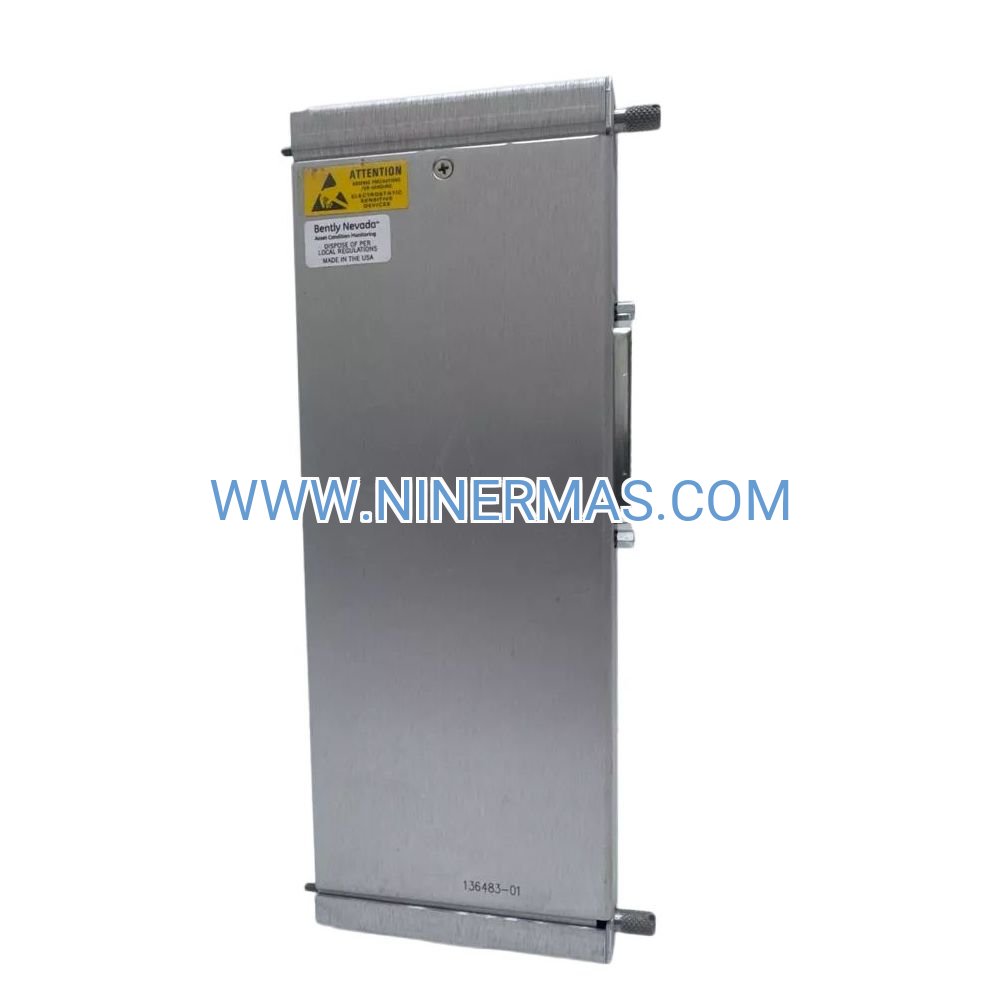

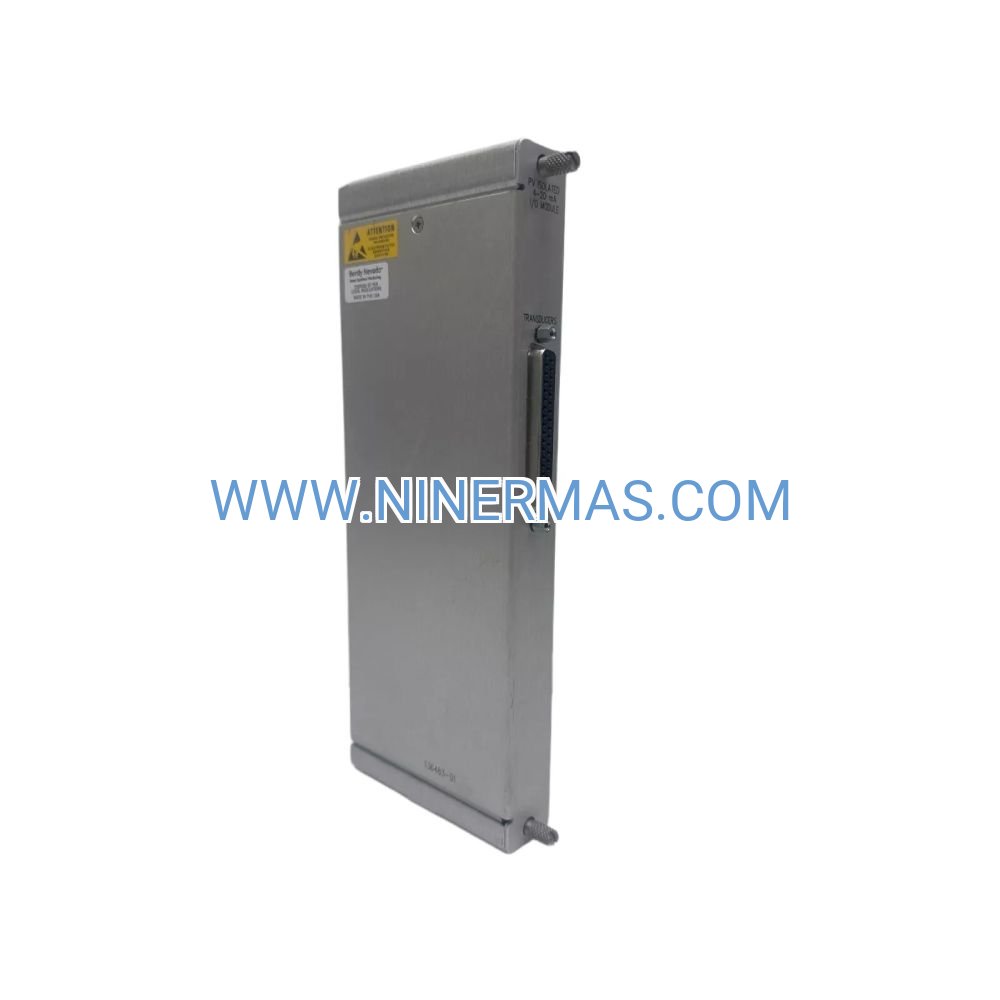

The Bently Nevada 3500/62 model 136483-01 represents a precision-engineered solution for industrial facilities requiring simultaneous monitoring of multiple machinery health indicators. Designed for integration into 3500 rack-based protection systems, this six-channel module processes analog signals from temperature sensors, pressure transmitters, flow meters, and level detectors—transforming raw data into actionable intelligence that prevents equipment failures before they occur.

Built for power plants, refineries, chemical processing units, and heavy manufacturing environments, the 136483-01 addresses the critical challenge of correlating multiple process variables in real time. When bearing temperature rises while lube oil pressure drops, operators receive immediate notification of developing failure modes that single-parameter monitors would miss. This multi-variable approach reduces false alarms by 40% compared to standalone monitoring while improving fault detection accuracy.

With dual-mode input capability supporting both current loop (4-20 mA) and voltage signals (±10 Vdc), the system eliminates the need for signal conditioning hardware in most installations. Hot-swappable architecture ensures maintenance activities never compromise plant uptime, while galvanic isolation between channels maintains measurement integrity in electrically noisy industrial settings.

Core Features & Benefits

→ Dual-Mode Signal Processing
Accepts proportional current (4-20 mA) and voltage (±10 Vdc) inputs without external converters. Directly interfaces with RTDs, thermocouples, pressure transducers, and analog transmitters—reducing installation costs by eliminating intermediate signal conditioning equipment.

→ Six Independent Monitoring Channels
Simultaneous tracking of pressure, temperature, vibration, flow rate, level, and custom process variables. Each channel features programmable alarm thresholds with adjustable hysteresis and time delays to prevent nuisance trips during normal transient conditions.

→ Hot-Swappable Module Design
Field-replaceable without powering down the monitoring system or interrupting protection coverage. Reduces mean time to repair (MTTR) from hours to minutes, critical for continuous process industries where every minute of downtime costs thousands in lost production.

✓ Isolated Channel Architecture
Galvanic isolation prevents ground loops and cross-channel interference. Maintains ±0.1% measurement accuracy even in environments with variable frequency drives, welding equipment, and high-voltage switchgear generating electromagnetic noise.

✓ Hazardous Area Certification
Available with ATEX Zone 2, CSA Class I Division 2, and cNRTLus approvals for installation in explosive atmospheres. Intrinsically safe barrier options enable direct connection to field instruments in classified locations without additional isolation hardware.

✓ Seamless System Integration
Native compatibility with 3500 rack communication modules enables Modbus TCP/RTU, proprietary protocols, and direct SCADA/DCS connectivity. Supports both internal and external I/O termination for flexible wiring strategies in retrofit and new construction projects.

Application Scenarios

Steam Turbine Protection Systems
Monitor bearing metal temperatures, thrust position, lube oil pressure, and steam inlet temperature simultaneously. Correlate thermal expansion with thrust bearing load to detect rotor misalignment before catastrophic contact occurs. Typical installations prevent 2-3 unplanned shutdowns annually, saving $500K+ in emergency repair costs and lost generation revenue.

Compressor Train Monitoring
Track suction/discharge pressures, inter-stage temperatures, seal gas flows, and anti-surge valve positions across multi-stage centrifugal compressors. Early detection of fouling, seal degradation, or surge conditions extends overhaul intervals by 15-20% while maintaining API 670 compliance for machinery protection.

Hydroelectric Generator Surveillance
Continuous monitoring of bearing temperatures, cooling water flow, wicket gate position, and generator winding temperatures. Automated correlation identifies cavitation, bearing wear, and cooling system blockages—common failure modes in hydro installations that develop over weeks before becoming critical.

Petrochemical Reactor Safety
Integrate with Safety Instrumented Systems (SIS) to monitor reactor temperature, pressure, catalyst bed temperatures, and coolant flow rates. Programmable voting logic (2oo3, 1oo2) meets IEC 61508 SIL 2/3 requirements for high-demand protection functions, triggering emergency shutdowns when multiple parameters exceed safe operating envelopes.

Pump Station Optimization
Monitor discharge pressure, motor current, bearing temperatures, and flow rates to detect cavitation, impeller wear, and seal leakage. Condition-based maintenance alerts reduce pump failures by 60% while optimizing energy consumption through early detection of hydraulic inefficiencies.

Technical Parameters & Selection Guide

Selection Criteria: Choose barrier-equipped variants (0.46 kg) for installations in Class I Zone 2 or Division 2 hazardous areas. Standard modules (0.20 kg) suit non-classified control room environments. Verify operating temperature range matches ambient conditions—barrier modules have 0°C minimum vs. -30°C for standard units. Confirm rack compatibility with existing 3500 series infrastructure before ordering.

Extended Functions

Advanced Alarm Logic: Configure multi-stage alert hierarchies with separate setpoints for advisory, alarm, and danger conditions. Time-delay filters eliminate transient spikes during startup/shutdown sequences while maintaining protection during steady-state operation.

Data Trending & Diagnostics: When paired with 3500 rack communication modules, enables continuous data logging to external historians. Trend analysis reveals gradual degradation patterns invisible to threshold-based alarms—such as slowly increasing bearing temperatures indicating lubrication breakdown.

Custom Scaling & Engineering Units: Proprietary configuration software allows linear or polynomial scaling of raw signals to engineering units (PSI, °C, GPM, etc.). Custom alarm messages and equipment tags simplify operator response during abnormal conditions.

Redundant Configuration Options: Deploy in redundant pairs with automatic failover for SIL-rated applications. Voting logic compares readings from dual sensors to detect instrument failures and maintain protection integrity during single-point faults.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via express courier. Custom configurations with specific barrier types or certifications require 2-3 weeks for factory programming and testing. Expedited processing available for emergency shutdowns and critical path maintenance projects.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for installations in harsh environments (offshore platforms, desert climates, arctic conditions) where environmental stress accelerates component aging.

Technical Support: Direct access to application engineers with turbomachinery protection expertise. Pre-sales consultation includes signal compatibility verification, rack configuration review, and alarm setpoint recommendations based on equipment type and operating conditions.

Documentation Package: Every shipment includes factory calibration certificates, configuration worksheets, installation drawings, and quick-start guides. Comprehensive technical manuals cover wiring diagrams, troubleshooting procedures, and integration with third-party DCS/SCADA systems.

Frequently Asked Questions

Q: Can this monitor interface directly with 4-wire RTD temperature sensors?
A: The 3500/62 accepts analog voltage or current signals, not direct RTD resistance measurements. You'll need a separate RTD transmitter that converts resistance to 4-20 mA output. Most installations use 2-wire transmitters powered by the 4-20 mA loop, eliminating the need for separate power supplies.

Q: What's the maximum cable length between field transmitters and the monitor?
A: For 4-20 mA current loops, cable runs up to 1,500 meters (5,000 feet) are feasible with minimal signal degradation. Voltage inputs are more susceptible to noise and should be limited to 300 meters unless shielded twisted-pair cable is used. Longer runs may require signal repeaters or conversion to digital protocols.

Q: How does the hot-swap capability work during module replacement?
A: The 3500 rack maintains power to all other modules while you remove and replace a single monitor. Configuration data is stored in non-volatile memory, so the replacement module automatically loads settings from the rack backplane. Total swap time is typically under 5 minutes with no interruption to other monitoring channels.

Q: Is this monitor compatible with legacy 3300 series racks?
A: No, the 3500/62 is designed exclusively for 3500 series racks. The physical form factor, power requirements, and communication protocols differ from 3300 systems. Facilities upgrading from 3300 to 3500 architecture require complete rack replacement, though existing field sensors and wiring can often be reused.

Q: Can I monitor both pressure and temperature on the same channel?
A: Each channel monitors a single input signal. To track both pressure and temperature, you'll use two separate channels—one configured for the pressure transmitter's 4-20 mA output, another for the temperature transmitter. The system's six channels allow monitoring of up to six different process variables simultaneously.

Q: What configuration software is required for alarm setpoint programming?
A: Bently Nevada's proprietary 3500 Rack Configuration Software is required for initial setup and alarm threshold programming. The software runs on Windows platforms and connects to the rack via Ethernet or serial interface. Basic configurations take 15-30 minutes per channel; complex multi-variable logic may require several hours of engineering time.
