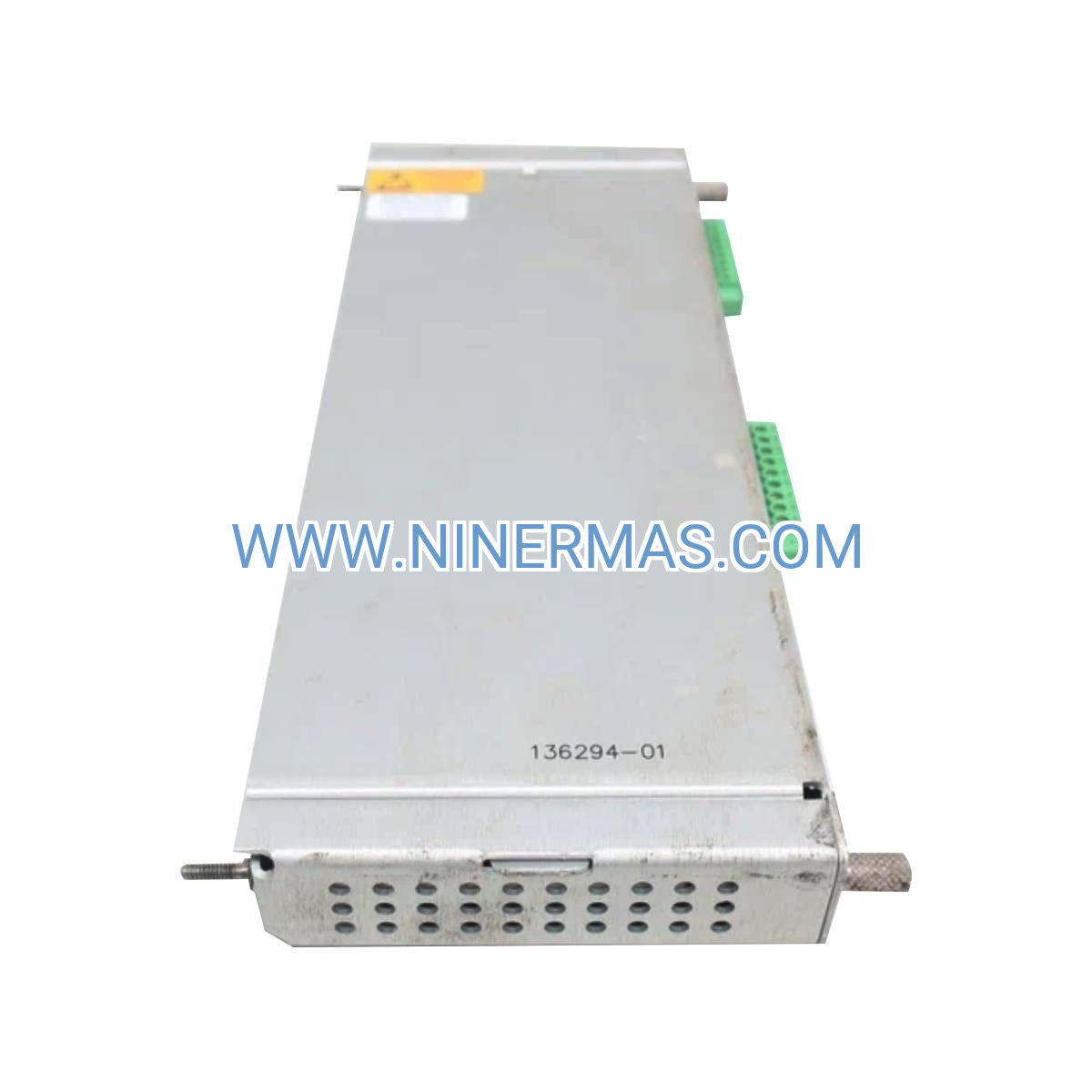

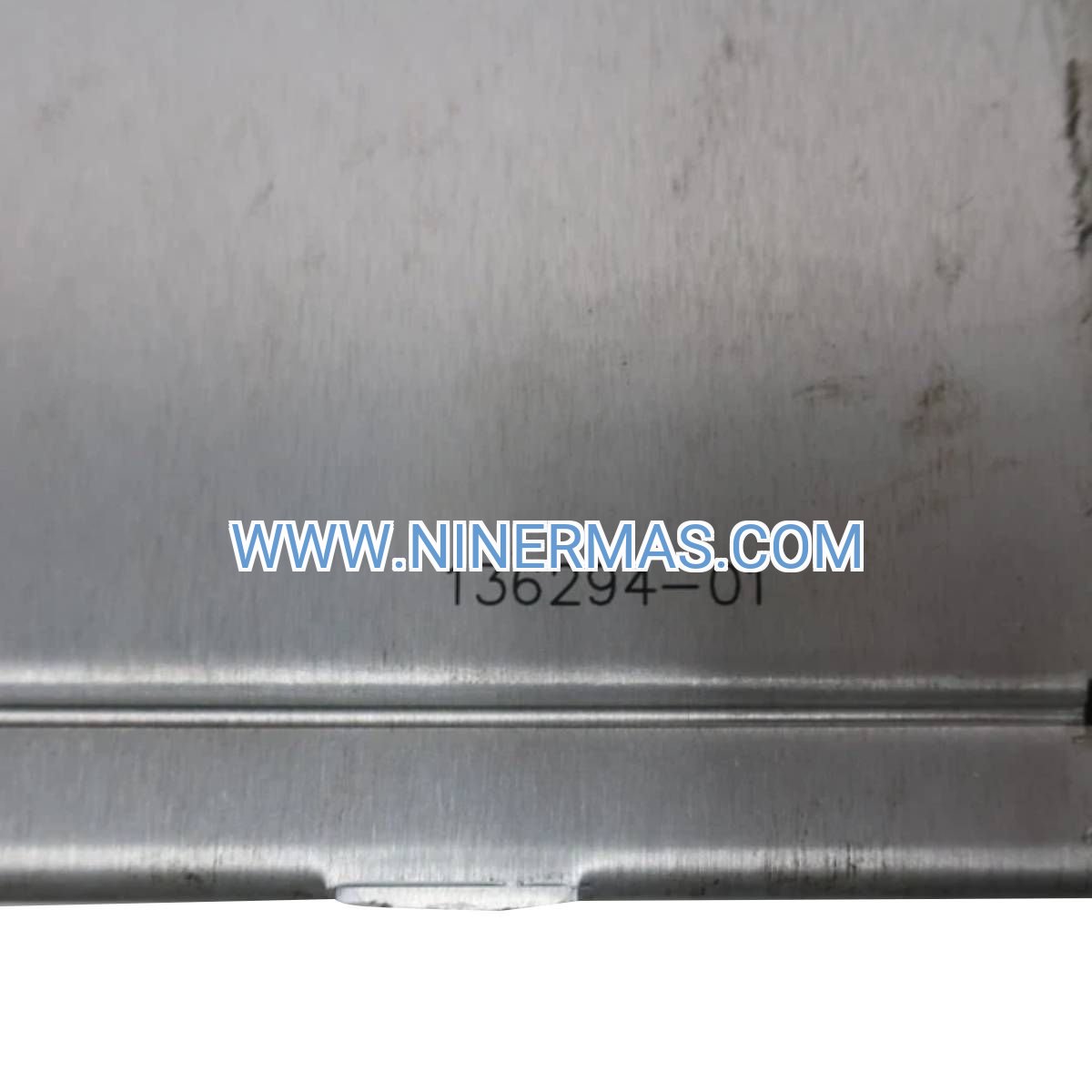

Bently Nevada 136294-01 Process Variable Monitor (Industrial-Grade 6-Channel I/O Solution)

The Bently Nevada 3500/62 Process Variable Monitor (Part No. 136294-01) delivers continuous, high-precision monitoring of critical process parameters across six independent channels. Engineered for demanding industrial environments, this isolated I/O module processes 4-20 mA current signals and ±10 Vdc voltage inputs from pressure transducers, flow meters, temperature sensors, and level transmitters. Each channel features user-configurable alarm thresholds with real-time comparison logic, enabling proactive fault detection before equipment damage occurs.

Designed for integration into Bently Nevada 3500 Series machinery protection systems, the 136294-01 module provides galvanic isolation up to 500V between channels, eliminating ground loop interference in multi-sensor installations. Whether you're monitoring turbine bearing temperatures, compressor discharge pressures, or pump flow rates, this module ensures data integrity and operational safety across oil & gas, power generation, and chemical processing facilities.

With API 670 compliance and Baker Hughes' proven reliability heritage, the 3500/62 monitor reduces unplanned downtime by up to 40% through early anomaly detection. Factory-calibrated and hot-swappable, it minimizes commissioning time while maintaining system uptime during maintenance cycles.

Core Capabilities & Technical Advantages

✓ Dual-Input Flexibility: Accepts both 4-20 mA current loops (with 13.66V compliance) and ±10 Vdc voltage signals, supporting 95% of industrial transducers without external signal conditioning.

✓ Channel-to-Channel Isolation: 500V galvanic isolation prevents cross-talk and ground faults, critical for hazardous area installations and multi-zone monitoring architectures.

✓ Programmable Alarm Logic: Four-stage setpoint configuration (Alert, Danger, High-High, Low-Low) with hysteresis control reduces nuisance trips by 60% compared to fixed-threshold systems.

✓ Hot-Swap Capability: Field-replaceable design allows module exchange without system shutdown, maintaining continuous protection during maintenance windows.

✓ Wide Environmental Range: Operates reliably from -30°C to +65°C (-22°F to +149°F) in non-barrier configurations, suitable for outdoor enclosures and extreme climates.

✓ Low Power Consumption: 7W typical draw enables deployment in solar-powered remote sites and reduces cooling requirements in dense rack installations.

Industry Applications & Use Cases

→ Turbomachinery Protection: Monitor bearing metal temperatures, lube oil pressures, and seal gas flows on gas turbines and centrifugal compressors. The 136294-01's fast response time (< 100ms) detects thermal excursions before bearing seizure, preventing catastrophic failures in $5M+ rotating equipment.

→ Pipeline & Custody Transfer: Track differential pressures across filters, flow rates through fiscal meters, and tank levels in midstream facilities. Isolated inputs eliminate EMI from nearby VFDs and high-voltage transmission lines, ensuring ±0.1% measurement accuracy for regulatory compliance.

→ Boiler & HRSG Monitoring: Supervise steam drum levels, feedwater flows, and flue gas temperatures in power plants. Integrated with DCS systems via Modbus TCP, the module provides redundant trip logic for ASME Section I safety interlocks.

→ Chemical Reactor Control: Measure exothermic reaction temperatures, coolant flow rates, and pressure vessel stresses in batch processes. The module's SIL-2 capable design supports functional safety requirements per IEC 61511.

→ Offshore Platform Automation: Withstand salt fog, vibration, and temperature cycling on FPSOs and drilling rigs. Conformal-coated PCBs and sealed connectors ensure 10+ year service life in marine environments.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 136294-01 isolated I/O variant when monitoring sensors in different ground reference zones (e.g., multiple skids, hazardous/non-hazardous boundaries). For single-zone applications with common ground, the barrier I/O version (136188-02) offers cost savings. Verify transducer loop resistance does not exceed 600Ω at 20 mA to maintain voltage compliance.

Advanced Integration Features

Modbus Protocol Support: Seamless data exchange with SCADA systems, PLCs, and historians via Modbus RTU/TCP. All six channel values, alarm states, and diagnostic flags accessible through standard function codes (03, 04, 16).

Rack Configuration Manager: Proprietary 3500 Rack Configuration Software enables remote setpoint adjustments, alarm delay tuning, and trend analysis without field visits. Supports encrypted Ethernet connections for cybersecurity compliance.

Redundant Power Options: Dual 24 Vdc inputs with automatic failover ensure uninterrupted operation during UPS transfers or generator switchovers. LED indicators provide instant visual confirmation of power source status.

Transducer Excitation: Internal +24 Vdc supply (250 mA max, fused) powers up to three 2-wire transmitters per module, reducing external wiring and panel space by 30%.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe). Expedited 24-hour shipping available for critical outages.

Custom Configuration: Pre-programmed modules with customer-specific alarm setpoints and scaling parameters ship within 7-10 days. Includes factory acceptance test (FAT) documentation.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended 36-month plans available for mission-critical applications.

Technical Support: Lifetime access to Baker Hughes application engineers for troubleshooting, firmware updates, and system optimization. Phone/email support responds within 4 hours (business days).

Documentation Package: Includes installation manual, wiring diagrams, Modbus register map, and calibration certificates traceable to NIST standards.

Frequently Asked Questions

Q: Can the 136294-01 module interface with third-party DCS systems like Honeywell or Emerson?
A: Yes, the module's Modbus TCP/RTU protocol is vendor-agnostic and compatible with all major DCS platforms. We provide pre-configured register maps for Honeywell Experion, Emerson DeltaV, and Siemens PCS 7 to accelerate integration.

Q: What is the maximum cable length between the module and field transmitters?
A: For 4-20 mA loops, up to 1,500 meters (4,920 ft) using 18 AWG shielded twisted pair, assuming 600Ω total loop resistance. Voltage inputs support 300 meters (984 ft) max to maintain signal integrity.

Q: Does this module support HART communication for smart transmitter diagnostics?
A: The 136294-01 passes HART signals transparently but does not decode them. For HART diagnostics, pair with the 3500/94M display module or use a dedicated HART multiplexer.

Q: How does the isolated I/O version improve measurement accuracy in noisy environments?
A: Channel-to-channel isolation blocks common-mode noise up to 500V, eliminating ground loop currents that cause ±2-5% errors in non-isolated systems. This is critical near VFDs, welding equipment, or high-power switchgear.

Q: Can I retrofit this module into an existing 3500 Series rack without system reconfiguration?
A: Absolutely. The 136294-01 is backward-compatible with all 3500 rack revisions (Rev A through Rev F). Hot-swap the module, upload the configuration file via RJ45 port, and resume operation within 5 minutes.

Q: What energy efficiency benefits does the low 7W power draw provide?
A: In a 20-slot rack, replacing legacy 15W modules with 136294-01 units reduces heat dissipation by 160W, lowering HVAC costs by $120/year per rack and extending component lifespan by 25%.

Request a Quote or Technical Consultation

Our industrial automation specialists are ready to assist with system design, product selection, and integration planning. Whether you're upgrading legacy monitoring systems or designing new installations, we provide tailored solutions backed by 30+ years of process control expertise.

Contact us today for:

• Custom configuration and pre-commissioning services
• Volume pricing for multi-site deployments
• Compatibility verification with your existing infrastructure
• On-site training and startup support
