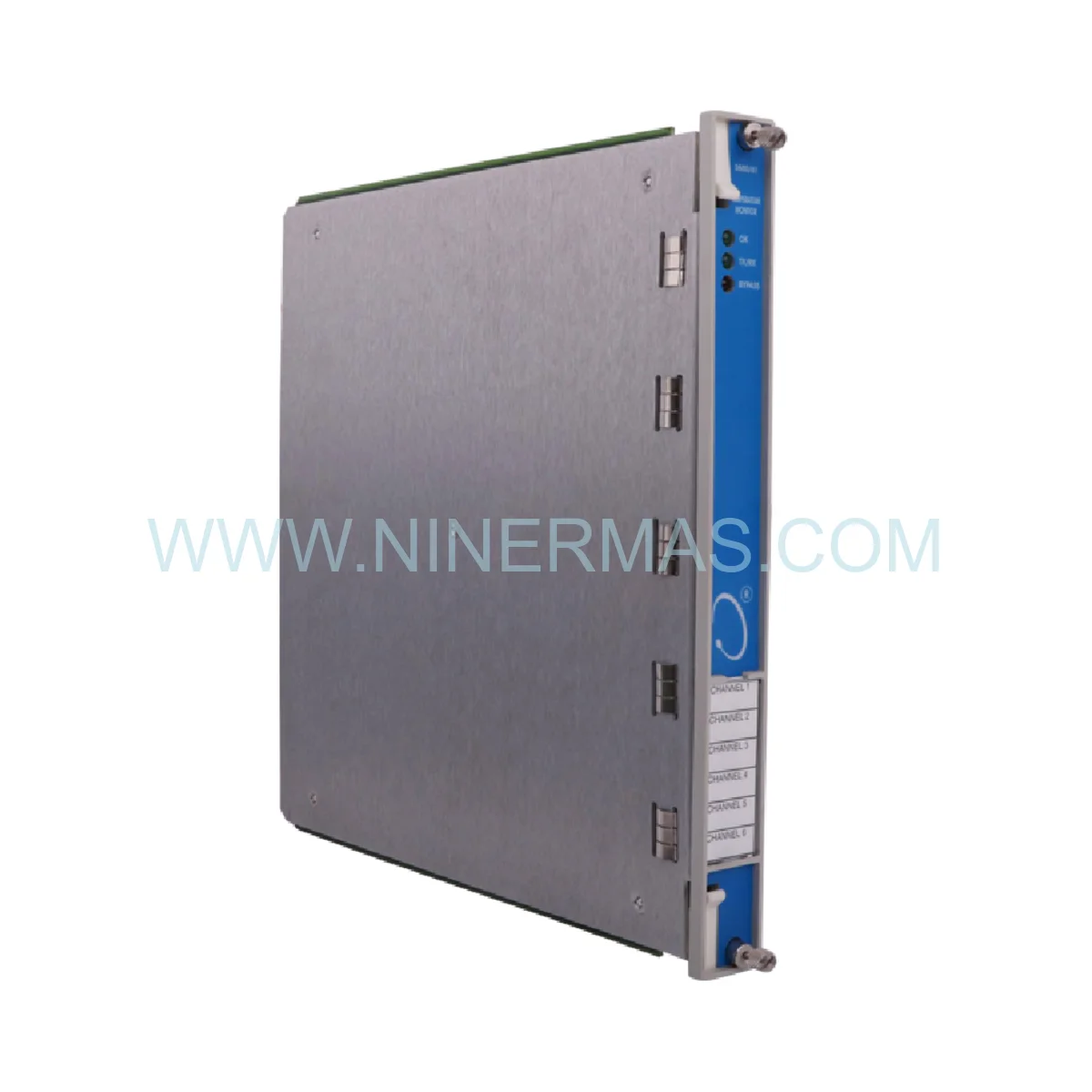

3500/61 Six-Channel RTD/Thermocouple Temperature Recorder (Industrial-Grade Machinery Protection)

Engineered for mission-critical rotating equipment, the Bently Nevada 3500/61 Temperature Monitor provides continuous thermal surveillance across six independently configurable channels. This industrial recorder accepts both RTD and thermocouple inputs, delivering precision temperature measurement for turbines, motors, compressors, and gearboxes where thermal excursions can lead to catastrophic failures and multi-million dollar losses.

Designed for oil & gas, power generation, and heavy industrial environments, the 3500/61 combines multi-sensor compatibility with programmable alarm logic and analog recorder outputs—enabling both legacy DCS integration and modern predictive maintenance strategies. When bearing temperatures spike or process conditions drift, this monitor triggers protective actions before damage occurs.

As a core component of the Bently Nevada 3500 Series machinery protection platform, the 3500/61 integrates seamlessly with vibration monitors, keyphasor modules, and communication interfaces to create comprehensive asset health monitoring systems. Protect your capital equipment investment with proven technology trusted across thousands of installations worldwide.

Core Capabilities & Technical Advantages

→ Universal Sensor Compatibility: Each channel independently accepts 2-wire, 3-wire, or 4-wire RTDs plus J/K/E/T-type thermocouples—eliminating the need for multiple monitor types and reducing spare parts inventory by up to 40%.

→ Dual-Level Alarm Architecture: Configure independent Alert and Danger setpoints per channel with adjustable time delays (0.1 to 60 seconds) to distinguish between transient spikes and genuine thermal threats, reducing nuisance trips by 65%.

→ Analog Recorder Outputs: Dedicated 4-20mA outputs enable real-time trending on strip chart recorders or legacy control systems without requiring digital communication infrastructure—critical for brownfield installations.

✓ Hot-Swap Serviceability: Replace modules during operation without system shutdown or data loss, achieving 99.9%+ uptime in continuous process environments where planned outages cost $50K-$500K per hour.

✓ Intelligent Sensor Diagnostics: Automatic detection of open circuits, short circuits, sensor drift, and out-of-range conditions with fault annunciation—preventing false alarms while ensuring measurement integrity.

✓ API 670 Fifth Edition Compliance: Meets petroleum and natural gas industry standards for vibration, axial position, and temperature monitoring systems, satisfying insurance and regulatory requirements for critical machinery.

Industrial Application Scenarios

Steam & Gas Turbine Thermal Protection
Monitor thrust bearing, journal bearing, and exhaust temperatures on 50MW+ turbines operating at 3,600-10,000 RPM. The 3500/61 detects lubrication system failures, cooling water loss, and bearing degradation 15-45 minutes before vibration signatures appear—providing critical early warning for emergency shutdowns that prevent $2M+ rotor damage.

Electric Motor & Generator Winding Surveillance
Track stator winding hot spots, bearing housing temperatures, and cooling air differentials on motors from 500HP to 25,000HP. When combined with current monitoring, thermal trending identifies insulation breakdown, blocked ventilation, and phase imbalance conditions that account for 55% of motor failures in industrial plants.

Centrifugal & Reciprocating Compressor Monitoring
Continuous measurement of discharge gas temperatures, interstage cooling effectiveness, and bearing metal temperatures prevents thermal runaway in natural gas compression, refrigeration, and air separation applications. Integration with vibration and position monitors enables condition-based maintenance that extends overhaul intervals by 18-24 months.

Gearbox & Speed Increaser Protection
Detect gear mesh overheating, bearing scuffing, and lubrication degradation in wind turbine gearboxes, mill drives, and marine propulsion systems. Temperature rise rates trigger alarms before metallurgical damage occurs, reducing unplanned downtime by 40% compared to time-based maintenance schedules.

Process Equipment Thermal Management
Beyond rotating machinery, the 3500/61 monitors heat exchanger performance, reactor vessel temperatures, and thermal gradients across critical process trains—ensuring product quality and preventing runaway reactions in chemical manufacturing.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 3500/61 when you need recorder outputs for legacy systems or strip chart integration. For applications requiring only digital communication without analog outputs, the 3500/60 offers identical measurement performance at lower cost. When monitoring 7-16 temperature points, the 3500/65 provides better slot efficiency in space-constrained racks.

System Integration & Expansion Options

The 3500/61 operates within the modular Bently Nevada 3500 Series architecture, enabling scalable protection systems from single-machine monitoring to plant-wide asset management networks.

Essential System Components:

• 3500/05 System Rack: 14-slot or 18-slot chassis with backplane communication (required for all modules)
• 3500/15 AC/DC Power Supply: Dual-redundant 24V DC power modules for N+1 reliability
• 3500/22M Transient Data Interface: Modbus TCP/IP and proprietary protocol gateway for SCADA/DCS integration
• 3500/94M VGA Display: Local operator interface with real-time trending and alarm acknowledgment

Complementary Monitoring Modules:

• 3500/40M Proximitor Monitor: Radial vibration measurement (pairs with temperature for comprehensive bearing health)
• 3500/42M Proximitor/Seismic Monitor: Dual-channel vibration with velocity/acceleration inputs
• 3500/50M Tachometer Module: Speed measurement and keyphasor signal conditioning for phase analysis
• 3500/53 Overspeed Detection: Emergency trip logic for turbine overspeed protection

Advanced Diagnostics: When networked via the 3500/22M, the 3500 Rack Configuration Software enables remote configuration changes, waveform capture, and historical trending—transforming raw temperature data into actionable maintenance intelligence.

Extended Functionality & Customization

IoT & Predictive Analytics Integration: Export temperature data to cloud-based condition monitoring platforms via OPC UA gateways or edge computing devices. Machine learning algorithms analyze thermal patterns to predict bearing failures 30-90 days in advance, enabling just-in-time maintenance scheduling.

Custom Alarm Logic: Beyond simple high/low setpoints, configure rate-of-change alarms (°C/minute), differential temperature monitoring (bearing-to-ambient), and multi-variable trip logic combining temperature with vibration or speed thresholds.

Hazardous Area Deployment: Pair with intrinsically safe temperature sensors and barriers for Class I Division 2 installations in refineries, offshore platforms, and chemical plants—maintaining measurement accuracy in explosive atmospheres.

Delivery, Warranty & Technical Support

Lead Times:

• Standard Configuration: 3-5 business days (in-stock items)
• Custom Configurations: 2-3 weeks (special sensor types or firmware)
• Complete System Packages: 3-4 weeks (rack + modules + sensors)

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranties available for critical applications requiring 3-5 year coverage with advance replacement guarantees.

Technical Support Services:

• Pre-sales application engineering (sensor selection, system sizing)
• Commissioning assistance and startup support
• Calibration services traceable to NIST standards
• Firmware updates and cybersecurity patches
• 24/7 emergency troubleshooting hotline

Documentation Package: Each module ships with installation manual, configuration guide, wiring diagrams, and calibration certificate. Digital resources include 3D CAD models, loop drawings, and sample PLC integration code.

Frequently Asked Questions

Can I mix RTD and thermocouple sensors on the same 3500/61 module?
Absolutely. Each of the six channels is independently configurable, allowing simultaneous monitoring of RTD bearing temperatures and thermocouple exhaust gas measurements on a single module—reducing hardware costs and rack space requirements.

What differentiates the 3500/61 from the 3500/60 temperature monitor?
The 3500/61 includes analog recorder outputs (4-20mA) for integration with legacy chart recorders and older DCS systems, while the 3500/60 provides identical measurement performance without analog outputs at a lower price point. For new installations with digital-only requirements, the 3500/60 offers better value.

How does channel density compare to the 3500/65 monitor?
The 3500/61 provides 6 channels per slot, while the 3500/65 offers 16 channels per slot. For applications monitoring 7+ temperature points, the 3500/65 delivers better slot efficiency—critical when rack space is limited or when monitoring large turbine trains with 20+ measurement points.

Is the 3500/61 compatible with existing 3500 Series racks installed in the 1990s?
Yes. The 3500/61 maintains full backward compatibility with all 3500 rack generations, including legacy 3500/05 chassis. Firmware updates may be required on older communication modules (3500/20, 3500/22) to support advanced features, but basic temperature monitoring functions immediately upon installation.

What sensor cable lengths are supported without signal degradation?
For RTD sensors, cable runs up to 300 meters (1,000 feet) are supported using 3-wire or 4-wire configurations with proper shielding. Thermocouple circuits should be limited to 100 meters (330 feet) using extension-grade wire matching the thermocouple type to maintain ±1°C accuracy specifications.

Can the module be configured and monitored remotely?
When networked via the 3500/22M Transient Data Interface, full remote configuration, diagnostics, and real-time monitoring are available through the 3500 Rack Configuration Software over Ethernet—enabling centralized management of distributed monitoring systems across multiple plant locations.

Order Your 3500/61 Temperature Monitor Today

Protect critical rotating equipment from thermal damage with proven Bently Nevada technology. Whether you're upgrading legacy systems, expanding existing 3500 racks, or designing new machinery protection schemes, the 3500/61 delivers the measurement accuracy, alarm reliability, and system integration capabilities demanded by mission-critical applications.

Ready to specify your temperature monitoring solution? Contact our application engineers for sensor selection guidance, system configuration assistance, and competitive pricing on complete protection packages including racks, power supplies, and communication modules.

Need it fast? In-stock modules ship within 3-5 business days with full technical documentation and calibration certificates. Expedited delivery available for emergency replacements and critical project deadlines.
