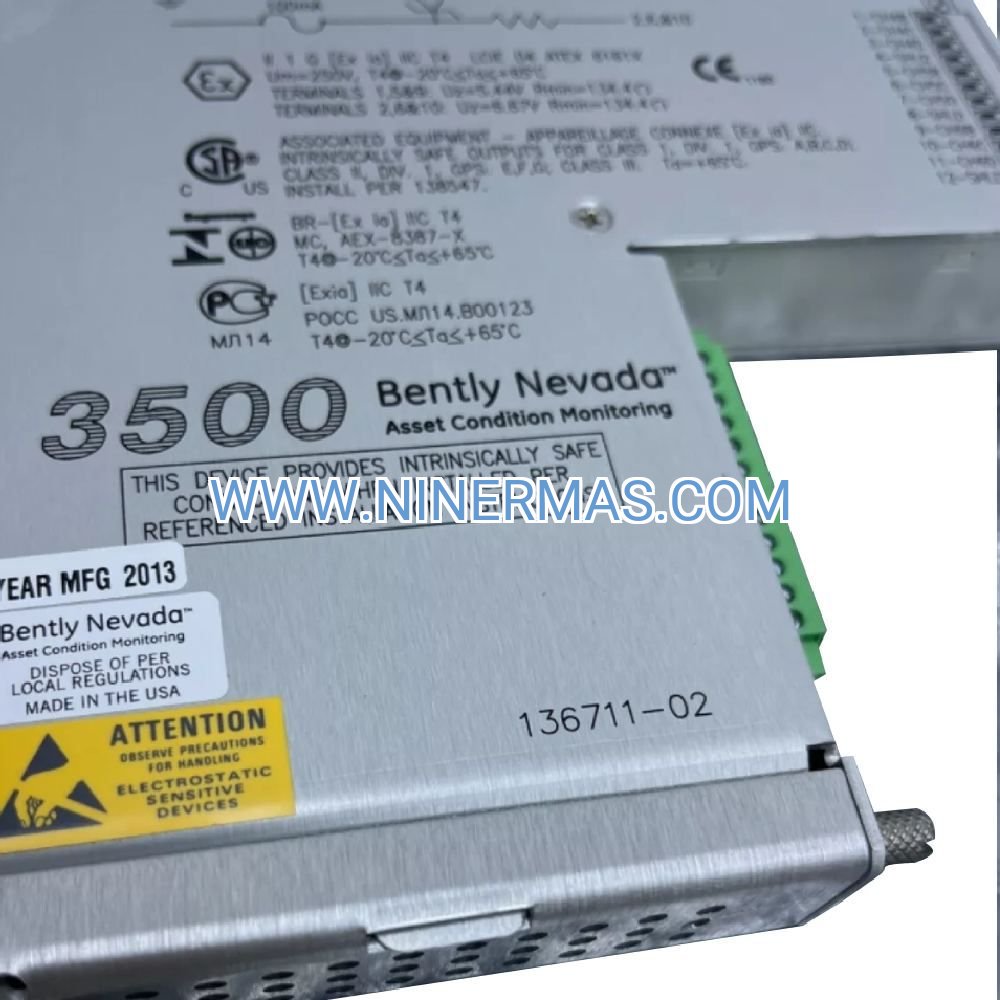

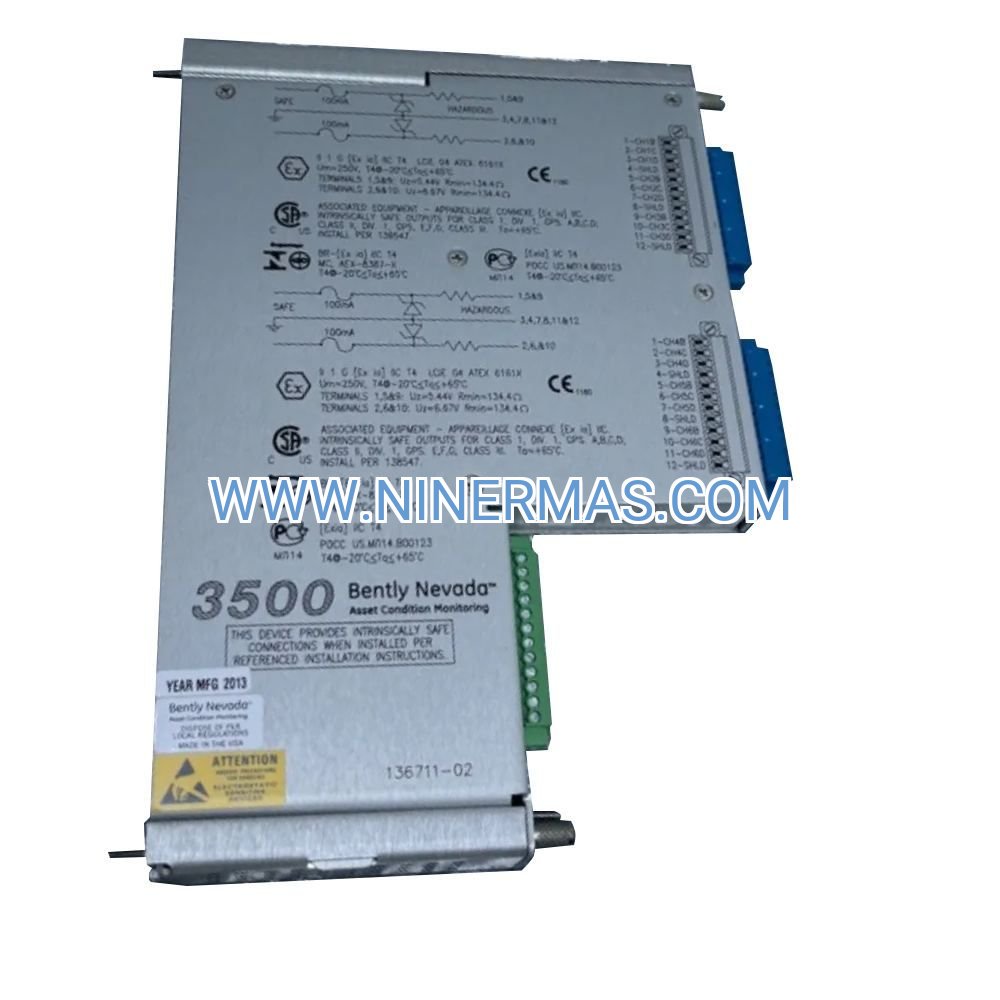

Industrial 6-Channel RTD/TC Temperature Monitor (Bently Nevada 3500/61 136711-02)

The Bently Nevada 3500/61 136711-02 delivers precision temperature surveillance for mission-critical rotating machinery in hazardous industrial environments. This rack-mounted I/O module combines 6 universal input channels, integrated intrinsic safety barriers, and ±0.5°C measurement accuracy to protect turbines, compressors, and generators from thermal failures.

Designed for oil & gas, power generation, and petrochemical facilities, the 136711-02 accepts both RTD (2/3/4-wire) and thermocouple (J/K/E/T/N/R/S/B) sensors without external signal conditioning. Certified for Class I Division 1 and ATEX Zone 1 installations, it eliminates costly external barrier panels while maintaining compliance with global safety standards.

When integrated with the 3500 rack ecosystem, this temperature monitor enables real-time alarm comparison, hot-swap maintenance, and seamless data export to DCS/SCADA systems—reducing unplanned downtime by up to 40% through early thermal anomaly detection.

Core Capabilities & Business Value

→ Universal Sensor Compatibility
Accepts RTD (Pt100/Pt1000/Ni120/Cu10) and all standard thermocouple types on the same module. Eliminates inventory complexity and reduces spare parts costs by 30% compared to single-input-type monitors.

→ Integrated Intrinsic Safety
Built-in barriers enable direct sensor connection in Division 1/Zone 1 areas without external Zener barriers. Saves $800-1,200 per channel in installation hardware and reduces panel footprint by 60%.

→ Programmable Multi-Level Alarms
Independent Alert and Danger setpoints per channel with adjustable hysteresis. Prevents false trips while ensuring machinery shutdown before catastrophic bearing failures (typical cost: $50,000-500,000 per event).

✓ High-Precision Measurement
±0.5°C accuracy across -200°C to +850°C range detects 2-5°C temperature rises that precede bearing seizures by 4-12 hours. Provides actionable maintenance windows in 24/7 operations.

✓ Hot-Swappable Architecture
Field-replaceable during operation without rack power-down. Reduces MTTR (Mean Time To Repair) from 4-6 hours to under 15 minutes, maintaining 99.9%+ system availability.

✓ Rack-Based Scalability
Installs in standard 3500/05 14-slot chassis alongside vibration, speed, and position monitors. Supports up to 84 temperature points per rack for comprehensive machinery health surveillance.

Industry-Specific Applications

Power Generation Facilities
Monitor steam turbine bearing metal temperatures (8-12 points per unit) and generator stator windings. Pair with 3500/40M vibration monitors for combined thermal-mechanical protection that meets NERC reliability standards.

Upstream Oil & Gas
Track compressor discharge temperatures and seal gas temperatures in offshore platforms and gas processing plants. ATEX/IECEx certification enables installation in Zone 1 compressor buildings without costly purged enclosures.

Petrochemical Refineries
Continuous surveillance of reactor vessel skin temperatures and distillation column reboiler performance. Integrates with 3500/22M TDI modules for Modbus TCP export to refinery-wide DCS networks.

Steel & Metals Production
Monitor rolling mill bearing temperatures (operating range: 60-180°C) and furnace zone control. Withstands -30°C to +65°C ambient conditions in non-climate-controlled mill environments.

Marine Propulsion Systems
Engine bearing and exhaust gas temperature monitoring on LNG carriers and FPSO vessels. Meets ABS/DNV type approval requirements for machinery protection systems.

Technical Parameters & Selection Criteria

Selection Guidelines:

• Choose 3500/61 (vs. 3500/60) when sensors are located in hazardous classified areas—eliminates external barrier costs
• For applications requiring >6 channels, use multiple 3500/61 modules or upgrade to 3500/65 (16-channel capacity)
• Verify sensor lead resistance: <100Ω for 2-wire RTD, <50Ω for thermocouples to maintain accuracy specifications
• Requires 3500/05 rack with minimum one 3500/15 power supply (supports up to 16 modules per rack)

Advanced Integration Features

DCS/SCADA Connectivity
When paired with 3500/22M TDI (Transient Data Interface) module, exports real-time temperature data via Modbus TCP/RTU or proprietary protocols. Supports 4-20mA recorder outputs for legacy chart recorders.

Condition Monitoring Software
Compatible with System 1 and Orbit 60 software platforms for trend analysis, predictive maintenance scheduling, and automated reporting. Stores 30+ days of 1-second resolution data for forensic analysis.

Redundancy Options
Deploy dual 3500/61 modules with voted alarm logic for SIL 2-rated safety instrumented systems. Automatic failover maintains protection during module replacement or failure.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units (136711-02 maintained in regional distribution centers)
Custom Configurations: 2-3 weeks for factory-programmed alarm setpoints or non-standard calibration ranges
Warranty Coverage: 12 months from shipment date covering materials and workmanship defects
Technical Support: Lifetime email/phone support; on-site commissioning available in major industrial regions
Documentation Included: Installation manual, configuration software, calibration certificate, hazardous area certification documents

Frequently Asked Questions

How does the 3500/61 compare to standalone temperature transmitters?
Standalone transmitters require individual power supplies, separate alarm modules, and DCS input cards—typically $600-900 per point. The 3500/61 consolidates 6 channels in a single module with shared power and communication, reducing installed cost to $400-500 per point while providing superior diagnostics.

Can I use this module for thermowell-mounted RTDs in steam turbines?
Yes, the 3500/61 supports 3-wire and 4-wire RTD configurations ideal for thermowell installations. Use 4-wire connection for lead lengths >100 meters to eliminate lead resistance errors. Typical turbine applications use 8-12 channels across journal bearings and thrust bearings.

What's the maximum sensor cable length for intrinsically safe operation?
Cable capacitance and inductance limits depend on sensor type and hazardous area classification. Typical limits: 300 meters for RTDs in Zone 1, 500 meters for thermocouples. Consult entity parameters in certification documents for specific installations.

Does the module require annual recalibration?
Factory calibration remains stable for 3-5 years under normal conditions. Annual verification is recommended for critical safety applications or regulatory compliance (e.g., API 670 machinery protection systems). Field calibration kits available for on-site verification.

Can I retrofit this module into an existing 3500 rack with older monitors?
Yes, the 3500/61 is backward-compatible with all 3500 rack generations (requires firmware 5.0+ on rack controller). Hot-swap installation takes <10 minutes; configuration via 3500 Rack Configuration Software v6.x or later.

What happens if a sensor wire breaks during operation?
The module detects open-circuit faults within 2 seconds and triggers a configurable "Sensor Fault" alarm. Upscale/downscale burnout protection prevents false OK indications. Fault diagnostics identify specific channel and fault type (open/short/out-of-range).

Order Your Temperature Monitoring Solution

Protect your critical machinery assets with proven Bently Nevada technology trusted in 80+ countries. Contact our application engineers for system sizing, hazardous area certification verification, or integration support.

Request a quote: Include machine type, number of temperature points, sensor types, and hazardous area classification for tailored recommendations.
