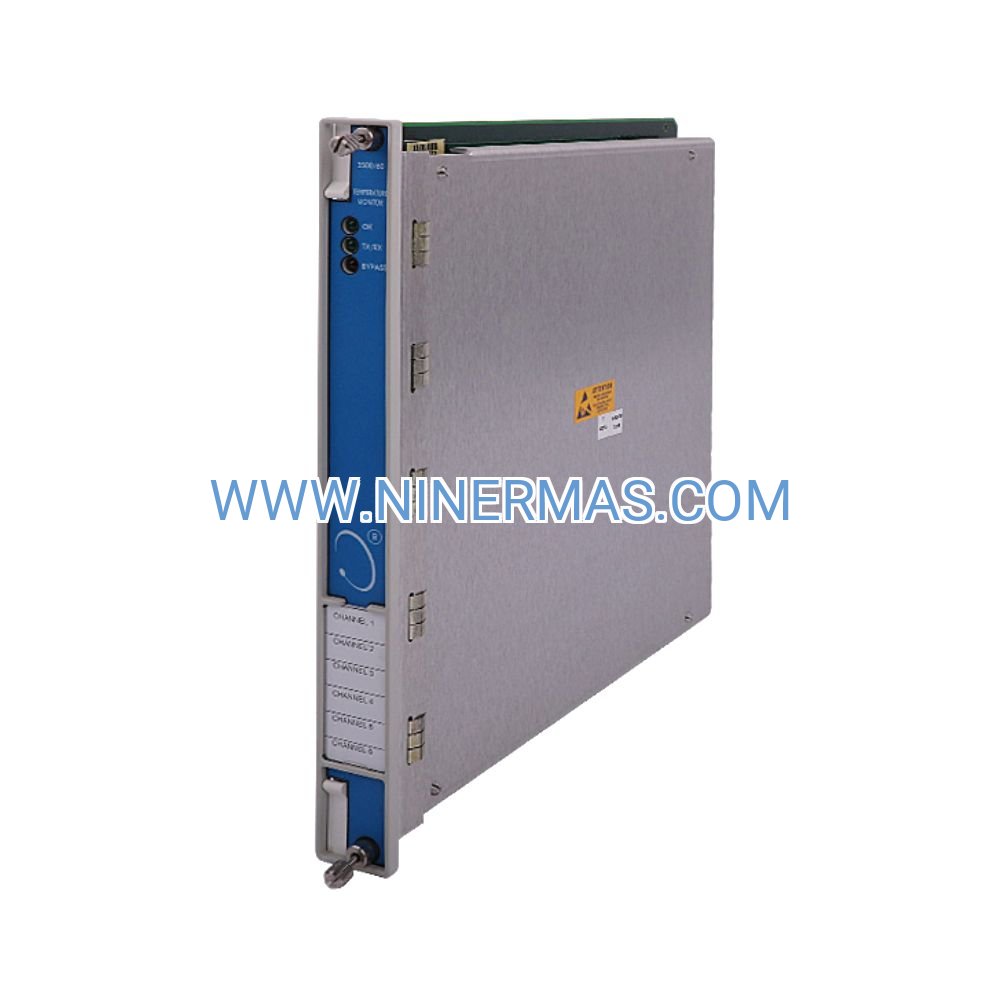

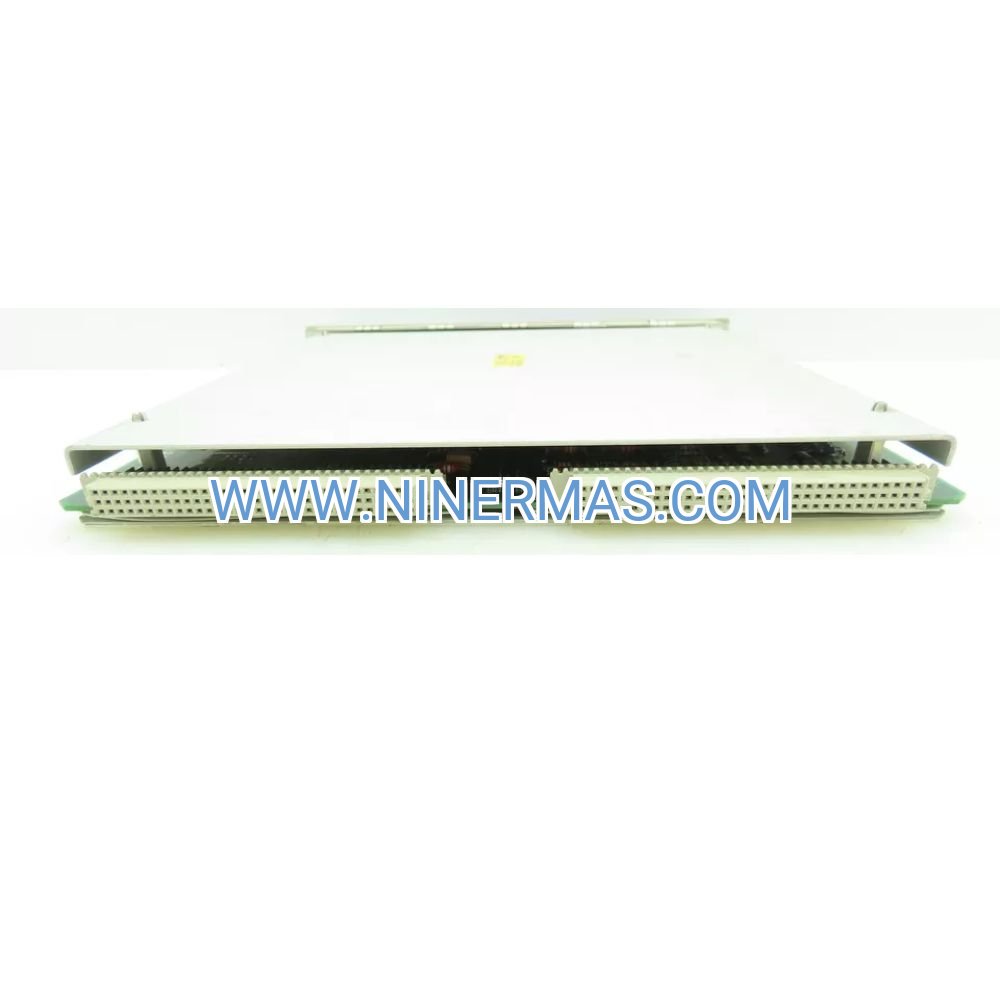

Bently Nevada 173186-01 Temperature Monitor (Industrial-Grade 6-Channel Solution)

The Bently Nevada 173186-01 delivers precision temperature surveillance across six independent channels, engineered for critical rotating machinery and process equipment in power generation, oil & gas, and heavy manufacturing environments. This industrial monitoring solution accepts both Resistance Temperature Detector (RTD) and Thermocouple (TC) sensor inputs, providing flexible deployment options for diverse thermal management requirements.

Designed for integration within the proven 3500 machinery protection platform, this module combines robust signal conditioning with user-configurable alarm logic to detect thermal anomalies before they escalate into costly equipment failures. Whether monitoring bearing temperatures in turbine generators or tracking process heat in refinery operations, the 173186-01 provides the reliability and accuracy demanded by mission-critical industrial applications.

With 500Vdc system isolation and channel-to-channel protection, this temperature monitor ensures signal integrity even in electrically noisy industrial environments, making it the preferred choice for facilities requiring continuous uptime and regulatory compliance.

Core Capabilities & Performance Advantages

→ Dual-Input Flexibility: Accepts both RTD and thermocouple inputs on the same module, eliminating the need for multiple monitoring systems and reducing spare parts inventory requirements.

→ Advanced Isolation Architecture: 500Vdc system isolation and 250Vdc channel-to-channel isolation protect against ground loops and electrical interference, ensuring measurement accuracy in high-voltage industrial environments.

→ Programmable Alarm Intelligence: User-configurable setpoints with hysteresis control enable customized alert thresholds tailored to specific equipment operating profiles, reducing false alarms while maintaining protective coverage.

→ Wide Operating Temperature Range: Functions reliably from -30°C to +65°C (-22°F to +150°F) with standard I/O modules, supporting installations in extreme ambient conditions from arctic facilities to desert operations.

✓ Hot-Swappable Design: Field-replaceable I/O modules enable maintenance without system shutdown, maximizing uptime in continuous process operations.

✓ Visual Diagnostic Indicators: Front-panel LEDs (OK, TX/RX, Bypass) provide instant status verification during commissioning, troubleshooting, and routine inspections.

Industrial Application Scenarios

Power Generation Turbine Monitoring
In combined-cycle power plants, the 173186-01 monitors bearing temperatures across gas and steam turbines. By detecting thermal trends before reaching critical thresholds, operators prevent bearing failures that could trigger emergency shutdowns costing $500K+ per event. The module's dual RTD/TC capability allows standardization across different turbine models within the same facility.

Petrochemical Process Safety
Refineries deploy this monitor to track reactor vessel temperatures and heat exchanger performance. The 500Vdc isolation protects against electrical faults in hazardous classified areas, while programmable alarms integrate with emergency shutdown systems to prevent runaway reactions. Facilities report 40% reduction in thermal-related process upsets after implementation.

Mining Conveyor Systems
Large-scale mining operations use the 173186-01 to monitor motor and gearbox temperatures on critical conveyor systems. Early detection of bearing overheating prevents catastrophic failures that halt production for 12-24 hours. The rugged design withstands vibration and dust exposure typical in mining environments.

Marine Propulsion Monitoring
Shipboard installations leverage the module's wide temperature range and isolation capabilities to monitor main engine bearings and auxiliary systems. The compact form factor fits space-constrained engine rooms, while the external termination option simplifies cable routing in retrofit applications.

Steel Mill Rolling Operations
Hot strip mills employ this monitor for roll bearing temperature surveillance, where thermal management directly impacts product quality and equipment longevity. The six-channel capacity allows comprehensive coverage of critical bearing positions on a single module, reducing installation costs by 35% compared to single-channel alternatives.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose isolated I/O modules (options 03/04) for applications with potential ground loop issues or when monitoring sensors at different electrical potentials. Select external termination versions (options 02/04) for installations requiring frequent sensor replacement or when field wiring must remain accessible. Barrier I/O (option 05) is mandatory for intrinsically safe sensor circuits in hazardous area installations.

Extended Integration & Customization Options

System Connectivity: Integrates seamlessly with 3500 rack infrastructure, sharing power and communication backplane with vibration, position, and speed monitors for unified machinery protection. Modbus and proprietary protocol support enables data export to DCS, SCADA, and predictive maintenance platforms.

Advanced Diagnostics: Built-in sensor health monitoring detects open circuits, short circuits, and out-of-range conditions, generating diagnostic alerts separate from process alarms. This capability reduces troubleshooting time by 60% during commissioning and maintenance activities.

Scalable Architecture: Multiple modules can be deployed in a single rack to monitor up to 84 temperature points (14 modules × 6 channels), providing comprehensive thermal mapping for large rotating equipment trains or complex process units.

Configuration Flexibility: Software-selectable sensor types, alarm setpoints, and time delays allow a single module SKU to serve diverse applications, reducing procurement complexity and spare parts inventory costs.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-configured custom I/O options

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended service agreements available for critical applications

Technical Support: Access to application engineers for sensor selection, wiring diagrams, and integration assistance; 24/7 emergency support for production-down situations

Documentation Package: Includes installation manual, configuration software, sensor compatibility charts, and agency certification documents (CE, ATEX, IECEx, CSA)

Calibration Services: Factory calibration certificates traceable to NIST standards; on-site calibration verification services available for regulated industries

Frequently Asked Questions

Can the 173186-01 temperature monitor interface with existing DCS systems?
Yes, the module provides 4-20mA recorder outputs (when paired with appropriate I/O modules) and digital communication via Modbus protocol, enabling integration with most industrial control systems including Honeywell, Emerson, and Siemens platforms.

What is the maximum cable length between sensors and the monitoring module?
RTD sensors support cable runs up to 300 meters (1000 feet) using 4-wire configuration with proper shielding. Thermocouple circuits can extend to 150 meters (500 feet) with extension-grade wire. Longer distances require signal conditioning at the sensor location.

How does this module improve energy efficiency in industrial operations?
By detecting thermal inefficiencies early—such as bearing friction, cooling system degradation, or heat exchanger fouling—the monitor enables predictive maintenance that prevents energy waste. Customers report 8-15% energy savings in rotating equipment after implementing comprehensive thermal monitoring programs.

What installation requirements must be met for hazardous area applications?
For Class I Division 2 or Zone 2 installations, use agency-approved I/O modules (option codes 01 or 02 in part number), ensure proper grounding per NEC Article 501, and verify sensor circuits meet intrinsic safety requirements if monitoring within classified zones.

Can I monitor both RTD and thermocouple sensors simultaneously on one module?
Yes, the 173186-01 supports mixed sensor types across its six channels. Configure each channel independently via software to match the connected sensor type (RTD or TC), providing maximum deployment flexibility.

Does the system support remote monitoring and predictive analytics?
When integrated with the 3500 rack communication gateway, temperature data streams to cloud-based condition monitoring platforms for trend analysis, machine learning algorithms, and mobile alert notifications, enabling remote diagnostics and predictive failure analysis.

Request Technical Consultation

Our application engineers are available to discuss your specific temperature monitoring requirements, recommend optimal I/O configurations, and provide integration support for your machinery protection system. Contact us for sensor compatibility verification, wiring diagrams, or custom configuration assistance.
