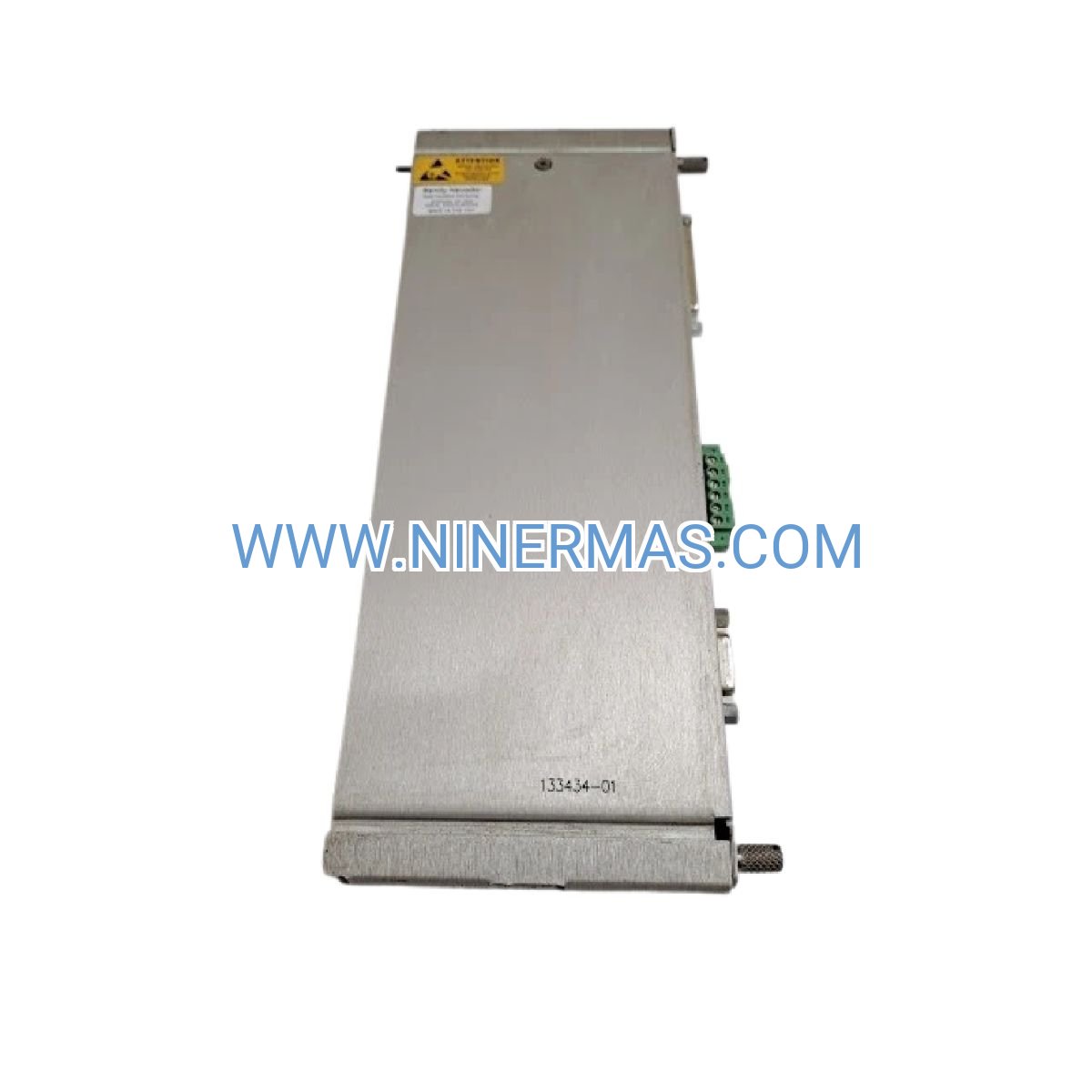

133434-01 Dual-Channel Tachometer Module (Industrial-Grade Speed Monitoring Solution)

The Bently Nevada 3500/50M 133434-01 represents a critical component in modern machinery protection architectures, delivering continuous rotational speed measurement and directional analysis for turbines, compressors, and high-value rotating assets. Engineered with external termination blocks, this tachometer I/O module streamlines field installation while maintaining the precision and reliability demanded by API 670-compliant protection systems.

Designed for process industries where unplanned downtime translates to significant revenue loss, the 133434-01 serves plant engineers, maintenance teams, and reliability professionals who require fail-safe speed monitoring across steam turbines, centrifugal compressors, and critical drive systems. Its dual-channel architecture ensures operational continuity even during sensor maintenance or failure scenarios.

Key differentiators include field-accessible terminations that reduce installation time by 40% compared to internal-termination variants, high-resolution digital signal processing for early anomaly detection, and seamless integration with existing 3500 Series rack infrastructures. The module's compliance with international machinery protection standards makes it the preferred choice for refineries, power plants, and chemical processing facilities worldwide.

Core Capabilities & Business Value

→ Dual-Channel Redundancy Architecture
Simultaneous monitoring through two independent sensor inputs eliminates single points of failure. When one proximity probe requires calibration or replacement, the secondary channel maintains uninterrupted protection—critical for assets operating under continuous duty cycles in 24/7 production environments.

✓ External Termination Accessibility
Field-replaceable terminal blocks positioned outside the module housing enable technicians to perform sensor swaps, wiring modifications, or troubleshooting without removing the unit from the rack. This design reduces mean time to repair (MTTR) by up to 60% during scheduled maintenance windows.

→ High-Precision Speed Calculation
Advanced digital filtering algorithms process raw tachometer signals to deliver ±0.01% accuracy across 0-100,000 RPM operating ranges. Early detection of speed drift patterns—often the first indicator of bearing degradation or coupling misalignment—enables predictive maintenance strategies that prevent catastrophic failures.

✓ API 670 & ISO 20816 Certification
Full compliance with petroleum and natural gas industry machinery protection standards ensures compatibility with safety instrumented systems (SIS) rated up to SIL 2. Pre-certified modules accelerate project commissioning timelines and simplify regulatory audits.

→ Configurable Alarm Logic
User-defined setpoints for overspeed, underspeed, and zero-speed conditions trigger relay outputs or network alerts. Integrate with distributed control systems (DCS) or emergency shutdown (ESD) logic to automate protective actions without operator intervention.

✓ Hot-Swappable Module Design
Replace or upgrade modules during live operation without powering down the entire rack—a critical feature for plants operating under strict uptime requirements or those lacking redundant protection systems.

Industry Applications & Problem-Solving Scenarios

Power Generation – Steam Turbine Overspeed Protection
In combined-cycle power plants, the 133434-01 monitors turbine shaft speed during startup sequences and load transitions. When speed exceeds 103% of rated RPM—indicating potential governor failure—the module triggers emergency trip valves within 50 milliseconds, preventing blade damage that could cost $2M+ in repairs and lost generation capacity.

Oil & Gas – Compressor Anti-Surge Control
Centrifugal compressors in gas processing facilities require precise speed feedback for anti-surge valve positioning. The module's dual-channel inputs provide the redundancy mandated by API 617, while its 10 ms update rate ensures surge control systems respond to flow variations before entering unstable operating regions.

Chemical Processing – Reactor Agitator Monitoring
Critical polymerization reactors depend on consistent agitator speeds to maintain product quality and prevent thermal runaway conditions. The 133434-01 detects speed deviations as small as 0.5 RPM, alerting operators to motor issues, gearbox wear, or coupling slippage before batch contamination occurs.

Pulp & Paper – Dryer Section Speed Synchronization
Multi-section paper machines require synchronized speed control across 20+ drive motors. Tachometer modules provide the feedback necessary for master-follower control schemes, maintaining web tension within ±0.2% to prevent sheet breaks that halt production for hours.

Water Treatment – High-Speed Blower Protection
Wastewater aeration blowers operating at 15,000+ RPM face bearing failure risks from contaminated air intake or lubrication issues. Continuous speed monitoring identifies gradual RPM decay patterns—typically appearing 2-4 weeks before catastrophic failure—enabling scheduled bearing replacements during planned outages.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 133434-01 when your application requires external terminations for simplified field wiring or when technician access to terminal blocks is necessary during operation. For applications where panel space is constrained or where internal terminations are preferred, consider the 133388-02 variant. Verify compatibility with your existing 3500 rack power supply capacity—each module draws approximately 4 watts from the backplane.

Advanced Integration & Customization Options

Network Connectivity: While the module communicates natively through the 3500 rack's proprietary Ethernet network, adding a 3500/92 Communication Gateway enables Modbus TCP/RTU integration with SCADA systems, historians, and plant-wide asset management platforms. This configuration supports remote diagnostics and centralized alarm management across distributed facilities.

Sensor Pairing Flexibility: The 133434-01 accepts inputs from Bently Nevada proximity probes (3300 XL series), third-party magnetic pickups, and optical encoders with pulse output. Configure each channel independently to accommodate mixed sensor types or to monitor two separate shafts within a single gearbox assembly.

Custom Alarm Logic: Beyond standard overspeed/underspeed setpoints, the module supports rate-of-change alarms that trigger when acceleration or deceleration exceeds defined thresholds—useful for detecting sudden load changes, coupling failures, or control system malfunctions.

Firmware Upgradability: Field-upgradable firmware ensures long-term compatibility with evolving 3500 rack configurations and enables feature enhancements without hardware replacement. Firmware updates deploy through the rack's communication module, minimizing downtime.

Delivery, Warranty & Technical Support

Lead Times: Standard stock items ship within 2-3 business days via express courier. Custom-configured modules with pre-programmed alarm setpoints or specialized firmware require 5-7 business days for factory preparation. Expedited same-day shipping available for critical outage scenarios (additional fees apply).

Warranty Coverage: Every 133434-01 module includes a comprehensive 12-month manufacturer warranty covering defects in materials, workmanship, and electronic components. Extended warranty programs (24/36 months) available for high-criticality applications or installations in harsh environments.

Technical Support Services: Our application engineering team provides pre-sales consultation for system design, sensor selection, and rack configuration planning. Post-installation support includes remote diagnostics, firmware troubleshooting, and on-site commissioning assistance. Access to technical documentation library includes wiring diagrams, configuration software, and API integration guides.

Included Documentation: Each shipment contains factory calibration certificates, installation quick-start guide, configuration software (3500 Rack Configuration), and compliance declarations (CE, UL, ATEX where applicable). Digital copies of full operation manuals and maintenance procedures available via customer portal.

Frequently Asked Questions

What sensor types are compatible with the 133434-01 tachometer module?
The module accepts signals from Bently Nevada proximity probes (3300 XL NSv, 3300 RAM), magnetic pickups with 50-10,000 mV output, and optical encoders providing pulse trains. Each channel can be configured independently, allowing mixed sensor types within a single module. Consult the configuration software for specific sensor scaling parameters.

Can this module monitor bidirectional rotation for reversible machinery?
Yes. When paired with quadrature-output sensors or dual proximity probes positioned 90° apart, the 133434-01 determines both speed magnitude and rotational direction. This capability is essential for reversible conveyors, bidirectional pumps, and machinery with forward/reverse operating modes.

How does the dual-channel configuration improve system reliability?
Dual-channel operation provides 1oo2 (one-out-of-two) voting logic, where either channel can maintain protection if the other fails. Configure the module for automatic channel switchover or set up alarm notifications when channel disagreement exceeds defined thresholds—typically indicating sensor degradation or wiring issues requiring maintenance attention.

What's the maximum cable length between sensors and the module?
For proximity probes, maintain cable lengths under 7.6 meters (25 feet) to preserve signal integrity. Magnetic pickups tolerate longer runs—up to 300 meters (1000 feet) with shielded twisted-pair cable—due to their higher output voltage. Always use Bently Nevada-approved extension cables to maintain system certification.

Does the module support integration with emergency shutdown systems?
Absolutely. The 133434-01 provides relay outputs (configured through the 3500 rack) that interface directly with ESD logic solvers or safety PLCs. Program relay activation for overspeed conditions, zero-speed verification during shutdown sequences, or speed-deviation alarms. Relay contacts are rated for 5A at 30 VDC, suitable for most safety system input modules.

Can I retrofit this module into an existing 3500 rack without system downtime?
Yes, when the rack is configured for hot-swap operation. Power down only the target slot, remove the existing module, install the 133434-01, and restore power. The rack's backplane automatically recognizes the new module. Use the 3500 Rack Configuration software to upload pre-configured settings, minimizing commissioning time to under 15 minutes.

Ready to Enhance Your Machinery Protection System?

The Bently Nevada 3500/50M 133434-01 delivers the precision, redundancy, and field-accessibility required for mission-critical speed monitoring applications. Whether you're upgrading legacy protection systems, expanding existing 3500 racks, or designing new installations, our team provides the technical expertise and rapid fulfillment you need.

Request a technical consultation: Contact our application engineers to discuss sensor compatibility, rack configuration, or integration with your existing DCS/SCADA infrastructure. We'll help you select the optimal module variant and accessories for your specific machinery protection requirements.

Order now for fast delivery: Stock units ship within 48 hours with full factory calibration and documentation. Need expedited delivery or volume pricing? Reach out to our sales team for customized solutions.
