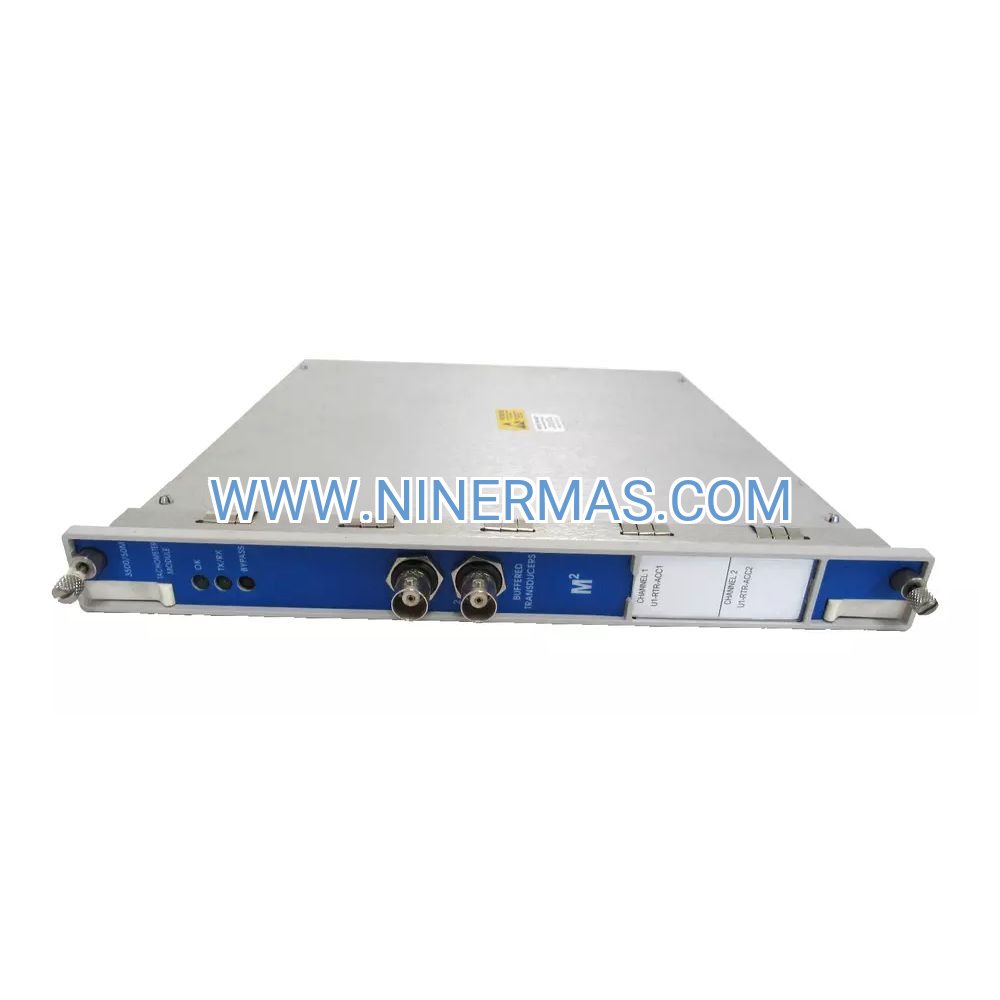

286566-02G Industrial Tachometer Module (Dual-Channel Speed Monitoring)

The 286566-02G represents a professional-grade speed measurement solution for mission-critical rotating assets across power generation, petrochemical processing, and heavy manufacturing sectors. Engineered within the Bently Nevada 3500/50 platform, this dual-input tachometer delivers continuous shaft speed tracking, directional sensing, and configurable trip protection with laboratory-grade precision.

Designed for environments where unplanned downtime translates to significant operational losses, the module serves maintenance engineers, reliability teams, and automation specialists who demand verifiable performance data from turbines, compressors, generators, and high-speed drive systems. Its redundant architecture and hot-swap capability ensure monitoring continuity during maintenance cycles.

Key differentiators include sub-0.01% measurement accuracy across a 0-100,000 RPM span, compatibility with proximity probes and magnetic pickups, four independently programmable alarm relays, and native Modbus integration for seamless SCADA connectivity. The module's diagnostic intelligence detects sensor faults, captures transient events, and supports predictive maintenance strategies through System 1 software integration.

Core Features & Benefits

→ Redundant Dual-Channel Architecture
Two independent speed inputs eliminate single-point failure risks, automatically switching to backup channel during sensor maintenance or fault conditions—critical for continuous process industries requiring 99.9%+ uptime.

→ Ultra-Wide Speed Range with Precision Tracking
Monitors from complete standstill to 100,000 RPM with ±0.01% accuracy, enabling applications from slow-speed mills (50 RPM) to high-speed turbines (30,000+ RPM) within a single module platform.

→ Intelligent Alarm Management System
Four configurable relay outputs with independent setpoints, hysteresis bands, and time delays prevent nuisance trips while ensuring rapid response to genuine overspeed/underspeed conditions—reduces false alarms by up to 85%.

✓ Zero-Speed & Direction Detection
Precise shaft stoppage verification and rotation direction sensing support safe startup sequences, reverse rotation protection, and compliance with turbine control standards (API 670, ISO 7919).

✓ Acceleration Rate Monitoring
Tracks speed change velocity during startup/coastdown events, enabling early detection of bearing degradation, coupling issues, or lubrication problems before catastrophic failure.

✓ Hot-Swappable Field Replacement
Replace modules during operation without system shutdown or reconfiguration—typical swap time under 3 minutes, preserving alarm settings and historical data buffers.

Typical Application Scenarios

Steam & Gas Turbine Overspeed Protection
In combined-cycle power plants, the 286566-02G provides primary and backup overspeed trip signals for 50-150 MW turbines. Dual-channel redundancy meets NFPA 85 and API 612 requirements, while acceleration monitoring detects governor malfunctions before reaching emergency trip thresholds. Typical deployment prevents 12-18 month turbine rebuild costs exceeding $2M.

Centrifugal Compressor Train Synchronization
Petrochemical facilities use the module to maintain precise speed ratios between driver and driven equipment in multi-stage compression systems. Gear tooth passing frequency analysis identifies mesh wear 6-9 months before traditional vibration methods, reducing unplanned shutdowns by 40%.

Variable Frequency Drive Verification
Pulp & paper mills employ the tachometer to verify actual motor speed against VFD commanded speed, detecting slip conditions in high-torque applications. Real-time feedback enables closed-loop control adjustments that improve process consistency by 15-20%.

Generator Load-Sharing & Frequency Regulation
Data centers and industrial cogeneration plants utilize dual-channel speed inputs for paralleling multiple generators. Sub-0.01% accuracy ensures frequency stability within ±0.1 Hz, meeting IEEE 1547 grid interconnection standards.

Critical Pump Anti-Cavitation Control
Refineries monitor boiler feedwater pump speeds to maintain NPSH margins. Underspeed alarms trigger before cavitation onset, extending impeller life by 2-3x and preventing emergency shutdowns that cost $50K-$150K per incident.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 286566-02G when applications require redundant monitoring, API 670 compliance, or integration with existing Bently Nevada 3500 racks. For single-channel applications with basic alarm needs, consider the 133388-02 variant. Environments with extreme EMI/RFI should specify conformal coating option (-CC suffix).

Extended Functions

Predictive Analytics Integration: Native compatibility with System 1 software enables trend analysis, statistical process control charting, and machine learning-based anomaly detection. Historical speed data correlates with vibration, temperature, and process parameters for holistic asset health assessment.

Cybersecurity Features: Firmware supports role-based access control, encrypted Modbus TCP communication, and audit logging compliant with IEC 62443 industrial cybersecurity standards—critical for utilities and critical infrastructure applications.

Custom Scaling & Engineering Units: Display speed in RPM, Hz, radians/sec, or customer-defined units. Gear ratio calculations automatically convert input shaft speed to output shaft equivalents for gearbox monitoring.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours via expedited carriers (DHL, FedEx). Custom configurations (special relay voltages, extended temperature ratings) require 2-3 weeks factory lead time.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available for critical applications.

Technical Support: Unlimited phone/email support from certified Bently Nevada engineers. On-site commissioning assistance available for complex installations. Average response time: <4 hours for critical issues.

Documentation Package: Includes installation manual, wiring diagrams, configuration software (3500 Rack Configuration), calibration certificates, and material traceability records. IQ/OQ protocols available for pharmaceutical/biotech applications.

Frequently Asked Questions

Q: Can the 286566-02G interface with non-Bently proximity probes?
A: Yes, the module accepts industry-standard 8mm and 5mm proximity probes from manufacturers like SKF, IFM, and Metrix. Sensor impedance should fall within 5-15 kΩ range. Magnetic pickups (100-1000 mV output) and optical sensors (NPN/PNP) are also supported with appropriate signal conditioning.

Q: What is the maximum cable length between sensor and module?
A: Proximity probes support up to 9 meters (30 feet) of extension cable using Bently Nevada-approved coaxial cable. Magnetic pickups tolerate 150+ meters with twisted-shielded pair. Longer runs require signal repeaters or 4-20mA transmitters.

Q: How does dual-channel voting logic prevent false trips?
A: Configure 2oo2 (two-out-of-two) voting to require both channels exceeding setpoint before alarm activation—eliminates single-sensor failures. Alternatively, 1oo2 mode triggers on either channel for maximum protection. Voting logic includes configurable time delays (0.1-60 seconds) to filter transient spikes.

Q: Is the module compatible with legacy 3300 series racks?
A: No, the 286566-02G requires 3500-series racks (3500/05 or 3500/15 power supplies). Migration kits are available to upgrade 3300 systems while reusing existing sensors and cabling. Contact our engineering team for retrofit planning assistance.

Q: Can I monitor gear mesh frequencies for gearbox diagnostics?
A: Absolutely. The module calculates gear tooth passing frequency by multiplying shaft speed by number of teeth. Set alarm bands around expected mesh frequencies to detect tooth wear, misalignment, or lubrication breakdown. Frequency spectrum data exports to vibration analysis software for correlation studies.

Q: What cybersecurity measures protect against unauthorized configuration changes?
A: Configuration software requires password authentication with three privilege levels (view-only, operator, administrator). All changes are logged with timestamps and user IDs. Modbus TCP supports TLS encryption and IP whitelisting to prevent unauthorized network access.

Take the Next Step

Protect your critical rotating assets with proven speed monitoring technology trusted by Fortune 500 industrial operators worldwide. Our application engineers are ready to discuss your specific requirements, recommend optimal sensor pairings, and provide integration support for your Bently Nevada 3500 system.

Request a technical consultation: Share your machinery specifications, operating conditions, and protection requirements. We'll provide a detailed application note with wiring diagrams, configuration templates, and ROI analysis within 24 hours.

Order now with confidence: Every 286566-02G module undergoes 100% factory testing, includes calibration certification, and ships with our satisfaction guarantee. Volume discounts available for multi-unit projects.
