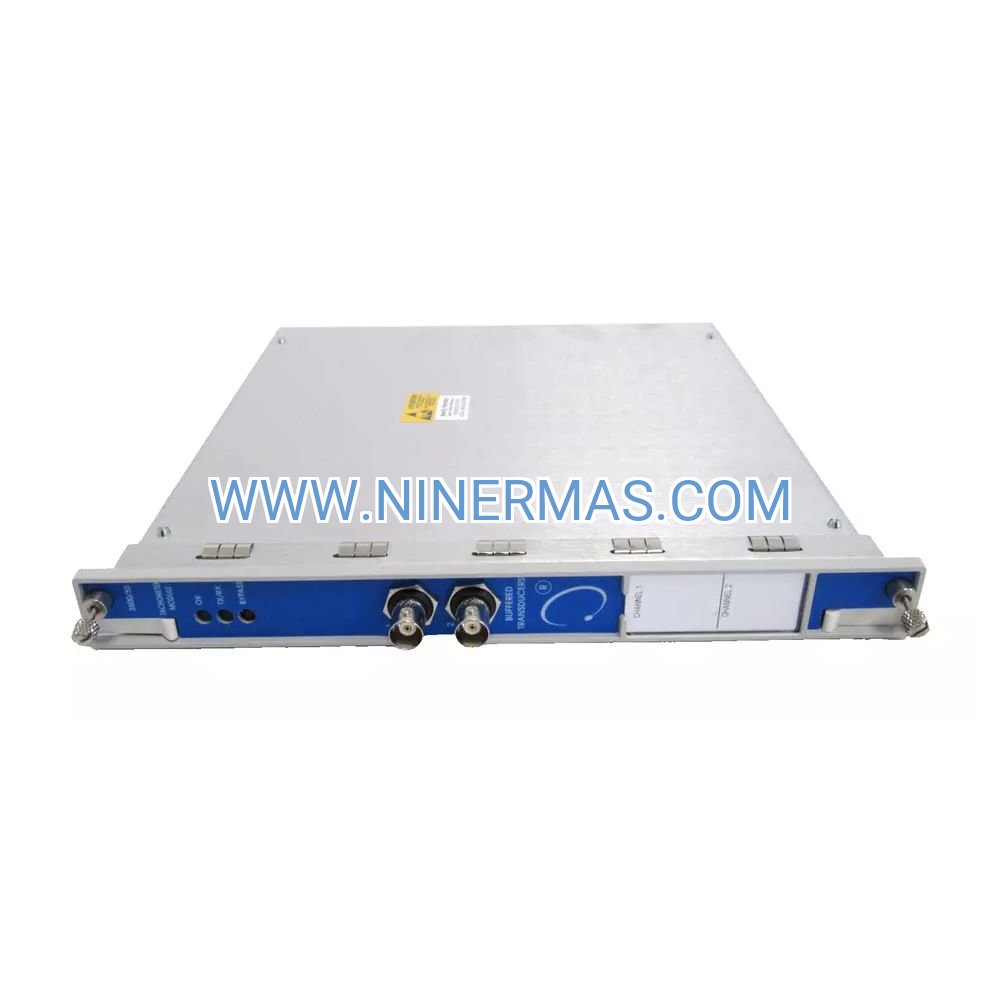

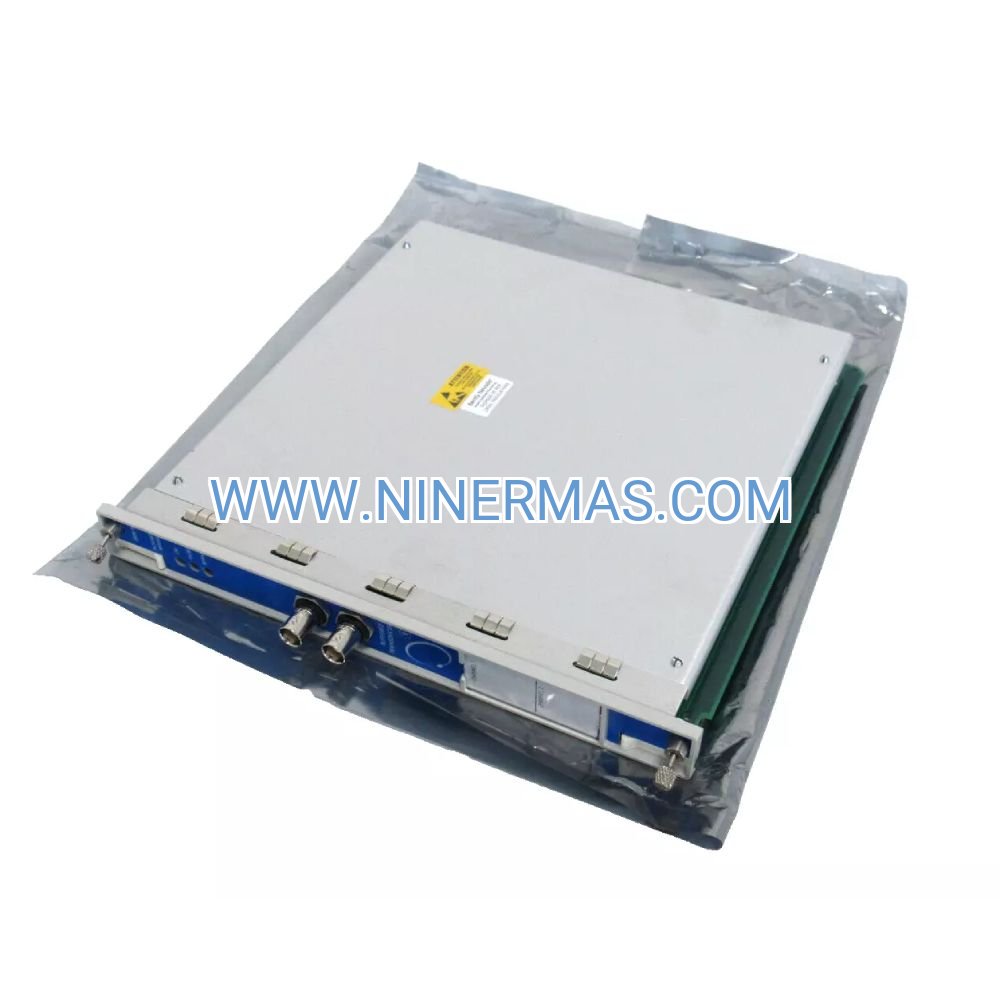

133388-02P Dual-Channel Tachometer Module (Industrial-Grade Speed Monitoring)

The Bently Nevada 3500/50 Model 133388-02P represents a mission-critical component in turbomachinery protection systems, delivering continuous rotational speed measurement with laboratory-grade precision. Engineered for harsh industrial environments, this dual-input tachometer module processes signals from proximity probes and magnetic pickups to safeguard high-value rotating assets across power generation, petrochemical, and process manufacturing facilities.

Built on Bently Nevada's proven 3500 platform architecture, the 133388-02P variant features external termination blocks for simplified field wiring and maintenance accessibility. The module's dual-channel design enables simultaneous monitoring of two independent speed sources—ideal for redundant measurement schemes, multi-shaft configurations, or combined speed-plus-acceleration tracking in critical machinery trains.

With measurement capabilities spanning 1 to 99,999 RPM and support for up to 255 events per revolution, this tachometer module serves as the foundation for overspeed protection, startup sequence validation, and predictive maintenance programs. Its programmable alarm architecture integrates seamlessly with emergency shutdown systems, delivering the reliability demanded by API 670 and ISO 7919 compliance requirements.

Core Features & Technical Advantages

✓ Dual-Input Monitoring Architecture
Process two independent tachometer signals simultaneously for redundant speed verification or multi-point measurement. Each channel operates autonomously with dedicated alarm setpoints, enabling complex protection logic for critical machinery applications.

✓ Universal Transducer Compatibility
Accepts input from proximity probes (minimum 0.0167 Hz) and passive magnetic pickups (minimum 3.3 Hz) without external signal conditioning. Automatic sensor type detection simplifies commissioning and reduces installation errors.

✓ Laboratory-Grade Measurement Precision
Delivers ±0.1 RPM accuracy below 100 RPM, ±1 RPM from 100-10,000 RPM, and ±0.01% accuracy at high speeds (10,000-99,999 RPM). Maximum input frequency of 20 kHz supports high-resolution encoders and multi-tooth gear applications.

✓ Programmable Protection Logic
User-configurable Alert and Danger setpoints trigger relay outputs, 4-20mA signals, or Modbus commands when speed or acceleration thresholds are violated. Adjustable time delays prevent nuisance trips during transient conditions.

✓ Real-Time Diagnostic Feedback
Front-panel LED array provides instant status visibility: OK (normal operation), TX/RX (communication activity), Bypass (alarm suppression active). Diagnostic data streams to 3500 Rack Configuration Software for remote troubleshooting.

✓ External Termination Design (Type 02)
Field-accessible terminal blocks eliminate the need for rack removal during sensor replacement or wiring modifications. Screw-clamp connections accommodate 14-22 AWG wire for robust industrial installations.

Industrial Application Scenarios

→ Steam & Gas Turbine Overspeed Protection
In power generation facilities, the 133388-02P monitors turbine shaft speed against trip setpoints defined by NFPA 85 and manufacturer specifications. Dual-channel redundancy ensures fail-safe operation even during single-sensor failures, preventing catastrophic overspeed events that could destroy multi-million-dollar turbine assemblies.

→ Centrifugal Compressor Surge Prevention
Petrochemical plants deploy this module to track compressor speed during load changes and startup sequences. By measuring acceleration rates in real-time, operators receive early warning of surge conditions before pressure ratios reach dangerous levels—protecting both equipment and process stability.

→ Motor-Driven Pump Monitoring
Water treatment and chemical processing facilities use the 133388-02P to verify pump motor synchronization and detect bearing degradation. Speed variation analysis identifies mechanical looseness, coupling wear, and electrical supply issues before they escalate into unplanned downtime.

→ Reciprocating Engine Speed Regulation
Natural gas compression stations integrate this tachometer with engine control systems to maintain precise speed regulation under varying load conditions. The module's high-frequency capability (20 kHz max) accommodates multi-cylinder firing patterns for accurate crankshaft position tracking.

→ Conveyor & Material Handling Safety Systems
Mining and bulk material operations employ dual-channel speed monitoring to detect belt slippage, drive motor failures, and emergency stop conditions. Programmable underspeed alarms trigger automatic shutdowns when conveyor velocity drops below safe operating thresholds.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 133388-02P variant when field-accessible terminations are required for maintenance efficiency or when installation specifications mandate external wiring access. For applications requiring hazardous area certification, specify approval codes during ordering: 01 (cNRTLus Class I Div 2), 02 (ATEX/IECEx Zone 2), or 03 (CSA).

Advanced Integration Capabilities

The 133388-02P communicates with 3500 Rack Interface Modules (RIM) to deliver speed data to distributed control systems (DCS), programmable logic controllers (PLC), and SCADA platforms via Modbus RTU/TCP or Ethernet/IP protocols. Integration with Bently Nevada System 1 software enables centralized configuration management, historical trending, and predictive analytics across multi-unit installations.

For applications requiring analog outputs, the module supports 4-20mA proportional speed signals with user-defined scaling. Relay contact outputs provide hardwired trip signals for emergency shutdown systems, ensuring fail-safe operation independent of digital communication networks.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory-direct orders with hazardous area certifications

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended service agreements available for critical applications requiring guaranteed replacement inventory.

Technical Support: Pre-sales application engineering assistance, post-installation commissioning guidance, and lifetime access to configuration documentation. Our team provides integration support for legacy 3300/3500 system upgrades and multi-vendor DCS interfacing.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration quick-start guide, and calibration certificate traceable to NIST standards.

Frequently Asked Questions

Q: Can the 133388-02P interface with non-Bently Nevada proximity probes?
A: Yes, the module accepts standard 8mm proximity probes with -24VDC power supply and 200mV/mil sensitivity. Third-party sensors must meet impedance and frequency response specifications outlined in the installation manual.

Q: What is the maximum cable length between the sensor and tachometer module?
A: For proximity probes, maximum cable length is 91 meters (300 feet) using shielded twisted-pair wire. Magnetic pickup installations support up to 305 meters (1,000 feet) with proper cable selection and grounding practices.

Q: How does dual-channel monitoring improve system reliability?
A: Redundant speed measurement enables 2-out-of-2 voting logic for critical shutdowns, reducing the probability of spurious trips while maintaining safety integrity level (SIL) compliance. Channel deviation alarms detect sensor failures before they compromise protection functions.

Q: Is the module compatible with existing 3500 rack configurations?
A: The 133388-02P installs in any standard 3500 rack slot and operates with all current rack interface modules (RIM, TDI, TDIX). Firmware compatibility extends back to 3500 System Software Version 5.0 and later.

Q: What acceleration monitoring capabilities does the module provide?
A: The tachometer calculates rotational acceleration in RPM/second based on speed change rates. Programmable acceleration alarms detect abnormal startup conditions, load rejection events, and mechanical binding before equipment damage occurs.

Q: Can I retrofit this module into a legacy 3300 monitoring system?
A: Direct replacement requires upgrading to a 3500 rack infrastructure. However, the 133388-02P can coexist with 3300 systems during phased migration projects, sharing common sensor inputs via signal splitters.

Complementary Monitoring Solutions

Request Technical Consultation

Our application engineers provide complimentary system design reviews for multi-module monitoring projects. Contact us with your machinery specifications, protection requirements, and existing infrastructure details to receive a customized integration proposal including wiring diagrams, configuration templates, and budget pricing.

Ready to enhance your machinery protection system? Add the 133388-02P to your cart or reach out for volume pricing on complete 3500 rack configurations.
