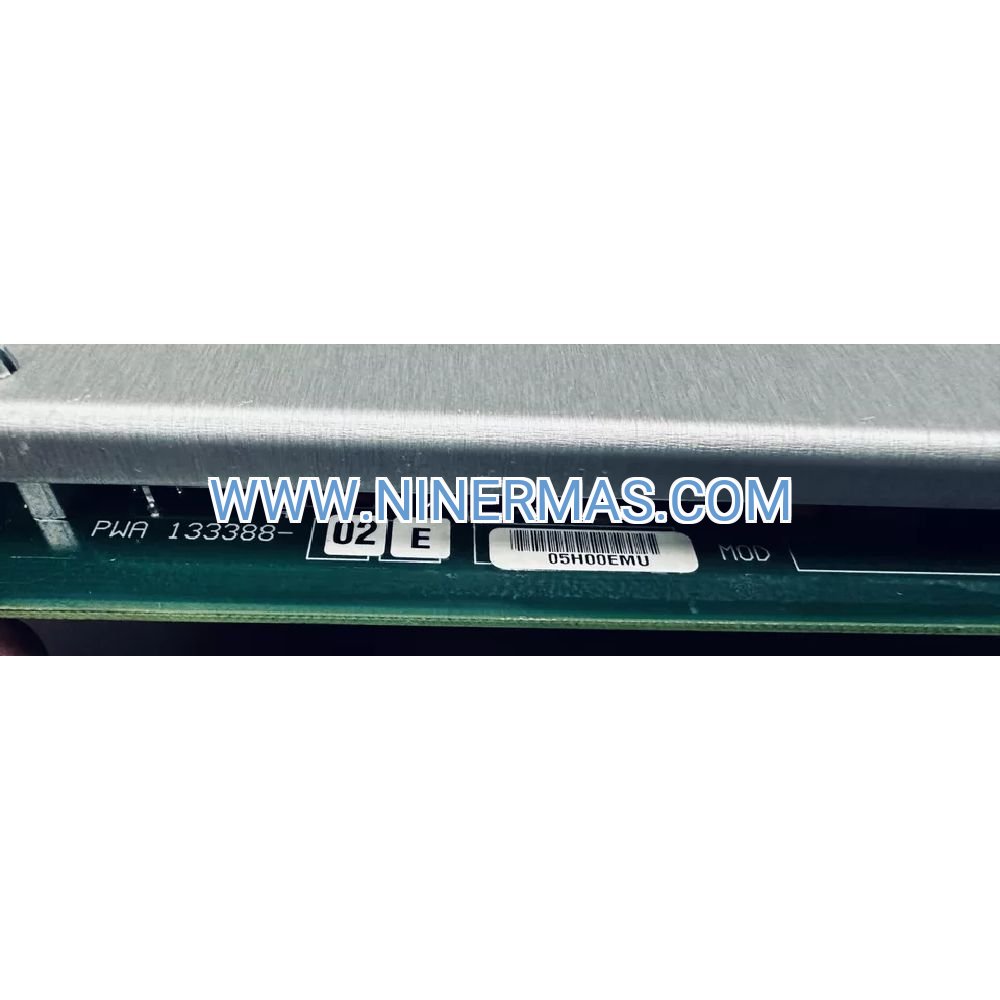

133388-02E Tachometer Module – Industrial-Grade Rotational Speed Monitor

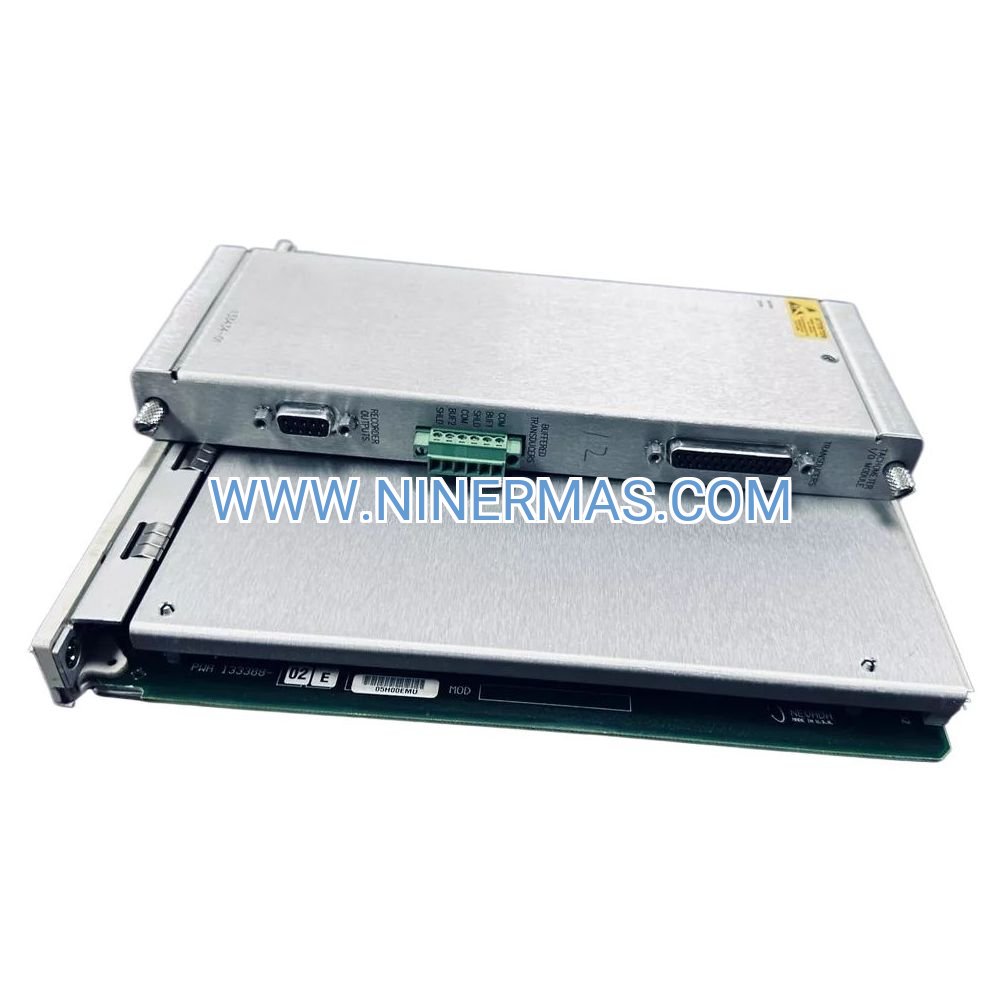

The Bently Nevada 3500/50 Model 133388-02E is a rack-mounted, dual-input tachometer designed for continuous rotational speed measurement in high-stakes industrial environments. Engineered for turbines, compressors, and critical rotating equipment, this module delivers precision RPM tracking, directional sensing, and acceleration rate monitoring to safeguard machinery and optimize operational efficiency.

Built for integration within the Bently Nevada 3500 Series monitoring ecosystem, the 133388-02E supports keyphasor-synchronized data acquisition, enabling phase-locked vibration analysis and predictive maintenance workflows. Its hot-swappable architecture and self-diagnostic capabilities ensure maximum uptime in 24/7 process environments.

Whether you're protecting steam turbines from overspeed trips, monitoring multi-stage compressor trains, or validating variable-speed drive performance, the 133388-02E provides the accuracy and reliability demanded by power generation, petrochemical, and heavy manufacturing sectors.

Core Features & Benefits

→ Dual Independent Channels
Simultaneously monitor two speed inputs for redundant protection or multi-shaft configurations. Ideal for gearbox input/output comparison and backup sensor validation.

→ Precision Measurement Architecture
±0.01% accuracy across 0-100,000 RPM range ensures reliable data for critical control decisions. Laboratory-calibrated to traceable standards for regulatory compliance.

→ Directional & Acceleration Intelligence
Automatic forward/reverse detection supports turbomachinery startup sequences. Rate-of-change tracking enables predictive overspeed protection and shutdown profiling.

→ Configurable Multi-Level Alarms
Set up to four alarm thresholds per channel (Alert/Danger/High-High/Low-Low) with programmable delay timers and hysteresis to eliminate nuisance trips.

→ Keyphasor Synchronization
Phase-locks speed data with vibration measurements for advanced diagnostics including balancing, resonance analysis, and torsional vibration studies.

→ Hot-Swap Serviceability
Replace modules during operation without system shutdown. Front-panel LED indicators provide instant OK/Alert/Danger status confirmation.

Application Scenarios

✓ Steam & Gas Turbine Protection
Challenge: Catastrophic failure risk from overspeed conditions during load rejection or governor malfunction.
Solution: The 133388-02E provides redundant speed inputs to emergency trip systems, with sub-second response times and fail-safe alarm logic. Acceleration monitoring detects abnormal rate-of-change before reaching critical speeds.

✓ Compressor Train Optimization
Challenge: Multi-stage compressors in LNG and refinery applications require precise speed matching to prevent surge and maintain efficiency.
Solution: Dual-channel monitoring validates driver-to-compressor speed ratios in real-time. Integration with DCS enables automated anti-surge control and performance curve tracking.

✓ Variable Frequency Drive Verification
Challenge: VFD-controlled pumps and fans may experience slip or harmonic distortion affecting actual shaft speed versus commanded frequency.
Solution: Direct tachometer feedback confirms true rotational speed independent of electrical signals, enabling closed-loop control and energy optimization.

✓ Critical Speed Avoidance
Challenge: Large centrifuges and high-speed machinery must accelerate through resonant frequencies without dwelling at critical speeds.
Solution: Acceleration rate monitoring ensures controlled ramp profiles. Programmable speed windows trigger alarms if equipment operates in forbidden zones.

✓ Gearbox Health Monitoring
Challenge: Gear tooth wear and bearing degradation cause speed fluctuations and hunting behavior.
Solution: Input/output shaft speed comparison detects gear mesh anomalies. Trending data reveals gradual performance degradation before catastrophic failure.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose dual-channel configuration when redundancy is required for safety-critical applications or when monitoring multiple shafts in a single train
• Verify sensor compatibility – proximity probes require -24 VDC proximitor power, while magnetic pickups are passive
• Confirm speed range requirements – high-speed turbines may approach upper measurement limits
• Ensure 3500 rack has available slot and sufficient backplane power capacity

Extended Functions

System Integration Capabilities
The 133388-02E communicates via the 3500 rack backplane to the 3500/92 Communication Gateway, enabling data transmission to DCS, SCADA, and historian systems via Modbus TCP/RTU or proprietary protocols. Integration with Bently Nevada System 1 software unlocks advanced trending, event correlation, and predictive analytics.

Advanced Diagnostic Features
Continuous self-test routines monitor internal circuitry, power supply integrity, and transducer health. Automatic detection of open/short circuits in probe wiring prevents false alarms. Event buffering stores alarm history with timestamps for root-cause analysis.

Customization Options
Factory or field configuration supports custom speed ranges, engineering units (RPM, Hz, rad/s), alarm setpoints, and delay timers. Hysteresis settings prevent alarm chatter during transient conditions. Gap voltage monitoring ensures proximity probe positioning remains within specification.

Delivery & Service Assurance

Lead Time:
• Standard Configuration: 1-3 business days (in-stock units)
• Custom Configuration: 2-4 weeks (application-specific programming)

Warranty Coverage:
12-month manufacturer warranty covering defects in materials and workmanship. Extended service agreements available for mission-critical installations.

Technical Support:
Access to global Bently Nevada service network for installation assistance, configuration support, and troubleshooting. Comprehensive documentation includes installation manuals, configuration guides, and application notes.

Included Documentation:
• Installation & Configuration Manual
• Datasheet with electrical specifications
• Calibration certificate (traceable to NIST standards)
• Recommended spare parts list

Frequently Asked Questions

Q: Can the 133388-02E interface with non-Bently Nevada sensors?
A: Yes, the module accepts standard proximity probes (8mm, 11mm) and magnetic pickups from various manufacturers. Verify voltage and frequency compatibility before installation.

Q: What is the minimum detectable speed for reliable measurement?
A: Minimum speed depends on sensor type and events-per-revolution. Typical lower limit is 60 RPM with single-event-per-revolution keyphasor. Multi-tooth gears enable measurement below 10 RPM.

Q: How does acceleration monitoring improve machinery protection?
A: Acceleration rate tracking detects abnormal speed changes (e.g., sudden load loss, bearing seizure) before reaching alarm setpoints. Configurable rate-of-change limits trigger early warnings for predictive intervention.

Q: Is hot-swapping truly safe during operation?
A: Yes, the 3500 rack backplane design supports live module replacement without affecting other channels. However, the monitored machine should be in a stable operating condition, and proper ESD precautions must be observed.

Q: Can I monitor both speed and direction simultaneously?
A: Directional sensing requires two proximity probes installed 90° apart (quadrature configuration). The module automatically determines rotation direction and displays forward/reverse status.

Q: What communication protocols are supported for SCADA integration?
A: The 133388-02E communicates via the 3500 rack backplane. External connectivity requires a 3500/92 Communication Gateway, which supports Modbus TCP/RTU, Ethernet/IP, and proprietary protocols.

Take the Next Step

Protect your critical rotating assets with proven Bently Nevada technology. Contact our application engineers to discuss your specific monitoring requirements, sensor selection, and system integration needs. Request a detailed quotation or schedule a technical consultation today.

Ready to order? Add to cart for fast processing, or reach out for volume pricing and custom configuration services.
