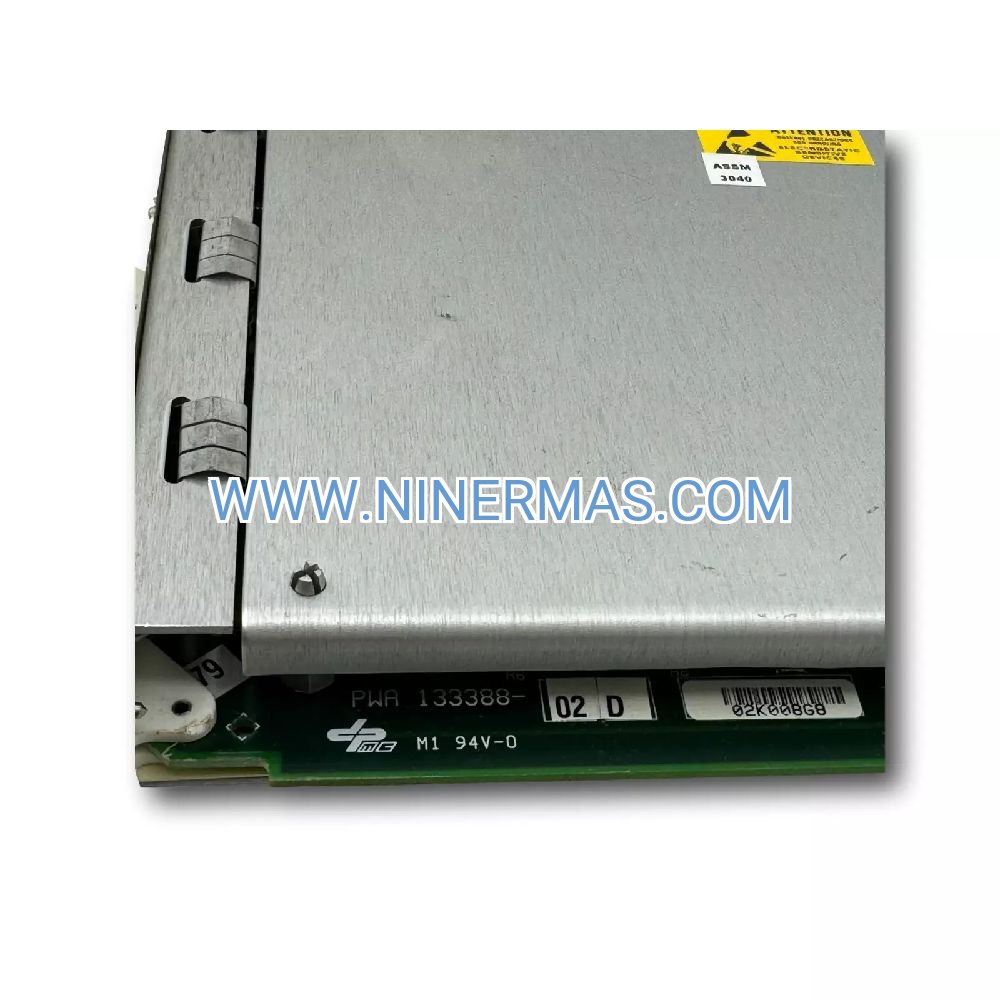

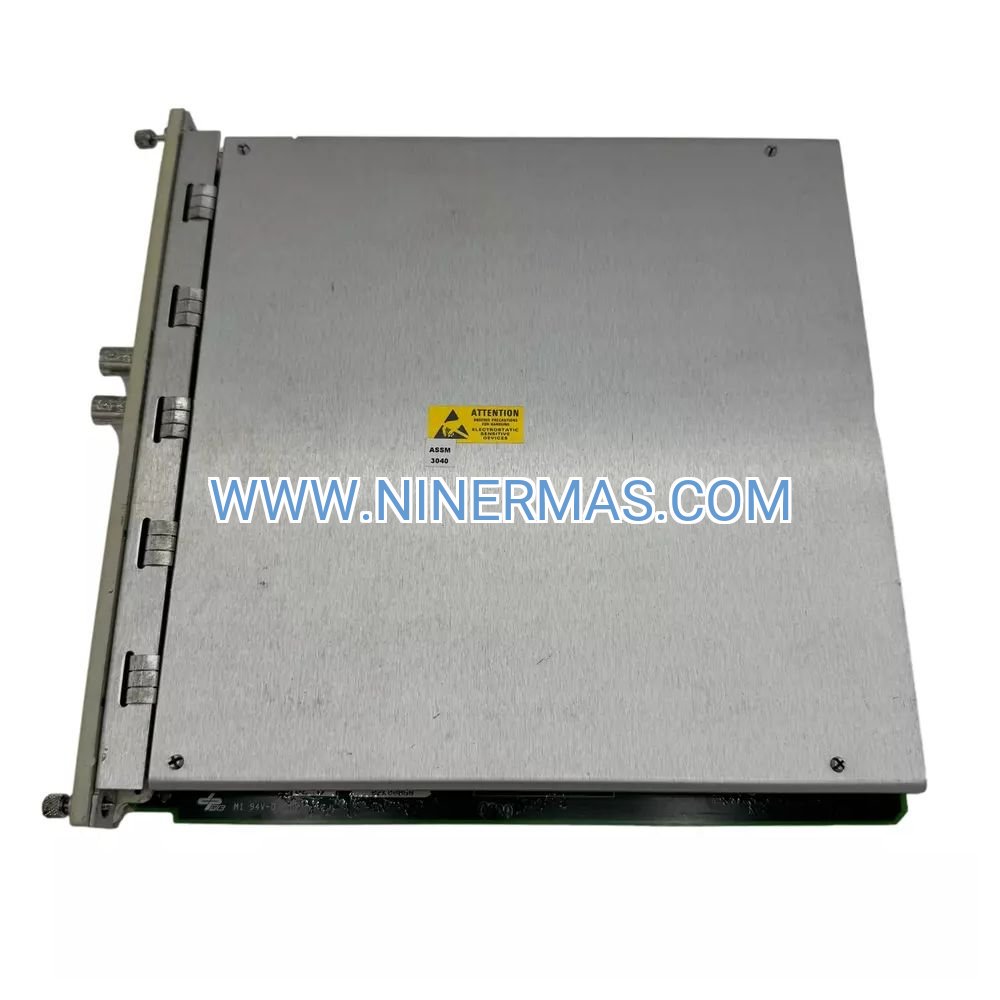

133388-02D Tachometer Module — Industrial-Grade RPM Measurement for Machinery Protection

When turbine overspeed events threaten multi-million dollar assets, the Bently Nevada 3500/50 133388-02D delivers the precision speed monitoring that prevents catastrophic failures. This dual-channel tachometer module integrates seamlessly into 3500 Series machinery protection platforms, providing real-time rotational speed data with ±0.01% accuracy across a 0 to 250,000 RPM measurement range.

Engineered for power generation facilities, petrochemical plants, and heavy manufacturing operations, the 133388-02D transforms raw sensor signals into actionable intelligence. Its advanced processing algorithms detect not just speed deviations, but acceleration anomalies, direction reversals, and critical speed zone entries—delivering the early warnings that maintenance teams need to prevent unplanned shutdowns and equipment damage.

Unlike basic speed sensors, this module functions as a complete diagnostic platform. Dual-channel architecture enables redundant measurement with automatic failover, while configurable alarm logic supports complex protection schemes including differential speed monitoring, acceleration rate limiting, and synchronized vibration analysis through Keyphasor integration.

Key Performance Features & Technical Advantages

→ Dual-Channel Redundancy: Two independent measurement paths with automatic voting logic ensure continuous protection even during sensor failures, eliminating single-point vulnerabilities in safety-critical applications.

→ Universal Sensor Compatibility: Accepts signals from proximity probes, magnetic pickups, and optical sensors without external signal conditioning, reducing installation complexity and component count.

→ Sub-Millisecond Response: 10ms update rate per channel captures transient speed events during startup sequences, load changes, and emergency shutdowns that slower systems miss entirely.

→ Intelligent Alarm Architecture: Configurable setpoints for overspeed, underspeed, zero-speed detection, and acceleration rate monitoring—each with independent delay timers and hysteresis bands to prevent nuisance trips.

→ Hot-Swap Serviceability: Field-replaceable design allows module exchange during operation without system shutdown, maximizing uptime in continuous-process industries where every minute of downtime costs thousands.

→ Integrated Diagnostics: Automatic sensor health monitoring detects open circuits, short circuits, and signal degradation before they compromise measurement integrity, with detailed fault codes for rapid troubleshooting.

Industrial Application Scenarios

Steam Turbine Governor Control
In combined-cycle power plants, the 133388-02D provides the speed feedback signal that governor systems use to regulate steam admission valves. During load rejection events, the module's rapid response enables governors to prevent overspeed trips that would otherwise force costly unit shutdowns. Acceleration monitoring detects abnormal startup behavior caused by control valve sticking or steam quality issues.

Centrifugal Compressor Anti-Surge Protection
Petrochemical facilities rely on precise speed measurement to calculate compressor operating points relative to surge lines. The 133388-02D's 0.1 RPM resolution enables early detection of speed fluctuations that precede surge conditions, triggering recycle valve actuation before pressure oscillations damage impellers and seals.

Gas Turbine Combustion Monitoring
During gas turbine light-off sequences, abnormal acceleration rates indicate combustion instability or fuel system malfunctions. The module's configurable acceleration alarms detect these conditions within seconds, enabling automated shutdown before thermal damage occurs to hot gas path components.

Large Motor Synchronization Verification
Synchronous motors in grinding mills and air separation plants require precise speed monitoring during pull-in to synchronous speed. The 133388-02D verifies successful synchronization and detects pole slipping events that cause torque pulsations and mechanical stress.

Gearbox Condition Monitoring
By comparing input and output shaft speeds, maintenance teams identify gear tooth wear, bearing failures, and lubrication degradation before catastrophic gearbox failures occur. Differential speed alarms trigger when measured ratios deviate from design specifications.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 133388-02D when applications require dual-channel redundancy, acceleration monitoring, or Keyphasor synchronization. For single-channel applications without advanced diagnostics, consider alternative 3500/50 variants. Verify sensor output voltage compatibility and pulse-per-revolution counts during system design.

Advanced Diagnostic Capabilities

Beyond basic RPM measurement, the 133388-02D incorporates sophisticated signal processing that transforms speed data into predictive maintenance intelligence:

✓ Keyphasor Phase Synchronization: Correlates speed measurements with once-per-revolution reference signals, enabling order tracking analysis that isolates vibration frequencies related to specific rotating components like impellers, gears, and blade passing.

✓ Direction Detection Logic: Identifies forward versus reverse rotation to prevent turbine rollback during shutdown sequences—critical for machines with axial thrust bearings that cannot tolerate reverse rotation.

✓ Speed Band Alarm Zones: Configurable forbidden speed ranges prevent operation at critical speeds where resonance amplifies vibration, protecting against fatigue failures in shafts and casings.

✓ Differential Speed Calculation: Compares multiple shaft speeds to verify gearbox ratios, detect coupling slip, or monitor belt drive efficiency—providing early warning of mechanical degradation.

✓ Event Waveform Capture: Records high-resolution speed data during alarm conditions, creating a forensic record for root cause analysis of trips and equipment failures.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via express courier to major industrial centers worldwide. Expedited same-day shipping available for emergency replacements.

Custom Configuration: Factory-programmed modules with customer-specific alarm setpoints and scaling factors ship within 7-10 business days, including full documentation of configuration parameters.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares inventory.

Technical Support: Lifetime application engineering assistance including sensor selection guidance, wiring diagram review, and commissioning support via phone, email, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, configuration software, calibration certificates, and compliance declarations (CE, UL, CSA).

Frequently Asked Questions

Q: How does the 133388-02D interface with existing DCS or SCADA systems?
A: The module provides 4-20mA analog outputs for direct connection to PLC/DCS analog input cards, plus relay contacts for hardwired shutdown logic. Digital communication occurs via the 3500 rack controller using Modbus TCP/IP protocol, enabling integration with plant-wide monitoring systems without additional gateways.

Q: What sensor pulse rates can the module process reliably?
A: The input circuitry handles pulse frequencies from 0.1 Hz to 100 kHz, accommodating everything from slow-speed mills (10 RPM with single-pulse-per-rev sensors) to high-speed turbines (60,000 RPM with 60-tooth gears). Configurable digital filtering eliminates noise from VFD electrical interference.

Q: Can acceleration alarm setpoints prevent turbine overspeed during governor failures?
A: Yes—acceleration rate monitoring detects abnormal speed increases within 50-100 milliseconds, triggering emergency shutdown logic before speed reaches destructive levels. This provides a critical backup layer when primary governor control fails due to valve seizure or hydraulic system loss.

Q: Does the module require calibration after installation or sensor replacement?
A: No field calibration is necessary. Scaling is performed via software configuration by entering the sensor's pulses-per-revolution count. The module's internal timing circuits are factory-calibrated with NIST-traceable references and maintain accuracy over the full operating temperature range without drift.

Q: How does dual-channel voting logic handle sensor disagreement?
A: When speed readings from the two channels differ by more than a configurable threshold (typically 1-2% of full scale), the module generates a "channel disagreement" alarm while continuing to output the average of both readings. Operators can configure automatic switchover to the higher-reading channel for overspeed protection applications.

Q: What installation environment limitations should be considered?
A: The module operates reliably in -30°C to +65°C ambient temperatures and withstands vibration up to 0.5g RMS. When installed in Class I Division 2 hazardous locations, use approved intrinsic safety barriers between the module and field sensors. Avoid mounting near high-power VFDs or welding equipment without proper EMI shielding.

Request Technical Consultation

Our application engineering team provides complimentary pre-sale consultation to ensure optimal module configuration for your specific machinery protection requirements. Contact us with details of your rotating equipment, existing sensor types, and protection logic requirements—we'll recommend the complete monitoring solution including compatible vibration monitors, proximity probes, and rack infrastructure.

Ready to enhance your machinery protection system? Submit a technical inquiry through our contact form or call our industrial automation specialists directly. We maintain stock inventory for immediate shipment and offer volume pricing for multi-unit projects.
