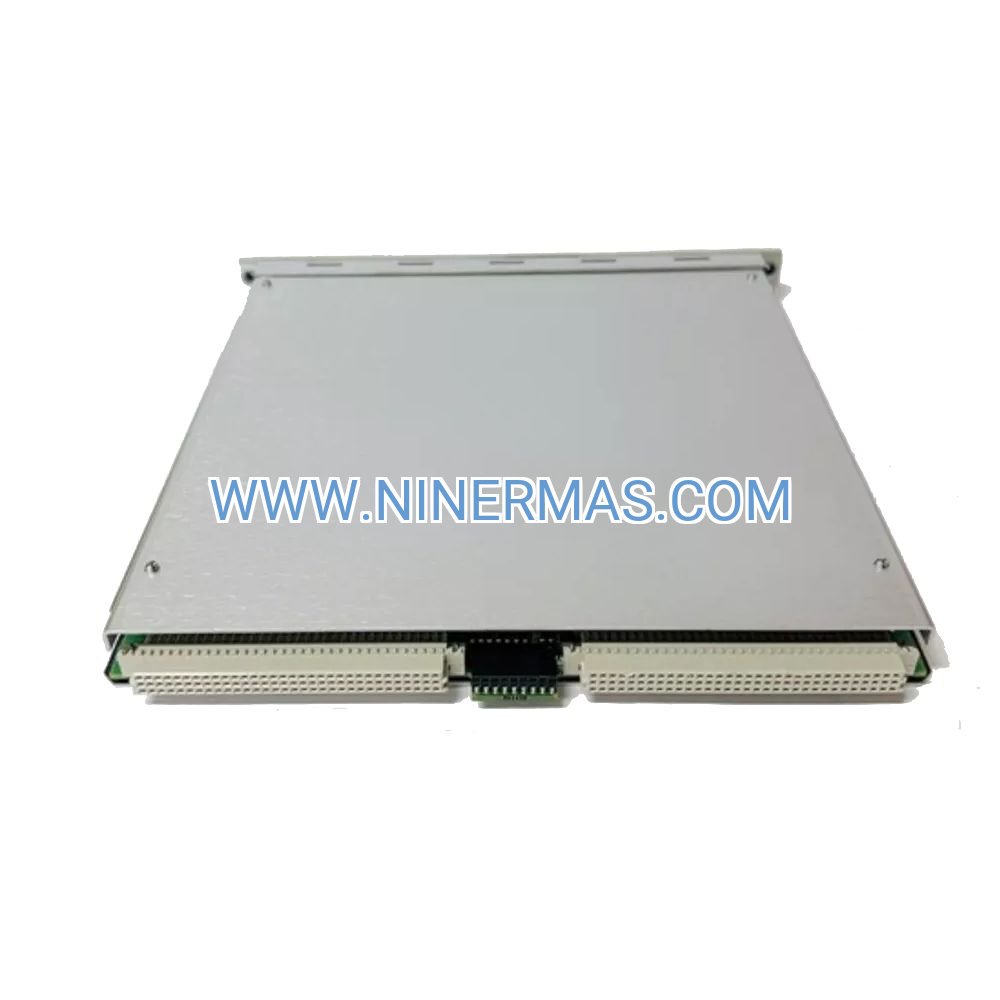

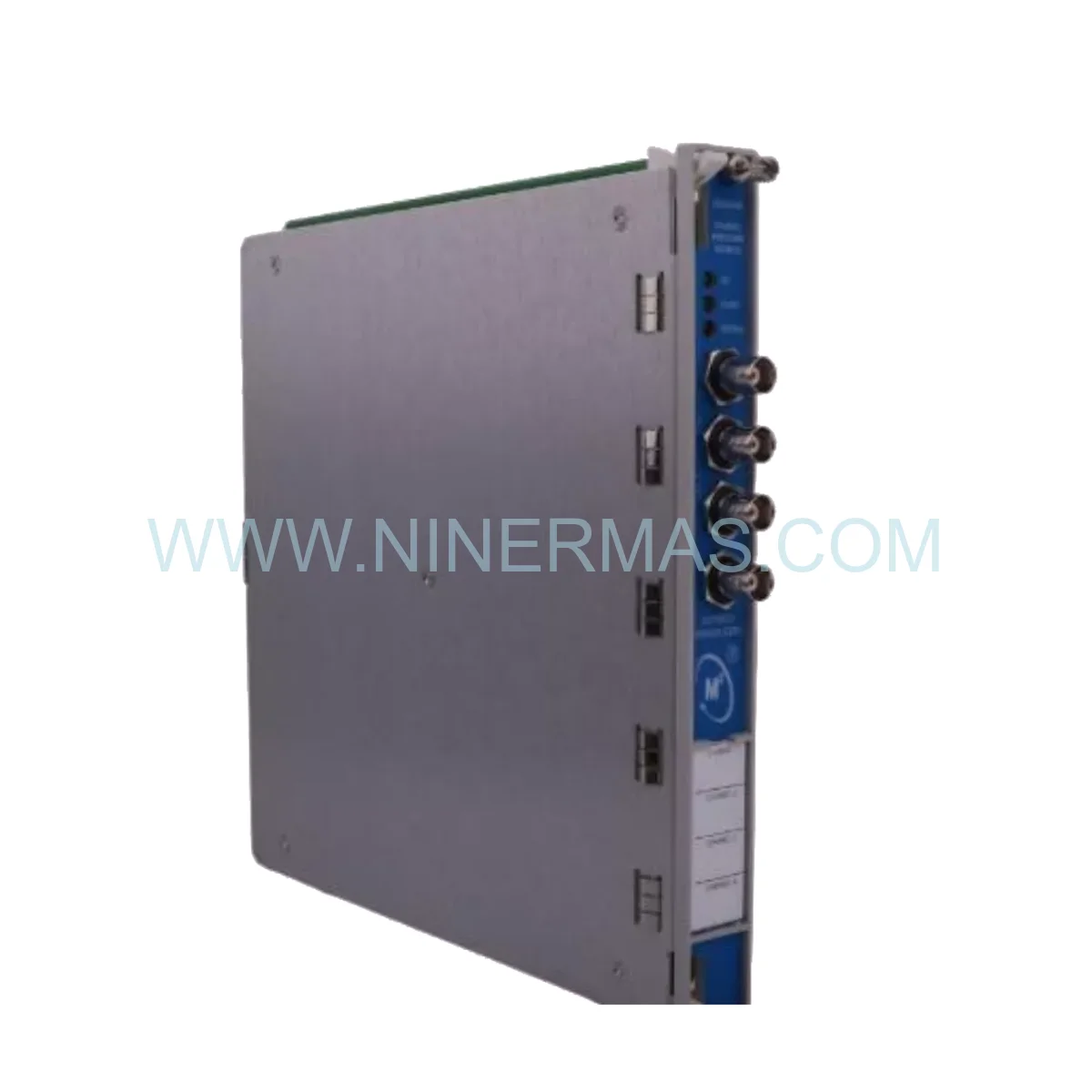

140734-06 Hydro Monitor Module (Industrial-Grade Turbomachinery Protection)

The Bently Nevada 3500/46M represents a specialized four-channel monitoring solution engineered for hydroelectric and steam turbine applications where simultaneous vibration, shaft position, and dynamic pressure surveillance is mission-critical. Designed for continuous operation in power generation facilities, this module integrates seamlessly into 3500 rack architectures to deliver real-time machinery health intelligence and prevent catastrophic failures through early fault detection.

Built for plant engineers and reliability teams managing high-value rotating assets, the 140734-06 combines multi-sensor compatibility with intelligent alarm logic to reduce unplanned downtime. Its unique Hydro Radial Vibration channels merge gap measurement with NX amplitude analysis, enabling precise shear-pin failure detection in hydraulic turbines—a capability unavailable in standard vibration monitors.

With factory-calibrated signal conditioning, user-configurable alert thresholds, and front-panel diagnostic LEDs, this monitor delivers actionable insights for proactive maintenance strategies while maintaining compliance with API 670 machinery protection standards.

Core Features & Benefits

✓ Universal Sensor Integration
Accepts proximity probes, accelerometers, dynamic pressure transducers, and air gap sensors through configurable I/O modules—eliminating the need for multiple monitoring devices and reducing installation complexity by up to 40%.

✓ Precision Signal Processing
Advanced conditioning algorithms convert raw sensor data into engineering units (mils, mm/s, psi) with ±1% accuracy, ensuring reliable trending and compliance with ISO 20816 vibration severity standards.

✓ Dual-Threshold Alarm Architecture
Programmable Alert and Danger setpoints trigger relay outputs or SCADA notifications, enabling staged response protocols that prevent false trips while protecting equipment from destructive vibration levels exceeding 10 mils pk-pk.

✓ Shear-Pin Failure Detection
Patented Hydro Radial Vibration channels correlate shaft displacement with 1X amplitude signatures to identify coupling degradation 72 hours before complete failure—critical for avoiding emergency shutdowns in base-load generation units.

✓ Hot-Swappable Design
Field-replaceable modules with automatic configuration download minimize mean-time-to-repair (MTTR) to under 15 minutes, maintaining plant availability during maintenance windows.

✓ Integrated Diagnostics

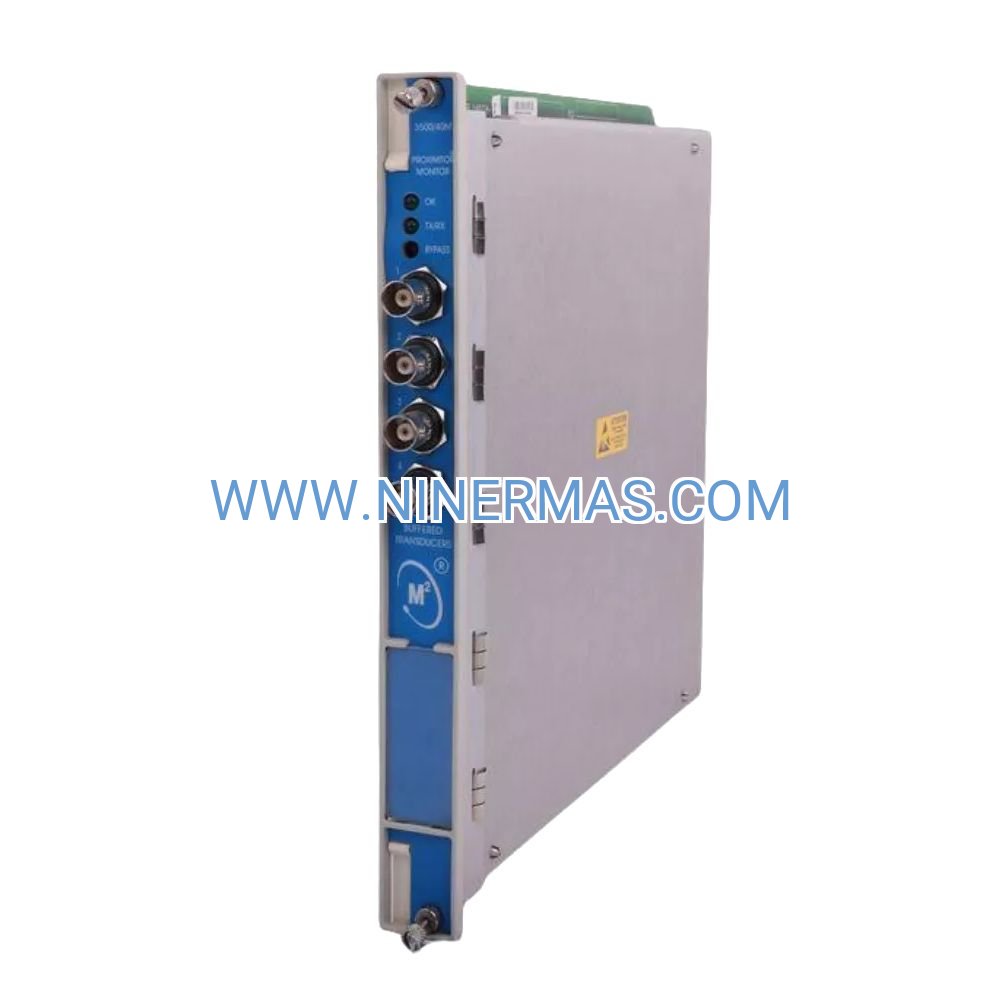

Front-panel OK/TX/RX/Bypass LEDs provide instant operational status verification without requiring laptop connection or software tools—essential for rapid troubleshooting during outages.

Application Scenarios

→ Hydroelectric Turbine Monitoring
Challenge: Detecting guide bearing wear and wicket gate vibration in Francis/Kaplan turbines operating under variable load conditions.
Solution: Four independent channels monitor radial vibration at inboard/outboard bearings plus thrust position and water pressure pulsations, correlating mechanical and hydraulic signatures to diagnose cavitation or draft tube vortex issues before efficiency drops below 92%.

→ Steam Turbine Protection
Challenge: Preventing blade rubs and thrust bearing failures in high-pressure turbines spinning at 3600 RPM with 0.005" clearances.
Solution: Proximity sensors track shaft eccentricity and axial position with 0.5-mil resolution, triggering automatic trip sequences when differential expansion exceeds design limits during rapid load changes.

→ Centrifugal Compressor Surveillance
Challenge: Identifying surge conditions and impeller imbalance in multi-stage compressors handling corrosive gases.
Solution: Dynamic pressure channels detect 2X/3X harmonics indicative of aerodynamic instability, while seismic sensors measure casing vibration to differentiate between mechanical and process-induced faults.

→ Boiler Feed Pump Diagnostics
Challenge: Avoiding catastrophic failures in critical pumps operating at 1200 PSI discharge pressure with zero redundancy.
Solution: Continuous monitoring of bearing housing vibration and shaft runout enables condition-based maintenance scheduling, extending mean-time-between-failures (MTBF) from 18 to 36 months.

→ Refinery Rotating Equipment
Challenge: Managing 200+ pumps, compressors, and fans across distributed process units with limited instrumentation budgets.
Solution: Four-channel architecture reduces per-point monitoring costs by 60% compared to single-channel modules, enabling comprehensive coverage of critical and essential machinery per API 618/610 classifications.

Technical Parameters & Selection Guide

Selection Criteria:
Choose I/O module type based on sensor configuration: Type 01/02 for standard proximity/velocity applications, Type 03/04 for mixed sensor arrays requiring multimode inputs, Type 05/06 for positive-input accelerometers in high-EMI environments. Specify hazardous area approvals (C1D2 vs. Zone 2) during ordering to match plant classification drawings.

Extended Functions

System 1 Integration: Native compatibility with Bently Nevada's condition monitoring platform enables automated data historians, spectral analysis, and machine learning-based anomaly detection for fleetwide asset optimization.

Modbus Gateway Connectivity: Optional 3500/92 communication module provides Ethernet/IP and Modbus TCP access for integration with DCS/SCADA systems, supporting OPC UA and MQTT protocols for IIoT architectures.

Custom Alarm Logic: Advanced users can program complex voting schemes (2oo3, 1oo2) and time-delay filters to eliminate nuisance trips caused by transient events during startups or load swings.

Redundant Configuration: Dual-monitor setups with automatic failover ensure continuous protection for SIL-2 safety instrumented systems per IEC 61508 requirements.

Delivery & Service Assurance

Lead Time: Stock items ship within 24-48 hours; configured systems with hazardous area certifications require 2-3 weeks for factory testing and documentation.

Warranty: 24-month manufacturer's warranty covering defects in materials and workmanship; extended service contracts available for critical applications.

Technical Support: Lifetime access to application engineers for configuration assistance, firmware updates, and troubleshooting via phone/email; on-site commissioning services available in North America, Europe, and Asia-Pacific regions.

Documentation Package: Includes installation manual, configuration software (3500 Rack Configuration), calibration certificates, and compliance declarations (CE/ATEX/cNRTLus).

Frequently Asked Questions

Q: Can this monitor interface with non-Bently Nevada sensors?
A: Yes, the 3500/46M accepts industry-standard 100 mV/g accelerometers, 200 mV/mil proximity probes, and ±10 VDC pressure transducers. Verify sensor output specifications match module input ranges (consult datasheet Table 3-2).

Q: What is the maximum cable length between sensors and the monitor?
A: Proximity systems support up to 300 feet (91m) with 18 AWG shielded cable; accelerometer runs should not exceed 1000 feet (305m) to maintain signal integrity. Use driven shields for runs >100 feet in high-EMI environments.

Q: How does this compare to the standard 3500/42 vibration monitor?
A: The 46M adds dynamic pressure measurement capability and Hydro Radial Vibration channels specifically designed for hydraulic turbine applications. The 3500/42 is optimized for general rotating machinery with proximity/seismic inputs only.

Q: Can alarm setpoints be adjusted without shutting down the rack?
A: Yes, configuration changes are performed online using 3500 Rack Configuration software via the communication module. Changes take effect within 2 seconds without interrupting monitoring functions.

Q: Is remote monitoring supported for offshore or unmanned facilities?
A: Absolutely. Pair with 3500/92 gateway for secure VPN access to real-time data and alarm status. Supports email/SMS notifications via SCADA integration or System 1 cloud services.

Q: What cybersecurity features protect against unauthorized access?
A: Role-based access control (RBAC), encrypted Modbus TCP, and audit logging comply with NERC CIP and IEC 62443 industrial cybersecurity standards. Firmware updates require cryptographic signature verification.

Take the Next Step

Protect your critical rotating assets with proven monitoring technology trusted by 80% of Fortune 500 power generators. Contact our application engineers to discuss sensor selection, rack configuration, and integration with your existing DCS infrastructure.

Request a Quote: Provide machinery details (type, speed, bearing configuration) for customized system recommendations.
Schedule a Demo: See live data acquisition and alarm simulation using our demonstration rack.
Download Resources: Access installation guides, configuration templates, and case studies at our technical library.
