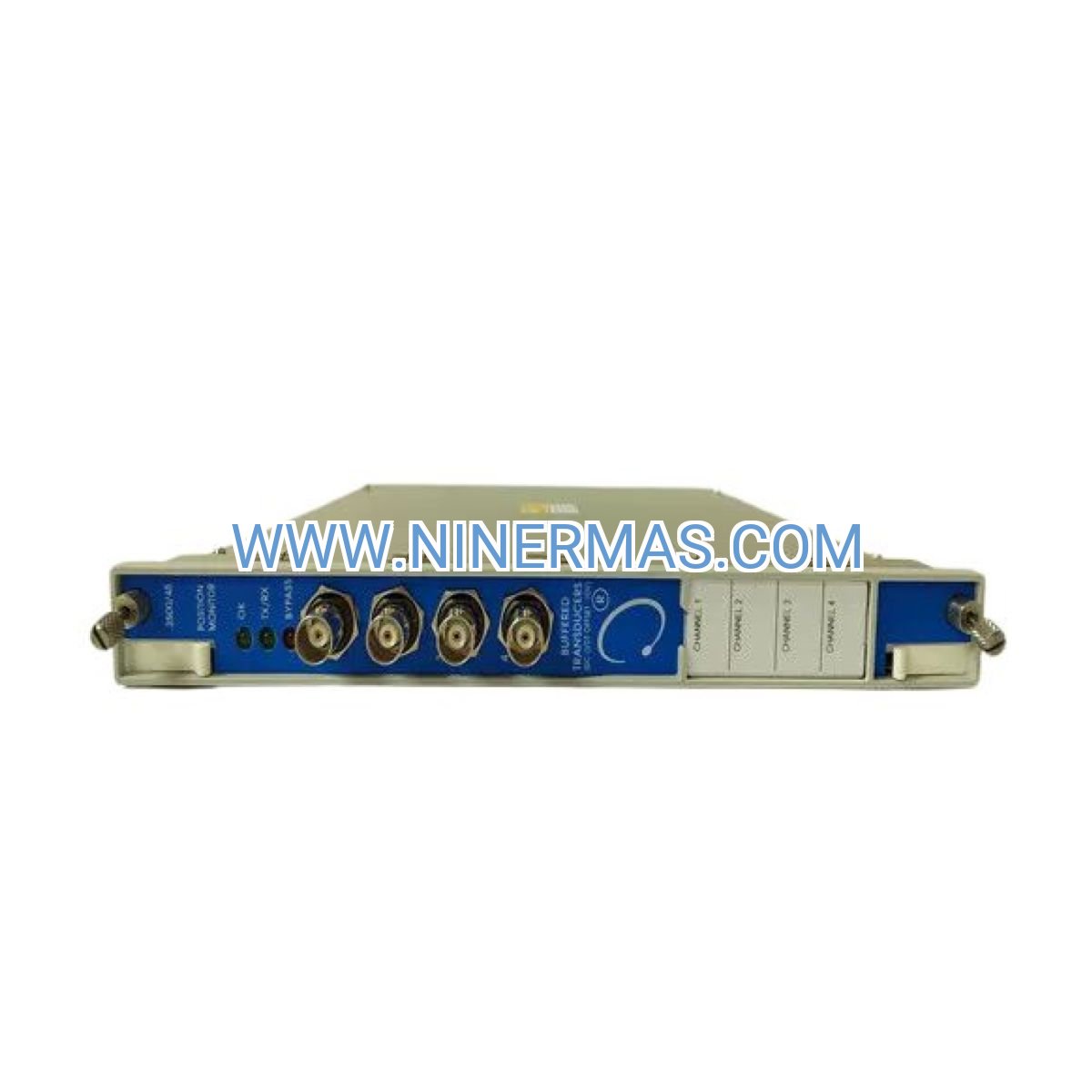

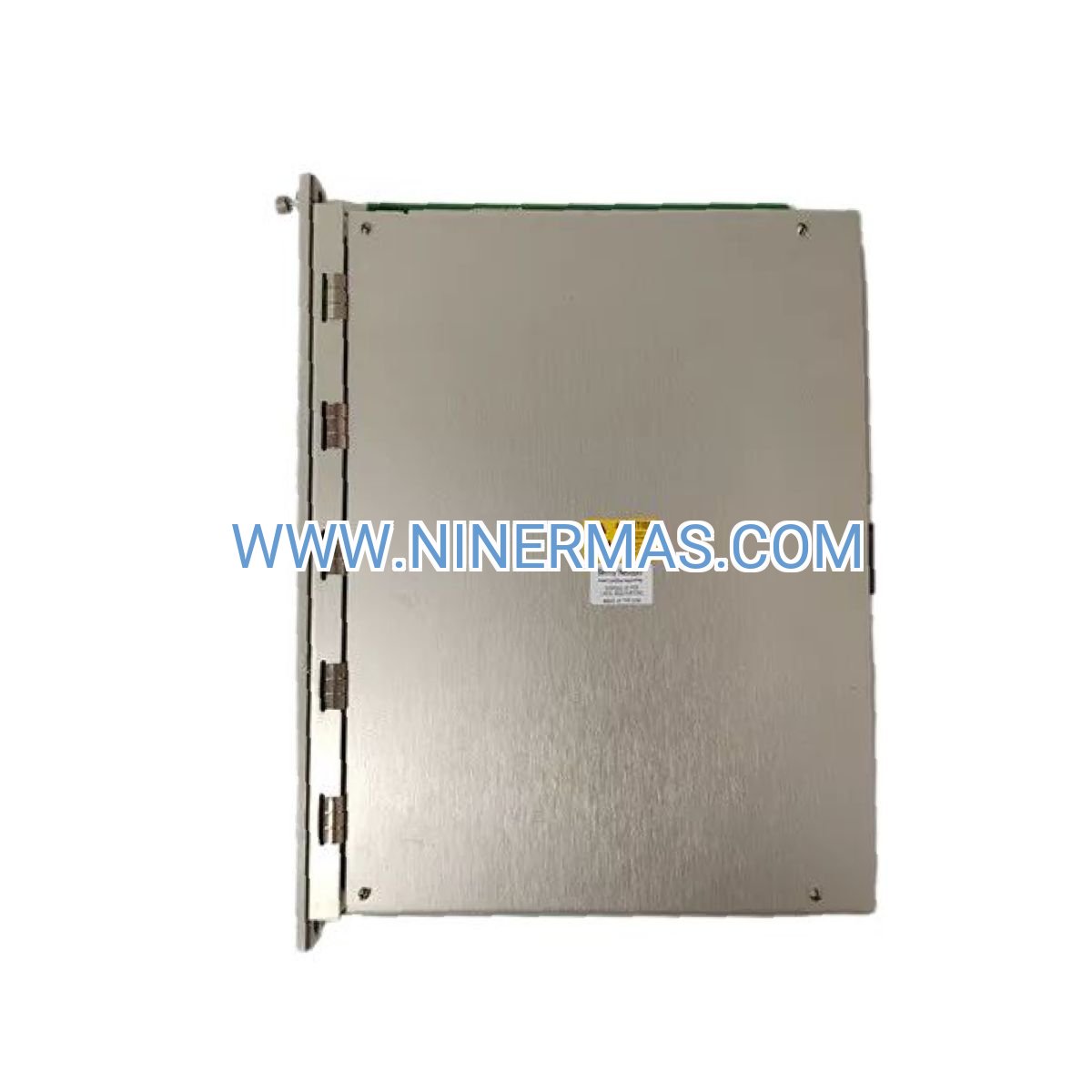

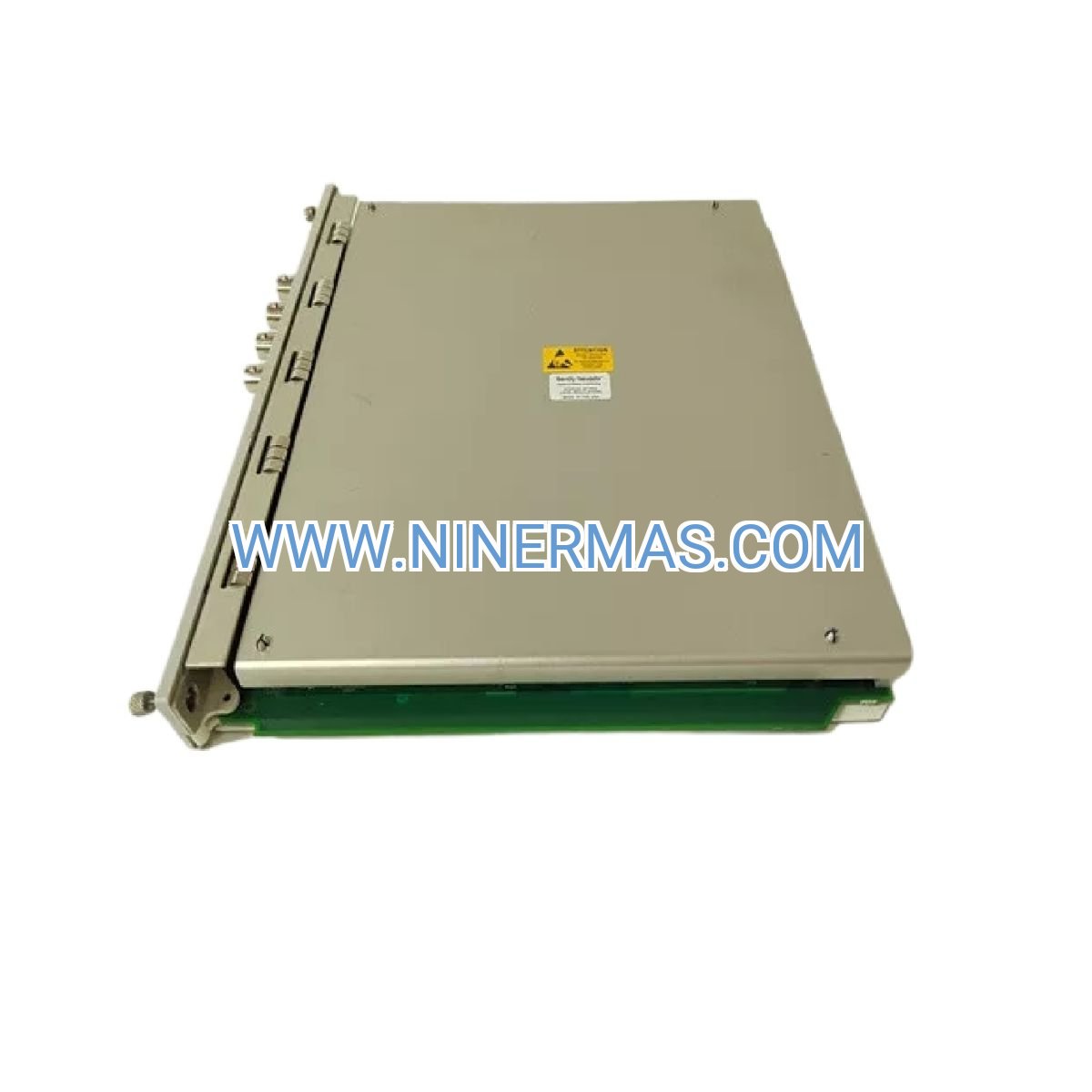

176449-04 Position Monitor (Industrial-Grade Machinery Protection)

The 176449-04 is a four-channel position monitoring system designed for continuous surveillance of critical rotating machinery. This module integrates seamlessly with Bently Nevada 3500 rack infrastructure to deliver real-time shaft position data, valve positioning feedback, and bearing clearance measurements across diverse industrial environments.

Built for power generation facilities, petrochemical plants, and heavy manufacturing operations, this monitor accepts multiple transducer types—including proximity probes, DC/AC LVDTs, rotary potentiometers, and RPT sensors—without requiring hardware reconfiguration. Its programmable alarm architecture enables operators to establish custom setpoints that trigger immediate alerts when position deviations exceed safe operating thresholds.

With front-panel diagnostics, hazardous area certifications, and compatibility with legacy 3500 series components, the 176449-04 provides a future-proof solution for asset reliability programs targeting zero unplanned downtime.

Core Capabilities & Business Value

→ Universal Transducer Compatibility
Accepts five distinct sensor types (Proximitor, DC LVDT, AC LVDT, RPT, rotary potentiometer) through software-selectable input conditioning, eliminating spare parts inventory and reducing commissioning time by 40%.

→ Programmable Multi-Level Alarms
User-defined Alert and Danger setpoints with hysteresis control prevent nuisance trips while ensuring rapid response to genuine fault conditions, reducing false alarm rates by up to 60%.

→ Hot-Swappable Architecture
Field-replaceable I/O modules and main electronics enable maintenance without system shutdown, supporting 99.9% uptime targets in continuous process industries.

✓ API 670 Compliance
Meets machinery protection system standards for vibration, position, and speed monitoring in turbomachinery applications, satisfying insurance and regulatory requirements.

✓ Integrated System Diagnostics
Tri-color LED indicators (OK/TX/RX/Bypass) plus embedded self-test routines detect wiring faults, sensor failures, and configuration errors before they impact production.

✓ Scalable Data Integration
Native compatibility with 3500/20 RIM, 3500/92 communication gateway, and 3500/93 display modules enables plant-wide condition monitoring networks with centralized alarming.

Application Scenarios & Problem Resolution

Steam Turbine Thrust Monitoring
Continuous axial position tracking detects thrust bearing wear in 500+ MW power generation units. Early detection of 0.5mm position shifts prevents catastrophic rotor-to-stator contact, avoiding $2M+ repair costs and 6-week outages.

Compressor Anti-Surge Valve Control
Real-time valve stem position verification in centrifugal compressor systems ensures anti-surge protection responds within 200ms. Prevents compressor stall events that cause $500K+ in blade damage and process disruptions.

Hydro Turbine Wicket Gate Positioning
LVDT-based feedback from guide vane actuators maintains ±0.1° positioning accuracy in hydroelectric generators. Optimizes water flow efficiency, increasing annual energy output by 2-3% ($150K+ value for 100MW plant).

Paper Machine Roll Nip Pressure Control
Monitors hydraulic cylinder positions controlling calender roll gaps in paper production. Maintains ±0.05mm tolerance across 8-meter web widths, reducing sheet thickness variation and improving first-pass quality by 15%.

Gas Turbine Bearing Clearance Surveillance
Tracks radial clearances in journal bearings of 50MW+ gas turbines. Identifies bearing wear progression 4-6 weeks before failure, enabling planned maintenance during scheduled outages rather than emergency shutdowns.

Technical Parameters & Selection Guide

Selection Criteria: Choose I/O module variant based on transducer type—internal terminations (suffix -01/-05) for proximity/DC LVDT applications with <30m cable runs; external terminations (suffix -02/-06) for AC LVDT or installations requiring field-accessible wiring. Specify agency approval suffix (-01 for North America, -02 for global hazardous areas) during procurement to avoid recertification delays.

Extended Functionality

Remote Configuration & Diagnostics: 3500 Rack Configuration Software enables USB or Ethernet-based parameter adjustments without opening enclosures, supporting IIoT predictive maintenance strategies and reducing mean time to repair by 35%.

Trending & Data Logging: Integration with System 1 condition monitoring platform archives 10+ years of position data at 1-second resolution, enabling machine learning algorithms to predict bearing failures 8-12 weeks in advance.

Custom Scaling & Engineering Units: Software-configurable span and zero adjustments accommodate non-standard transducers (0-5V, 4-20mA with external converters) and display readings in mils, mm, inches, or percentage of clearance for operator convenience.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days; factory-sealed units with specific agency approvals require 4-6 weeks for certification documentation.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship; extended 5-year protection plans available for critical sparing applications.

Technical Support: Unlimited access to application engineers for configuration assistance, transducer selection, and alarm setpoint optimization. Remote commissioning support via video call included with purchase.

Documentation Package: Includes installation manual (P/N 141535-01), configuration guide, AutoCAD dimensional drawings, and sample ladder logic for PLC integration (Rockwell, Siemens, Modicon platforms).

Frequently Asked Questions

Can this monitor interface with non-Bently Nevada proximity probes?
Yes—the 176449-04 accepts any 200mV/mil or 8V/mm proximity transducer with -24VDC bias voltage. Third-party probes from Metrix, SKF, or Emerson are compatible when properly scaled during configuration.

What is the maximum cable length between transducer and monitor?
Proximity probes: 9 meters (30 ft) with standard extension cables. DC LVDTs: 30 meters (100 ft) using shielded twisted-pair. AC LVDTs: 100+ meters with proper grounding and 3500/50 signal conditioners.

How much energy savings result from optimized valve positioning?
Precise control valve positioning in steam turbine bypass systems reduces throttling losses by 5-8%, translating to $50K-$200K annual fuel savings for 200MW combined-cycle plants operating at 70% capacity factor.

Does installation require specialized tools or hot work permits?
No—module replacement uses captive screws and plug-in connectors. Typical swap takes 15 minutes with standard screwdrivers. Hazardous area installations require area classification verification but no hot work if performed during scheduled maintenance windows.

Can alarm setpoints be adjusted remotely without site visits?
Yes when networked via 3500/92 gateway—authorized users modify setpoints through secure Ethernet connection using 3500 Rack Configuration Software. Changes take effect within one scan cycle (1-60 seconds based on configuration).

What redundancy options exist for critical machinery protection?
Deploy dual 3500/45 monitors in voted configurations using 3500/33 relay modules. TMR (triple modular redundant) architectures achieve SIL 2 safety integrity levels per IEC 61508 for emergency shutdown systems.

Secure Your Critical Assets Today

Request a technical consultation to discuss your machinery protection requirements, or place your order now to benefit from our current inventory availability. Our team provides complimentary system design reviews for multi-channel monitoring projects exceeding $25K.
