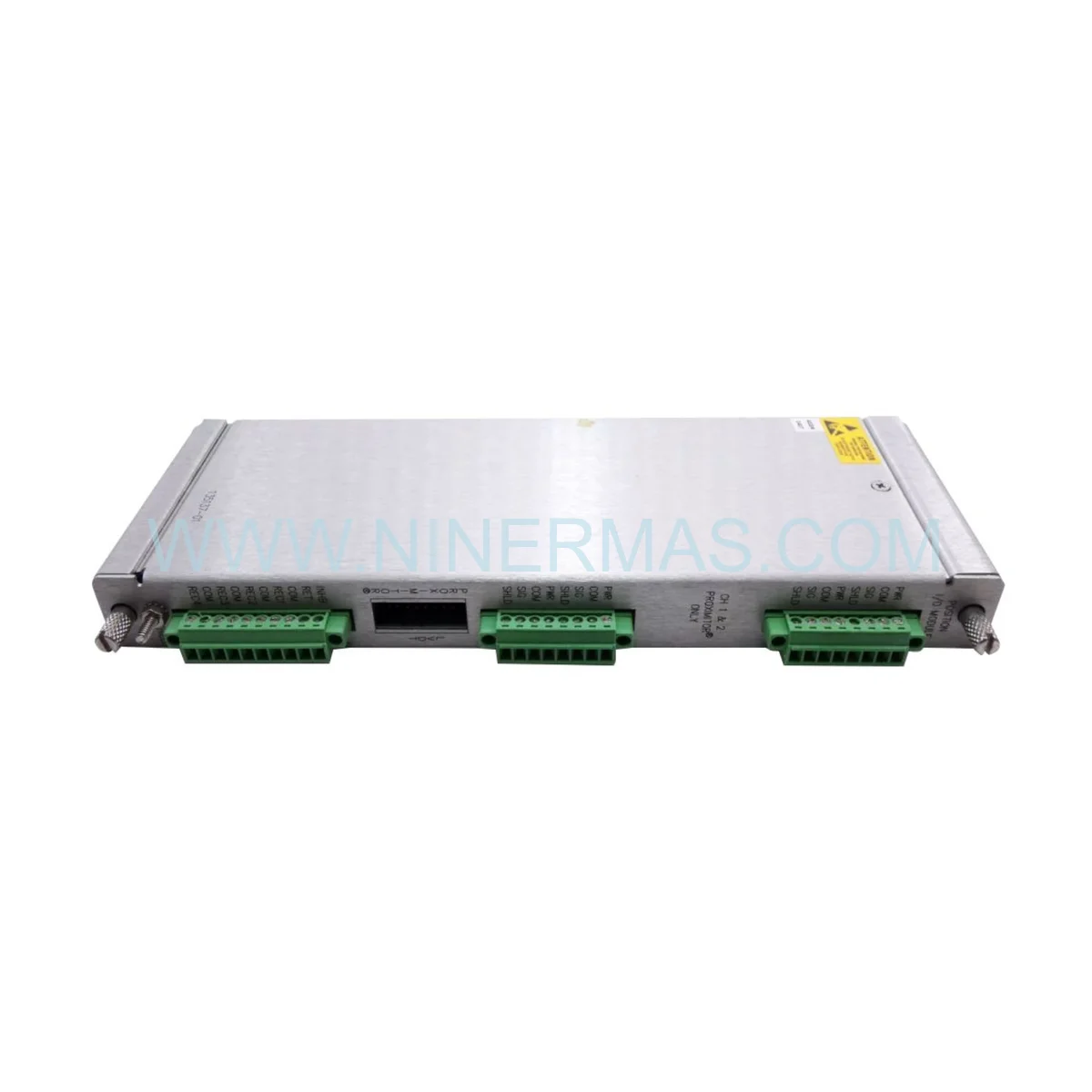

176449-04 Position Monitor (Industrial-Grade Shaft Displacement Tracking)

The Bently Nevada 176449-04 is a 4-channel position monitoring module designed for continuous shaft displacement measurement in critical rotating machinery. Paired with the 135137-01 I/O module, this API 670-compliant system delivers real-time axial and radial position data for turbines, compressors, and generators where rotor positioning directly impacts operational safety and equipment longevity.

Built for industries where unplanned downtime costs thousands per hour, this monitor interfaces with LVDT, RPT, and DC proximity transducers to detect thrust bearing wear, rotor float, and misalignment conditions before catastrophic failure occurs. Plant engineers rely on the 3500/45 platform to protect assets valued in the millions while maintaining compliance with API machinery protection standards.

Key advantages include independent channel processing for redundant measurement, programmable dual-alarm architecture for staged shutdown protocols, and seamless integration with Bently Nevada's System 1 condition monitoring ecosystem. The module's ±10 VDC input range accommodates industry-standard sensors without signal conditioning, reducing installation complexity and calibration drift.

Core Features & Benefits

→ Quad-Channel Architecture
Four independent measurement channels enable simultaneous monitoring of multiple bearing positions or redundant sensor configurations. Each channel operates autonomously with dedicated alarm logic, preventing single-point failures in critical protection schemes.

→ Universal Sensor Compatibility
Accepts LVDT (Linear Variable Differential Transformer), RPT (Rotary Position Transducer), and DC proximity probe inputs without hardware modifications. This flexibility reduces spare parts inventory and simplifies sensor replacement during maintenance windows.

→ API 670 4th Edition Compliance
Meets petroleum and natural gas industry standards for vibration, axial position, and bearing temperature monitoring systems. Certification ensures compatibility with OEM machinery protection requirements and insurance underwriting criteria.

→ Dual-Setpoint Alarm Management
Programmable Alert and Danger thresholds per channel support two-stage shutdown sequences. Alert levels trigger operator notifications and data logging, while Danger setpoints initiate emergency stops—critical for preventing secondary damage during abnormal events.

→ 4-20 mA Proportional Output
Analog current loop outputs interface with DCS, PLC, and SCADA systems for centralized monitoring. Linear scaling across the measurement range enables precise trending and integration with plant-wide asset management platforms.

→ Extended Temperature Rating
Operates reliably from -30°C to +65°C, covering arctic offshore platforms to desert petrochemical facilities. Conformal coating and industrial-grade components ensure performance in high-vibration, high-EMI environments.

Application Scenarios

Steam Turbine Thrust Bearing Protection
Monitors axial shaft displacement to detect thrust bearing degradation in power generation turbines. Early detection of 0.5mm position changes prevents bearing wipeout and rotor-to-stator contact, avoiding $2M+ repair costs and 6-week outages.

Reciprocating Compressor Rod Drop Detection
Tracks piston rod position in natural gas compression stations. Identifies crosshead wear, packing ring failures, and cylinder misalignment—conditions that lead to catastrophic rod ejection if undetected.

Hydro Generator Wicket Gate Positioning
Verifies guide vane position in hydroelectric turbines for flow control optimization. Position feedback ensures synchronization between governor commands and actual gate angles, preventing efficiency losses and cavitation damage.

Centrifugal Pump Impeller Float Measurement
Detects excessive axial movement in multistage pumps handling corrosive or abrasive fluids. Abnormal float indicates thrust bearing wear, seal failures, or hydraulic imbalance—all precursors to seal leakage and product contamination.

Gearbox Shaft End-Play Monitoring
Measures axial clearance in high-speed reduction gears for wind turbines and industrial drives. Tracks bearing preload degradation and gear mesh alignment, extending gearbox service intervals from 3 to 5 years.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 176449-04 when your application requires multi-point position measurement with API 670 compliance. For single-channel monitoring or non-API applications, consider the 3300 XL 8mm or 11mm proximity systems. If your sensors output 0-10 VDC (non-ratiometric), verify compatibility with Bently Nevada application engineering before ordering.

Extended Functions

System 1 Condition Monitoring Integration: The 176449-04 streams real-time position data to Bently Nevada's System 1 software via the 3500 rack's communication gateway. This enables cloud-based trending, automated alarm reporting, and machine learning-based anomaly detection for predictive maintenance programs.

Modbus TCP/IP Connectivity: When paired with the 3500/92 communication module, position data becomes accessible to third-party SCADA systems, historians, and IIoT platforms. Supports OPC UA for Industry 4.0 integration and remote diagnostics.

Custom Scaling & Linearization: Built-in configuration tools allow non-linear sensor compensation and engineering unit conversion (mils, mm, μm). Ideal for applications using custom transducers or requiring specific output scaling for legacy control systems.

Delivery & Service Assurance

Lead Time: Standard configurations ship within 3-5 business days. Custom-calibrated units or ATEX-certified variants require 10-15 business days. Expedited processing available for emergency shutdowns.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift beyond ±1% specification. Advance replacement service ensures <48-hour turnaround for critical applications.

Technical Support: Access to ISO 18436-certified vibration analysts for commissioning assistance, alarm setpoint optimization, and troubleshooting. Remote support via TeamViewer or on-site service available in major industrial regions.

Documentation Package: Each unit includes NIST-traceable calibration certificate, wiring diagrams, 3500 Rack Configuration Software license, and quick-start guide. Sensor scaling worksheets and API 670 compliance declarations provided upon request.

Frequently Asked Questions

How do I interface this position monitor with Allen-Bradley PLCs?
The 4-20 mA outputs connect directly to analog input cards (1756-IF8, 1769-IF4). For digital communication, add the 3500/92 module and use Modbus TCP to the PLC's Ethernet port. Configuration files for RSLogix 5000 available on request.

What's the maximum cable length between the monitor and LVDT sensors?
Up to 300 meters (1000 feet) using shielded twisted-pair cable (Belden 8761 or equivalent). Longer runs require signal conditioners to maintain ±0.5% accuracy. Always use separate conduit from power cables to minimize EMI.

Can this monitor detect position changes as small as 0.1mm?
Yes, when paired with high-resolution LVDTs (e.g., Schaevitz 100 HR series). The monitor's 16-bit ADC provides 0.015% resolution, translating to ~1.5 μm sensitivity over a ±10mm range. Actual resolution depends on sensor linearity and mechanical installation quality.

Does the 12-month warranty cover sensor failures?
The warranty covers the 176449-04 monitor and 135137-01 I/O module only. LVDT/RPT sensors are warranted separately by their manufacturers. We offer bundled sensor+monitor packages with unified warranty terms—contact sales for pricing.

Is remote calibration verification possible without removing the module?
Yes, using the 3500 Rack Configuration Software's built-in diagnostics. Inject known DC voltages via the I/O module's test points and compare displayed values. Full NIST-traceable recalibration requires return to our ISO 17025-accredited lab.

What energy efficiency benefits does position monitoring provide?
By detecting thrust bearing wear early, you avoid emergency shutdowns that waste startup energy (typically 15-20% of daily consumption for large turbines). Optimized rotor positioning also reduces parasitic friction losses by 2-3%, translating to $50K-$200K annual savings in 50MW+ installations.

Request Technical Consultation

Our application engineers are available to review your machinery specifications, recommend sensor configurations, and provide ROI analysis for condition monitoring upgrades. Contact us with your equipment nameplate data, current monitoring gaps, and protection objectives for a customized solution proposal within 24 hours.
