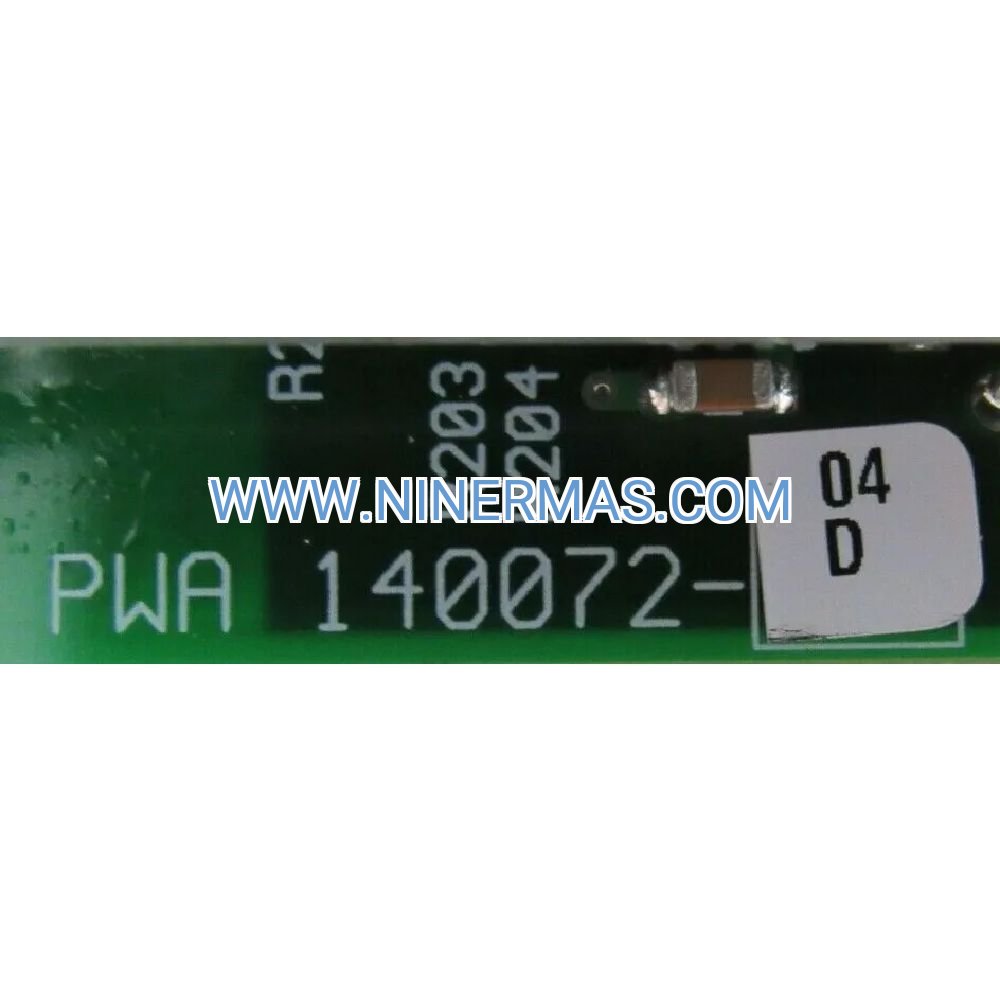

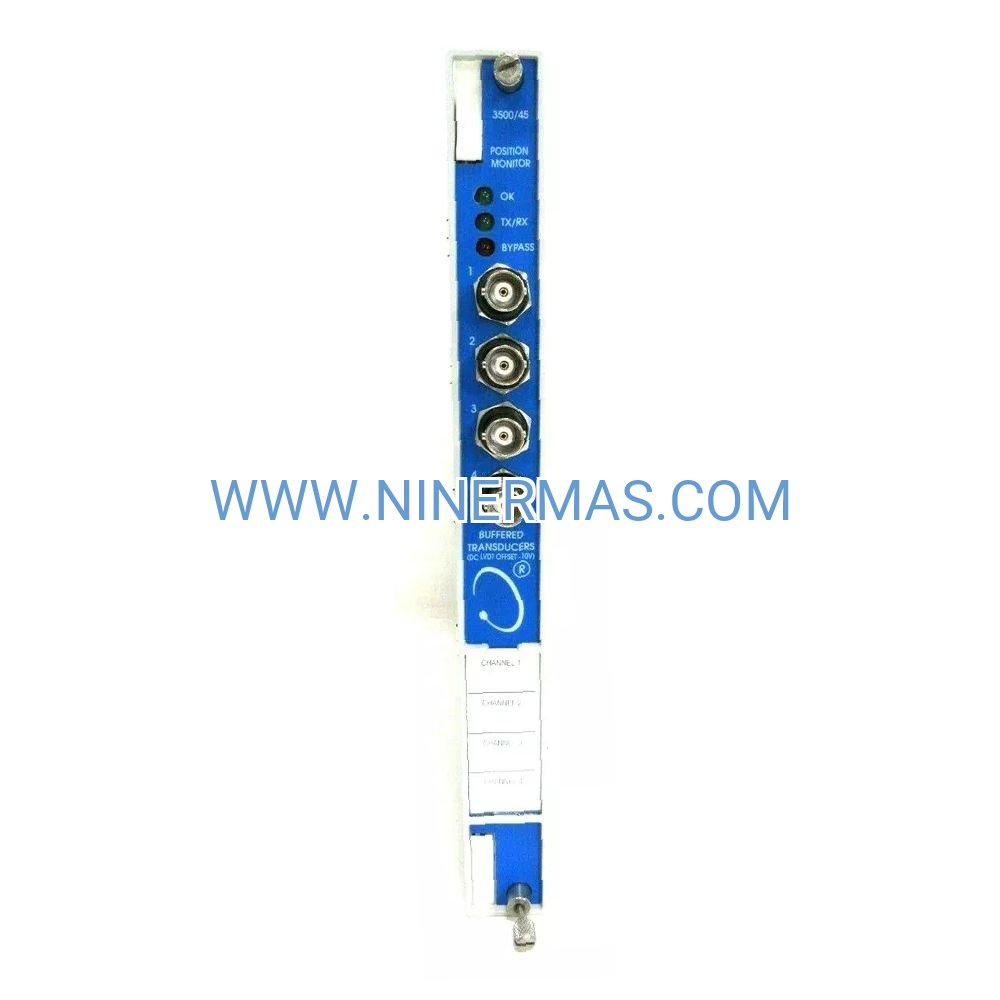

140072-04D Industrial Axial Position Monitor (4-Channel Thrust Bearing Protection System)

Engineered for mission-critical turbomachinery applications, the 140072-04D delivers continuous axial shaft position surveillance across four independent measurement channels. This API 670-certified monitoring solution safeguards high-value rotating assets from thrust bearing collapse, thermal expansion anomalies, and rotor-to-stator contact events that trigger multi-million dollar equipment failures in power generation, oil & gas, and process industries.

Designed for seamless integration within Bently Nevada 3500 rack architectures, this position monitor combines precision eddy current sensing technology with programmable voting logic to eliminate spurious trips while maintaining fail-safe protection. Real-time differential expansion tracking and gap voltage diagnostics enable predictive maintenance strategies that extend bearing life by 40-60% compared to reactive maintenance approaches.

Whether protecting steam turbine-generators during load transients, monitoring gas turbine thrust margins during startup sequences, or tracking compressor rotor float in corrosive service environments, the 140072-04D provides the measurement accuracy and reliability demanded by API 617/670 machinery protection standards.

Core Capabilities & Performance Advantages

→ Quad-Channel Measurement Architecture
Four galvanically isolated input channels accept proximity probes, LVDT, or DC-LVDT transducers for simultaneous monitoring of thrust position, differential expansion, case expansion, and magnetic center location. Each channel operates independently with dedicated alarm logic, eliminating common-cause failures.

→ Precision Thrust Position Tracking
Achieves ±1% full-scale accuracy (±25 μm resolution) across ±10 mm measurement range, detecting thrust bearing wear progression months before catastrophic failure. Temperature-compensated signal processing maintains accuracy from -30°C to +200°C target temperatures.

→ Differential Expansion Protection
Calculates real-time thermal growth differential between rotor and casing during startup/shutdown cycles, preventing costly rubs in steam turbines and preventing seal damage in multi-stage compressors. Programmable alarm setpoints adapt to machine-specific clearance requirements.

✓ Configurable Voting Logic
Programmable trip schemes (1oo1, 1oo2, 2oo2, 2oo3, 2oo4) balance protection sensitivity against nuisance trip risk. Dual-redundant sensor configurations with 2oo2 voting reduce spurious shutdowns by 95% while maintaining safety integrity level (SIL) compliance.

✓ Integrated Gap Voltage Diagnostics
Continuous proximitor DC gap voltage monitoring detects open circuits, cable faults, excessive runout, and electrical noise before they compromise measurement integrity. Automatic fault annunciation triggers maintenance intervention before sensor failures occur.

✓ API 670 5th Edition Compliance
Meets all mandatory requirements for machinery protection systems in petroleum, petrochemical, and natural gas industries. Certified alarm response times, voting logic validation, and environmental qualification ensure regulatory compliance for new installations and brownfield upgrades.

Industrial Application Scenarios

Power Generation – Steam Turbine Protection
Challenge: 250 MW steam turbine experiences thrust bearing temperature spikes during rapid load changes, risking $8M rotor damage from axial shift.
Solution: 140072-04D monitors thrust collar position with dual-redundant proximity probes in 2oo2 voting configuration. Alert setpoint at 50% travel triggers bearing inspection; Danger trip at 75% prevents rotor contact.
Outcome: Early detection of 0.8 mm position drift enabled planned bearing replacement during scheduled outage, avoiding forced shutdown and $2.5M in lost generation revenue.

Oil & Gas – Centrifugal Compressor Monitoring
Challenge: API 617 compressor handling sour gas exhibits erratic thrust position during surge events, complicating anti-surge control tuning.
Solution: Four-channel configuration monitors thrust position, balance piston differential pressure correlation, and case expansion simultaneously. 4-20 mA recorder outputs feed DCS for real-time surge detection.
Outcome: Thrust position trending identified balance piston seal degradation 6 months early, preventing unplanned shutdown and $1.2M in deferred production.

Chemical Processing – Vertical Pump Surveillance
Challenge: Multi-stage vertical turbine pump in corrosive service experiences bearing wear from hydraulic unbalance, causing 3-4 failures annually.
Solution: LVDT-based axial position measurement with differential expansion compensation tracks rotor float during flow variations. Trend analysis correlates position changes with impeller wear.
Outcome: Predictive maintenance based on position drift patterns extended mean time between failures from 90 to 240 days, reducing maintenance costs by $180K annually.

Aerospace – Gas Turbine Thrust Margin Validation
Challenge: Aero-derivative gas turbine requires continuous thrust bearing margin verification to comply with aviation-derived maintenance protocols.
Solution: High-resolution position monitoring (1 μm digital resolution) captures thrust transients during rapid acceleration and load rejection events. Data logging enables post-event analysis.
Outcome: Documented thrust margin compliance reduced insurance premiums by 12% and enabled condition-based maintenance intervals, cutting inspection costs by $95K per year.

Hydroelectric – Francis Turbine Guide Bearing Clearance
Challenge: 85 MW Francis turbine exhibits intermittent vibration during low-flow operation, suspected guide bearing clearance issue.
Solution: Dual-channel position monitoring tracks runner axial position and guide bearing clearance simultaneously. Correlation with wicket gate angle identifies clearance-dependent vibration threshold.
Outcome: Optimized guide bearing clearance specification eliminated vibration below 40% load, improving plant availability by 3.2% and generating $420K additional annual revenue.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose 140072-04D when application requires simultaneous monitoring of multiple position parameters (thrust + differential expansion + case expansion). For thrust-only monitoring, consider 3500/45 2-channel variant. Verify sensor compatibility: proximity probes for non-contact measurement of ferrous targets; LVDT for direct shaft coupling in low-speed applications. Confirm rack slot availability and I/O module pairing (135137-01 for proximity probes; 135145-01 for LVDT).

Advanced Integration & Customization Options

DCS/SCADA Connectivity
Seamless integration with plant control systems via 3500/92 Communication Gateway supporting Modbus TCP/IP protocol. Real-time position data, alarm status, and gap voltage diagnostics stream to historian databases for long-term trending and predictive analytics. OPC UA support enables Industry 4.0 connectivity for cloud-based condition monitoring platforms.

Cybersecurity Hardening
When paired with 3500/92 gateway firmware v5.0+, supports role-based access control (RBAC), encrypted communications (TLS 1.2), and audit logging for IEC 62443 compliance. Network segmentation via dedicated monitoring VLAN isolates machinery protection systems from enterprise IT infrastructure.

Predictive Maintenance Integration
Position trend data exports to third-party condition monitoring software (SKF @ptitude, Emerson AMS, GE Bently Nevada System 1) for advanced analytics including bearing remaining useful life (RUL) estimation, thermal growth modeling, and machine learning-based anomaly detection.

Custom Alarm Logic
Programmable alarm delays (0.1-60 seconds) filter transient spikes during startup/shutdown. Hysteresis bands (1-25% FS) prevent alarm chatter near setpoints. Alarm inhibit logic disables nuisance alarms during defined operating modes (e.g., startup sequence, low-speed turning gear operation).

Multi-Train Configurations
For combined-cycle power plants or parallel compressor installations, multiple 140072-04D modules share common alarm annunciation via 3500/33 relay modules. Cross-train voting logic enables automatic load transfer when one train exhibits abnormal thrust position.

Delivery, Warranty & Technical Support

Lead Times & Availability
✓ Standard Configuration: 3-5 business days (stock item)
✓ Custom Firmware/Calibration: 10-15 business days
✓ Expedited Service: 24-48 hour emergency shipment available for critical outages
✓ Global Distribution: Ships from regional warehouses in North America, Europe, Middle East, Asia-Pacific

Warranty Coverage
✓ Standard Warranty: 24 months from shipment date covering manufacturing defects
✓ Extended Warranty: Optional 60-month coverage available for critical applications
✓ Advance Replacement: Cross-ship replacement within 24 hours for warranty claims
✓ Calibration Certification: NIST-traceable calibration certificate included with each module

Technical Support Services
✓ 24/7/365 Hotline: Global technical support with <2 hour response time for critical issues
✓ Remote Diagnostics: Secure VPN access for troubleshooting and configuration assistance
✓ On-Site Commissioning: Factory-trained technicians available for startup support and training
✓ Firmware Updates: Lifetime access to firmware updates and security patches via customer portal

Documentation Package
✓ Installation Manual: Detailed mechanical and electrical installation procedures
✓ Configuration Guide: Step-by-step setup instructions with application examples
✓ Troubleshooting Flowcharts: Diagnostic procedures for common fault conditions
✓ Spare Parts List: Recommended spare parts with ordering information
✓ Calibration Procedures: Field calibration and verification protocols

Frequently Asked Questions

How does the 140072-04D interface with existing DCS systems for real-time thrust position trending?
The module provides dual 4-20 mA recorder outputs per channel (8 total analog outputs) that connect directly to DCS analog input cards. For digital integration, pair with 3500/92 Communication Gateway to stream position data, alarm status, and diagnostics via Modbus TCP/IP or OPC UA protocols. Typical update rate: 100 ms for analog outputs, 1-second polling for digital communications. Configure DCS historian to log position values at 1-10 second intervals for long-term trending and predictive maintenance analysis.

What proximity probe specifications are required to achieve the stated ±1% measurement accuracy across the full ±10 mm range?
Recommend Bently Nevada 3300 XL 8mm or 11mm proximity probe systems with -24 VDC proximitor power supplies. Probe-to-target gap: 1.0-2.0 mm (40-80 mils) for optimal linearity. Target material: 4140 steel or equivalent ferrous alloy with surface finish <3.2 μm Ra. Maximum total cable length (probe + extension): 91 meters (300 feet) using shielded twisted-pair cable. Avoid routing near high-current power cables (>100A) to prevent electromagnetic interference. Calibrate system end-to-end using precision gap gauges traceable to NIST standards.

Can the voting logic be reconfigured in the field without requiring module replacement or factory reprogramming?
Yes, voting logic is fully field-configurable using 3500 Rack Configuration Software (version 6.0 or later). Connect laptop to 3500 rack via Ethernet or serial interface, authenticate with administrator credentials, select the 140072-04D module, and modify voting parameters in the Alarm Configuration menu. Changes take effect immediately upon download to module (no restart required). Recommend documenting voting logic changes in machine protection philosophy document and updating P&ID drawings to reflect as-built configuration.

What is the recommended alarm setpoint strategy for steam turbine differential expansion monitoring during cold starts?
API 670 recommends Alert setpoint at 50% of maximum allowable differential expansion, Danger trip at 75%. For typical steam turbines: Alert = 2.5 mm (100 mils), Danger = 3.75 mm (150 mils). During cold starts (<8 hours offline), enable extended alarm delays (30-60 seconds) to accommodate rapid thermal transients without nuisance trips. Monitor differential expansion rate-of-change: >0.5 mm/minute indicates abnormal heating and warrants load hold. Correlate differential expansion with metal temperature measurements (thermocouples on HP/IP casings) to validate thermal growth models and refine setpoints based on machine-specific behavior.

How frequently should gap voltage diagnostics be reviewed to ensure reliable thrust position measurement in corrosive gas compressor applications?
Review gap voltage weekly during initial commissioning (first 90 days) to establish baseline values and identify installation issues. After stabilization, monthly review is adequate for most applications. In corrosive environments (H2S, chlorine, HCl), increase to weekly monitoring due to accelerated target surface degradation. Normal gap voltage range: -8 to -12 VDC for 3300 XL 8mm probes at 1.5 mm gap. Investigate deviations >±1 VDC: increasing voltage (more negative) indicates growing gap from target corrosion or probe loosening; decreasing voltage suggests debris buildup or cable degradation. Implement automated gap voltage alarms in DCS: Alert at ±1.5 VDC deviation, Danger at ±2.5 VDC to trigger immediate inspection.

Is the 140072-04D compatible with legacy 3300 series proximity probe systems, or does it require newer 3300 XL transducers?
The 140072-04D is backward-compatible with legacy 3300 series proximity probes (3300 5mm, 8mm, 11mm) manufactured since 1995. However, 3300 XL series (introduced 2002) offers superior temperature stability (±0.5% vs. ±2% over -30°C to +100°C range) and extended cable length capability (91m vs. 61m). For new installations, specify 3300 XL for optimal performance. When retrofitting existing systems, verify proximitor power supply compatibility: 3300 XL proximitors require -24 VDC ±5% supply; older 3300 proximitors use -18 VDC to -24 VDC range. Mixing probe generations on same module is supported but not recommended due to calibration complexity.

Ready to Protect Your Critical Machinery?

Contact our turbomachinery protection specialists to discuss your thrust bearing monitoring requirements. We provide application engineering support to optimize sensor selection, voting logic configuration, and alarm setpoint strategies for your specific equipment. Request a detailed quotation including module, I/O hardware, proximity probes, and commissioning services.
