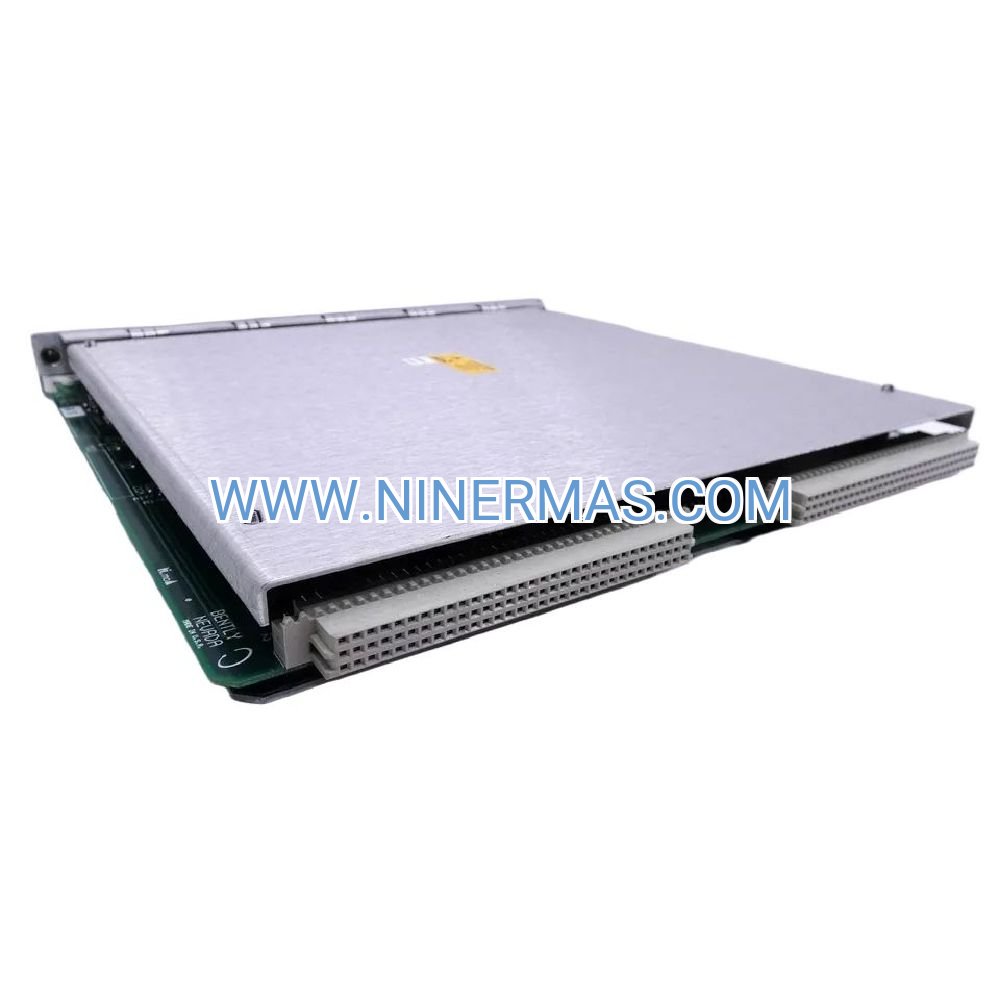

140072-04B Position Monitor Module (Industrial-Grade Shaft Displacement Tracking)

Engineered for mission-critical turbomachinery applications, the 140072-04B Position Monitor Module delivers continuous axial and radial shaft position surveillance with microsecond-level precision. This dual-channel monitoring solution integrates seamlessly into Bently Nevada 3500 rack systems, providing early warning detection of thrust bearing degradation, thermal expansion anomalies, and rotor misalignment conditions that could lead to catastrophic equipment failure.

Designed for power generation facilities, petrochemical plants, and heavy industrial operations, this module transforms raw proximity probe signals into actionable intelligence. Plant engineers rely on the 140072-04B to protect high-value rotating assets including steam turbines, gas compressors, and large motor-generator sets where unplanned downtime costs exceed $50,000 per hour.

The module's hot-swappable architecture enables maintenance without process interruption, while programmable alarm logic adapts to unique operational profiles. With proven reliability in temperatures ranging from -30°C to +65°C and compatibility with legacy 3500 infrastructure, the 140072-04B represents a future-proof investment in asset protection.

Core Capabilities & Business Value

✓ Dual-Channel Redundancy Architecture
Simultaneous monitoring of two independent measurement points eliminates single-point failure risks. Each channel operates autonomously with dedicated alarm outputs, ensuring continuous protection even during sensor maintenance or transducer failure scenarios.

→ Configurable Alarm Thresholds with Hysteresis Control
User-defined setpoints accommodate varying operational modes (startup, steady-state, shutdown). Adjustable hysteresis prevents nuisance alarms during transient conditions while maintaining sensitivity to genuine fault progression.

✓ Real-Time Gap Voltage Diagnostics
Continuous transducer health validation detects cable damage, probe contamination, or target surface irregularities before they compromise measurement accuracy. Automated diagnostics reduce troubleshooting time by 60% compared to manual inspection methods.

→ Hot-Swap Capability for Zero-Downtime Maintenance
Tool-free module extraction and insertion during live operation preserves production continuity. Configuration data persists in rack memory, enabling replacement units to assume monitoring duties within 30 seconds of installation.

✓ Backplane Communication Integration
Proprietary protocol delivers position data to System 1 condition monitoring platforms, SCADA systems, and distributed control networks. Supports both analog 4-20mA outputs and digital Modbus interfaces for flexible integration architectures.

→ Extended Temperature Range Performance
Military-grade components maintain ±0.5% accuracy across -30°C to +65°C ambient conditions. Conformal coating protects circuitry from moisture, dust, and corrosive atmospheres common in offshore platforms and chemical processing environments.

Industrial Application Scenarios

Steam Turbine Thrust Bearing Protection
In combined-cycle power plants, the 140072-04B monitors axial rotor displacement during load transitions. When steam flow variations create unbalanced thrust forces, the module triggers protective shutdowns before bearing Babbitt material reaches critical temperature limits. Typical installations prevent 3-5 bearing failures annually, avoiding $2M+ in emergency repair costs.

Centrifugal Compressor Differential Expansion Tracking
Petrochemical facilities use dual-channel monitoring to measure casing-to-rotor thermal growth during startup sequences. The module's programmable ramp-rate limits detect abnormal expansion patterns caused by fouled heat exchangers or malfunctioning warming systems, preventing rotor-to-stator rubs that destroy labyrinth seals.

Large Motor Magnetic Center Verification
In mining operations, the 140072-04B ensures motor rotors maintain optimal magnetic center position under varying load conditions. Deviations exceeding ±0.25mm trigger alerts for coupling misalignment or foundation settling issues, extending bearing life by 40% through early intervention.

Gas Turbine Axial Clearance Management
Aeroderivative turbines in pipeline compression service require precise blade-tip clearance control for efficiency optimization. The module's high-resolution measurement (0.001mm) enables active clearance control systems to maintain optimal gaps, improving fuel efficiency by 1.5-2% while preventing blade-to-shroud contact events.

Hydro Generator Thrust Bearing Surveillance
Hydroelectric facilities monitor vertical shaft position to detect thrust bearing wear and wicket gate hydraulic imbalances. The 140072-04B's slow-roll compensation algorithms filter out runout effects, providing accurate wear trending data that optimizes bearing replacement intervals and reduces maintenance costs by 30%.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 140072-04B when applications require dual-channel position monitoring with independent alarm logic. For single-channel requirements or combined vibration/position monitoring, consider the 3500/42M variant. Verify proximity probe compatibility (3300 XL 8mm or 5mm systems) and confirm rack slot availability before ordering. Applications requiring SIL-rated safety functions may need additional voting logic modules.

Extended Functionality & Integration Options

Condition Monitoring Software Integration: The module streams real-time data to Bently Nevada System 1 platforms, enabling advanced analytics including spectral analysis, trend forecasting, and machine learning-based anomaly detection. API connectivity supports third-party CMMS integration for automated work order generation.

Modbus TCP/IP Communication: Optional communication gateway modules enable direct connection to plant DCS networks, eliminating the need for dedicated monitoring workstations. Supports up to 32 modules per Ethernet segment with 100ms update rates.

Custom Scaling & Engineering Units: Configuration software allows conversion of raw gap voltage to mils, millimeters, or micrometers with user-defined polynomial correction curves. Supports temperature compensation algorithms for applications with extreme thermal cycling.

Buffered Data Recording: Internal memory stores 10 seconds of high-speed data (25.6 kHz sampling) before and after alarm events, providing forensic evidence for root cause analysis. Data exports to CSV format for offline analysis in MATLAB or Python environments.

Delivery Timeline & Service Commitments

Standard Delivery: 5-7 business days for in-stock units via express courier (DHL/FedEx). Includes factory calibration certificate and test report documentation.

Custom Configuration: 10-14 business days for pre-programmed modules with customer-specific alarm setpoints and scaling parameters. Configuration files provided for backup and replication purposes.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Includes advance replacement service with 48-hour turnaround for critical applications.

Technical Support: Lifetime access to application engineering team for configuration assistance, troubleshooting guidance, and firmware updates. Remote diagnostic services available via secure VPN connection.

Documentation Package: Each shipment includes installation manual, configuration software (3500 Rack Configuration v6.x), quick-start guide, and dimensional drawings in AutoCAD DXF format.

Frequently Asked Questions

Q: Can the 140072-04B monitor both axial and radial position simultaneously?
A: Yes, the dual-channel architecture supports simultaneous monitoring of two measurement axes. Configure Channel 1 for axial displacement and Channel 2 for radial position, or use both channels for redundant axial monitoring with 2oo2 voting logic.

Q: What proximity probe cable lengths are supported without signal degradation?
A: The module accommodates cable runs up to 9 meters (30 feet) for standard 3300 XL 8mm probes. For extended distances up to 15 meters, use low-capacitance cable (Bently Nevada 330130 series) and enable cable compensation in configuration software.

Q: How does the module perform during machine startup when position changes rapidly?
A: Programmable ramp-rate limits and time-delay filters prevent nuisance alarms during controlled startup sequences. Configure separate alarm setpoints for startup mode (wider tolerances) that automatically transition to run-mode thresholds after speed stabilization.

Q: Is the 140072-04B compatible with legacy 3500/45 modules for rack mixing?
A: Full backward compatibility with 3500 rack firmware v5.x and later. The module auto-detects rack configuration and adapts communication protocols. Mix with older 3500/42, 3500/50, and 3500/60 modules without firmware conflicts.

Q: What diagnostic capabilities help identify faulty proximity probes before failure?
A: Continuous gap voltage monitoring detects probe degradation, cable shield damage, and target surface contamination. The module flags transducer faults when gap voltage exceeds -22 VDC or falls below -2 VDC, typically 2-4 weeks before complete probe failure.

Q: Can alarm setpoints be adjusted remotely without plant shutdown?
A: Yes, configuration changes upload via 3500 Rack Configuration Software over Ethernet or RS-232 connection. Modifications take effect within 5 seconds without interrupting monitoring functions. Audit logs track all configuration changes with timestamp and user credentials.

Secure Your Critical Assets Today

Protect your turbomachinery investment with proven position monitoring technology trusted by Fortune 500 industrial operators worldwide. Our technical team is ready to assist with module selection, system design consultation, and integration planning.

Request a Quote: Contact our sales engineers with your application details for customized pricing and delivery options. Volume discounts available for multi-unit orders and system integrators.

Technical Consultation: Schedule a complimentary 30-minute consultation to discuss probe selection, alarm logic design, and integration with existing DCS infrastructure.
