140072-04A Four-Channel Position Monitor (Industrial-Grade Machinery Protection)

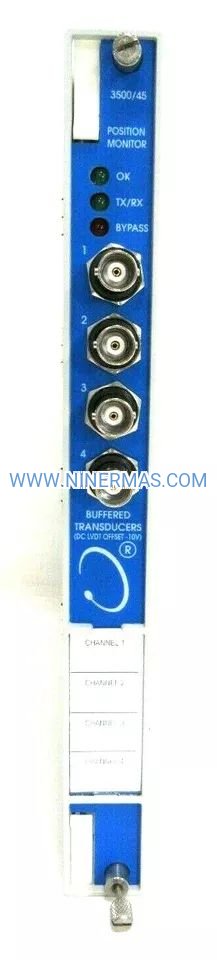

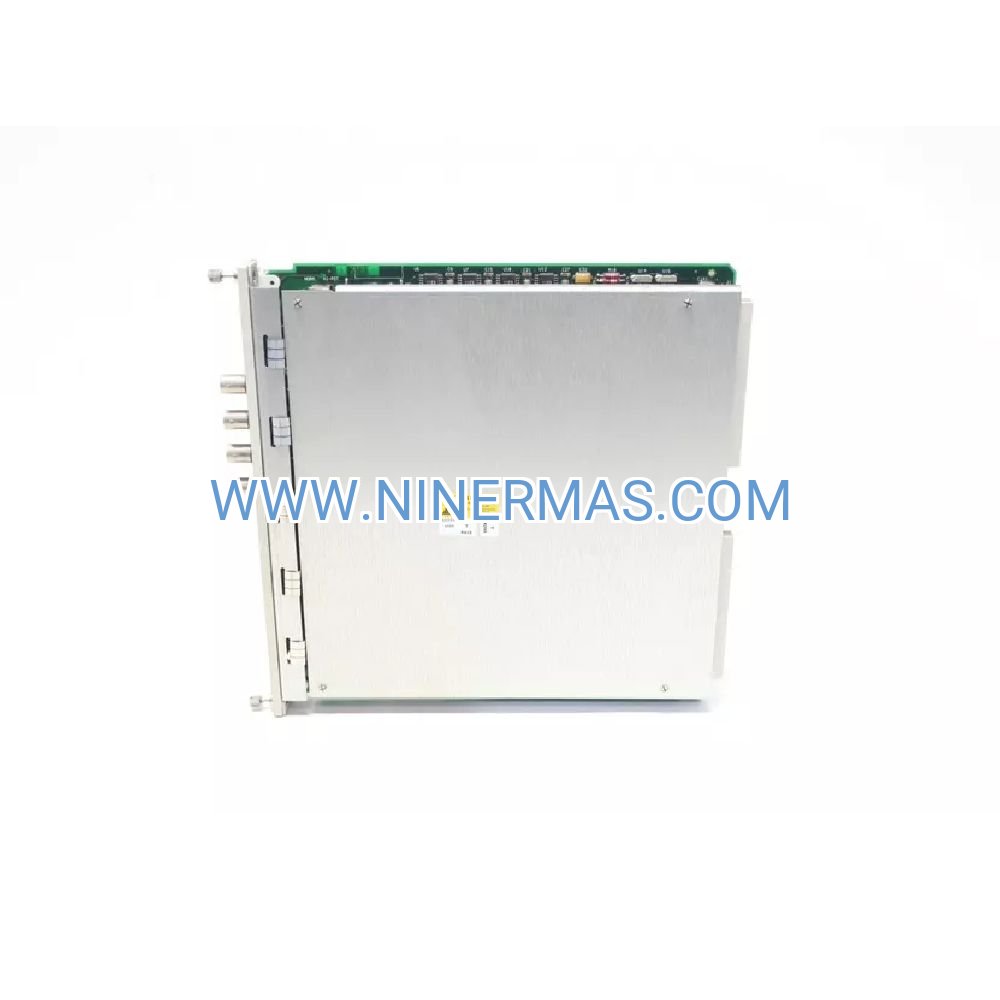

The Bently Nevada 3500/45 Position Monitor Module (Model 140072-04A) represents a critical safeguard for rotating machinery assets in power generation, oil & gas, and heavy industrial environments. This four-channel monitoring solution continuously evaluates transducer signals from axial displacement sensors, valve position indicators, and thrust bearing probes—comparing real-time measurements against configurable alarm thresholds to prevent catastrophic equipment failures and unplanned downtime.

Designed for engineers and maintenance teams managing turbomachinery fleets, the 140072-04A integrates seamlessly into existing Bently Nevada 3500 monitoring frameworks while supporting multiple transducer technologies including Proximity Transducers, Rotary Position Transducers (RPT), DC/AC LVDTs, and Rotary Potentiometers. Its proven reliability in harsh industrial conditions makes it the preferred choice for safety-critical applications where precision position measurement directly impacts operational continuity and personnel safety.

Whether you're protecting steam turbines from thrust bearing failures, monitoring control valve positions in chemical processes, or implementing SIL-rated safety instrumented systems, the 3500/45 delivers the accuracy, diagnostics, and alarm responsiveness required for mission-critical machinery protection programs.

Core Capabilities & Technical Advantages

The 140072-04A combines advanced signal processing with industrial-hardened design to deliver unmatched position monitoring performance:

• → Quad-Channel Architecture: Monitor four independent measurement points simultaneously—ideal for multi-bearing machines or distributed valve position tracking across process units. Reduces hardware costs while simplifying system architecture.
• ✓ Universal Transducer Support: Native compatibility with Proximitor sensors, RPTs, DC/AC LVDTs, and rotary potentiometers eliminates the need for signal conditioning adapters. Automatically adapts to transducer output characteristics for plug-and-play deployment.
• → Programmable Alarm Logic: Configure independent setpoints for Alert and Danger thresholds on each channel. Supports both high and low limit detection with adjustable hysteresis to prevent nuisance alarms in noisy environments.
• ✓ Front-Panel Diagnostics: Tri-color LED indicators (OK/TX/RX/Bypass) provide instant visual confirmation of module health, communication status, and bypass conditions—accelerating troubleshooting during commissioning and maintenance activities.
• → Hot-Swappable Design: Replace modules without system shutdown using the 3500 rack's live-insertion capability. Maintains continuous monitoring during hardware upgrades or emergency replacements.
• ✓ Hazardous Area Certification: ATEX Zone 2, IECEx, and CSA Class I Division 2 approvals enable deployment in explosive atmospheres common to petrochemical and offshore installations.

Proven Applications Across Critical Industries

The 3500/45 module solves position monitoring challenges in the world's most demanding industrial environments:

• Steam & Gas Turbine Protection: Continuous axial position monitoring prevents rotor-to-stator contact in high-speed turbomachinery. Early detection of thrust bearing wear enables predictive maintenance scheduling, avoiding forced outages that cost $500K+ per day in lost generation capacity.
• Compressor Anti-Surge Control: Real-time tracking of recycle valve positions ensures surge prevention systems respond within milliseconds. Protects centrifugal compressors from destructive flow reversals that can destroy impellers and seals.
• Hydraulic Actuator Verification: Confirms valve stem positions in safety shutdown systems (SIS) for compliance with IEC 61511 functional safety standards. Provides independent position feedback separate from control system instrumentation.
• Pump Thrust Monitoring: Detects abnormal axial movement in multistage pumps caused by hydraulic imbalance or bearing degradation. Prevents seal failures and catastrophic shaft breakage in critical process pumps.
• Wind Turbine Pitch Control: Monitors blade pitch actuator positions to optimize aerodynamic performance and prevent overspeed conditions. Integrates with SCADA systems for remote diagnostics and performance trending.

Technical Specifications & Selection Guide

Selection Criteria: Choose I/O configuration based on transducer type—Option 01/02 for Proximitor/RPT/DC LVDT applications with internal or external terminations; Option 05/06 for AC LVDT installations. Verify compatibility with existing 3500 rack firmware (RIM Rev G or later required). For SIL-rated applications, specify agency-approved versions with certified firmware.

Advanced Integration & Connectivity Features

The 140072-04A extends beyond standalone monitoring with comprehensive system integration capabilities:

• Modbus Protocol Support: Stream position data to DCS/SCADA platforms via Modbus TCP/RTU for centralized asset management and historian integration.
• 3500 Rack Manager Interface: Leverage the Rack Interface Module (RIM) for Ethernet-based configuration, diagnostics, and data acquisition using Bently Nevada System 1 software.
• Relay Output Modules: Pair with 3500/32 or 3500/33 relay modules to drive shutdown logic, annunciator panels, or emergency stop circuits based on position alarm conditions.
• Trending & Analysis: Export time-stamped position data to System 1 Condition Monitoring software for vibration-position correlation studies and root cause failure analysis.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units | Express shipping available for critical outage support

Custom Configurations: 10-15 business days for factory-configured modules with pre-loaded alarm setpoints and I/O terminations

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship | Extended service agreements available

Technical Assistance: Application engineering support for transducer selection, alarm setpoint calculation, and system integration planning | Remote commissioning support via video consultation

Documentation Package: Includes installation manual, configuration software, calibration certificates, and agency approval documentation

Frequently Asked Questions

Q: Can the 140072-04A monitor both axial and radial positions simultaneously?
A: Yes—configure separate channels for axial displacement (thrust position) and radial gap measurements using appropriate proximity transducers. Each channel operates independently with dedicated alarm setpoints.

Q: What is the maximum cable length between transducers and the module?
A: Proximity transducers support up to 7.6 meters (25 feet) using standard extension cables. For LVDT applications, consult transducer manufacturer specifications—typically 30-100 meters depending on signal conditioning requirements.

Q: Does this module support redundant monitoring for SIL 2/3 applications?
A: The 140072-04A can be deployed in redundant configurations using dual modules with voted logic. For SIL-rated applications, specify agency-approved versions and consult Bently Nevada's functional safety manual for proper architecture design.

Q: How do I integrate position data with our existing DCS system?
A: Use the 3500/20 Rack Interface Module (RIM) to expose Modbus registers containing position values and alarm status. Map these registers to your DCS I/O database for display and control logic integration.

Q: Can I retrofit this module into an older 3500 rack?
A: Verify your rack's RIM firmware is Revision G or later. Older racks may require RIM upgrades to support the 140072-04A's communication protocol. Contact our technical team for compatibility assessment.

Q: What calibration procedures are required after installation?
A: The module ships factory-calibrated. Field calibration involves setting transducer scaling factors (mV/mil or mV/mm) and alarm setpoints using 3500 Rack Configuration Software. No physical adjustments required on the module itself.

Secure Your Machinery Protection System Today

Don't wait for a thrust bearing failure or valve malfunction to compromise your operations. The Bently Nevada 3500/45 140072-04A Position Monitor Module provides the early warning intelligence your maintenance team needs to transition from reactive repairs to predictive maintenance strategies.

Ready to upgrade your machinery protection system? Contact our industrial automation specialists for application-specific recommendations, system integration planning, and expedited delivery options. Our team supports projects worldwide with technical expertise in turbomachinery monitoring, safety instrumented systems, and condition-based maintenance programs.

Request a quote: sale@ninermas.com | Technical hotline: +0086 187 5021 5667
