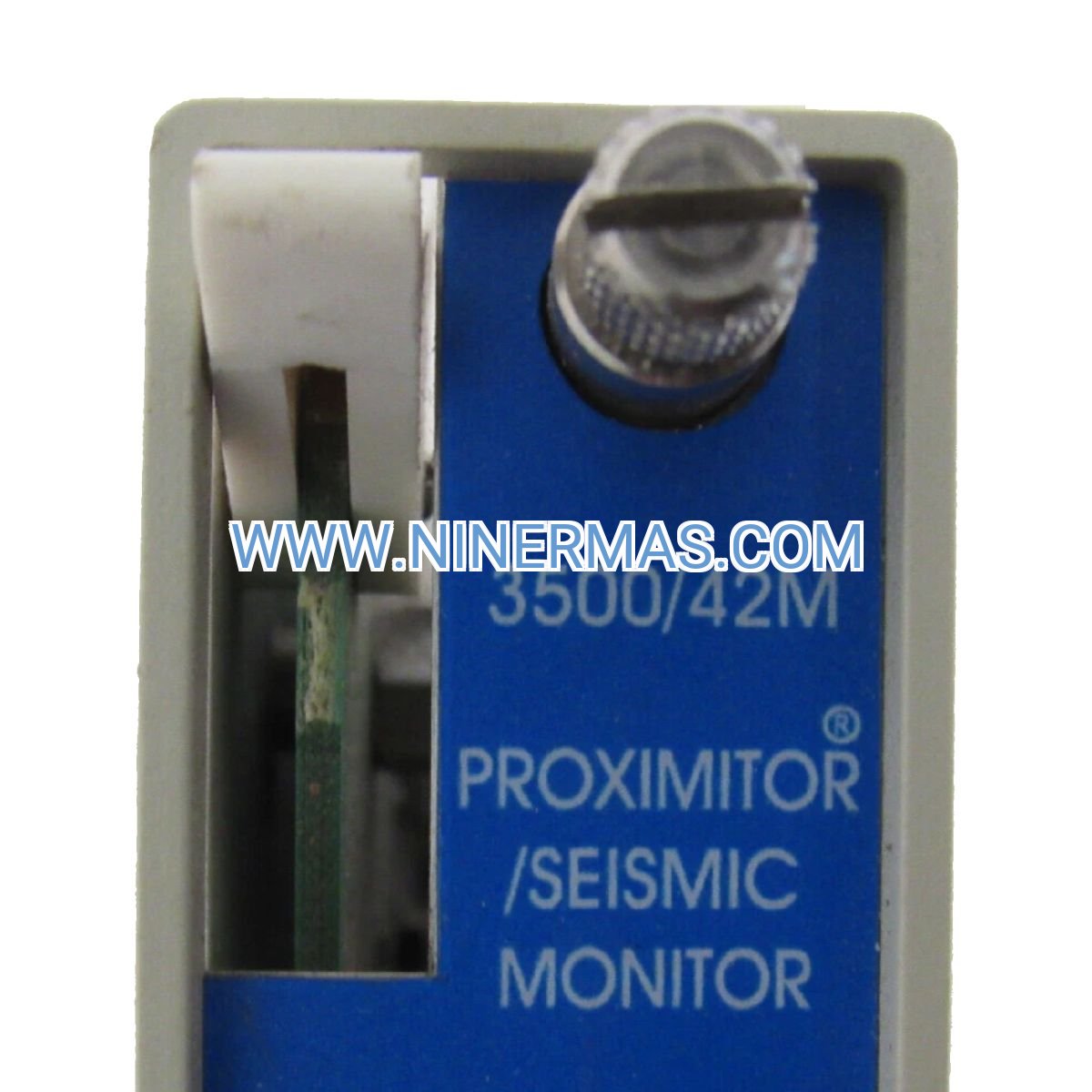

✓ Versatile Multi-Sensor Compatibility

Process signals from proximity probes (radial vibration, axial position), velocity transducers (casing vibration), and accelerometers (bearing envelope analysis) across four independent channels. Each channel operates with configurable sensitivity ranges and measurement parameters, accommodating diverse transducer types without requiring additional hardware.

✓ Precision Alarm Architecture

Configure dual-level Alert and Danger thresholds for each monitoring channel with adjustable hysteresis, voting logic, and programmable time delays. This intelligent alarm management eliminates nuisance trips caused by transient events while ensuring genuine machinery faults trigger immediate protective responses—reducing unplanned downtime by up to 40%.

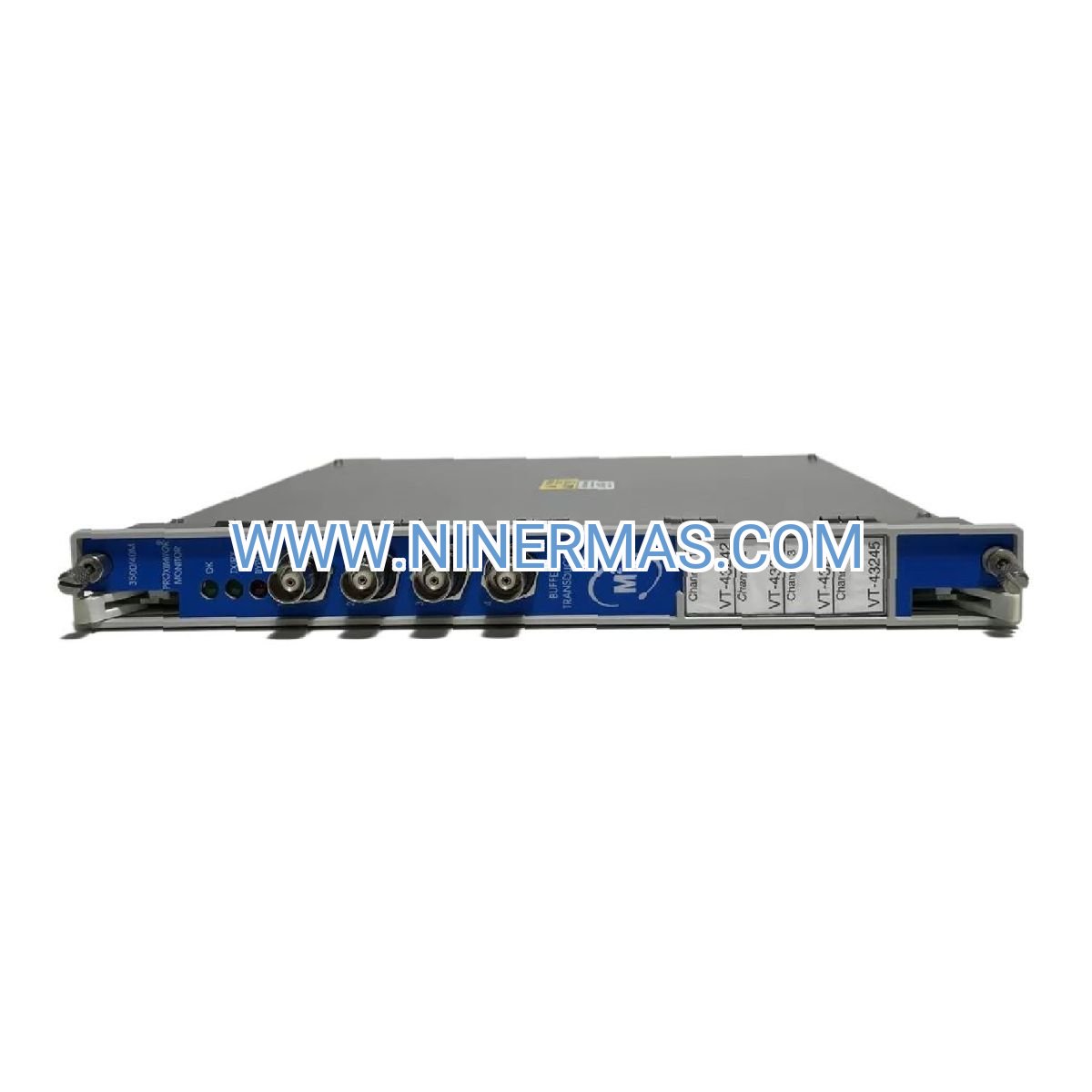

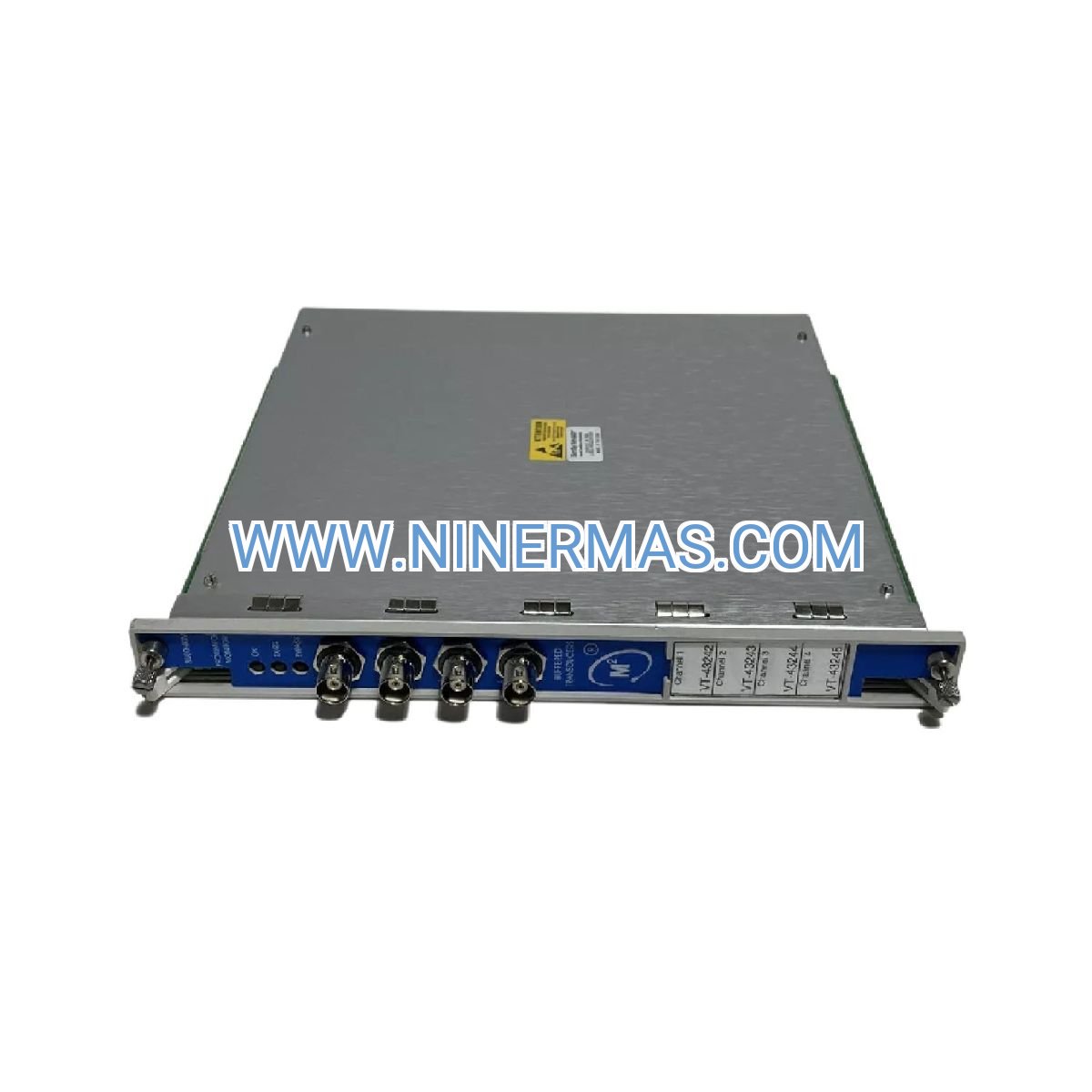

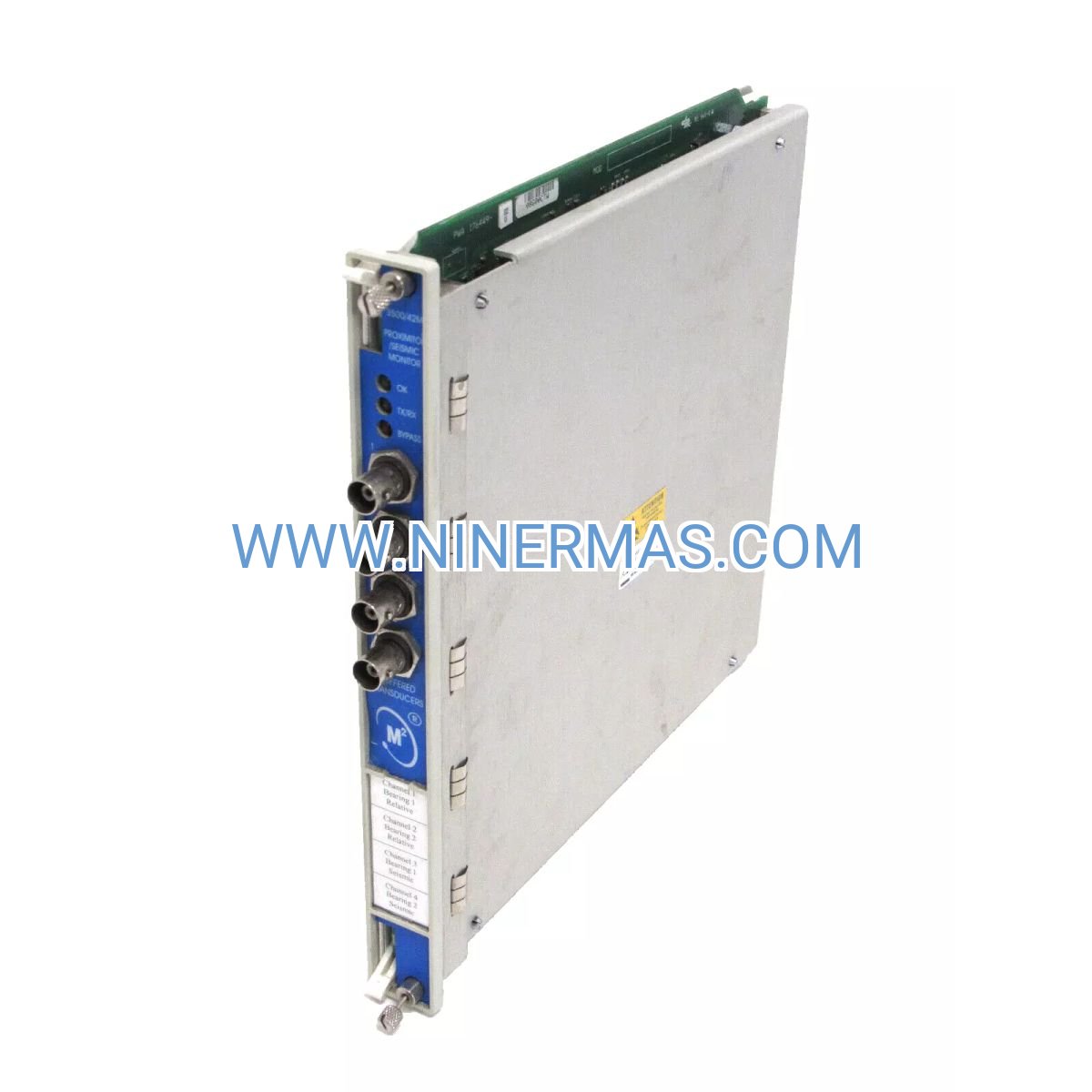

✓ Buffered Diagnostic Outputs

Every channel provides a buffered transducer output for connection to oscilloscopes, spectrum analyzers, or secondary monitoring systems. Perform in-depth vibration signature analysis and frequency domain diagnostics without signal loading effects or measurement interference—critical for root cause failure analysis.

✓ Proportional Recorder Outputs

Four independent 4-20 mA recorder outputs deliver real-time vibration data to DCS, SCADA, or historian systems. Configurable scaling enables direct mapping of vibration amplitude to current output—supporting trending, predictive analytics, and regulatory compliance documentation.

→ Steam & Gas Turbine Protection

Operational Challenge: High-speed turbines operating at 3,000-3,600 RPM with journal bearing temperatures exceeding 120°C require continuous monitoring of radial vibration at multiple bearing locations, thrust position to detect rotor shift, and casing vibration to identify structural resonance.

3500/42M Solution: Deploy channels 1-2 for X-Y radial vibration monitoring at the turbine bearing using 8mm proximity probes (200 mV/mil sensitivity), channel 3 for thrust collar position tracking, and channel 4 for casing velocity measurement. Buffered outputs enable simultaneous DCS trending and oscilloscope waveform capture during critical startup and shutdown transients.

→ Centrifugal Compressor Train Surveillance

Operational Challenge: Multi-stage compressors in petrochemical service experience complex vibration patterns from aerodynamic forces, gear mesh frequencies, and bearing wear. Distinguishing between normal operation and incipient surge or rotor instability requires sophisticated signal processing.

3500/42M Solution: Monitor four bearing positions (two bearings in X-Y configuration) using proximity probes with independent alarm setpoints per channel. The monitor's ±1 mil accuracy across 0-500 mil measurement range ensures reliable detection of subsynchronous vibration, oil whirl, and bearing clearance degradation—preventing catastrophic failures that cost $500K+ in repairs.

→ High-Pressure Pump Condition Monitoring

Operational Challenge: Boiler feed pumps and pipeline pumps operate in cavitation-prone environments where bearing failures develop rapidly. Sub-second alarm response times are essential to prevent impeller damage and seal failures.

3500/42M Solution: Combine proximity probes for shaft vibration monitoring with accelerometers for bearing envelope analysis. Configure channels for simultaneous low-frequency shaft whirl detection (proximity) and high-frequency bearing defect identification (acceleration) with distinct alarm thresholds—enabling condition-based maintenance that reduces unplanned downtime by 35%.

?️ Catastrophic Failure Prevention: Early detection of bearing degradation, rotor rubs, and misalignment conditions prevents failures that typically cost $500,000+ in emergency repairs, replacement parts, and lost production revenue.

? Maintenance Cost Reduction: Transition from time-based preventive maintenance to condition-based strategies, reducing unnecessary bearing replacements by 40% while catching genuine faults during early development stages.

⏱️ Uptime Maximization: Continuous surveillance enables planned maintenance during scheduled outages rather than forced shutdowns, improving equipment availability from 92% to 98%+ in typical installations.

? Regulatory Compliance: Meets API 670 machinery protection standards and insurance requirements for critical rotating equipment, avoiding policy exclusions and premium penalties.

Q: Can the 3500/42M monitor both proximity probes and accelerometers simultaneously?

A: Yes. Each of the four channels can be independently configured for different transducer types. For example, channels 1-2 can monitor proximity probes for shaft vibration while channels 3-4 process accelerometer signals for bearing envelope analysis—all within the same module.

Q: What is the maximum cable length between transducers and the monitor?

A: For proximity probe systems, maximum cable length is typically 300 feet (91 meters) when using standard 3300 XL extension cables. Velocity and acceleration sensors support longer runs (up to 1,000 feet) due to their higher output impedance. Always consult transducer datasheets for specific cable length limitations.

Q: How do I integrate vibration data with my existing DCS system?

A: The 3500/42M provides 4-20 mA recorder outputs that connect directly to DCS analog input cards. For digital integration, add a 3500/92 Communication Gateway to the rack—this enables Modbus TCP/IP or Ethernet/IP connectivity for real-time data streaming to SCADA, historians, or predictive maintenance platforms.

Q: Does the monitor support remote configuration and diagnostics?

A: Yes. When paired with a 3500/92 Gateway and 3500 Rack Configuration Software, you can perform remote configuration changes, alarm setpoint adjustments, and diagnostic data retrieval via Ethernet connection—eliminating the need for on-site visits for routine parameter updates.

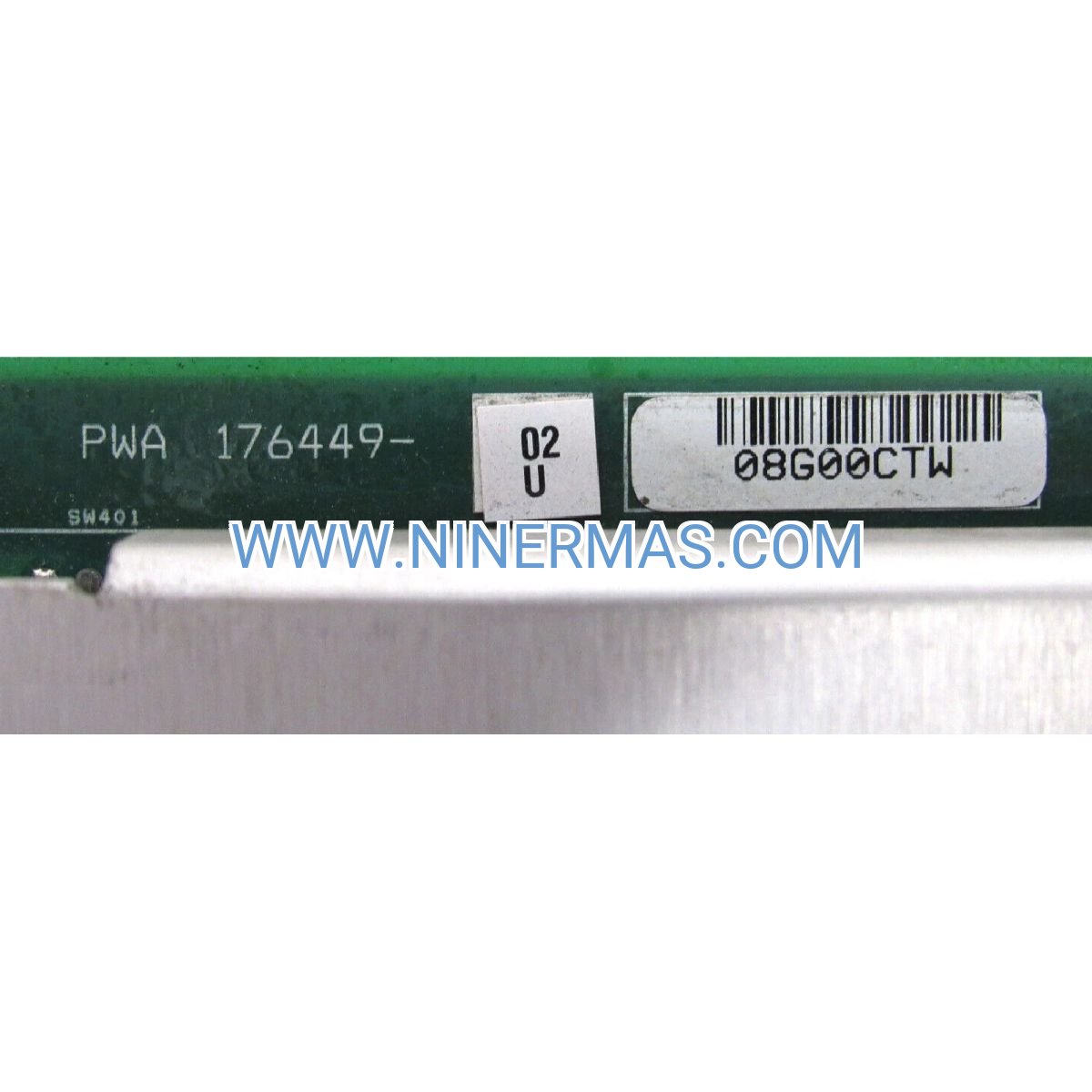

Q: What is the typical lead time for delivery of the 176449-02 configuration?

A: Standard configurations typically ship within 2-3 weeks. Custom I/O module combinations or special certifications (ATEX, IECEx) may require 6-8 weeks. Contact our sales team for current availability and expedited shipping options for urgent projects.
