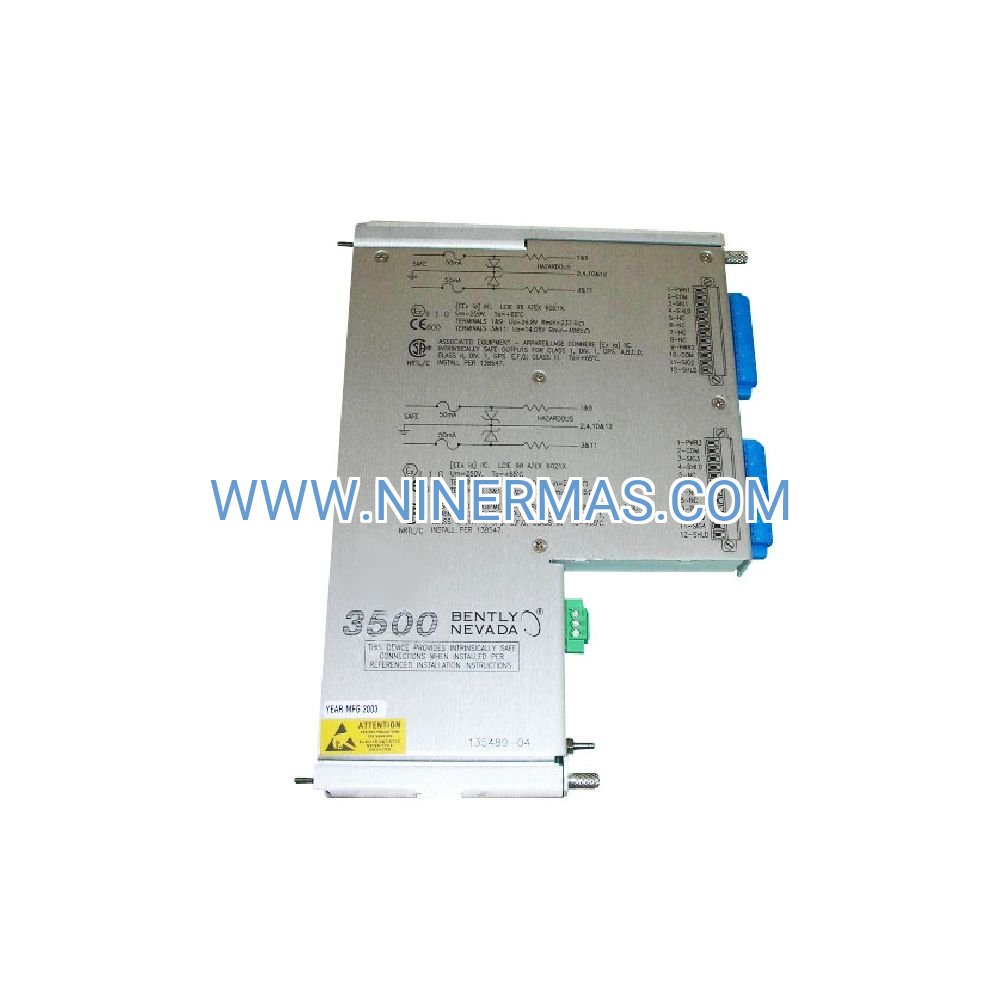

135489-02 Proximitor Monitor – Industrial-Grade 4-Channel Vibration Surveillance System

The Bently Nevada 3500/42M Proximitor Monitor (Model 135489-02) represents a critical advancement in turbomachinery health monitoring technology. Engineered for continuous surveillance of rotating equipment, this 4-channel monitoring module delivers precision vibration analysis and position tracking across steam turbines, gas compressors, centrifugal pumps, and high-speed generators. When machinery downtime costs thousands per hour, the 3500/42M provides the early warning intelligence that prevents catastrophic failures and extends asset lifecycles.

Designed for integration within the Bently Nevada 3500 rack ecosystem, this proximitor monitor combines robust hardware architecture with flexible configuration options. Whether you're protecting a single critical compressor or monitoring an entire turbine train, the 135489-02 delivers the measurement accuracy and alarm reliability demanded by API 670 machinery protection standards.

Core Capabilities & Technical Advantages

✓ Quad-Channel Architecture: Monitor four independent measurement points simultaneously – track radial vibration on X-Y axes, axial position, and differential expansion from a single module, reducing rack space requirements by 75% compared to single-channel alternatives.

✓ Universal Transducer Compatibility: Accepts signals from proximity probes, accelerometers, and velocity sensors without external signal conditioning. Automatic sensor type detection and scaling eliminate configuration errors during commissioning.

✓ Intelligent Alarm Management: Programmable two-stage alert/danger setpoints with adjustable hysteresis bands and time delays prevent false trips while ensuring rapid response to genuine fault conditions. Each channel operates independently with dedicated relay outputs.

✓ Hot-Swap Serviceability: Replace or upgrade modules during operation without system shutdown or data loss. Front-panel LED diagnostics provide instant health status verification during maintenance activities.

✓ API 670 Certification: Meets stringent machinery protection system requirements for critical service applications in petrochemical, power generation, and offshore installations where safety integrity level (SIL) compliance is mandatory.

✓ Embedded Diagnostics: Continuous transducer health monitoring detects open circuits, short circuits, and cable degradation before sensor failures compromise protection coverage. Diagnostic alerts route to control systems via backplane communication.

Industrial Application Scenarios

→ Power Generation Turbine Protection: Monitor steam turbine bearing vibration and thrust position in combined-cycle plants. The 3500/42M's wide frequency response captures both subsynchronous instabilities and blade-pass frequencies, enabling operators to distinguish between normal operation and developing faults like rub conditions or bearing wear.

→ Petrochemical Compressor Surveillance: Track centrifugal compressor vibration across multiple stages while monitoring axial float within magnetic bearing systems. Configurable alarm delays accommodate normal startup transients while maintaining protection during steady-state operation.

→ Pipeline Pump Station Monitoring: Protect high-horsepower centrifugal pumps from cavitation damage and mechanical seal failures. Velocity sensor inputs detect early-stage bearing degradation, triggering predictive maintenance before unplanned shutdowns occur.

→ LNG Facility Critical Equipment: Provide continuous protection for cryogenic pumps and expander-compressor trains where equipment replacement costs exceed $2M and lead times span 18+ months. Redundant monitoring channels ensure protection coverage during sensor maintenance.

→ Manufacturing Process Equipment: Monitor motor-driven fans, blowers, and gearboxes in cement plants, steel mills, and paper production facilities. Integration with plant DCS systems enables condition-based maintenance scheduling that reduces spare parts inventory by 40%.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the 3500/42M when your application requires simultaneous monitoring of multiple measurement points on a single machine. For applications needing only radial vibration monitoring without seismic sensor support, consider the 3500/40M as a cost-optimized alternative. When monitoring more than 16 channels across multiple machines, evaluate the 3500/65 temperature monitor for thermal surveillance integration.

Advanced Integration & Connectivity Options

The 3500/42M functions as a node within the comprehensive 3500 monitoring architecture. Install modules in the 3500/05 14-slot rack powered by dual-redundant 3500/15 power supplies for maximum uptime assurance. Speed reference signals from the 3500/25 Enhanced Keyphasor Module synchronize vibration measurements to shaft rotation, enabling order tracking analysis and torsional vibration assessment.

Network connectivity through the 3500/92 Communication Gateway provides Modbus TCP, Ethernet/IP, and OPC DA/UA protocols for seamless integration with Honeywell, Emerson, Siemens, and Rockwell control platforms. Real-time data streams to historian databases enable long-term trend analysis and machine learning applications for predictive maintenance optimization.

Local visualization via the 3500/94 VGA Display Monitor allows operators to view live vibration waveforms, trend plots, and alarm status without accessing the DCS. For portable diagnostics, the 3500/22M Transient Data Interface captures high-speed waveform snapshots during startup, shutdown, and trip events for root cause analysis.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 2-3 business days via express courier. Typical transit time to major industrial hubs: 5-7 days worldwide.

Custom Configuration: Factory-configured modules with pre-programmed alarm setpoints and scaling parameters ship within 10-12 business days. Provide machine specifications and sensor details at order placement.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and firmware issues. Advance replacement available for critical applications to minimize downtime exposure.

Technical Support: Application engineering assistance includes sensor selection guidance, wiring diagram review, and configuration file validation. Post-installation support covers troubleshooting, alarm tuning, and system optimization.

Documentation Package: Each module ships with installation manual, configuration software, sample wiring diagrams, and calibration certificates. Access to online knowledge base includes application notes, firmware updates, and training videos.

Frequently Asked Questions

Q: Which proximity probe models are compatible with the 3500/42M monitor?
A: The module accepts all Bently Nevada 3300 XL and 3300 NSv proximity transducers with -24 VDC proximitor power supplies. Third-party probes with 200 mV/mil sensitivity and 7.87 V/mm output scaling are also supported with custom configuration.

Q: Can I monitor both radial vibration and axial position on the same machine?
A: Absolutely. A typical configuration uses channels 1-2 for X-Y radial vibration, channel 3 for thrust position, and channel 4 for differential expansion or spare capacity. Each channel configures independently for measurement type and engineering units.

Q: How do I access historical vibration data for trend analysis?
A: Connect the 3500 rack to your plant network via the 3500/92 gateway. Configure data buffering to capture peak values, RMS levels, and alarm events at user-defined intervals (1 second to 1 hour). Export data to CSV format or stream directly to OSIsoft PI, Honeywell PHD, or similar historians.

Q: What's the maximum cable length between sensors and the monitor?
A: Proximity probe extension cables support runs up to 300 feet (91 meters) using Bently Nevada approved cable assemblies. Accelerometer and velocity sensor cables should not exceed 1,000 feet (305 meters) to maintain signal integrity and noise immunity.

Q: Is the 3500/42M suitable for hazardous area installations?
A: The monitor itself installs in safe areas (control rooms or analyzer shelters). For sensors located in Class I Division 1 or Zone 1 hazardous areas, use approved intrinsic safety barriers (Bently Nevada 3500/50 or equivalent) between the monitor and field devices.

Q: How often does the module require calibration or maintenance?
A: The 3500/42M uses solid-state electronics with no drift-prone components. Annual verification testing is recommended, but recalibration is typically unnecessary unless the module undergoes repair or firmware updates. Sensor calibration follows manufacturer recommendations (typically 3-5 years for proximity probes).

Take Action: Protect Your Critical Assets Today

Unplanned equipment failures cost industrial facilities an average of $260,000 per incident in lost production, emergency repairs, and safety incidents. The Bently Nevada 3500/42M Proximitor Monitor delivers the continuous surveillance and early fault detection that transforms reactive maintenance into proactive asset management.

Ready to upgrade your machinery protection system? Contact our application engineers for configuration assistance, system design consultation, or technical specifications tailored to your specific equipment. Volume pricing available for multi-unit installations and system integrators.

Request a quote today – protect tomorrow's production.
