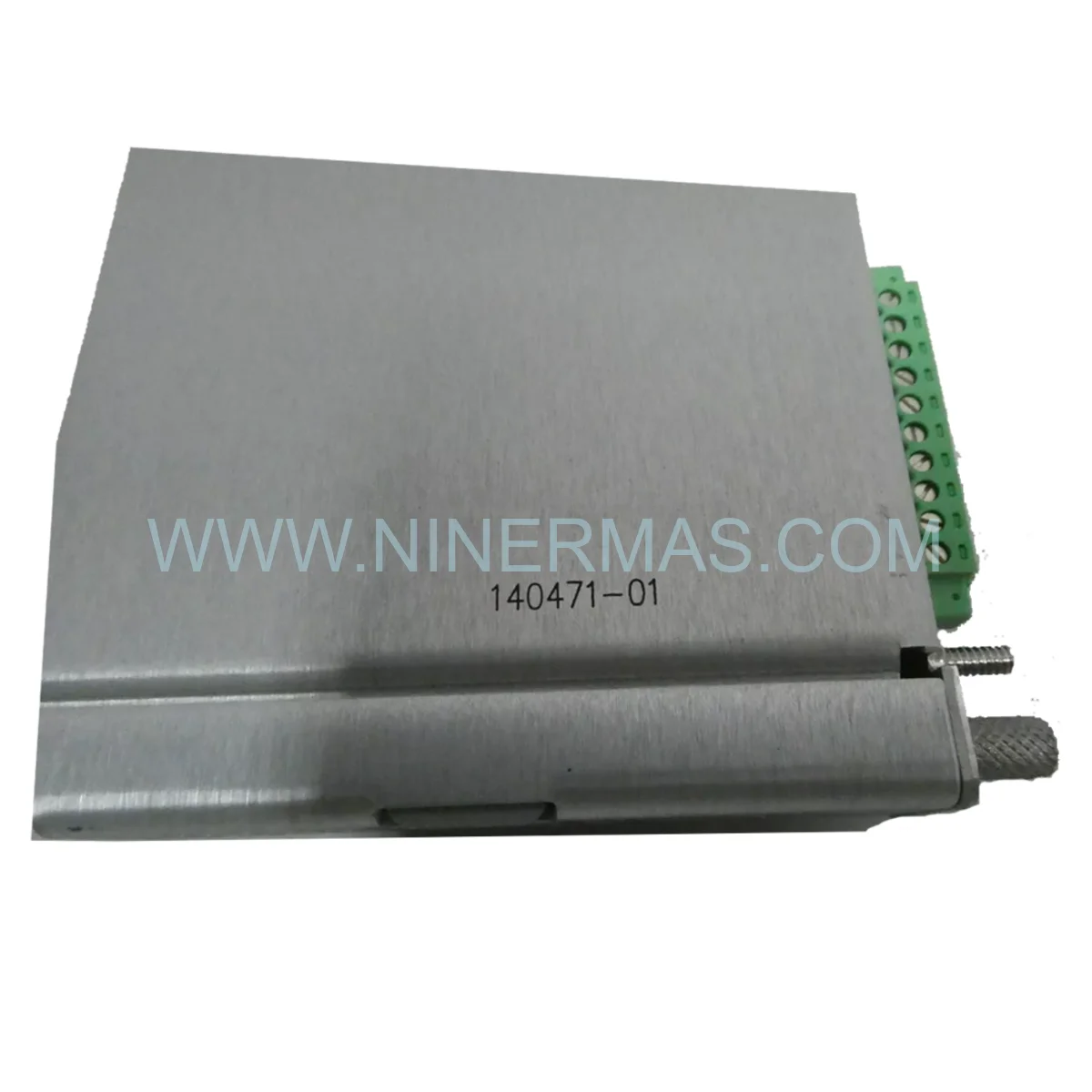

Bently Nevada 140471-01 Proximitor/Velomitor I/O Module (Industrial-Grade Vibration Monitoring Solution)

The Bently Nevada 140471-01 represents a critical component in the 3500/42M series, engineered specifically for multi-channel vibration surveillance in mission-critical rotating equipment. This 4-channel I/O interface accepts both proximity (Proximitor) and velocity (Velomitor) transducers, delivering comprehensive machinery health insights for turbines, compressors, pumps, and generators operating under API 670 standards.

Designed for industrial environments where equipment failure translates to significant operational losses, this module integrates seamlessly into Bently Nevada 3500 rack architectures. Its internal termination design eliminates external junction boxes, reducing installation complexity by up to 40% while improving signal integrity and system reliability.

Whether you're protecting high-value turbomachinery assets or implementing condition-based maintenance programs, the 140471-01 provides the real-time data acquisition and alarm management capabilities essential for preventing catastrophic failures and optimizing maintenance schedules.

Core Features & Business Value

→ Quad-Channel Architecture
Monitor four independent measurement points from a single module slot, maximizing rack utilization efficiency. Each channel operates independently with dedicated signal processing, alarm logic, and diagnostic capabilities—ideal for monitoring radial vibration at multiple bearing locations or combining shaft displacement with casing velocity measurements.

✓ Dual Transducer Compatibility
Accepts both eddy-current proximity probes and piezoelectric velocity sensors on the same module. This flexibility enables comprehensive vibration profiling: track shaft position with Proximitors while simultaneously measuring housing vibration with Velomitors, providing complete machinery health visibility without additional hardware.

→ Internal Termination System
Factory-integrated terminations eliminate field wiring errors and reduce installation time by 35-50% compared to external terminal block configurations. Direct sensor-to-module connections improve electromagnetic noise immunity and simplify troubleshooting during commissioning and maintenance activities.

✓ Hot-Swap Capability
Replace modules during live operation without powering down the entire monitoring system. This feature minimizes unplanned downtime during module failures or upgrades, supporting continuous protection for critical assets that cannot tolerate monitoring gaps.

→ Advanced Diagnostics
Built-in transducer health monitoring detects open circuits, short circuits, and gap voltage anomalies in real-time. Early detection of sensor degradation prevents false alarms and ensures measurement accuracy, reducing maintenance costs associated with unnecessary equipment inspections.

✓ API 670 Certification
Fully compliant with API 670 machinery protection system requirements, ensuring regulatory acceptance for petroleum, petrochemical, and natural gas industry applications. Meets stringent performance criteria for alarm response time, measurement accuracy, and system availability.

Typical Application Scenarios

Steam Turbine Generator Sets
In combined-cycle power plants, the 140471-01 monitors journal bearing vibration and thrust position on steam turbines driving synchronous generators. By processing signals from proximity probes installed at each bearing pedestal, operators detect rotor unbalance, misalignment, and bearing wear before damage occurs. Integration with velocity sensors on turbine casings identifies structural resonance issues and foundation problems that could lead to catastrophic failures.

Centrifugal Compressor Trains
Petroleum refineries and LNG facilities deploy this module to protect multi-stage centrifugal compressors handling flammable gases. Four-channel monitoring covers both radial and axial shaft displacement, enabling early detection of surge conditions, seal rubs, and aerodynamic instabilities. The module's fast alarm response (typically <10ms) triggers emergency shutdown systems before rotor-to-stator contact causes extensive damage.

Large Industrial Pumps
Chemical processing plants utilize the 140471-01 for monitoring high-pressure boiler feed pumps and critical process pumps. Proximity sensors track shaft runout and bearing clearances, while velocity transducers detect cavitation signatures and impeller damage. This dual-measurement approach reduces unplanned shutdowns by 60% through predictive maintenance scheduling based on vibration trend analysis.

Gas Turbine Packages
Offshore oil platforms and pipeline compressor stations rely on this I/O module for continuous monitoring of industrial gas turbines. The module processes vibration data from both hot-section and cold-section bearings, identifying combustion dynamics issues, blade fouling, and bearing deterioration. Integration with tachometer modules enables order tracking analysis for precise fault diagnosis.

Motor-Driven Equipment
Manufacturing facilities protect large induction motors and synchronous motors driving critical production equipment. The 140471-01 monitors rotor eccentricity, soft-foot conditions, and coupling misalignment—common failure modes in motor-driven systems. Early fault detection prevents production losses averaging $50,000-$200,000 per unplanned outage in automotive and steel manufacturing operations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 140471-01 when your application requires internal terminations for simplified installation and you need to monitor 1-4 measurement points using proximity and/or velocity sensors. For applications requiring external terminations or different channel counts, consult alternative 3500/42M variants. Verify sensor compatibility with 3300 XL series transducers before ordering.

Extended Functions

Buffered Data Capture: The module stores high-resolution waveform data during alarm events, enabling post-incident analysis and root cause investigation. This feature proves invaluable for diagnosing intermittent faults and validating alarm setpoint accuracy.

Remote Configuration: When paired with 3500/22M Transient Data Interface modules, the 140471-01 supports remote configuration changes via Ethernet connectivity. Maintenance teams can adjust alarm thresholds, modify filtering parameters, and retrieve diagnostic data without physical access to the rack—critical for offshore platforms and remote compressor stations.

Customization Options: Factory customization services include pre-configured alarm setpoints, application-specific filtering, and custom calibration for non-standard transducers. Contact our engineering team to discuss specialized requirements for unique machinery configurations or extreme operating conditions.

Delivery & Service Assurance

Lead Time: Standard delivery within 3-5 business days for in-stock modules. Express shipping available for emergency replacements requiring next-day delivery. Custom-configured modules ship within 10-15 business days after order confirmation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and calibration drift. Warranty includes free replacement and technical support for troubleshooting and system optimization.

Technical Support: Our application engineers provide pre-sale consultation for system design, sensor selection, and rack configuration. Post-sale support includes commissioning assistance, alarm tuning guidance, and troubleshooting support via phone, email, and remote desktop sessions.

Documentation Package: Each module ships with installation manual, configuration guide, calibration certificate, and compliance declarations. Digital documentation includes CAD drawings, wiring diagrams, and configuration file templates for 3500 Rack Configuration Software.

Frequently Asked Questions

How does the 140471-01 differ from the 128229-01 variant?
The primary distinction lies in termination style: the 140471-01 features internal terminations with front-panel connectors, while the 128229-01 uses external terminal blocks. Internal terminations reduce installation time and improve reliability in high-vibration environments, making the 140471-01 preferred for new installations and retrofit projects where wiring simplification is prioritized.

What is the maximum cable length for proximity sensors connected to this module?
Standard 3300 XL proximity systems support cable lengths up to 7.6 meters (25 feet) from probe tip to proximitor housing. When using the 140471-01's internal terminations, total cable length from probe to module should not exceed 9 meters (30 feet) including extension cables. Exceeding these limits degrades signal quality and measurement accuracy.

Can I monitor both radial vibration and axial position on the same module?
Yes, the 140471-01's four channels can be independently configured for different measurement types. A typical configuration uses channels 1-2 for radial vibration (X-Y proximity probes) and channel 3 for axial position (thrust probe), leaving channel 4 available for casing velocity or a second bearing location.

Does this module support integration with plant DCS systems?
Direct DCS integration requires a 3500 rack communication module such as the 3500/20 Rack Interface Module (Modbus protocol) or 3500/22M Transient Data Interface (Ethernet/Modbus TCP). The 140471-01 communicates via the 3500 backplane; external systems access its data through these interface modules.

What preventive maintenance does the module require?
The 140471-01 is a solid-state device requiring minimal maintenance. Recommended practices include annual verification of alarm setpoints using calibrated vibration simulators, visual inspection of connector integrity, and firmware updates when released by Bently Nevada. Typical module lifespan exceeds 15 years in normal industrial environments.

How quickly can I replace a failed module during operation?
Hot-swap replacement typically takes 2-5 minutes: remove the failed module, insert the replacement, and allow the system to auto-configure. The new module inherits configuration from the rack's non-volatile memory. However, the monitored channels will be offline during replacement, so coordinate swaps during maintenance windows when possible or ensure redundant monitoring coverage.

Order Your Bently Nevada 140471-01 Today

Protect your critical rotating equipment with proven vibration monitoring technology trusted by thousands of industrial facilities worldwide. The Bently Nevada 140471-01 delivers the reliability, accuracy, and diagnostic capabilities essential for preventing costly unplanned downtime and extending machinery service life.

Contact our team now for technical specifications, application engineering support, and competitive pricing on individual modules or complete 3500 rack systems. We maintain extensive inventory for immediate shipment and offer volume discounts for multi-unit orders.
