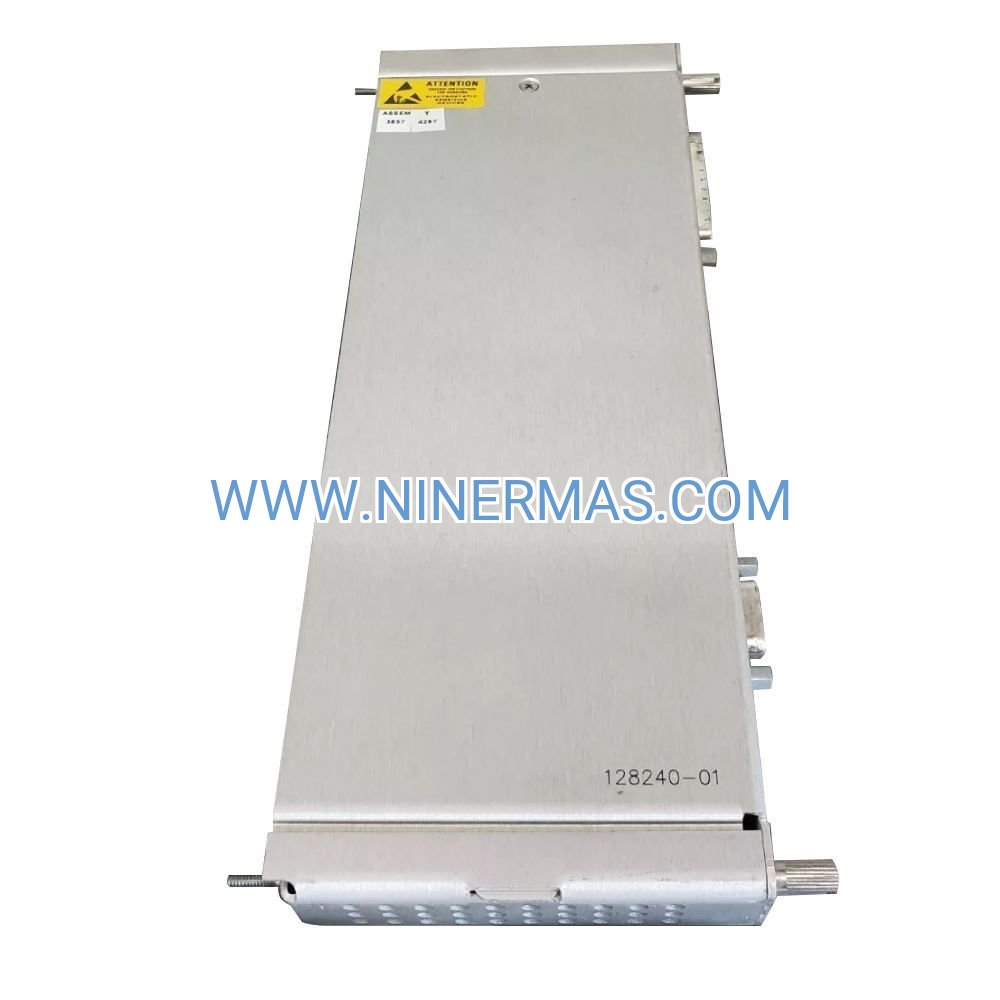

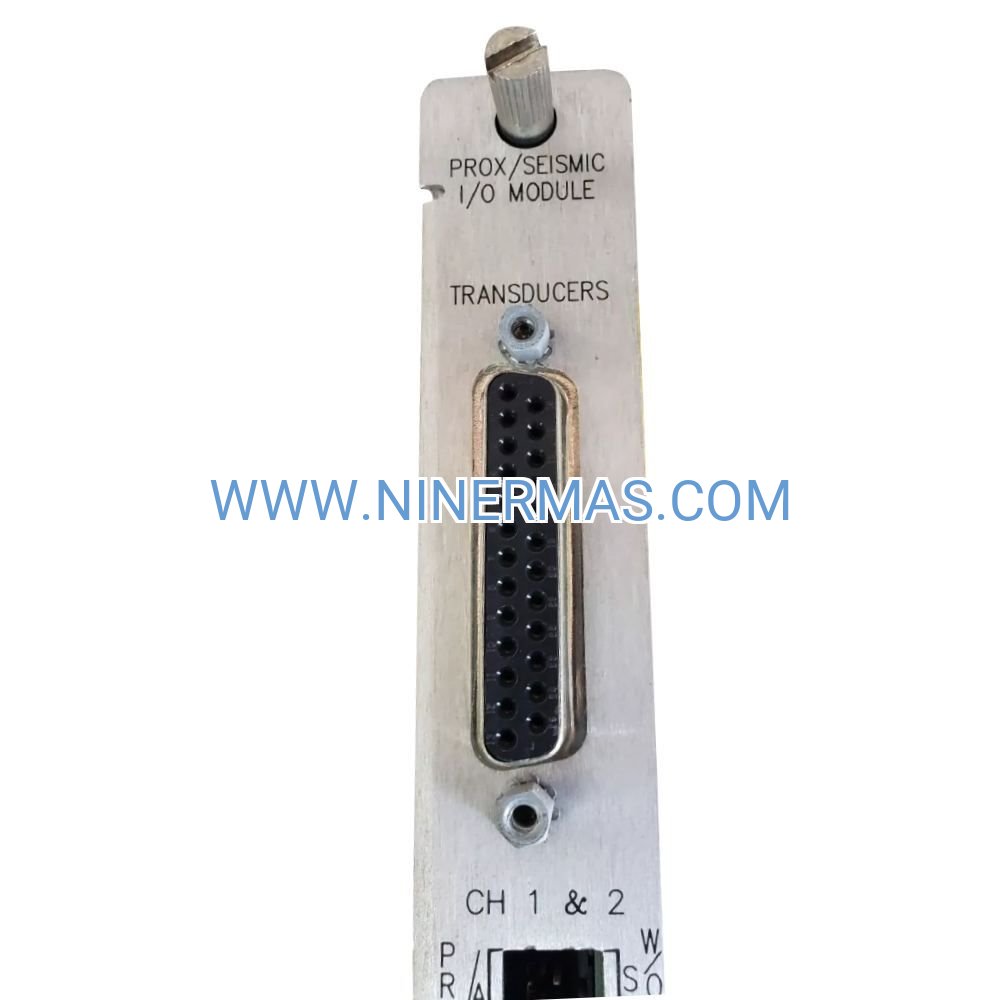

3500/42M Proximity & Seismic I/O Module (Industrial-Grade Vibration Interface)

The 3500/42M 128240-01 I/O module serves as the critical interface between proximity and seismic transducers and your Bently Nevada 3500 monitoring rack. Engineered with internal terminations, this module eliminates external wiring complexity while delivering precision signal conditioning for rotating machinery protection systems.

Designed for process industries requiring continuous uptime, the 128240-01 addresses the challenge of unreliable vibration data caused by signal degradation and environmental interference. Plant engineers and reliability teams depend on this module to ensure accurate real-time monitoring of turbines, compressors, pumps, and motors across oil & gas, power generation, and chemical processing facilities.

With API 670 compliance and proven field reliability, this I/O module provides the foundation for predictive maintenance strategies that reduce unplanned shutdowns by up to 40% and extend equipment service life through early fault detection.

Core Capabilities & Technical Advantages

✓ Dual-Input Architecture – Accepts both proximity (eddy current) and acceleration transducers through a single module, reducing rack space requirements and simplifying system configuration for multi-sensor installations.

✓ Internal Termination Design – Factory-installed terminations eliminate field wiring errors and reduce installation time by 60% compared to external termination variants, while improving signal integrity in high-EMI environments.

✓ High-Impedance Input Stage – 10 kΩ input impedance ensures minimal loading on Proximitor sensors and accelerometers, maintaining measurement accuracy across the full operating temperature range of -30°C to +65°C.

✓ API 670 Certification – Meets stringent petroleum and natural gas industry standards for machinery protection systems, ensuring compliance for critical rotating equipment in hazardous area classifications.

✓ Hot-Swap Capability – Replace modules during operation without system shutdown, supporting zero-downtime maintenance schedules and continuous protection coverage for mission-critical assets.

✓ Compact Rack Integration – Occupies one full-height slot in 3500 racks, maximizing channel density while maintaining thermal management and electromagnetic compatibility in densely populated monitoring systems.

Industrial Application Scenarios

→ Steam Turbine Monitoring
Power plants deploy the 128240-01 to monitor bearing vibration and shaft position on 50-500 MW turbines. The module's wide temperature tolerance handles turbine deck environments, while dual-input flexibility accommodates both radial vibration (proximity) and casing vibration (accelerometer) measurements from a single I/O point.

→ Centrifugal Compressor Protection
Oil & gas facilities use this module to interface with XY proximity probe pairs on compressor journal bearings. Internal terminations reduce installation errors in congested compressor houses, and the 10 kΩ impedance preserves signal fidelity over 100+ meter cable runs from hazardous area transducers.

→ Reciprocating Equipment Analysis
Chemical plants configure the 128240-01 in Seismoprobe mode (6.82V supply) for low-frequency vibration monitoring on reciprocating compressors and pumps. The module's configurable supply parameters support velocity transducers that detect mechanical looseness and foundation issues before catastrophic failure.

→ Multi-Stage Pump Arrays
Water treatment and pipeline facilities monitor booster pump stations with mixed sensor types. A single 128240-01 module handles proximity sensors on pump shafts and piezoelectric accelerometers on motor housings, consolidating data acquisition and reducing spare parts inventory.

→ Offshore Platform Machinery
Marine and offshore installations leverage the module's 95% humidity rating and corrosion-resistant construction for gas turbine and generator monitoring in salt-fog environments. Hot-swap capability enables maintenance during production without platform shutdown.

Technical Specifications & Selection Guide

Selection Criteria: Choose 128240-01 when rack space is limited and field wiring must be minimized. For hazardous area installations requiring intrinsic safety barriers, specify barrier-equipped variants (128240-02). When external terminal blocks are preferred for maintenance flexibility, select 128229-01 external termination version.

Advanced Integration Features

Configurable Sensor Compatibility – The module automatically adapts supply parameters based on monitor configuration: 23.9V/45.5mA for standard proximity and acceleration sensors, or 6.82V/2.75mA for velocity transducers. This eliminates manual jumper settings and reduces commissioning time.

Rack Communication Protocol – Interfaces with 3500/42M monitor modules via proprietary backplane protocol, supporting real-time data transfer to rack communication gateways for SCADA integration, historian logging, and remote diagnostics through Modbus TCP or OPC protocols.

Diagnostic LED Indicators – Front-panel status LEDs provide instant visual confirmation of module health, sensor connectivity, and configuration state, accelerating troubleshooting during commissioning and routine maintenance inspections.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory-direct orders requiring custom configuration or barrier certifications.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty options available for critical sparing applications.

Technical Support: Access to application engineers with 3500 system expertise for configuration assistance, sensor selection guidance, and integration troubleshooting. Remote commissioning support available via video consultation.

Documentation Package: Includes installation manual, wiring diagrams, configuration software utilities, and API 670 compliance certificates. CAD drawings and 3D STEP models provided for panel design integration.

Frequently Asked Questions

Q: Can the 3500/42M I/O module interface with non-Bently Nevada sensors?
A: Yes, the 128240-01 accepts industry-standard proximity sensors (8mm, 11mm) and piezoelectric/IEPE accelerometers from manufacturers like SKF, Metrix, and Wilcoxon, provided they meet the 10 kΩ input impedance and voltage supply requirements. Consult factory for sensor compatibility verification.

Q: What is the maximum cable length between transducers and the I/O module?
A: Proximity sensors support up to 150 meters (500 feet) of shielded cable; accelerometers with IEPE conditioning can extend to 300 meters. Cable capacitance and environmental EMI are limiting factors—use low-capacitance cable (≤100 pF/m) for optimal performance.

Q: How does internal termination improve system reliability compared to external blocks?
A: Internal terminations eliminate 12+ field wiring connections per module, reducing potential failure points by 75%. Factory-soldered connections withstand vibration and thermal cycling better than screw terminals, and sealed construction prevents moisture ingress in humid environments.

Q: Is the module compatible with existing 3500/42 monitor modules in legacy racks?
A: The 128240-01 I/O module requires 3500/42M (M-series) monitor modules with firmware revision 5.0 or later. It is not backward-compatible with original 3500/42 monitors. Rack firmware updates may be required for full functionality.

Q: Can I monitor both radial and axial vibration using a single I/O module?
A: Each 128240-01 module provides two independent input channels. Configure one channel for radial proximity probes (X-Y pair requires two modules) and the second for axial position or thrust measurement. Four-channel monitoring requires two I/O modules paired with a dual-channel monitor.

Q: What certifications are required for installation in Class I Division 2 hazardous areas?
A: The standard 128240-01 is suitable for non-hazardous areas. For Class I Div 2 installations, specify the barrier-equipped 128240-02 variant with FM/CSA approvals. For ATEX/IECEx Zone 1 applications, consult factory for intrinsically safe barrier configurations.

Request Technical Consultation

Our vibration monitoring specialists provide system design assistance, sensor selection guidance, and integration support for 3500 rack configurations. Contact our team to discuss your machinery protection requirements and receive a detailed application proposal within 24 hours.
