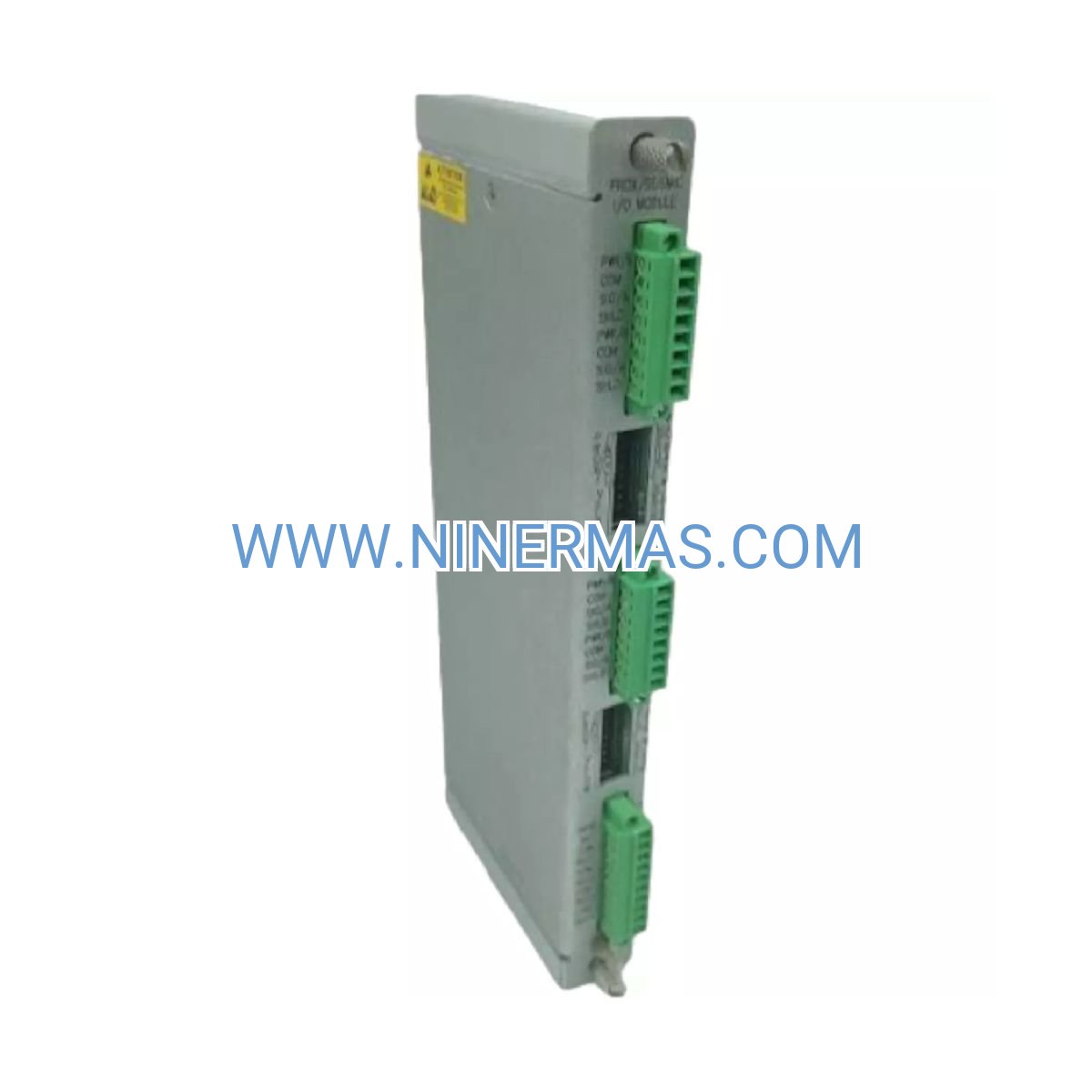

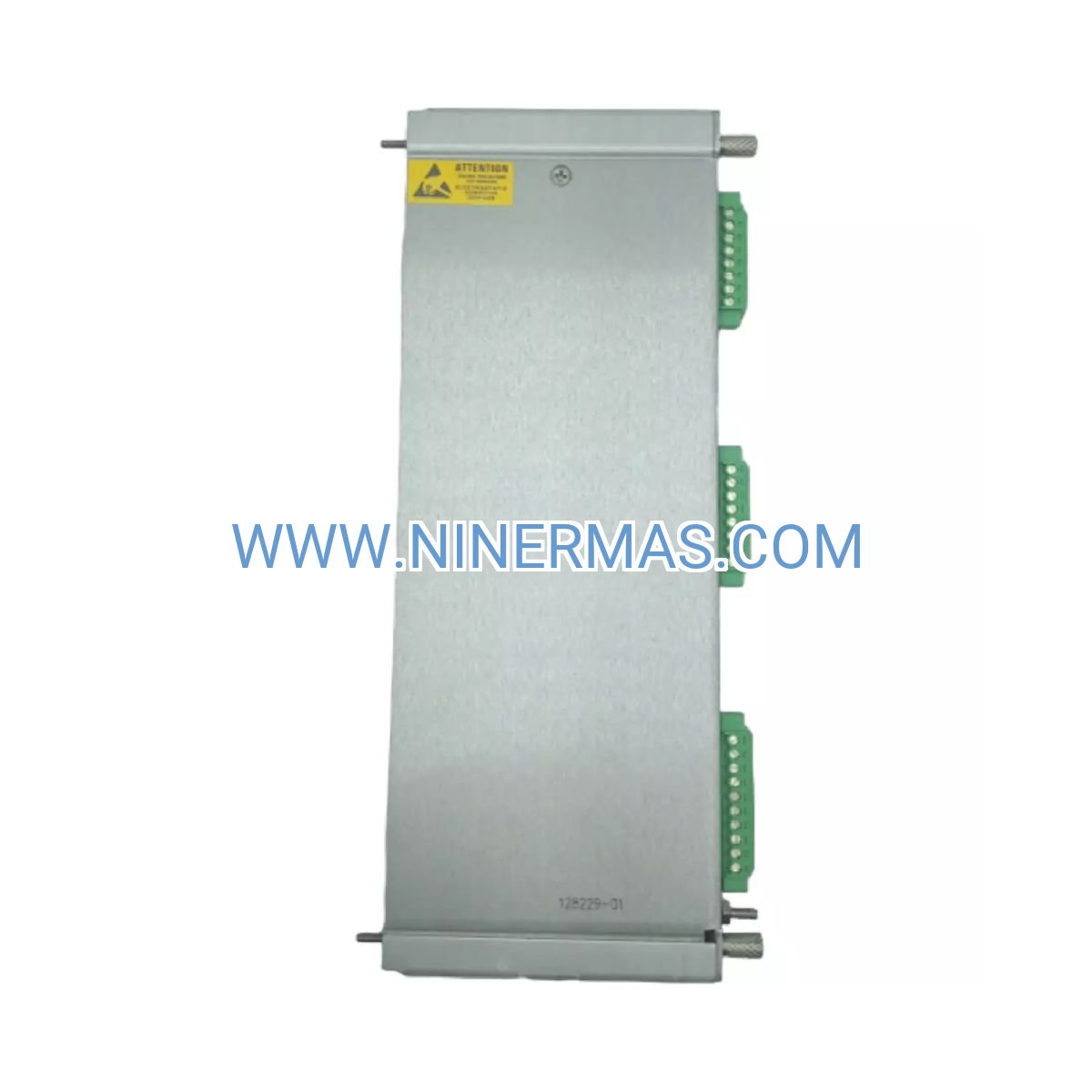

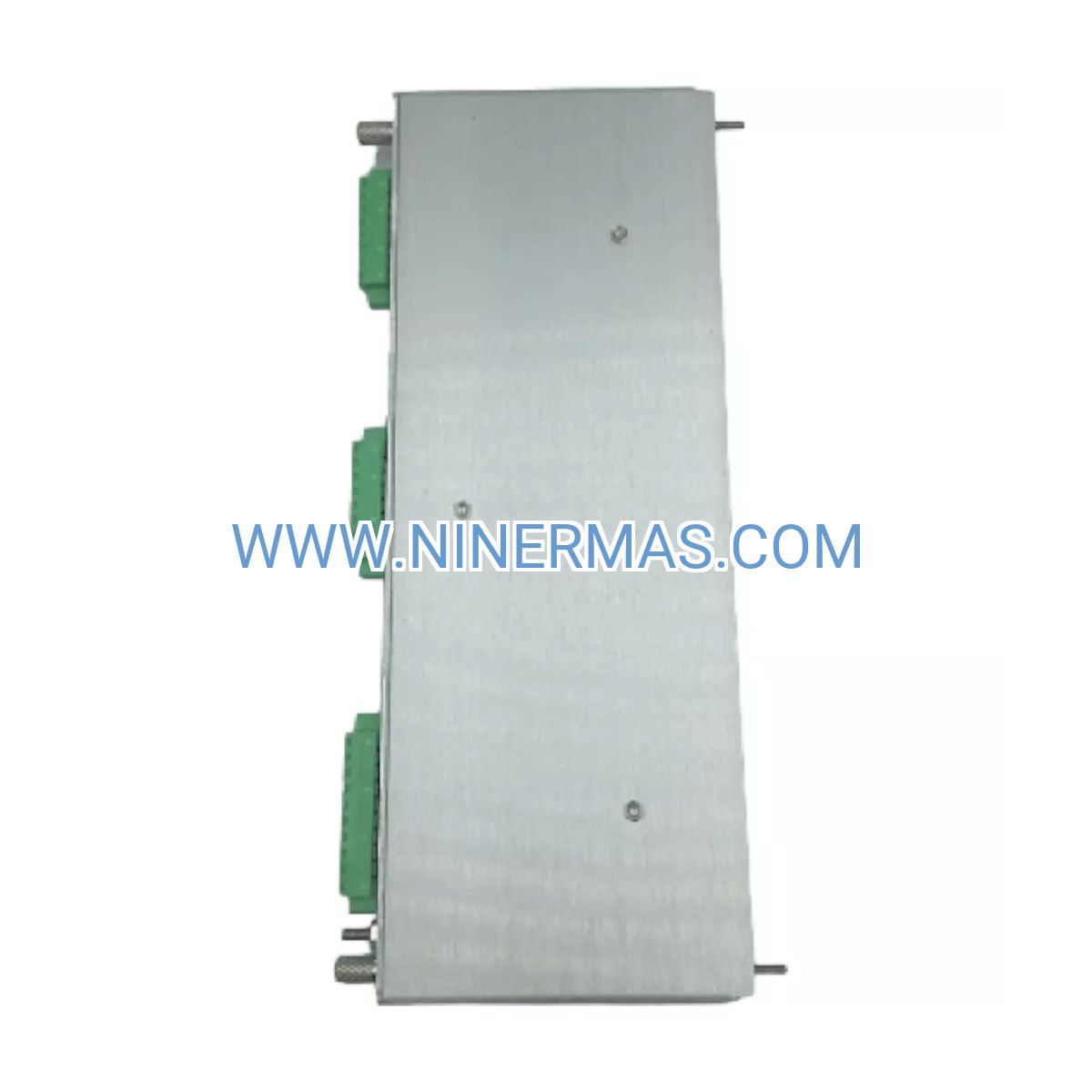

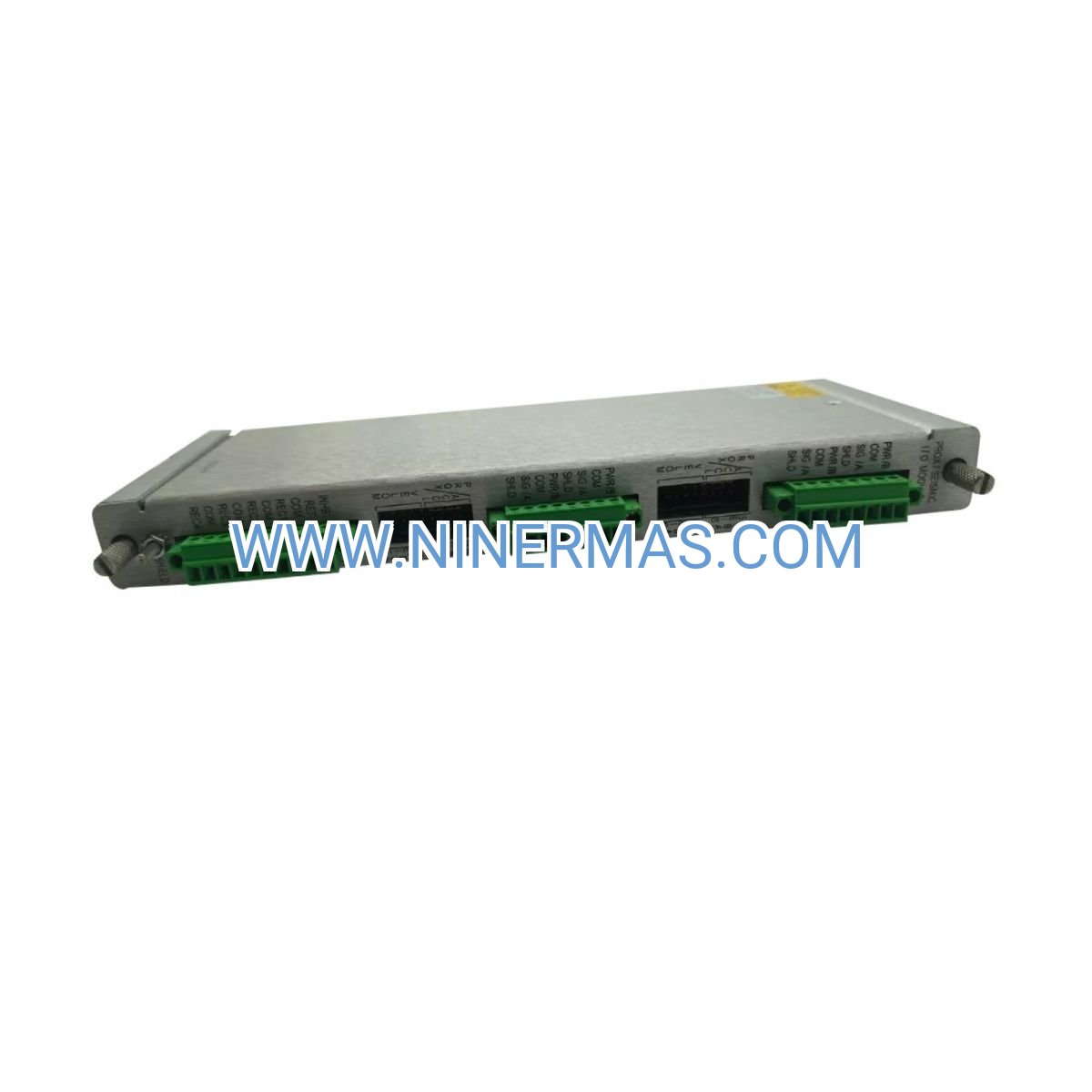

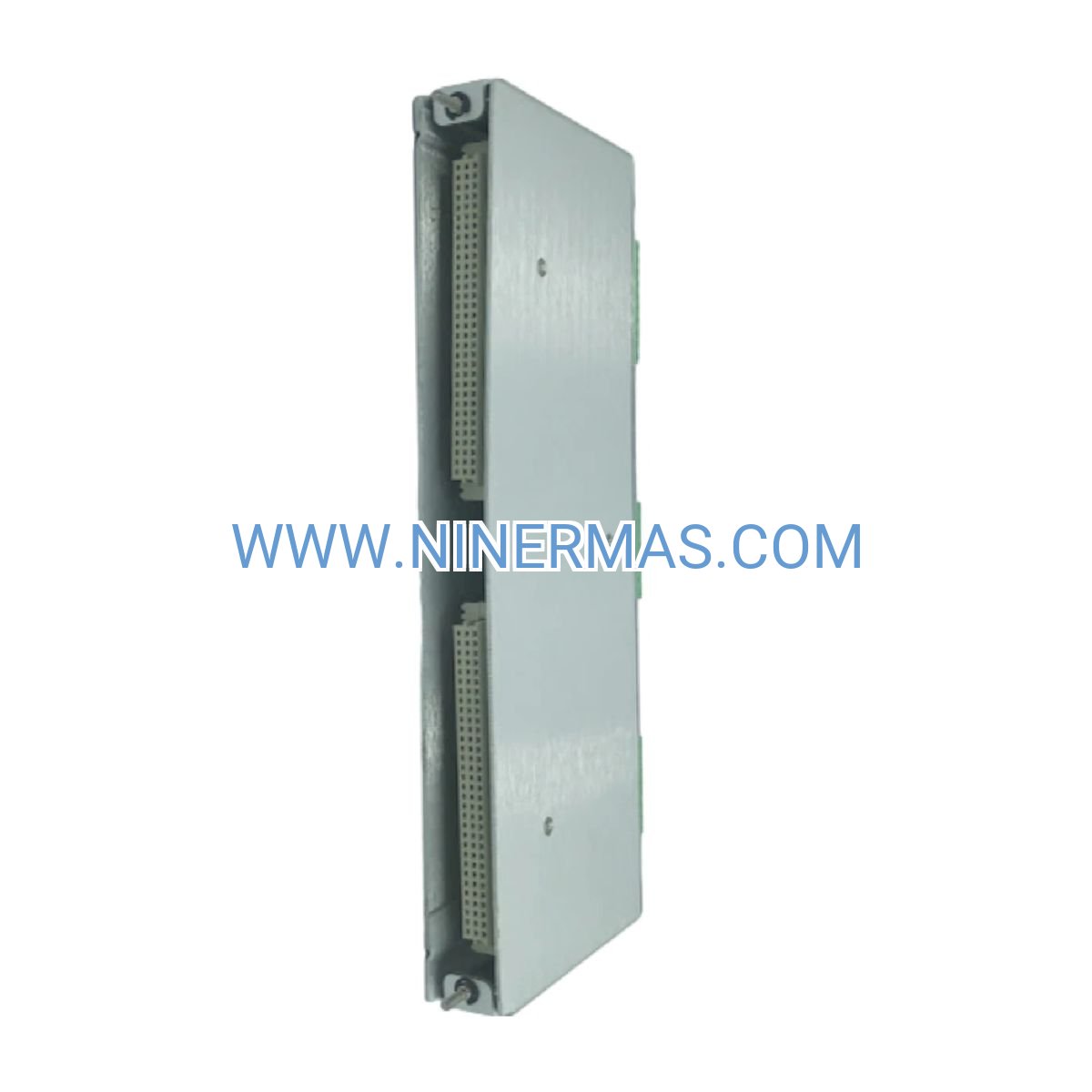

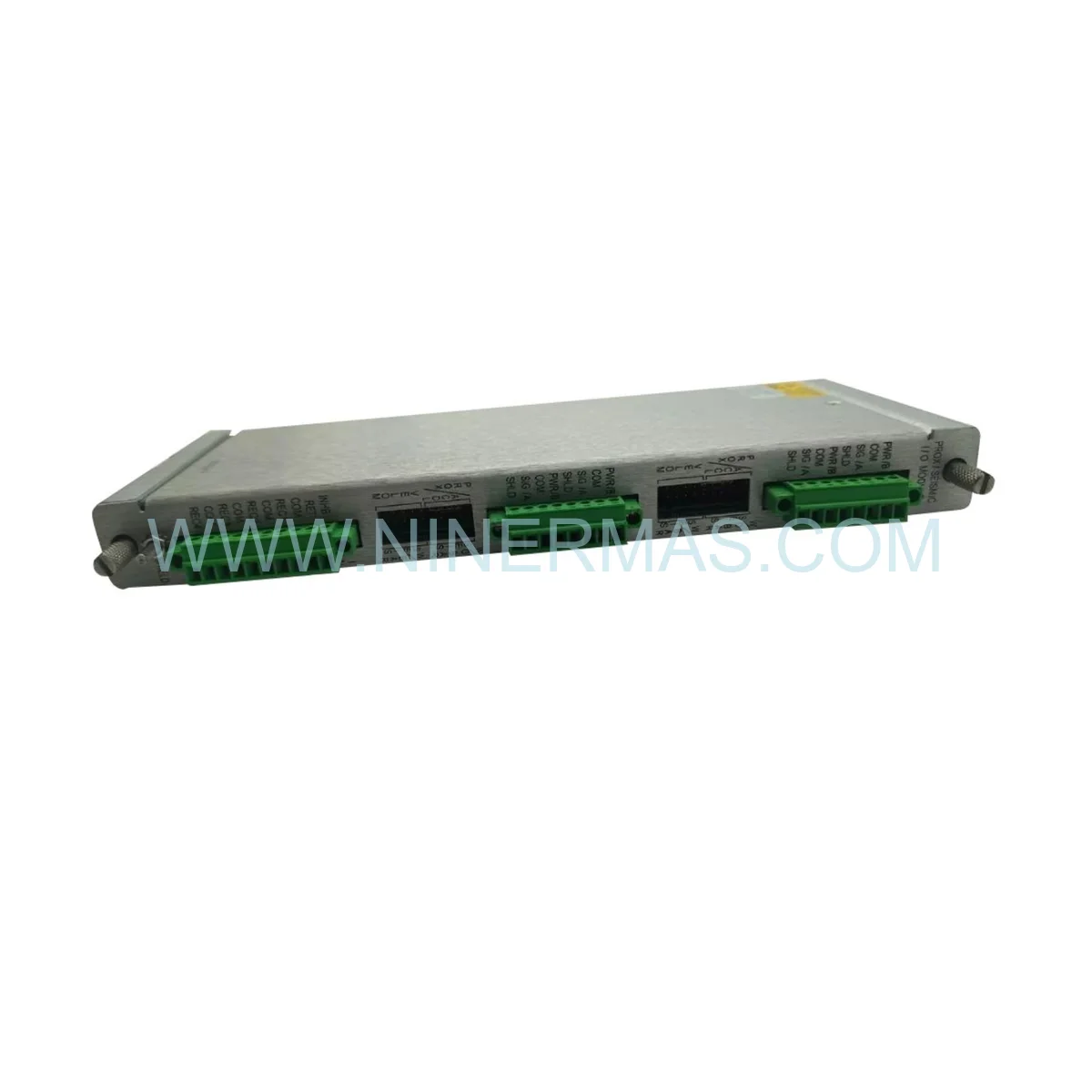

Bently Nevada 128229-01 Vibration I/O Module (Industrial-Grade 4-Channel Monitoring Solution)

The Bently Nevada 128229-01 represents a critical component in modern machinery protection systems, delivering four independent monitoring channels for proximity and seismic sensor integration. Designed for turbomachinery applications where equipment failure carries severe operational and safety consequences, this I/O module combines factory-installed internal terminations with API 670 compliance to provide reliable, installation-ready vibration surveillance for power generation, oil & gas, and heavy industrial environments.

Built on the proven 3500/42M platform architecture, this module addresses the fundamental challenge facing maintenance engineers: how to capture early warning signs of mechanical degradation before catastrophic failure occurs. By interfacing eddy current proximity probes and piezoelectric accelerometers directly with the 3500 monitoring rack, the 128229-01 transforms raw sensor signals into actionable machinery health intelligence, enabling condition-based maintenance strategies that reduce unplanned downtime by 35-50% compared to reactive maintenance approaches.

Whether you're protecting steam turbines in combined-cycle power plants, monitoring centrifugal compressors in LNG facilities, or supervising critical process pumps in chemical manufacturing, the 128229-01 delivers the measurement accuracy, environmental resilience, and system integration capabilities required for mission-critical rotating equipment protection.

Core Features & Business Value

→ Factory Internal Terminations
Pre-wired terminal connections eliminate external junction boxes and reduce installation labor by 40-60%. Field technicians connect sensor cables directly to module terminals, cutting commissioning time from days to hours while reducing wiring errors that compromise measurement integrity.

✓ Dual Sensor Technology Support
Simultaneous processing of proximity probe signals (shaft displacement, position, speed) and seismic accelerometer data (bearing housing vibration) from a single module. This multi-parameter approach detects failure modes that single-sensor systems miss, including rotor-to-stator rubs, bearing defects, and foundation looseness.

→ API 670 Fifth Edition Compliance
Meets petroleum industry machinery protection standards for alarm response time, measurement accuracy, and environmental qualification. This certification is mandatory for turbomachinery installations in refineries, petrochemical plants, and offshore platforms, ensuring regulatory acceptance and insurance compliance.

✓ Hot-Swap Field Replacement
Replace failed modules during operation without system shutdown or loss of protection on remaining channels. This capability maintains continuous machinery surveillance during maintenance windows, critical for 24/7 process industries where downtime costs exceed $50,000 per hour.

→ Wide Frequency Response (0.5 Hz - 10 kHz)
Captures both low-frequency rotor dynamics (oil whirl, surge) and high-frequency bearing defects (ball pass frequencies, gear mesh). The 120 dB dynamic range accommodates signal levels from micron-level shaft displacement to high-amplitude fault conditions without saturation.

✓ Rack-Powered Operation
Draws 6.5W from 3500 series backplane, eliminating external power supplies and simplifying panel design. Integrated power distribution reduces component count and improves system reliability through reduced interconnection points.

Typical Application Scenarios

Steam Turbine Generator Protection (Power Generation)
Challenge: 500 MW steam turbine experiences bearing temperature spikes during load transients, risking unplanned outages during peak demand periods.
Solution: Deploy 128229-01 with proximity probes on journal bearings and seismic sensors on bearing housings. Monitor radial vibration, thrust position, and casing acceleration to detect misalignment and bearing wear 4-6 weeks before failure.
Value: Shift from reactive to predictive maintenance, schedule repairs during planned outages, avoid $2-5M revenue loss from forced shutdowns.

Centrifugal Compressor Monitoring (Oil & Gas Processing)
Challenge: Multi-stage compressor in natural gas plant operates at 12,000 RPM with narrow clearances. Rotor contact causes catastrophic failure and 30-day repair cycle.
Solution: Install 128229-01 to track shaft displacement at thrust and radial bearings. Configure automated shutdown at 80% of clearance limit to prevent rotor-to-stator contact.
Value: Protect $8-15M compressor asset, maintain production continuity, reduce insurance premiums through demonstrated risk mitigation.

Boiler Feed Pump Surveillance (Chemical Manufacturing)
Challenge: Critical feed pump exhibits intermittent cavitation and impeller damage, causing process interruptions and quality issues.
Solution: Connect seismic accelerometers to 128229-01 to detect cavitation signatures (broadband high-frequency energy) and mechanical looseness (1x and 2x running speed peaks).
Value: Identify root causes (suction pressure, NPSH issues), optimize operating parameters, extend pump life from 18 to 36 months between overhauls.

Hydroelectric Generator Monitoring (Renewable Energy)
Challenge: 150 MW hydro generator experiences seasonal vibration increases during high-flow periods, threatening grid stability commitments.
Solution: Implement 128229-01 with proximity probes on guide bearings and seismic sensors on stator frame. Trend vibration vs. load and water flow to establish operating envelopes.
Value: Maximize generation during high-revenue periods, avoid grid penalties for unplanned disconnections, demonstrate asset health to regulators.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 128229-01 when you need internal terminations for space-constrained panels or to simplify field wiring. If you require external terminal blocks for easier sensor cable routing or future reconfiguration, consider the 140734-01 variant. For applications requiring buffered outputs to DCS systems, specify the 126648-01 model with 4-20mA outputs.

Extended Functions

Modbus TCP/RTU Integration: When paired with 3500/92 communication gateway, the 128229-01 streams real-time vibration data to plant SCADA, DCS, and historian systems. This enables centralized monitoring dashboards, automated work order generation, and integration with enterprise asset management (EAM) platforms like SAP PM or Maximo.

Trending & Diagnostics: The module supports continuous data buffering for transient capture and spectral analysis. Engineers can review startup/shutdown events, load changes, and alarm conditions to perform root cause analysis and validate corrective actions.

Customization Options: Factory configuration services available for pre-programmed alarm setpoints, sensor scaling factors, and output parameters. This reduces commissioning time and ensures consistent configuration across multi-unit installations.

Delivery & Service Assurance

Lead Time: In-stock units ship within 1-3 business days via DHL/FedEx international express. Custom-configured modules or bulk orders (10+ units) require 2-4 weeks for factory programming and testing.

Warranty Coverage: Comprehensive 12-month warranty covers manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize downtime during failure events.

Technical Support: Our application engineers provide pre-sale consultation for sensor selection, system architecture design, and integration planning. Post-sale support includes configuration assistance, troubleshooting guidance, and firmware updates.

Documentation Package: Each module ships with calibration certificates (NIST-traceable), installation manual, configuration software, and sample ladder logic for PLC integration. Technical drawings and 3D CAD models available for panel design.

Frequently Asked Questions

How does internal termination differ from external terminal block designs?
Internal terminations integrate wiring connections inside the module housing, eliminating the need for separate terminal blocks mounted outside the rack. This reduces installation space by 30%, simplifies cable routing, and improves electromagnetic compatibility by shortening signal paths. External termination models offer easier sensor cable access for frequent reconfigurations.

Can I monitor both proximity probes and accelerometers on the same 128229-01 module?
Yes, each of the four channels can be independently configured for either proximity or seismic sensor types. A typical configuration might use channels 1-2 for proximity probes on radial bearings and channels 3-4 for accelerometers on bearing housings, providing comprehensive multi-parameter surveillance from a single module.

What configuration software is required for initial setup?
The 3500 Rack Configuration Software (part of the 3500 System Software Suite) is required to program sensor types, scaling factors, alarm setpoints, and communication parameters. The software runs on Windows 10/11 and connects to the rack via Ethernet or serial interface. Initial configuration typically requires 2-4 hours per rack.

Is the 128229-01 compatible with legacy 3300 series proximity probes?
Yes, the module accepts signals from 3300 XL 8mm and 11mm proximity probe systems, including extension cables and proximitor housings. This backward compatibility facilitates upgrades from older 3300 monitoring systems to the 3500 platform without replacing field-installed sensors.

What is the typical delivery time for international orders?
Standard delivery to Asia-Pacific, Europe, and Middle East regions is 5-7 business days via express courier. North American destinations receive shipments in 3-5 days. Customs clearance and import duties are the responsibility of the consignee; we provide commercial invoices and certificates of origin to expedite clearance.

Does the module support remote diagnostics and firmware updates?
Yes, when connected to a network via the 3500/92 gateway, authorized personnel can perform remote diagnostics, review configuration settings, and upload firmware updates without site visits. This capability reduces support costs and enables rapid response to configuration changes or software patches.
