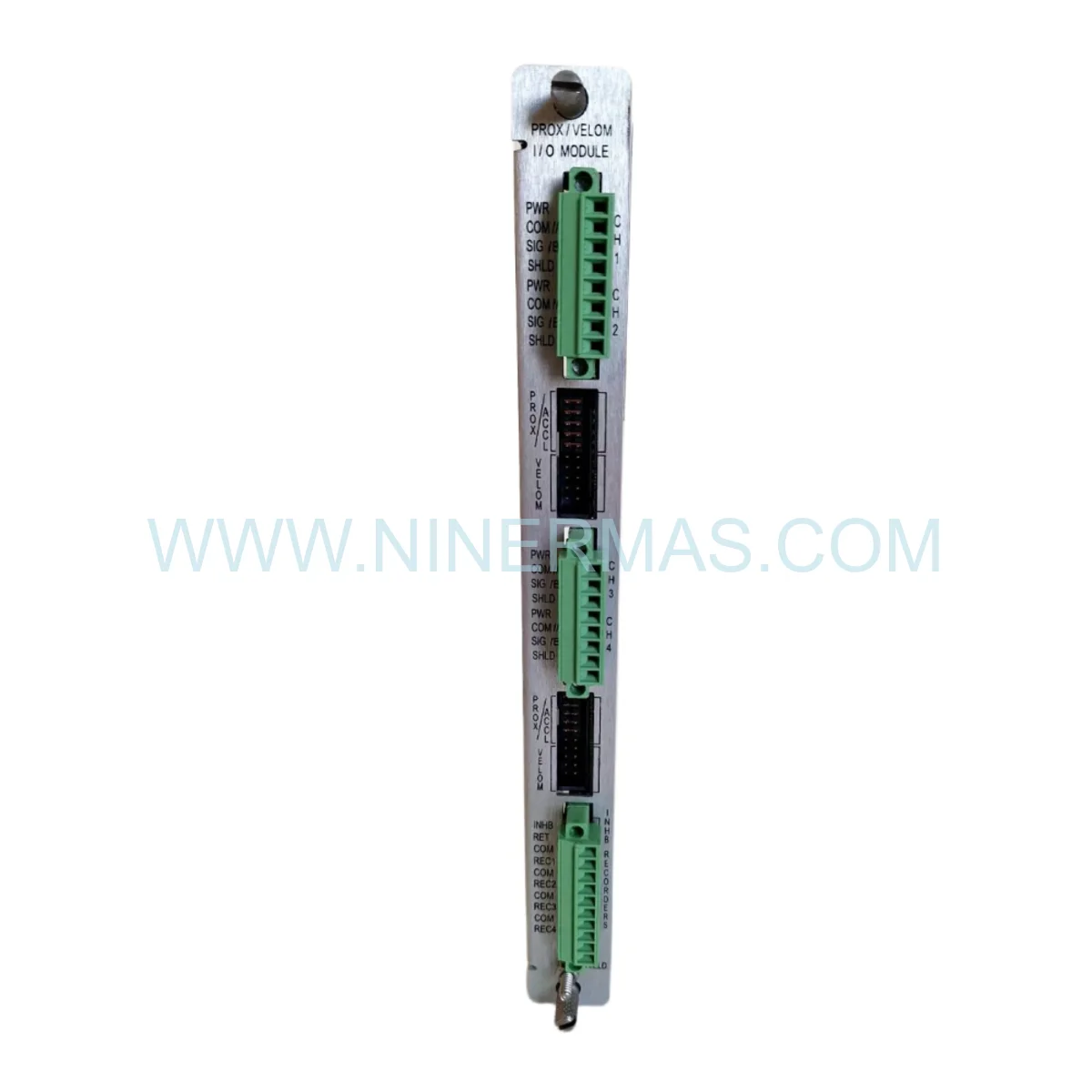

140734-01 Proximitor Monitor (Industrial-Grade Vibration Surveillance Platform)

The 140734-01 represents a proven solution for continuous machinery health assessment in high-stakes industrial environments. This four-channel Proximitor monitor transforms raw sensor data into actionable intelligence, enabling maintenance teams to detect bearing wear, shaft misalignment, and resonance issues before they escalate into forced outages. Engineered for power plants, refineries, and process facilities where equipment uptime directly impacts profitability, this monitoring platform combines measurement precision with operational simplicity.

Designed for reliability engineers and maintenance professionals managing critical rotating assets, the 140734-01 addresses the challenge of monitoring multiple measurement points without rack space constraints. Whether protecting steam turbines in combined-cycle plants or tracking compressor thrust positions in gas processing facilities, this monitor delivers the real-time visibility required for condition-based maintenance strategies.

Key differentiators include independent alarm logic per channel, hot-swap capability for zero-downtime servicing, and native integration with plant control systems through industry-standard protocols. The result: reduced mean time to repair, extended equipment lifecycles, and quantifiable reductions in catastrophic failure risk.

Core Capabilities & Business Impact

→ Quad-Channel Architecture
Monitor four independent measurement points from a single module, optimizing rack utilization while maintaining isolated fault detection. Each channel operates autonomously with dedicated setpoint configuration and relay outputs.

✓ Dual-Threshold Protection Logic
Configurable Alert and Danger levels per channel enable staged response protocols—triggering operator notifications at early warning thresholds while reserving automatic shutdowns for critical conditions, minimizing false trips.

✓ Eddy Current Sensor Compatibility
Native support for Proximitor transducers ensures non-contact measurement of shaft displacement and vibration with micron-level resolution, ideal for high-speed rotating machinery where bearing clearances are measured in thousandths of an inch.

→ 4-20 mA Analog Integration
Proportional current outputs feed directly into SCADA systems, DCS platforms, or standalone recorders, providing continuous trending data for vibration analysis and predictive maintenance programs without proprietary software dependencies.

✓ Extended Temperature Range
Operates reliably from -30°C to +65°C, accommodating outdoor installations, unheated enclosures, and high-ambient process areas where standard electronics would require costly climate control.

→ Rack-Mount Modularity
Seamless integration with 3500 Series infrastructure enables centralized power distribution, backplane communication, and standardized mounting—simplifying spare parts inventory and technician training across multi-site operations.

Proven Applications Across Industries

Power Generation – Turbine-Generator Protection
Continuous monitoring of journal bearing vibration and thrust position on steam turbines prevents blade rubs and catastrophic bearing failures. Early detection of subsynchronous vibration enables corrective action before rotor damage occurs, avoiding multi-million-dollar forced outages.

Oil & Gas – Compressor Train Surveillance
Real-time tracking of centrifugal compressor radial vibration and axial float protects against surge-induced failures and thrust bearing collapse. Integration with emergency shutdown systems ensures automatic trip on dangerous vibration levels, safeguarding personnel and assets.

Chemical Processing – Pump Reliability Programs
Monitoring of process pump bearing condition enables transition from time-based to condition-based maintenance, reducing unnecessary overhauls while catching developing faults like cavitation and impeller imbalance before seal failures and product contamination.

Pulp & Paper – Critical Drive Systems
Vibration surveillance on paper machine dryer sections and refiner motors identifies misalignment and looseness trends, preventing unplanned downtime during production runs where every hour of lost capacity represents significant revenue impact.

Steel Manufacturing – Rolling Mill Monitoring
Tracking of gearbox and motor vibration in rolling mill drive trains detects gear tooth wear and bearing degradation, enabling planned maintenance during scheduled outages rather than emergency repairs that halt production lines.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 140734-01 when you need to monitor 3-4 measurement points on a single machine or across multiple smaller assets. For applications requiring velocity or acceleration measurement (rather than displacement), consider seismic monitor variants. Ensure your existing 3500 rack has available slots and adequate power capacity before ordering.

Advanced Integration & Customization

SCADA/DCS Connectivity: The monitor's 4-20 mA outputs interface directly with Honeywell, Emerson DeltaV, Siemens PCS7, and other major control platforms. For digital communication, pair with 3500/92 or 3500/95 communication gateway modules to enable Modbus TCP/RTU or proprietary protocol access for trending software and asset management systems.

Alarm Escalation Logic: Configure independent setpoints for each channel with hysteresis bands to prevent alarm chatter. Relay outputs can drive annunciator panels, emergency shutdown systems, or automated lubrication systems, creating layered protection strategies tailored to asset criticality.

Sensor Calibration & Scaling: Field-configurable scaling accommodates various Proximitor sensor types and gap voltage ranges. Built-in linearization ensures accurate measurement across the full displacement range, critical for thrust position monitoring where absolute position matters as much as vibration amplitude.

Delivery, Warranty & Technical Support

Lead Time: Standard configurations ship within 3-5 business days. Custom-configured modules with pre-programmed setpoints available with 7-10 day lead time upon request.

Warranty Coverage: 12-month manufacturer's warranty covers defects in materials and workmanship. Warranty includes functional replacement and return shipping for confirmed failures.

Technical Assistance: Our applications engineering team provides pre-sale consultation on system architecture, sensor selection, and integration planning. Post-sale support includes configuration guidance, troubleshooting assistance, and firmware update coordination.

Documentation Package: Each unit ships with installation manual, configuration quick-start guide, and wiring diagrams. Full technical manuals and CAD drawings available for download upon request.

Frequently Asked Questions

What is the maximum cable length between Proximitor sensors and the 140734-01 monitor?
Typical installations support up to 300 feet (90 meters) of shielded cable between sensor and monitor. Longer runs may require signal conditioning or alternative sensor types depending on environmental noise levels.

Can this monitor measure both vibration and position on the same machine simultaneously?
Yes, each of the four channels can be independently configured for either radial vibration or axial position measurement, allowing comprehensive monitoring of a single machine train or distributed monitoring across multiple assets.

Does the 140734-01 require specialized software for configuration?
Basic setpoint configuration can be performed via front-panel controls or through the 3500 rack configuration utility. Advanced diagnostics and trending require 3500 System 1 software or compatible third-party vibration analysis platforms.

Is this module compatible with legacy 3300 Series sensors?
Yes, the 140734-01 accepts standard Proximitor sensor outputs (eddy current proximity probes) commonly used in both 3300 and 3500 Series systems, enabling phased upgrades without complete sensor replacement.

What happens to monitoring during a module replacement?
When installed in a rack with redundant power and proper configuration, the module supports hot-swap replacement. Other channels in the rack continue monitoring without interruption during the swap procedure.

Can alarm setpoints be adjusted remotely?
Yes, when networked through a 3500 communication gateway module, setpoints can be modified remotely via Modbus commands or proprietary software interfaces, enabling centralized management of multi-site installations.

Take the Next Step in Machinery Protection

Ready to enhance your vibration monitoring program? Contact our technical sales team for application-specific recommendations, system architecture review, or to request a formal quotation. We'll help you configure the optimal monitoring solution for your critical assets.

Request a Quote: Email your equipment list and monitoring requirements to our team
Technical Consultation: Schedule a call with our applications engineers
Documentation: Download installation guides and technical specifications
