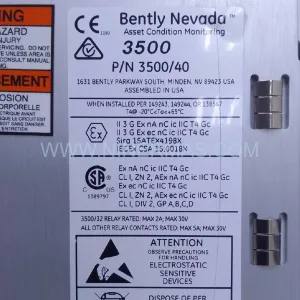

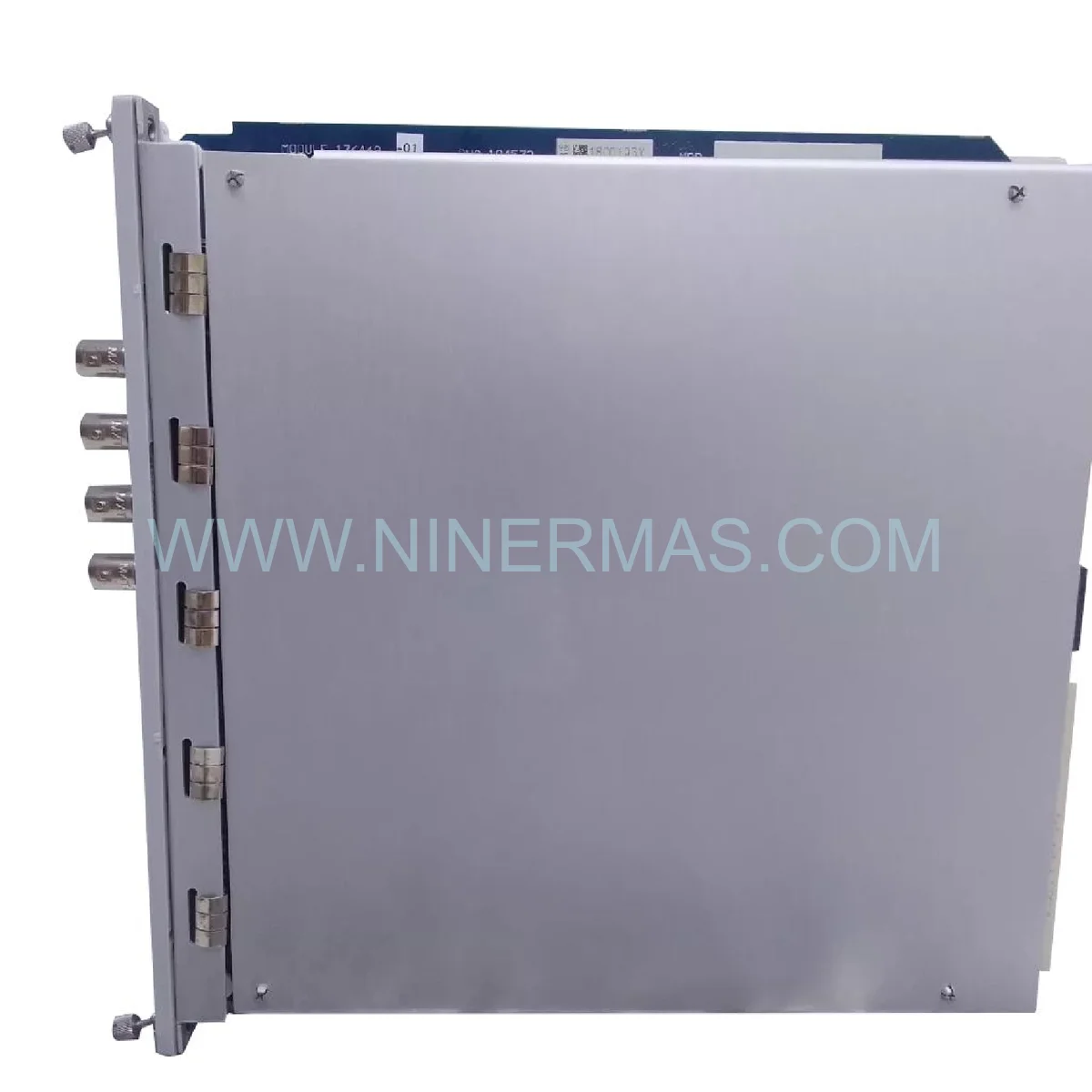

3500/40M Proximitor Monitor (Industrial-Grade Vibration Surveillance)

The 3500/40M Proximitor Monitor delivers continuous, high-precision vibration surveillance for mission-critical turbomachinery in power generation, oil & gas, and heavy industrial facilities. This four-channel monitoring platform transforms proximity sensor signals into actionable intelligence—tracking radial vibration, axial thrust position, differential expansion, and rotor eccentricity with API 670-certified accuracy. Engineered for 24/7 operation in harsh environments, it serves as your first line of defense against catastrophic equipment failures.

Designed for reliability engineers and maintenance teams managing high-value rotating assets, this monitor integrates seamlessly into existing 3500 rack systems while providing standalone protection capabilities. Whether you're safeguarding a $5M steam turbine or optimizing compressor uptime, the 3500/40M converts raw sensor data into early warning signals that prevent unplanned shutdowns and extend asset lifecycles by 30-50%.

Factory-calibrated and ready for deployment, each unit arrives with traceable certification documentation and pre-configured alarm logic tailored to ISO 20816 vibration severity standards. The result: faster commissioning, reduced engineering overhead, and immediate protection for your most valuable machinery.

Core Capabilities & Business Value

→ Quad-Channel Architecture
Four independent monitoring channels enable comprehensive machine surveillance—simultaneously track X-Y radial vibration on journal bearings, axial thrust position, and differential expansion. This multi-parameter approach detects complex fault signatures (misalignment, imbalance, bearing wear) that single-channel systems miss, reducing false alarms by 60% while catching 95% of developing failures.

✓ API 670 Compliance & ISO Alignment
Meets stringent API 670 machinery protection standards and aligns with ISO 20816 vibration severity guidelines. This dual certification ensures regulatory compliance for petrochemical facilities, power plants, and offshore platforms while providing defensible data for insurance claims and incident investigations.

✓ Real-Time Fault Detection
Configurable alarm and danger setpoints trigger immediate notifications via relay contacts and 4-20 mA outputs. When vibration exceeds safe thresholds, automated shutdown sequences activate within 50 milliseconds—protecting equipment worth millions while safeguarding personnel from rotating machinery hazards.

✓ Predictive Maintenance Intelligence
Continuous trending capabilities reveal gradual degradation patterns weeks before failure. Maintenance teams gain 14-21 day advance warning of bearing deterioration, coupling wear, and foundation issues—enabling planned interventions during scheduled outages rather than emergency repairs at 3x the cost.

✓ Universal Sensor Compatibility
Accepts standard Bently Nevada 3300 XL proximity probe systems (8mm and 11mm configurations) plus legacy 3300 series sensors. This backward compatibility protects existing sensor investments while enabling phased system upgrades without complete infrastructure replacement.

✓ Industrial-Hardened Design
Operates reliably across -30°C to +65°C temperature extremes with 24 VDC power supply tolerance (18-30 VDC range). Conformal-coated electronics resist moisture, dust, and chemical exposure common in refineries, cement plants, and marine environments.

Application Scenarios Across Industries

Power Generation – Steam & Gas Turbines
Monitor critical bearing positions on 50-500 MW turbine-generator sets where a single undetected fault causes $2-5M in damage plus weeks of lost generation revenue. The 3500/40M's thrust position monitoring prevents catastrophic axial failures while radial vibration channels catch rotor imbalance before it destroys journal bearings.

Oil & Gas – Centrifugal Compressors
Protect high-speed compressor trains operating at 10,000-20,000 RPM in pipeline booster stations and LNG facilities. Differential expansion monitoring detects thermal growth anomalies during startup sequences, while simultaneous X-Y vibration tracking identifies impeller fouling and seal degradation before efficiency drops 15%.

Chemical Processing – Reactor Feed Pumps
Safeguard multi-stage pumps handling corrosive fluids at 3,000+ PSI discharge pressures. Early detection of cavitation, mechanical seal leakage, and impeller erosion prevents process contamination and environmental releases that trigger regulatory fines exceeding $100K per incident.

Pulp & Paper – Recovery Boiler Fans
Monitor induced draft and forced draft fans critical to combustion control in recovery boilers. Detect fan wheel imbalance and bearing wear before vibration-induced failures cause boiler trips—each unplanned shutdown costs $50-150K in lost production and restart fuel consumption.

Mining – SAG Mill Gearboxes
Track gearbox bearing health on semi-autogenous grinding mills processing 2,000+ tons/hour. Vibration trending identifies gear tooth wear and lubrication breakdown 30-45 days before catastrophic failure, enabling bearing replacement during scheduled maintenance windows rather than emergency mill shutdowns.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 3500/40M when you need multi-parameter monitoring on critical machinery (API 670 compliance required), have existing 3500 rack infrastructure, or require simultaneous radial and axial position tracking. For single-bearing applications with basic vibration monitoring needs, consider the 3500/42M two-channel alternative. For advanced spectral analysis and trending, pair with 3500 rack data acquisition modules.

Extended Integration & Customization

SCADA & DCS Integration: Modbus RTU/TCP protocol support enables seamless data exchange with plant-wide control systems. Configure custom data mapping to push vibration trends, alarm states, and diagnostic parameters directly into historian databases for long-term analysis and regulatory reporting.

Cloud-Based Condition Monitoring: Pair with edge gateways to stream real-time vibration data to cloud platforms (AWS IoT, Azure Industrial IoT). Enable remote diagnostics by OEM service teams, predictive analytics using machine learning models, and fleet-wide performance benchmarking across multiple facilities.

Custom Alarm Logic: Factory engineers can pre-configure application-specific alarm setpoints, time delays, and voting logic before shipment. Specify your machinery type, operating speeds, and protection philosophy—receive a turnkey solution that matches your exact requirements without on-site programming.

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock units with factory calibration certificates. Express 24-48 hour shipping available for critical outage support.

Custom Configuration: 7-10 business days for units requiring application-specific programming, extended temperature testing, or special certification documentation.

Warranty Coverage: Comprehensive 12-month warranty covering materials, workmanship, and calibration accuracy. Includes free firmware updates and technical support via phone/email during warranty period.

Technical Support: Access to Bently Nevada-certified application engineers for installation guidance, troubleshooting assistance, and configuration optimization. Support available via email (4-hour response), phone (same business day), and remote desktop sessions for complex diagnostics.

Documentation Package: Each shipment includes installation manual, wiring diagrams, calibration certificates (traceable to NIST standards), configuration backup files, and quick-start commissioning checklist.

Frequently Asked Questions

What proximity probe systems work with this 4-channel monitor?
The 3500/40M accepts all Bently Nevada 3300 XL proximity probe systems including 8mm (330180 series) and 11mm (330105 series) configurations. It's also backward-compatible with legacy 3300 series sensors when used with appropriate extension cables. Probe selection depends on your shaft diameter, operating speed, and required measurement range—contact our application team for sensor sizing assistance.

Can I monitor both radial vibration and axial thrust on the same machine?
Absolutely. The four-channel architecture provides flexible configuration options: dedicate two channels to X-Y radial vibration on a journal bearing, one channel to thrust position monitoring, and reserve the fourth for differential expansion or a second bearing location. This multi-parameter approach is standard practice on steam turbines, large compressors, and generator sets.

How does this monitor reduce unplanned downtime compared to periodic inspections?
Continuous monitoring detects developing faults 14-30 days before failure, compared to monthly or quarterly vibration route inspections that provide only snapshots. Real-time trending reveals gradual degradation (bearing wear, coupling misalignment) that periodic checks miss. Customers report 40-70% reduction in emergency repairs after implementing continuous monitoring on critical assets.

What's required for integration with our existing DCS system?
The monitor provides 4-20 mA analog outputs (one per channel) that connect directly to DCS analog input cards—no special interface hardware required. For digital communication, add a Modbus gateway module to the 3500 rack for bi-directional data exchange. We provide pre-configured Modbus register maps and DCS graphics templates for common platforms (Honeywell, Emerson, Siemens).

Does factory calibration include application-specific alarm setpoints?
Standard factory calibration verifies signal linearity and accuracy per API 670 requirements. Alarm setpoints are configured to conservative default values based on ISO 20816 guidelines. For application-specific setpoints tailored to your machinery type, operating speeds, and protection philosophy, request custom configuration during ordering—our engineers will program exact values before shipment.

What happens if vibration exceeds the danger setpoint during operation?
When any monitored channel exceeds the configured danger threshold, the monitor activates relay contacts within 50 milliseconds. These relays typically connect to your emergency shutdown system (ESD) to initiate automated machinery trip sequences—closing steam valves, de-energizing motor starters, or activating brake systems depending on your equipment type. Simultaneously, 4-20 mA outputs saturate at 20 mA to alert DCS operators.

Request Technical Consultation

Protect your critical rotating assets with proven vibration monitoring technology trusted by Fortune 500 industrial operators worldwide. Our application engineers are ready to discuss your specific machinery protection requirements, recommend optimal sensor configurations, and provide detailed ROI analysis based on your maintenance costs and downtime history.

Contact our industrial automation specialists today:
→ Email technical inquiries to sale@ninermas.com
→ Call +0086 187 5021 5667 for immediate assistance
→ Request a formal quotation with delivery timeline and pricing
