135489-04 Four-Channel Proximitor I/O Module (Industrial-Grade Vibration Interface)

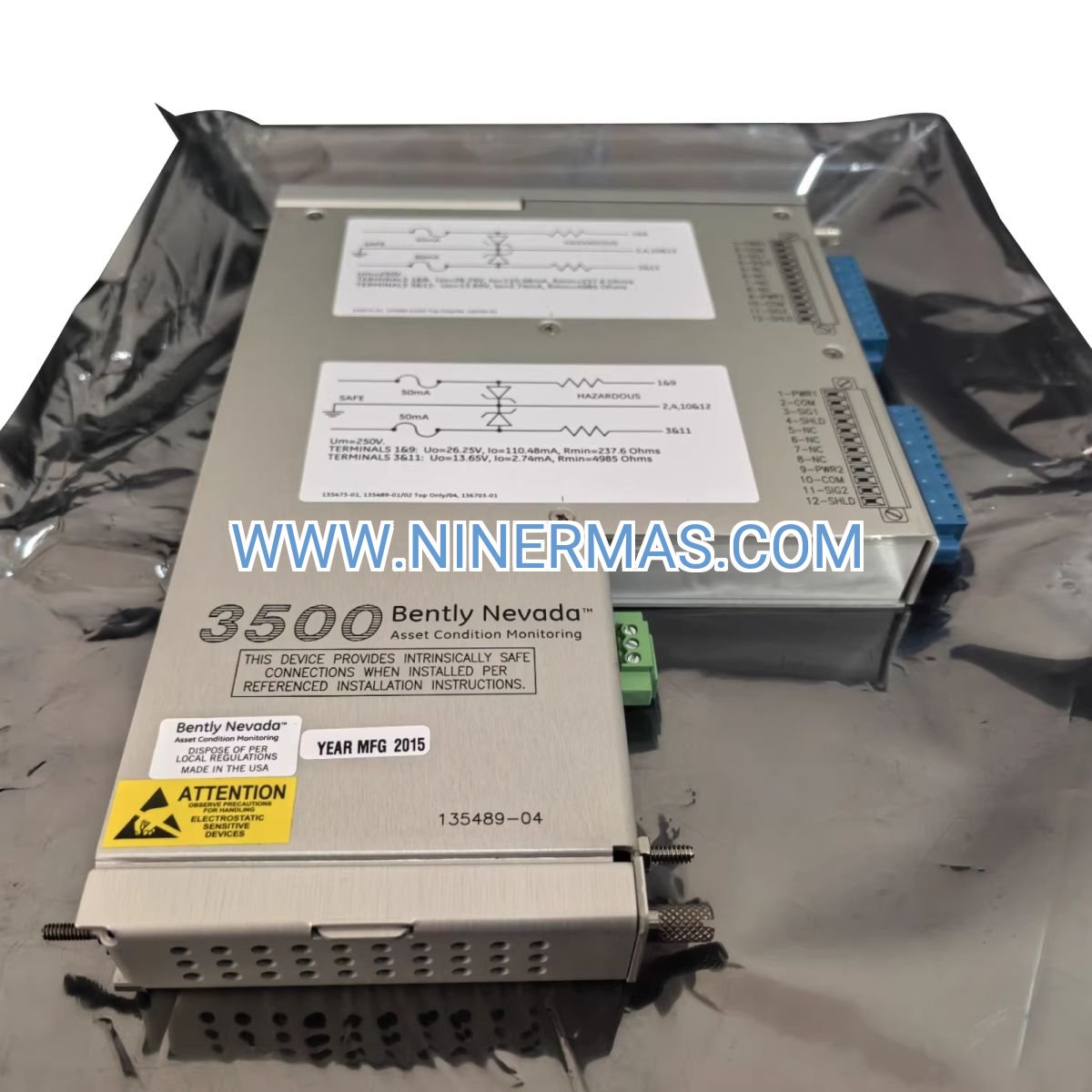

The 135489-04 Proximitor I/O Module transforms proximity probe signals into actionable vibration intelligence for mission-critical rotating assets. Engineered for 24/7 operation in power generation, oil & gas, and heavy industrial sectors, this four-channel interface delivers microsecond-level response times to prevent catastrophic machinery failures. Plant engineers rely on the 135489-04 to bridge the gap between field sensors and centralized monitoring systems, ensuring uninterrupted production uptime.

Designed for seamless integration with Bently Nevada 3500 rack architectures, this module accepts inputs from industry-standard 3300 XL proximity transducers while maintaining signal fidelity across extended cable runs. Whether monitoring turbine shaft displacement or compressor bearing health, the 135489-04 provides the precision data foundation for condition-based maintenance programs that reduce unplanned downtime by up to 40%.

Factory-calibrated to API 670 standards and validated against ISO 20816 benchmarks, each unit ships ready for immediate deployment in hazardous area classifications. The module's robust construction withstands temperature extremes from -30°C to +65°C, making it the preferred choice for offshore platforms, desert refineries, and arctic processing facilities where reliability is non-negotiable.

Core Capabilities & Business Value

→ Quad-Channel Architecture
Monitor four independent measurement points simultaneously—radial vibration on X/Y axes plus dual thrust positions—eliminating the need for multiple single-channel modules and reducing rack space consumption by 75% compared to legacy systems.

→ Sub-Millisecond Data Acquisition
Capture transient vibration events with 1 kHz sampling rates, enabling early detection of bearing defects, rotor imbalance, and misalignment conditions before they escalate into forced outages that cost $50,000+ per hour in lost production.

→ Extended Cable Compatibility
Maintain measurement accuracy across 300-meter cable runs using buffered -24 VDC outputs, allowing centralized monitoring rooms to be located safely away from hazardous process areas without signal degradation.

✓ Hot-Swap Serviceability
Replace modules during live operation when configured with redundant I/O—minimizing mean time to repair (MTTR) and supporting 99.9% system availability targets for continuous process industries.

✓ Universal Probe Integration
Accepts signals from 5mm, 8mm, and 11mm proximity probes with automatic gain adjustment, protecting your investment in existing sensor infrastructure during system upgrades or expansions.

✓ Diagnostic LED Arrays
Instant visual confirmation of channel status, power integrity, and communication health—reducing troubleshooting time by 60% during commissioning and routine maintenance activities.

Industry-Specific Deployment Scenarios

Steam Turbine Generator Sets
In combined-cycle power plants, the 135489-04 monitors journal bearing clearances and thrust collar position on 50+ MW turbines. When radial vibration exceeds 4.5 mm/s RMS, automated shutdown sequences prevent bearing wipeout that would require 8-week overhauls costing $2M+ in parts and lost revenue.

Centrifugal Compressor Trains
Petrochemical facilities use quad-channel monitoring to track both driver and driven equipment on multi-stage compressor packages. Real-time displacement data feeds into surge control algorithms, optimizing throughput while maintaining safe operating envelopes per API 617 guidelines.

Boiler Feed Pump Protection
Utility-scale power stations deploy the module on high-pressure pumps operating at 3600 RPM. Continuous shaft position monitoring detects hydraulic instabilities and cavitation onset, triggering automatic recirculation valve adjustments that extend pump seal life by 40%.

Gas Pipeline Compressor Stations
Remote installations leverage the module's wide temperature range and EMI immunity to monitor reciprocating and centrifugal compressors in unmanned facilities. Satellite-linked alarm notifications enable predictive maintenance scheduling, reducing emergency callouts by 55%.

Refinery Crude Distillation Units
High-temperature pump applications benefit from the module's ability to compensate for thermal growth effects on proximity probe gaps. Automated baseline tracking distinguishes normal thermal expansion from abnormal vibration trends caused by process upsets or mechanical degradation.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the 135489-04 when monitoring equipment requires four simultaneous proximity measurements (e.g., X-Y radial plus dual thrust). For applications needing only two channels, consider the 135489-02 variant to optimize cost. Verify that your existing 3500 rack has available slots and sufficient power budget—each module occupies one full slot width and draws 8W from the backplane supply.

Advanced Integration Features

Modbus TCP/IP Connectivity: When paired with 3500/92 communication gateway modules, vibration data streams directly into plant DCS, SCADA, or cloud-based analytics platforms. Enable remote diagnostics and machine learning algorithms that predict bearing failures 2-4 weeks before traditional threshold alarms trigger.

Redundant I/O Configurations: Deploy dual 135489-04 modules in parallel for SIL-2 rated safety instrumented systems. Automatic failover logic ensures continuous protection even during module replacement or channel faults, meeting IEC 61508 requirements for critical machinery applications.

Custom Calibration Services: Factory engineers can pre-configure modules with customer-specific probe sensitivity values, gap voltage setpoints, and cable length compensation factors. Receive plug-and-play modules that eliminate on-site calibration time, reducing commissioning schedules by 3-5 days.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock units via express courier (DHL/FedEx). Expedited same-day shipping available for emergency breakdown situations at premium rates.

Custom Configurations: 10-15 business days for factory-programmed modules with specific calibration requirements or non-standard firmware versions.

Warranty Coverage: Comprehensive 12-month warranty against manufacturing defects, including free replacement and return shipping. Extended 36-month coverage available for critical spares inventory programs.

Technical Support: Unlimited access to application engineers via email/phone for installation guidance, troubleshooting assistance, and system optimization recommendations. Average response time: 4 hours during business days.

Documentation Package: Each shipment includes installation manual, wiring diagrams, calibration certificates, and configuration worksheets. Digital copies of all documentation available for download immediately upon order confirmation.

Frequently Asked Questions

What proximity probe types are compatible with the 135489-04 interface module?
The module accepts all Bently Nevada 3300 XL and 3300 NSv proximity transducers with standard -24 VDC power requirements. Third-party probes meeting the same electrical specifications (7-9 mV/mil sensitivity) can also be used, though factory calibration may be required for optimal accuracy.

Can I monitor both radial vibration and axial position using a single 135489-04 module?
Absolutely. The four-channel design is ideal for comprehensive shaft monitoring—allocate two channels for X-Y radial vibration measurement and the remaining two for thrust collar position tracking. This configuration provides complete rotor dynamics visibility in a single module slot.

How does cable length affect measurement accuracy in extended installations?
The module's buffered output design maintains signal integrity across 300-meter cable runs when using proper shielded extension cables. For distances exceeding 200 meters, we recommend factory cable length compensation programming to eliminate any residual voltage drop effects on gap measurements.

Is the 135489-04 suitable for hazardous area installations in Zone 1/Division 1 locations?
The module itself is designed for safe area mounting within control room racks. For hazardous area applications, install the module in a purged/pressurized enclosure rated for the specific zone classification, or use intrinsically safe barrier modules between field probes and the I/O interface.

What energy efficiency improvements does this module offer compared to older 3300 systems?
The 135489-04 consumes 40% less power than equivalent legacy 3300 rack I/O modules while providing superior noise immunity. In large installations with 50+ monitoring points, this translates to 2-3 kW reduction in total system power draw, lowering annual energy costs by $1,500-2,000.

Can firmware updates be performed in the field without returning modules to the factory?
Yes, when used with 3500 rack systems equipped with TDI (Transient Data Interface) modules and appropriate configuration software. Firmware updates typically take 15-20 minutes per module and can be scheduled during planned maintenance windows to add new features or address field-reported issues.

Request Technical Consultation

Our vibration monitoring specialists are ready to assess your specific machinery protection requirements and recommend optimal sensor placement, alarm setpoint strategies, and system architecture. Contact us today for a complimentary site survey and ROI analysis demonstrating how predictive maintenance programs reduce total cost of ownership by 25-35% over five-year equipment lifecycles.

Next Steps: Submit your technical inquiry using the contact information below, including equipment type, operating speeds, and current monitoring gaps. Receive a detailed proposal within 24 hours outlining hardware requirements, installation scope, and projected payback period.
