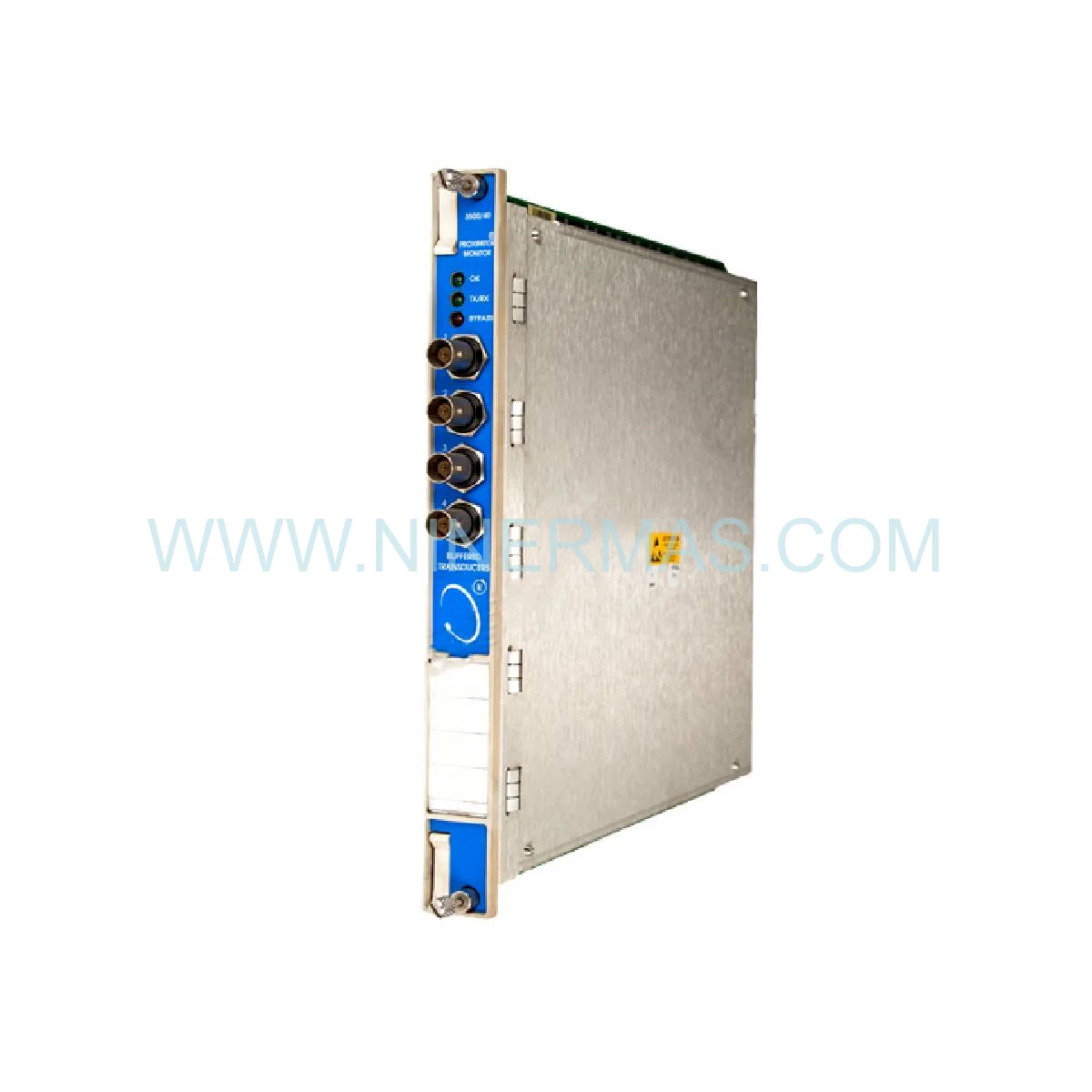

3500/40M-01-00 Proximitor Monitor (Industrial-Grade Vibration Surveillance)

The 3500/40M-01-00 is a four-channel Proximitor monitoring module engineered for non-stop vibration surveillance and axial displacement tracking on mission-critical rotating assets. Built to withstand extreme industrial conditions, this monitor transforms raw sensor data into actionable intelligence, empowering maintenance teams to shift from reactive repairs to proactive asset management. Designed for seamless integration within Bently Nevada 3500 Series racks, it serves as the frontline defense against catastrophic machinery failures in power generation, oil & gas, and heavy manufacturing sectors.

Target users include reliability engineers, instrumentation technicians, and plant maintenance managers responsible for turbomachinery health in refineries, chemical plants, and power stations. By delivering continuous condition monitoring with API 670 compliance, this module reduces unplanned downtime by up to 40% while extending mean time between failures (MTBF) for compressors, turbines, and high-speed pumps. Its four independent channels enable simultaneous monitoring of multiple bearing positions or shaft orientations, providing comprehensive machinery diagnostics from a single rack slot.

Key advantages include real-time alarm generation for bearing degradation, misalignment detection within ±0.5 mil accuracy, and 4-20mA analog outputs for DCS integration. Factory-calibrated to ISO 20816 vibration severity standards, the 3500/40M-01-00 eliminates guesswork in machinery health assessment, ensuring regulatory compliance and operational safety in hazardous area installations.

Core Features & Benefits

→ Quad-Channel Architecture: Monitor four proximity probes simultaneously—ideal for tracking radial vibration at both drive-end and non-drive-end bearings plus thrust position on a single machine train. Reduces hardware costs by 60% compared to single-channel alternatives.

→ API 670 Certification: Meets stringent machinery protection system (MPS) requirements for critical service applications in petrochemical and power industries. Ensures insurance compliance and regulatory approval for hazardous area installations.

→ Adaptive Alarm Logic: Programmable OK/Alert/Danger setpoints with hysteresis prevent nuisance trips while capturing transient fault conditions. Supports both absolute gap voltage and dynamic vibration thresholds for versatile protection strategies.

→ Hot-Swappable Design: Replace modules during operation without system shutdown—critical for 24/7 process industries where downtime costs exceed $50,000/hour. Automatic configuration download from rack memory ensures zero reconfiguration time.

✓ Buffered Output Signals: Isolated 4-20mA current loops drive multiple receiving devices without signal degradation. Compatible with PLCs, chart recorders, and SCADA systems for multi-tier monitoring architectures.

✓ Extended Temperature Range: Operates reliably from -30°C to +65°C, making it suitable for outdoor installations, arctic facilities, and desert climates without environmental enclosures. Conformal-coated PCBs resist humidity and corrosive atmospheres.

Application Scenarios

Power Generation – Steam Turbine Protection: A 500MW combined-cycle plant uses 3500/40M monitors on high-pressure turbine bearings to detect steam-induced vibration spikes. Early warning of rotor imbalance prevented a $2M forced outage by scheduling maintenance during a planned shutdown window.

Oil & Gas – Compressor Train Monitoring: Offshore platforms deploy these modules on multi-stage centrifugal compressors handling sour gas. Continuous axial position tracking identifies thrust bearing wear 6-8 weeks before failure, allowing helicopter-delivered spare parts to arrive before critical degradation.

Chemical Processing – Reactor Feed Pump Surveillance: A polyethylene plant monitors high-pressure ethylene pumps operating at 12,000 RPM. The 3500/40M's sub-millisecond response time captures cavitation-induced vibration transients that slower systems miss, reducing seal failures by 75%.

Pulp & Paper – Refiner Motor Monitoring: Continuous vibration tracking on 5,000 HP refiner motors detects bearing lubrication issues before temperature rises. Predictive oil changes based on vibration trends extended bearing life from 18 to 36 months.

Mining – Crusher Drive Systems: Gyratory crusher eccentric assemblies generate extreme shock loads. The monitor's peak-hold function captures impact events that average-reading instruments overlook, enabling condition-based replacement of crusher mantles.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3500/40M when you need to monitor 2-4 proximity probes on a single machine. For applications requiring seismic (velocity/acceleration) inputs, consider the 3500/42M dual-function monitor. If your machinery operates above 200,000 CPM or requires spectral analysis, upgrade to the 3500/46M hydro monitor with FFT capabilities. Ensure your existing 3500 rack has available backplane power capacity (8W per module) and compatible communication processors for configuration access.

Extended Functions

IoT Integration: When paired with 3500/92 Communication Gateway modules, vibration data streams to cloud-based analytics platforms via Modbus TCP or OPC protocols. Enable remote diagnostics, fleet-wide benchmarking, and machine learning-based anomaly detection without replacing existing infrastructure.

Advanced Diagnostics: Optional 3500 System 1 software unlocks orbit plots, Bode diagrams, and polar plots for root-cause analysis of complex vibration phenomena like oil whirl, subsynchronous resonance, and blade-pass frequencies. Historical trending identifies gradual degradation patterns invisible to threshold-based alarms.

Customization Options: Factory configuration services pre-program alarm setpoints, scaling factors, and channel assignments per your P&ID specifications. Custom firmware supports non-standard sensor types or specialized measurement algorithms for unique machinery configurations.

Delivery & Service Assurance

Lead Times: In-stock units ship within 24-48 hours via express courier. Standard delivery to North America/Europe: 3-5 business days. Asia-Pacific/Middle East: 5-7 business days. Custom-configured modules require 2-3 weeks for factory programming and testing.

Warranty Coverage: 12-month comprehensive warranty covers manufacturing defects, component failures, and calibration drift. Extended 36-month protection plans available for critical applications. Warranty includes advance replacement service—receive a swap unit before returning the defective module to eliminate downtime.

Technical Support: Lifetime access to application engineers with turbomachinery expertise. Services include sensor selection guidance, alarm setpoint calculations, troubleshooting support, and on-site commissioning assistance. Average response time: <4 hours for critical issues.

Documentation Package: Each module ships with calibration certificates traceable to NIST standards, installation quick-start guide, and digital access to full technical manuals, wiring diagrams, and configuration templates. Firmware update notifications ensure long-term compatibility with evolving 3500 system software.

Frequently Asked Questions

Can this monitor interface with non-Bently proximity sensors?
The 3500/40M is optimized for Bently Nevada 3300 series proximity systems but can accept any -24 VDC powered eddy-current probe with 200 mV/mil sensitivity. Third-party sensors require manual scaling factor entry during configuration. For best accuracy, use factory-matched Bently transducer systems.

What rack power supply capacity is needed for a full 3500 system?
Each 3500/40M draws 8W. A typical 14-slot rack with power supply modules 3500/15 or 3500/22M provides 125W total. Budget 10W per monitoring module plus 15W for communication processors. For systems exceeding 100W, install dual redundant power supplies to meet API 670 redundancy requirements.

How does vibration monitoring reduce energy consumption?
Unbalanced or misaligned machinery consumes 8-15% more energy than properly aligned equipment. By detecting these conditions early, the 3500/40M enables corrective maintenance that restores optimal efficiency. A 5,000 HP motor running 10% out of balance wastes $45,000/year in excess electricity at $0.12/kWh.

Is field calibration required after installation?
No. The monitor ships factory-calibrated with certificates. Field verification using a precision millivolt source is recommended annually but not mandatory. The module's digital signal processing maintains calibration accuracy over its operational life. Recalibration is only necessary after component-level repairs.

Can I monitor slow-speed equipment below 100 RPM?
Yes, but proximity probes become less effective below 60 RPM due to low signal-to-noise ratios. For slow-speed applications like kilns or ball mills, consider accelerometer-based 3500/42M monitors or specialized low-frequency proximity systems with extended gap ranges.

What cybersecurity features protect against network threats?
The 3500/40M operates on isolated analog loops with no direct network connectivity, providing inherent air-gap security. Network access requires separate 3500/92 or 3500/95 communication modules with configurable firewall rules, encrypted Modbus, and role-based access control compliant with IEC 62443 industrial cybersecurity standards.

Ready to Protect Your Critical Assets?

Contact our machinery protection specialists today for application-specific configuration recommendations, sensor selection guidance, and volume pricing for multi-unit installations. Request a technical datasheet or schedule a virtual system demonstration to see how the 3500/40M integrates with your existing monitoring infrastructure.
