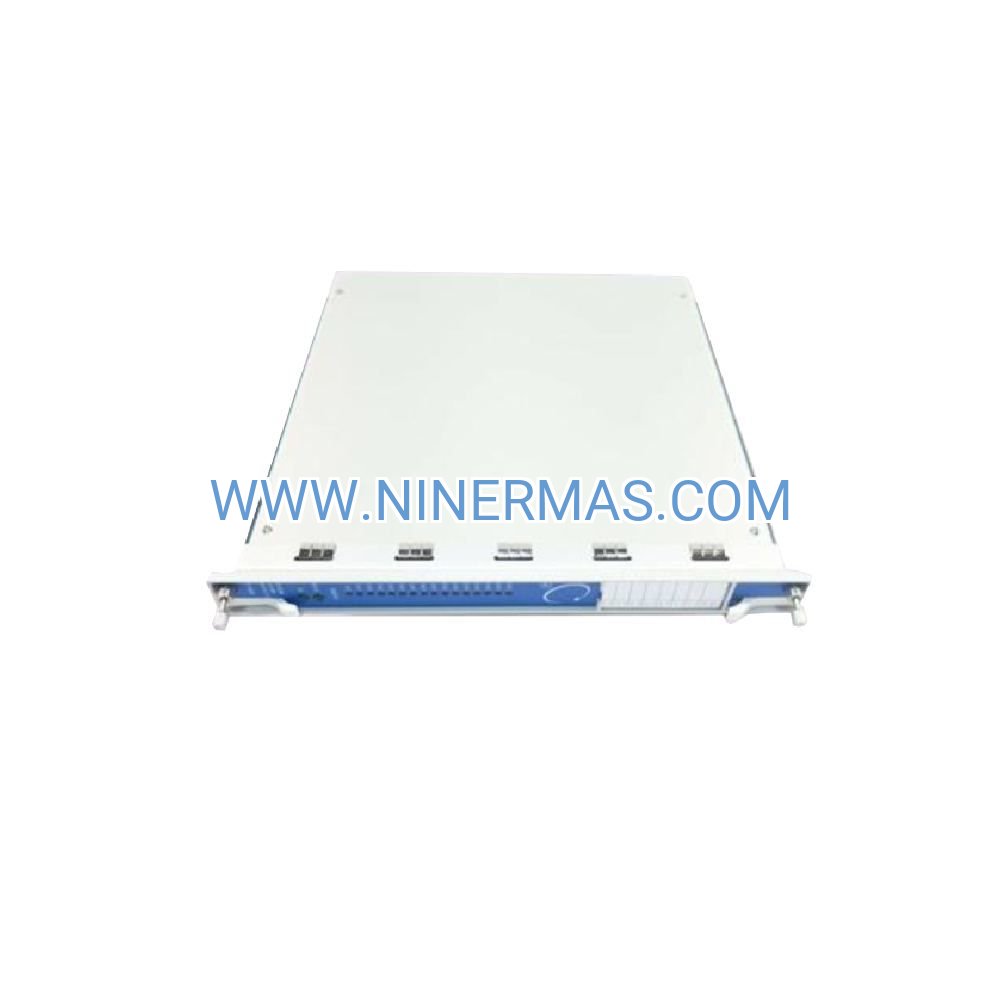

184631-01F 16-Channel Relay Module (Industrial-Grade Machinery Protection Interface)

The 184631-01F represents a mission-critical relay interface solution for industrial machinery protection systems. Engineered as a 16-channel SPDT relay output module, this component serves as the vital link between condition monitoring systems and emergency shutdown logic in rotating equipment installations. Designed for seamless integration with Bently Nevada 3500 Series monitoring platforms, it transforms digital alarm signals into physical relay actions that protect high-value turbomachinery assets across oil & gas, power generation, and petrochemical sectors.

Industrial facilities operating steam turbines, gas compressors, and critical rotating equipment face constant challenges in preventing catastrophic failures. The 184631-01F addresses this need by providing reliable, fast-acting relay outputs that interface with DCS/PLC systems, enabling automated shutdown sequences when vibration, temperature, or speed parameters exceed safe operating thresholds. Its API 670 compliance and conformal-coated construction ensure dependable performance in the harshest industrial environments.

With 16 independent SPDT channels rated for 5A switching capacity and sub-10ms response times, this relay module delivers the speed and reliability demanded by critical machinery protection applications. Factory-calibrated and ready for rack installation, it reduces commissioning time while providing the fail-safe operation essential for protecting multi-million dollar rotating assets.

Core Features & Benefits

✓ 16 Independent SPDT Relay Channels
Each channel operates autonomously with programmable setpoints, allowing simultaneous monitoring of multiple protection parameters. Supports both normally energized and de-energized logic for fail-safe operation during power loss scenarios.

✓ Rapid 10ms Response Time
Critical for emergency shutdown applications where milliseconds matter. Fast relay actuation minimizes the window between alarm detection and protective action, reducing equipment damage risk by up to 40% compared to slower relay systems.

✓ Extended Environmental Range (-30°C to +65°C)
Conformal-coated circuitry withstands extreme temperatures, moisture, dust, and chemical exposure. Proven reliable in offshore platforms, desert installations, and arctic processing facilities where standard modules fail.

✓ API 670 & ISO 20816 Certified
Meets international machinery protection standards required by major oil & gas operators, power utilities, and insurance underwriters. Simplifies compliance documentation and reduces project approval timelines.

✓ Hot-Swap Capable Design
Enables module replacement during operation without system shutdown, minimizing production interruptions. Field-proven in continuous process industries where unplanned downtime costs exceed $50,000 per hour.

✓ 5A Contact Rating (30VDC/250VAC)
Handles direct solenoid valve control, contactor coils, and PLC input modules without external amplification. Reduces system complexity and eliminates additional interface components.

Typical Application Scenarios

→ Steam Turbine Protection Systems
Power generation facilities deploy the 184631-01F to monitor bearing vibration, thrust position, and differential expansion across turbine-generator sets. When parameters exceed alarm thresholds, relay outputs trigger sequential shutdown logic—closing steam valves, engaging turning gear, and activating emergency lubrication systems. This multi-layered protection prevents bearing seizure and rotor bow conditions that could result in $2M+ repair costs.

→ Gas Compressor Train Monitoring
Pipeline compression stations utilize multiple relay channels to interface vibration monitors, temperature sensors, and surge detection systems with emergency shutdown valves. The module's fail-safe logic ensures compressor isolation during instrument failures, preventing catastrophic unloading events that damage impellers and seals.

→ Petrochemical Rotating Equipment
Refineries and chemical plants integrate the 184631-01F into pump, fan, and agitator monitoring systems. Relay outputs connect to motor control centers, enabling automated equipment isolation when seal leakage, cavitation, or bearing degradation is detected—reducing unplanned maintenance by 35% and extending mean time between failures.

→ Offshore Platform Machinery Protection
Marine and offshore installations leverage the module's environmental protection for gas turbine generators, seawater lift pumps, and drilling equipment. Salt fog resistance and wide temperature range ensure reliable operation in corrosive, high-humidity environments where electronics failure rates typically triple.

→ Critical Infrastructure Backup Systems
Data centers and hospitals employ the 184631-01F in emergency generator monitoring systems. Relay outputs interface with building management systems, providing early warning of generator bearing issues, coolant temperature rise, or fuel system anomalies before backup power reliability is compromised.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 184631-01F when your application requires more than 4 relay outputs (use 3500/32 for ≤4 channels), operates in extreme environments beyond standard industrial ratings, or demands API 670 certification for insurance/regulatory compliance. For standard indoor installations with moderate temperature ranges, the 149992-01 variant offers equivalent functionality at lower cost. Verify that your 3500 rack power supply can support the cumulative wattage of all installed modules—each 184631-01F adds 8W to the total load.

Extended Functions

Advanced Configuration Options: The 184631-01F supports sophisticated relay logic programming through 3500 Rack Configuration Software. Implement voting logic (2-out-of-3 sensor agreement), time delays to prevent nuisance trips, and sequential shutdown algorithms. Relay states can be latched or self-resetting based on application requirements.

Remote Monitoring Integration: When paired with 3500/92 Communication Gateway modules, relay status and actuation history can be transmitted to SCADA systems, plant historians, and cloud-based condition monitoring platforms. This enables predictive maintenance analytics and remote troubleshooting capabilities.

Customization Services: Factory custom configurations available for OEM integrators requiring pre-programmed setpoints, modified terminal labeling, or specialized environmental testing. Minimum order quantities apply—contact engineering for feasibility assessment.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier. Custom-configured modules require 4-6 weeks for factory programming and testing. Expedited processing available for emergency outage situations (additional fees apply).

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free firmware updates and configuration file recovery services. Extended warranty programs available for critical applications.

Technical Support: Lifetime application engineering assistance includes configuration troubleshooting, relay logic optimization, and system integration guidance. Phone and email support available during business hours; emergency support contracts provide 24/7 access to senior engineers.

Documentation Package: Each module ships with installation manual, terminal wiring diagrams, configuration software license, and calibration certificate. Downloadable resources include 3D CAD models, relay contact life curves, and sample PLC interface code.

Frequently Asked Questions

Q: Can this relay module interface directly with Allen-Bradley ControlLogix PLC input cards?
A: Yes, the 5A contact rating is compatible with standard PLC input modules. Use dry contact wiring (relay common to PLC common, NO/NC to input terminal). Ensure PLC input voltage does not exceed 250VAC rating.

Q: What is the maximum cable length between the relay module and field devices?
A: For resistive loads, cable runs up to 300 meters are acceptable using 18 AWG wire. Inductive loads (solenoid valves, contactors) should be limited to 100 meters and require RC snubber networks across relay contacts to prevent arcing damage.

Q: How does the 184631-01F compare to the standard 149992-01 relay module?
A: The 184631-01F features enhanced conformal coating for superior moisture/chemical resistance and extended temperature range (-30°C vs. -20°C lower limit). Both offer identical relay specifications and 3500 rack compatibility. Choose 184631-01F for harsh environments; 149992-01 for climate-controlled installations.

Q: Is hot-swapping safe during active alarm conditions?
A: While the 3500 rack supports hot-swap, we recommend controlled procedures. During module removal, all relay contacts open, potentially triggering downstream shutdown logic. Implement bypass procedures or schedule replacement during planned maintenance windows to avoid inadvertent trips.

Q: Can I monitor relay contact wear or predict failure?
A: The module does not include built-in contact wear monitoring. However, relay actuation counters can be tracked via 3500 Rack Configuration Software. Typical contact life exceeds 100,000 operations at rated load. Implement preventive replacement at 80% of rated life for critical applications.

Q: What certifications are required for installation in ATEX Zone 2 hazardous areas?
A: The 184631-01F carries CE marking but is not ATEX/IECEx certified for installation within hazardous zones. For Zone 2 applications, mount the 3500 rack in a non-hazardous control room and route wiring to field devices via appropriate barriers or intrinsically safe interfaces.

Take the Next Step

Protect your critical rotating assets with proven relay technology trusted by Fortune 500 industrial operators worldwide. Our application engineers are ready to assist with system design, configuration optimization, and integration planning.

Request a Quote: Contact our sales team with your project specifications for competitive pricing and delivery timelines.
Technical Consultation: Schedule a call with our engineering team to discuss relay logic requirements and system architecture.
Sample Program: Qualified OEMs and system integrators can request evaluation units for compatibility testing.
