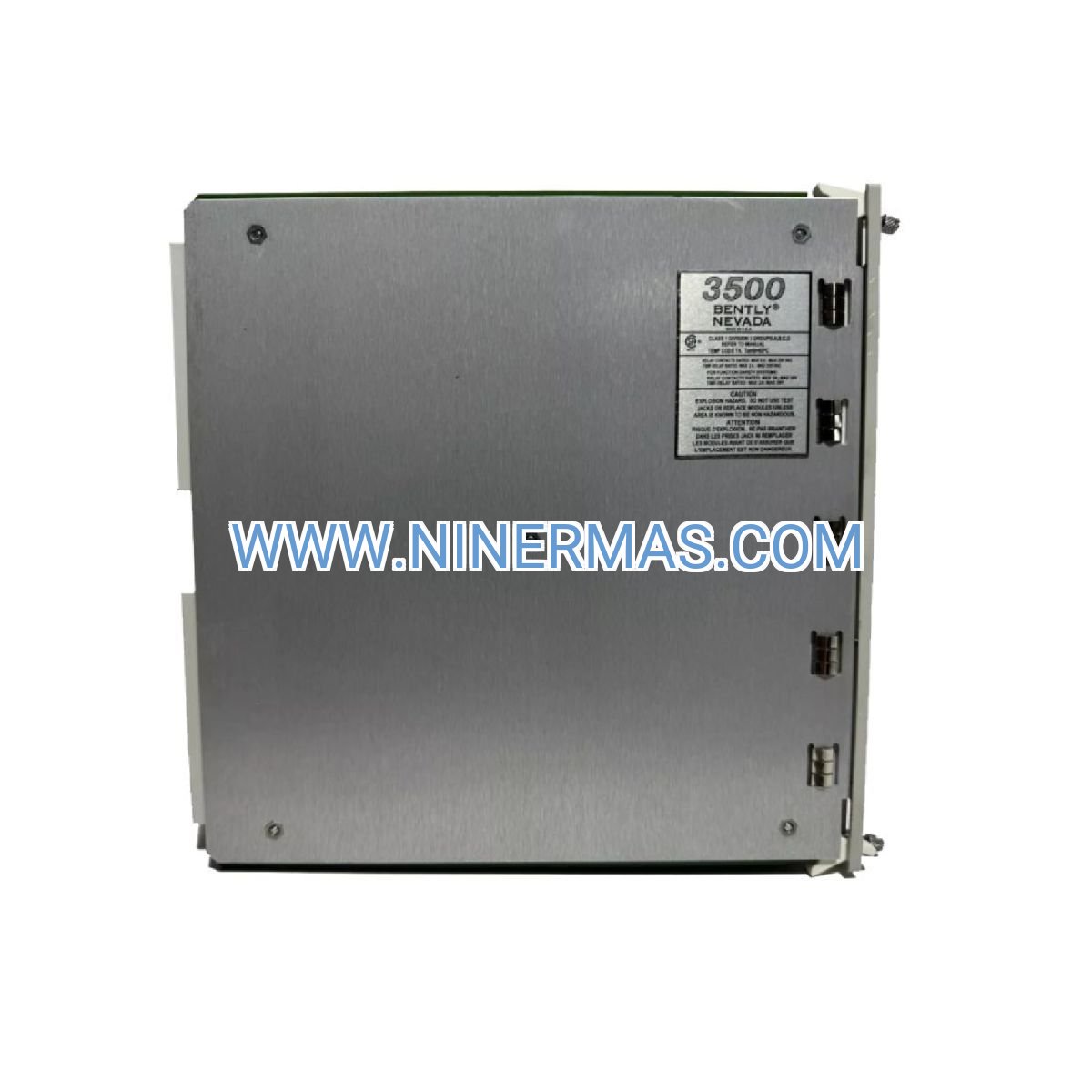

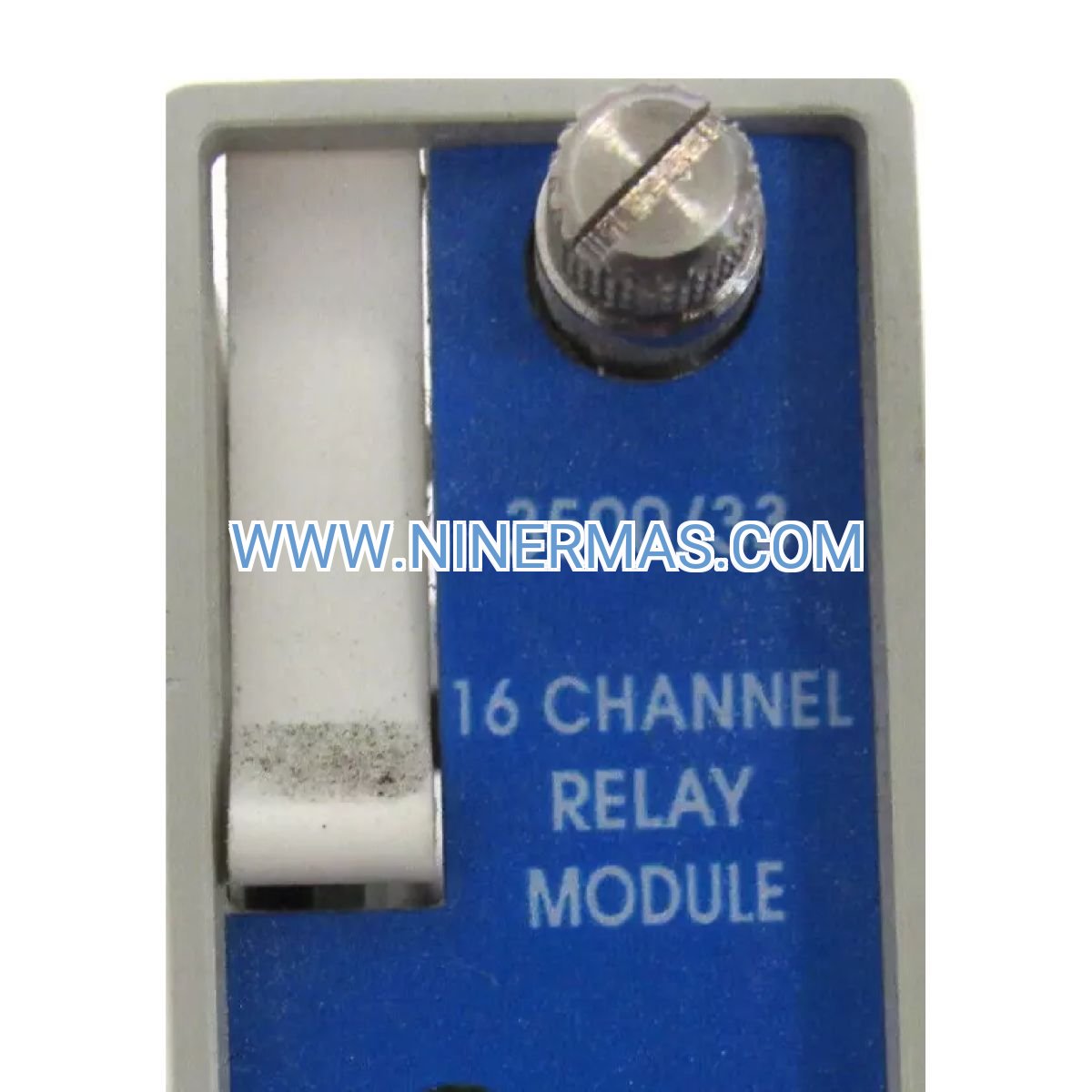

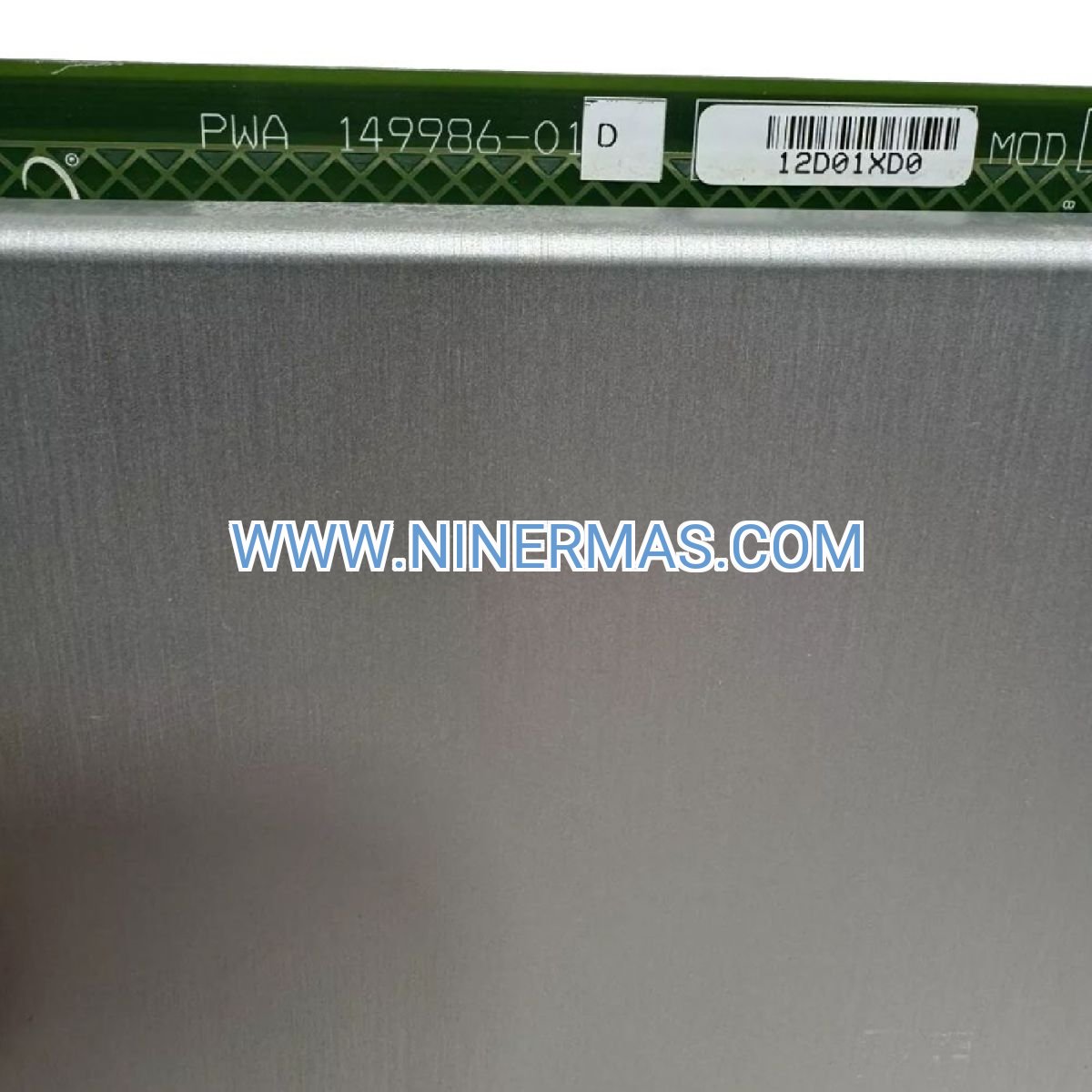

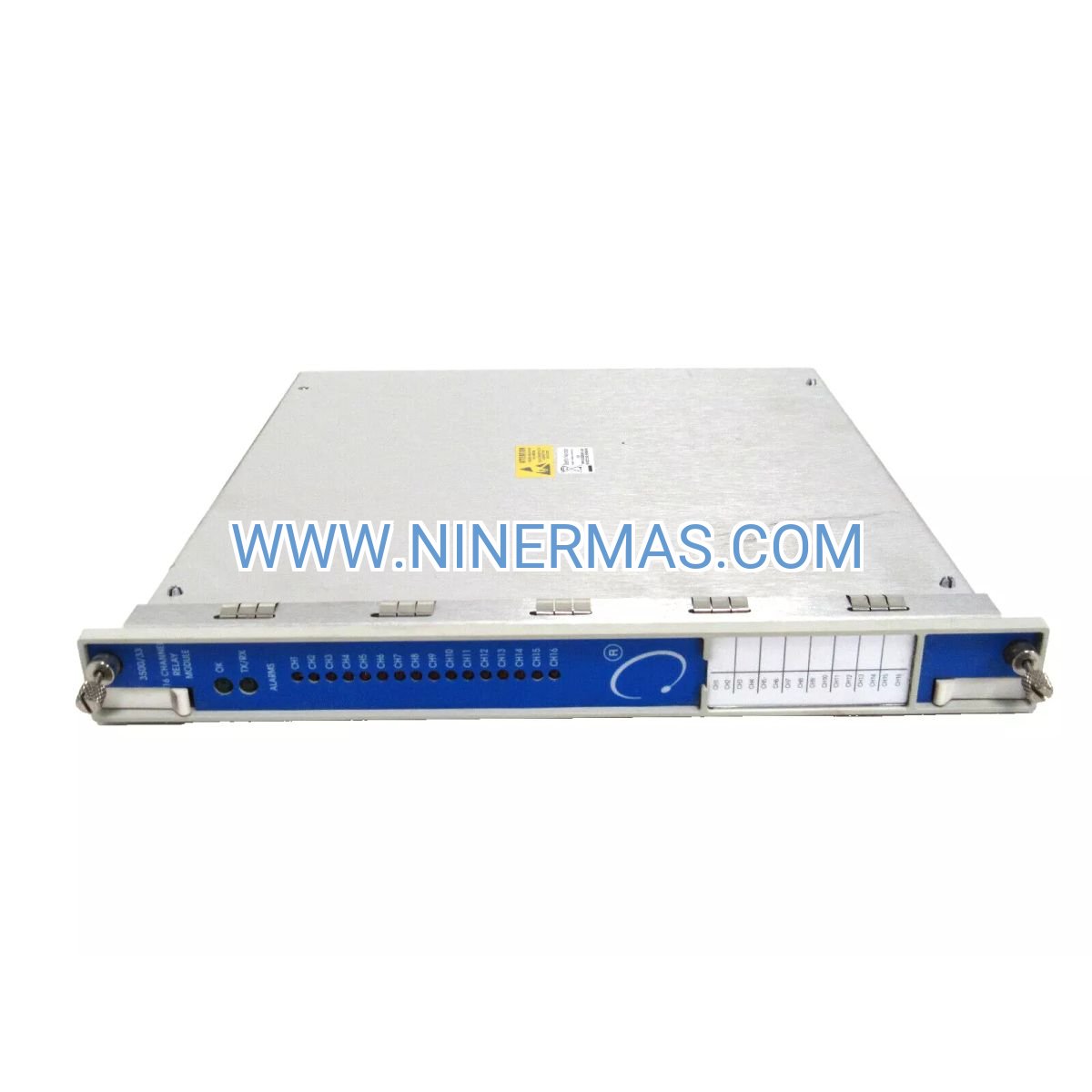

149986-01 Bently Nevada 3500/33 Relay Module (Industrial-Grade 16-Channel SPDT Output)

The 149986-01 relay module delivers mission-critical alarm annunciation and emergency shutdown capabilities for turbomachinery protection systems. Engineered with 16 independent SPDT relay channels, epoxy-sealed contacts rated for 10,000+ operational cycles, and configurable fail-safe logic, this module serves as the final control element in vibration monitoring, temperature surveillance, and process protection applications across power generation, petrochemical processing, and oil & gas production facilities.

Designed for integration within Bently Nevada 3500 series monitoring racks, the 149986-01 translates digital alarm signals from vibration monitors, proximity probes, and temperature sensors into hardwired relay outputs that drive shutdown valves, alarm annunciators, and distributed control system (DCS) inputs. Its dual-module architecture—combining a full-height main processor with a rear-mounted I/O terminal block—enables hot-swappable maintenance without process interruption in 24/7 continuous operations.

Target users include instrumentation engineers managing API 670 compliant machinery protection systems, reliability teams responsible for critical rotating equipment in refineries and LNG terminals, and maintenance planners seeking to reduce unplanned downtime through predictive alarm strategies. The module's proven track record in high-consequence applications makes it essential infrastructure for facilities where equipment failures carry $2M-50M replacement costs and 30-180 day outage penalties.

Core Capabilities & Business Value

→ 16 Independent SPDT Relay Channels
Each relay provides Form C contacts (common, normally open, normally closed) enabling simultaneous alarm annunciation and equipment shutdown from a single channel. Eliminates need for external relay multipliers, reducing panel space by 40% and wiring labor by 25 hours per installation compared to discrete relay solutions.

✓ Epoxy-Sealed Environmental Protection
Hermetically sealed relay assemblies withstand corrosive atmospheres (H₂S, chlorine, ammonia) and humidity extremes (5-95% RH non-condensing) common in offshore platforms, chemical plants, and coastal refineries. Field data shows 3× longer service life versus unsealed relays in marine environments, translating to $8,000-12,000 savings per module over 10-year lifecycle.

✓ Configurable Fail-Safe Operation
Four groups of four channels independently selectable for normally energized (NE) or normally de-energized (ND) operation. ND configuration ensures alarms activate on power loss or module failure—critical for emergency shutdown systems requiring 99.9% availability per IEC 61508 SIL 2 requirements. NE mode supports run-permissive interlocks where de-energization signals unsafe conditions.

✓ Integrated Arc Suppression
Factory-installed 250 Vrms suppressors across all contacts eliminate voltage transients during inductive load switching (solenoid valves rated 24-120 VDC/VAC). Prevents false trips in adjacent monitoring circuits and extends contact life to 10,000+ cycles—verified through accelerated life testing per MIL-STD-202 standards.

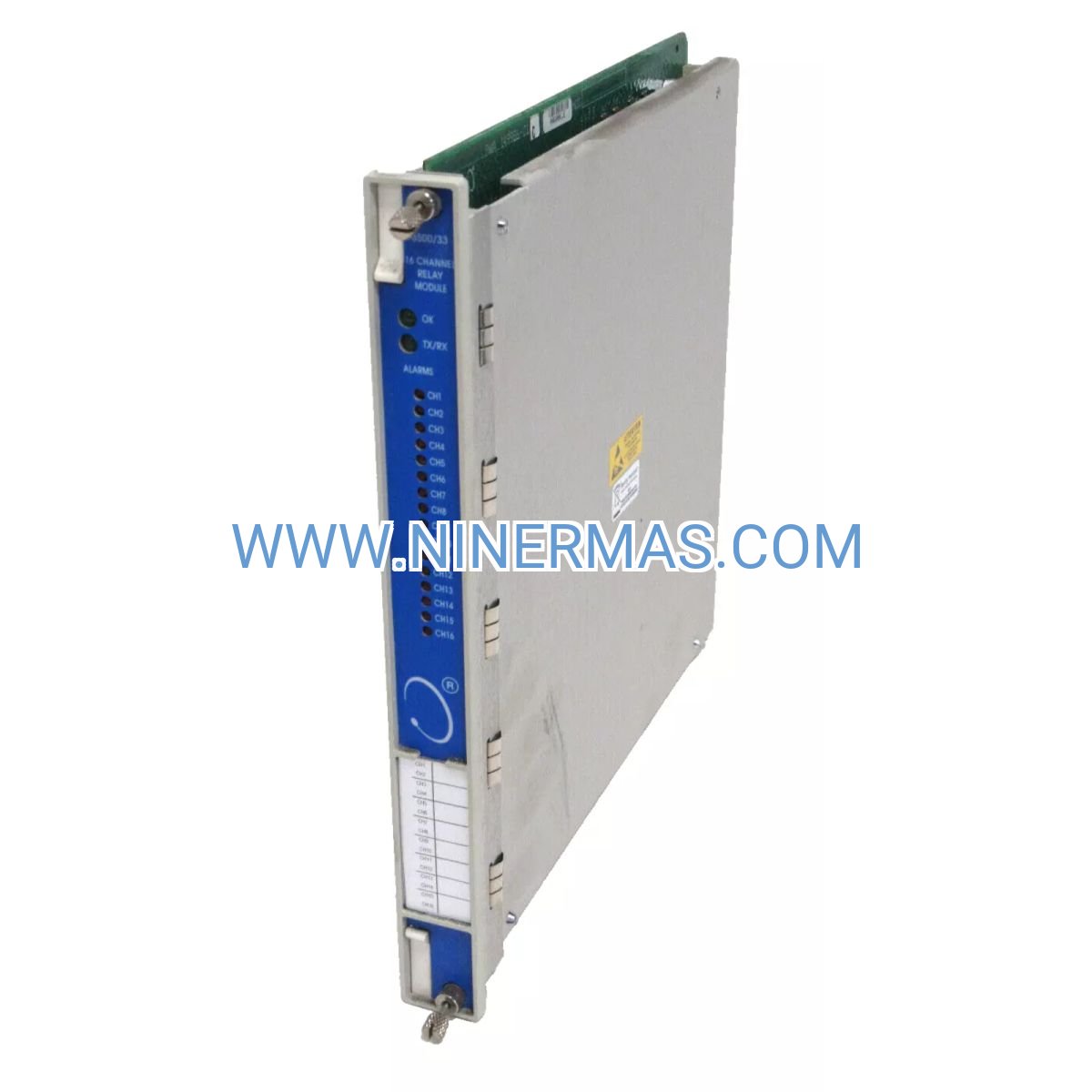

✓ Front-Panel Diagnostic LEDs
Real-time status indication via OK (module health), TX/RX (rack communication), and 16 individual channel alarm LEDs. Reduces mean time to repair (MTTR) from 90 minutes to 12 minutes during fault diagnosis, minimizing production losses during alarm system commissioning and troubleshooting.

✓ Hot-Swappable Architecture
Rear I/O module remains field-wired while front main module can be replaced under power without breaking terminal connections. Enables 15-minute module exchanges versus 4-hour rewiring procedures, critical for maintaining protection coverage during planned maintenance windows in continuous process industries.

Industrial Application Scenarios

Steam Turbine Emergency Trip Systems
In combined-cycle power plants (400-800 MW), the 149986-01 processes vibration, thrust position, and eccentricity alarms from 3500/42M proximity monitors to activate hydraulic trip valves and generator breakers. When shaft vibration exceeds 10 mils peak-to-peak or thrust bearing wear reaches alarm setpoints, relay outputs de-energize trip solenoids within 50 milliseconds—preventing blade rubs, seal failures, and catastrophic rotor damage that cost $15M-40M in repairs plus 90-180 day forced outages.

Centrifugal Compressor Anti-Surge Protection
Pipeline compressor stations (5,000-25,000 HP) use the module to interface vibration monitors with anti-surge controllers and recycle valve actuators. During surge events detected by 3500/50 tachometer modules (flow reversal, pressure pulsations), relay outputs open bypass valves and reduce driver speed within 200 milliseconds, avoiding impeller damage, seal gas leaks, and process upsets that trigger 14-30 day unplanned shutdowns costing $500K-2M in deferred production.

Generator Excitation & Protection Coordination
Hydrogen-cooled generators (50-500 MW) integrate the 149986-01 with rotor ground fault relays, loss-of-excitation protection, and vibration monitors. When rotor vibration exceeds API 541 alarm limits or ground fault currents are detected, relay outputs trip field breakers and initiate controlled shutdowns—isolating faults before insulation degradation escalates into stator winding failures requiring 6-18 month rewinds at $8M-25M cost.

Critical Pump & Motor Monitoring Networks
Refineries and chemical plants deploy the module for boiler feed pumps, reactor circulation pumps, and cooling tower fans where bearing temperature or vibration alarms require immediate operator notification. Relay outputs drive DCS alarm points, local annunciators, and motor starter trip circuits—enabling 30-second response times versus 5-15 minute delays with SCADA-only alarming, preventing bearing seizures, seal fires, and process safety incidents.

Offshore Platform Machinery Protection
FPSO vessels and fixed platforms use epoxy-sealed relays to withstand salt spray, humidity, and vibration in unmanned equipment rooms. The module's marine-grade construction maintains alarm integrity in Class I Division 2 hazardous areas (with -02 agency approval option), supporting 6-12 month inspection intervals versus 30-90 day maintenance cycles required for commercial-grade relay modules in offshore service.

Technical Specifications & Selection Guide

Selection Criteria: Choose the 149986-01 when your application requires 16 or fewer relay outputs per rack slot. For systems needing 17-32 outputs, consider dual modules or the 3500/34 (4-channel TMR) for SIL 3 applications. Verify that connected loads (solenoid valves, contactors, annunciators) operate within 5A @ 250 VAC contact ratings—use external interposing relays for higher current loads (motor starters >10A). Specify -02 agency approval suffix for installations in Class I Division 2 / Zone 2 hazardous areas per NEC 500 / IEC 60079 classifications.

Extended Functionality & Integration

3500 Rack Communication Protocol: The module communicates via proprietary backplane protocol with 3500 rack controller and monitoring modules at 1 Mbps data rate. Each relay channel can be programmed to respond to any alarm condition from any monitor in the rack—enabling complex voting logic (2-out-of-3, 1-out-of-2) and cross-channel interlocks without external PLC programming. Configuration performed via 3500 Rack Configuration Software over Ethernet or serial connection.

Modbus TCP/RTU Integration: When paired with 3500/92 communication gateway, relay status and alarm conditions are accessible via Modbus TCP (Ethernet) or Modbus RTU (RS-485) for integration with DCS platforms (Honeywell Experion, Emerson DeltaV, Yokogawa Centum), SCADA systems (Wonderware, iFIX, WinCC), and plant historians (OSIsoft PI, AspenTech IP.21). Enables remote alarm acknowledgment and relay testing without field access.

Customization & Special Orders: Factory customization available for non-standard contact ratings (low-level signals 10mA @ 5VDC for PLC inputs), extended temperature ranges (-40°C to +70°C for Arctic/desert installations), and conformal coating (tropical/marine environments). Minimum order quantities and 8-12 week lead times apply for custom configurations—consult factory for feasibility and pricing.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units shipping from our Shanghai distribution center to destinations within China (Beijing, Guangzhou, Shenzhen, Chengdu). International shipments to Southeast Asia (Singapore, Malaysia, Thailand) typically deliver within 7-10 business days via DHL/FedEx express. North America and Europe destinations require 10-14 business days including customs clearance.

Custom Configuration Lead Time: Special agency approvals (-02 suffix), non-standard contact ratings, or factory testing/calibration certificates extend delivery to 6-8 weeks from order confirmation. Expedited processing available for critical outage situations—contact our technical sales team for emergency support options.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship from date of shipment. Warranty includes free replacement of defective modules and return shipping costs. Extended warranties (24-36 months) available for critical sparing applications—pricing based on quantity and service level requirements.

Technical Support: Lifetime technical support via email (sale@ninermas.com) and phone (+0086 187 5021 5667) during business hours (GMT+8). Support includes wiring diagram assistance, configuration file review, troubleshooting guidance, and compatibility verification with existing 3500 rack components. On-site commissioning support available in major industrial regions—quoted separately based on location and scope.

Documentation Package: Each module ships with installation manual (English/Chinese), wiring diagrams, configuration templates, and dimensional drawings in PDF format. Additional resources include 3500 System Integration Guide, API 670 compliance documentation, and relay contact life calculation spreadsheets—available for download from our technical library at https://ninermas.com.

Frequently Asked Questions

How do I interface the 149986-01 relay outputs with my DCS or PLC system?
Connect relay common and normally open (NO) contacts to DCS/PLC digital input modules rated for 24 VDC or 120 VAC (match your control system voltage). Use normally closed (NC) contacts for fail-safe alarm inputs where open circuit indicates alarm condition. For low-voltage PLC inputs (5-15 VDC), specify external pull-up resistors (1-10kΩ) or use interposing relays to avoid contact arcing at sub-milliamp currents that can cause premature contact failure.

What is the maximum cable length between the relay module and field devices?
Relay contact wiring supports up to 300 meters (1,000 feet) for 120 VAC loads and 150 meters (500 feet) for 24 VDC loads using 18 AWG shielded cable. Longer distances require voltage drop calculations—each 100 meters adds approximately 2-3 VDC drop at 1A load current. For remote installations exceeding these distances, use local interposing relays or 4-20mA signal converters to minimize voltage drop and electromagnetic interference.

Can the module drive high-current loads like motor starters or large solenoid valves?
Direct contact rating is 5A @ 250 VAC resistive—suitable for pilot duty solenoid valves (24-120 VAC, 10-50W), alarm annunciators, and small contactors. For motor starters >5A or inductive loads >100VA, use external interposing relays (Potter & Brumfield KRPA, Omron MY4N) rated 10-15A to isolate the 149986-01 contacts from high inrush currents and back-EMF transients that reduce contact life.

How does the fail-safe operation work during power loss or module failure?
In Normally De-energized (ND) mode, relay coils are energized during normal operation and de-energize upon alarm, power loss, or module fault—causing contacts to switch to alarm state. This configuration meets IEC 61508 fail-safe requirements for emergency shutdown systems. Normally Energized (NE) mode reverses this logic for run-permissive applications. Configure ND/NE per group (4 channels) via 3500 Rack Configuration Software based on your safety logic requirements.

Is the module compatible with older 3500/32 relay modules in the same rack?
Yes—the 149986-01 is backward compatible with all 3500 rack configurations (3500/05, 3500/15, 3500/20, 3500/22M) and can coexist with legacy 3500/32 (4-channel) and 3500/34 (TMR) modules. Firmware version 5.0 or later required on 3500/22M rack controller for full functionality. Mixed module configurations common in phased upgrade projects where relay capacity is expanded without replacing entire protection system.

What maintenance procedures are recommended for long-term reliability?
Perform annual relay contact testing using built-in test function in 3500 Rack Configuration Software—verifies contact continuity and switching operation without field wiring disconnection. Inspect terminal block connections every 6-12 months for loose screws (torque to 0.5-0.6 Nm per manual). Clean front panel LEDs and ventilation slots annually to prevent dust accumulation. Replace modules showing erratic switching behavior or contact resistance >0.5Ω—typical service life 10-15 years in controlled environments, 5-8 years in harsh industrial atmospheres.

Order Your 149986-01 Relay Module Today

Secure your turbomachinery protection infrastructure with genuine Bently Nevada relay modules backed by global service support. Our technical sales team is ready to assist with system design, compatibility verification, and quantity discounts for multi-unit orders. Contact us at sale@ninermas.com or +0086 187 5021 5667 to discuss your machinery protection requirements and receive a detailed quotation within 24 hours.

For immediate ordering, add the 149986-01 to your cart and proceed to checkout. We accept wire transfer, PayPal, and major credit cards for international transactions. Volume pricing available for orders of 5+ modules—request quote for project-specific configurations and delivery schedules.
