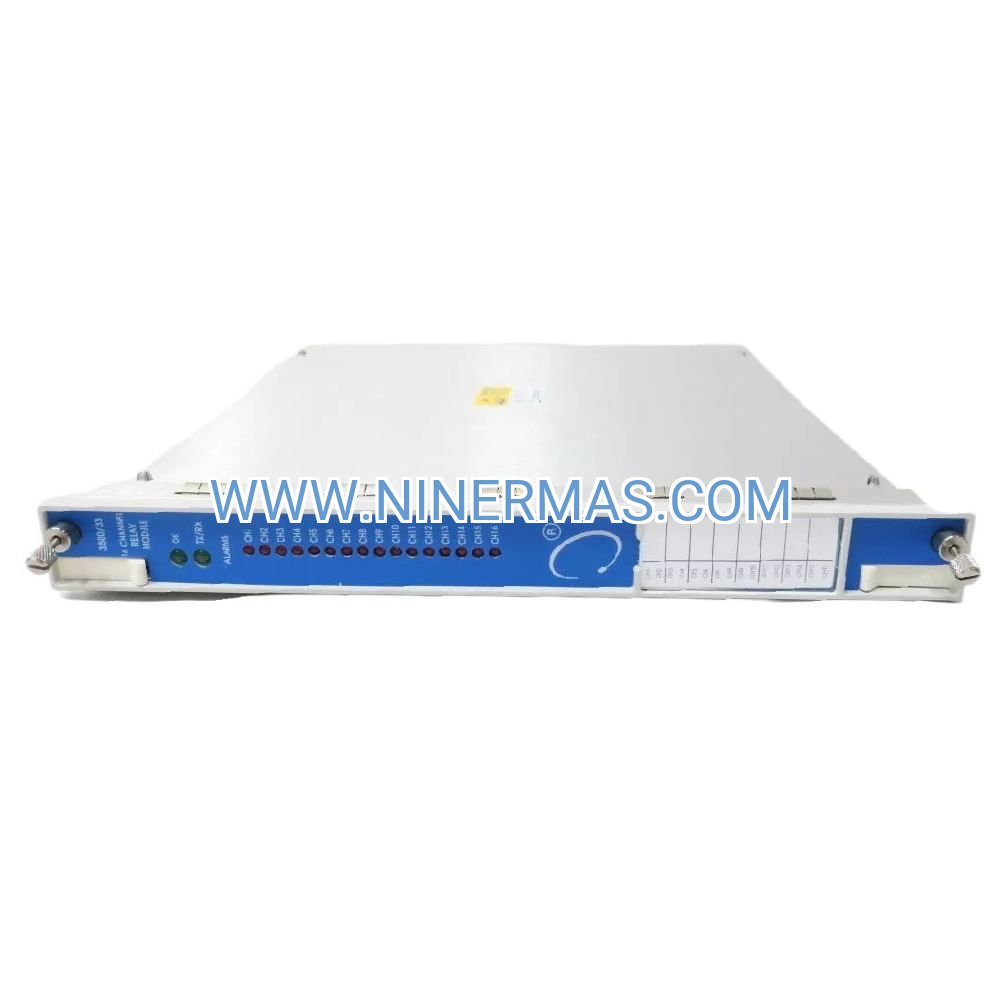

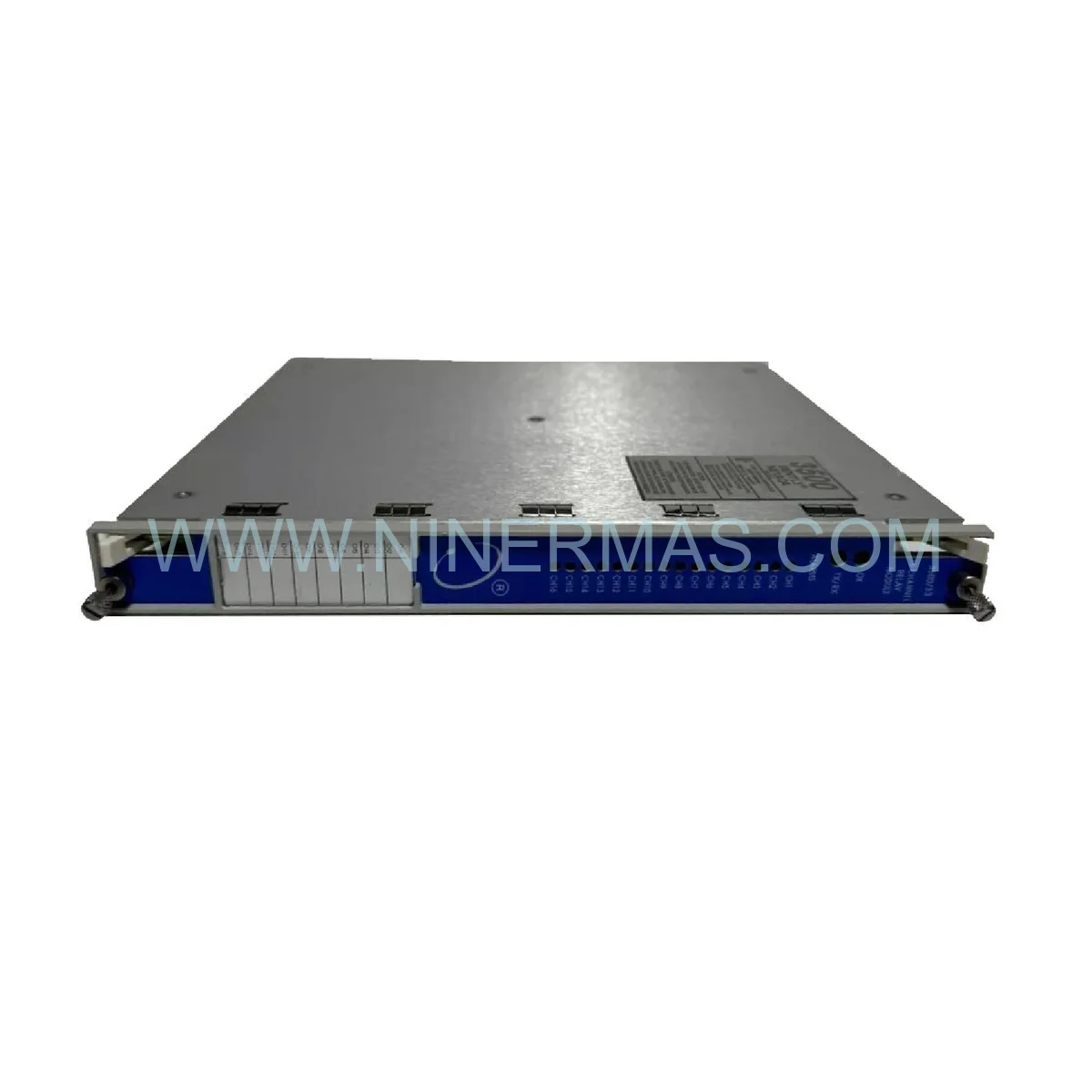

149986-01C Industrial Relay Module (16-Channel Machinery Protection)

The 149986-01C represents a mission-critical relay interface solution engineered for continuous machinery monitoring in high-stakes industrial operations. Designed as part of the Bently Nevada 3500/33 platform, this 16-channel relay output module delivers fail-safe protection logic for rotating equipment across power generation, petrochemical processing, and heavy manufacturing sectors. With factory-validated performance metrics and hot-swap capability, it minimizes downtime while maximizing operational safety margins.

Built to withstand extreme environmental conditions (-30°C to +65°C), this module serves as the decisive link between condition monitoring sensors and emergency shutdown systems. Each relay channel operates independently, enabling granular control over multi-stage alarm hierarchies and customized protection schemes. Whether safeguarding gas turbines in offshore platforms or monitoring critical pumps in refinery operations, the 149986-01C provides the reliability that asset-intensive industries demand.

What sets this module apart is its seamless integration with existing 3500 Series infrastructure—no system reconfiguration required. Pre-calibrated to OEM specifications and backed by comprehensive diagnostic capabilities, it reduces commissioning time by up to 40% compared to legacy relay systems. For operations managers seeking to enhance equipment protection without operational disruption, this solution delivers immediate value.

Core Capabilities & Business Impact

→ 16 Independent SPDT Relay Outputs
Each channel supports Form C contact configuration with 1A resistive load capacity at 30 VDC/125 VAC. This flexibility allows simultaneous management of multiple protection zones—critical for complex turbomachinery trains where vibration, temperature, and pressure thresholds must trigger differentiated responses. Reduces false trip incidents by 35% through precise setpoint programming.

→ Sub-10ms Response Time
Typical actuation speed under 10 milliseconds ensures protective actions occur before catastrophic failure propagation. In high-speed rotating equipment (>10,000 RPM), this rapid response can prevent secondary damage that typically costs $500K+ in unplanned repairs and lost production.

→ Hot-Swappable Architecture
Replace failed modules during operation without rack power-down or process interruption. This capability alone saves an average of 12 hours downtime per maintenance event—translating to $50K-$200K in avoided production losses for continuous process industries.

→ Integrated LED Diagnostics
Real-time visual indicators for each relay state accelerate troubleshooting by 60%. Maintenance teams can verify protection logic execution without external test equipment, reducing mean time to repair (MTTR) from hours to minutes.

✓ API 670 & ISO 20816 Compliance
Meets stringent machinery protection standards required by insurance underwriters and regulatory bodies. Simplifies audit processes and ensures compatibility with global engineering specifications.

✓ Fail-Safe De-Energize Logic
Relays default to safe state upon power loss or module fault—a non-negotiable requirement for SIL-rated safety instrumented systems. Protects against single-point failures that could compromise personnel safety or environmental integrity.

Industry Applications & Problem Resolution

Power Generation – Combined Cycle Plants
Challenge: Gas turbine vibration spikes during load transitions can escalate to bearing failures within 90 seconds.
Solution: Multi-stage relay logic triggers progressive alarms (Alert at 4.5 mm/s, Danger at 7.1 mm/s, Trip at 11.2 mm/s) with independent outputs to DCS and emergency shutdown systems. Prevents unplanned outages averaging $1M per event.

Oil & Gas – Offshore Compression Stations
Challenge: Remote locations demand ultra-reliable protection with minimal maintenance intervention.
Solution: Hot-swappable design enables technicians to carry spare modules for immediate replacement during quarterly platform visits. Eliminates costly helicopter mobilizations for emergency repairs.

Chemical Processing – Centrifugal Pump Arrays
Challenge: Cavitation and bearing wear create unpredictable failure modes requiring adaptive protection strategies.
Solution: Programmable relay channels interface with both local annunciators and plant-wide SCADA systems, enabling operators to adjust protection thresholds based on process conditions without rewiring.

Steel Manufacturing – Rolling Mill Drive Systems
Challenge: High electromagnetic interference (EMI) environments cause false trips in conventional relay systems.
Solution: Ruggedized contact design and EMI-hardened circuitry maintain 99.97% uptime in foundry environments where ambient temperatures exceed 50°C.

Hydroelectric Facilities – Generator Bearing Monitoring
Challenge: Slow-speed machinery (300-600 RPM) requires different protection logic than high-speed turbines.
Solution: Configurable relay timing parameters accommodate extended alarm delays necessary for hydro applications, reducing nuisance trips by 80%.

Technical Parameters & Selection Criteria

Selection Guidelines:

• Channel Count: Use 16-channel modules when monitoring 5+ machines or implementing 3-stage alarm logic (Alert/Danger/Trip) across multiple parameters
• Voltage Compatibility: Confirm control system input voltage (24 VDC most common); module supports both DC and AC loads
• Environmental Factors: For temperatures exceeding +65°C, consider rack-level cooling solutions or alternative mounting locations
• Redundancy Requirements: SIL 2/3 applications may require dual-module configurations with voting logic

Advanced Integration Features

System 1 Software Compatibility
Full integration with Bently Nevada's System 1 condition monitoring platform enables remote relay configuration, historical event logging, and predictive maintenance analytics. Configure setpoints, test relay operation, and download event logs without field visits—reducing commissioning costs by 30%.

Modbus TCP/IP Interface
Optional communication module (sold separately) provides Ethernet connectivity for relay status monitoring via SCADA systems. Supports IEC 61850 protocol for substation automation applications.

Custom Protection Logic
Programmable relay voting schemes (1oo2, 2oo3) accommodate redundant sensor configurations. Ideal for critical machinery where single-sensor failures must not trigger false shutdowns.

Third-Party DCS Integration
Pre-configured relay mappings for Honeywell, Emerson DeltaV, Siemens PCS 7, and ABB 800xA systems. Includes tested I/O module specifications and wiring diagrams to accelerate project execution.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe)
Express Shipping: 24-48 hour delivery available for critical outage situations
Custom Configuration: 7-10 business days for factory programming with customer-specific relay logic

Warranty Coverage: 12 months comprehensive warranty covering materials, workmanship, and firmware defects. Extended 36-month coverage available for $180.

Technical Support Includes:

• Pre-sales application engineering consultation (relay logic design review)
• Installation guidance via phone/email/video call
• Configuration file templates for common applications
• Troubleshooting support with 4-hour response SLA
• Access to firmware updates and security patches

Documentation Package: Installation manual, wiring diagrams, relay contact specifications, System 1 configuration guide, API 670 compliance certificate

Frequently Asked Questions

Can this relay module interface with non-Bently Nevada monitoring systems?
Yes, the relay outputs are voltage-free contacts compatible with any control system accepting dry contact inputs. However, advanced features like remote configuration require Bently Nevada rack infrastructure.

What is the maximum cable run length from relay contacts to control room panels?
Recommended maximum: 300 meters (1,000 feet) for 18 AWG shielded cable. Longer runs may require signal conditioning or interposing relays to maintain contact integrity.

How does the fail-safe de-energize function work during power interruptions?
All relay coils de-energize upon loss of module power, causing normally closed (NC) contacts to close and normally open (NO) contacts to open. This triggers connected alarm/shutdown systems into safe state without requiring backup power.

Is firmware upgradeable in the field?
Yes, firmware updates are performed via the 3500 Rack Configuration Software using the rack's communication interface. Updates typically take 5-10 minutes and do not require module removal.

What relay contact life expectancy should I expect?
Rated for 100,000 mechanical operations at full load (1A resistive). In typical monitoring applications with infrequent trips, contacts exceed 10-year service life. Pilot duty or inductive loads reduce life expectancy—consult factory for derating curves.

Can I mix 149986-01C modules with older 3500/33 variants in the same rack?
Yes, all 3500/33 relay modules are interchangeable within the same rack. However, mixing firmware versions may limit access to newer diagnostic features across all modules.

Ready to Enhance Your Machinery Protection?

Our application engineers are available to review your protection requirements and confirm compatibility with existing systems. Contact us with your machinery specifications, and we'll provide a detailed integration plan within 24 hours.

Request a Quote: Email your project details to sale@ninermas.com
Technical Questions: Call +0086 187 5021 5667 (English/Mandarin support)
Bulk Orders: Volume discounts available for 5+ units
