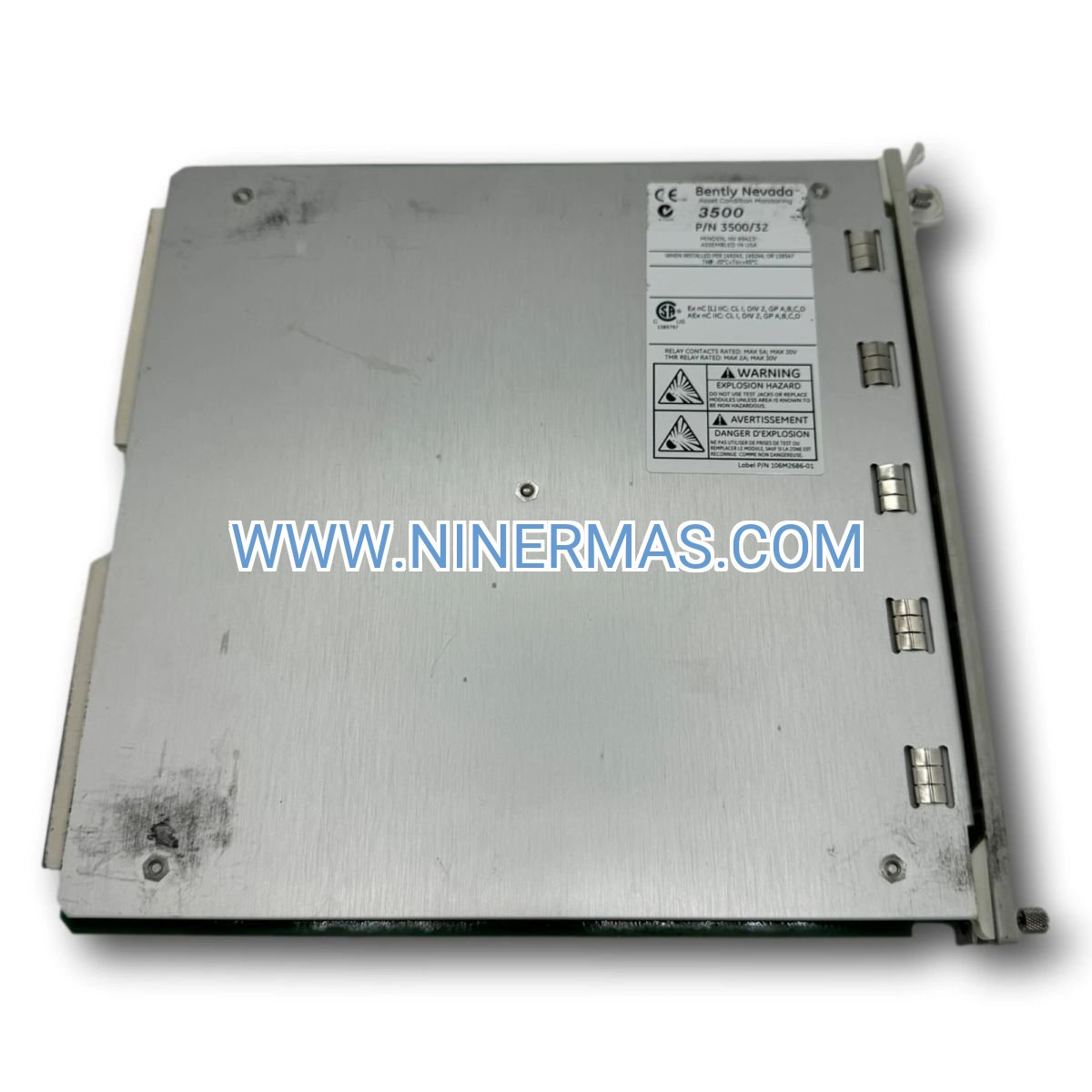

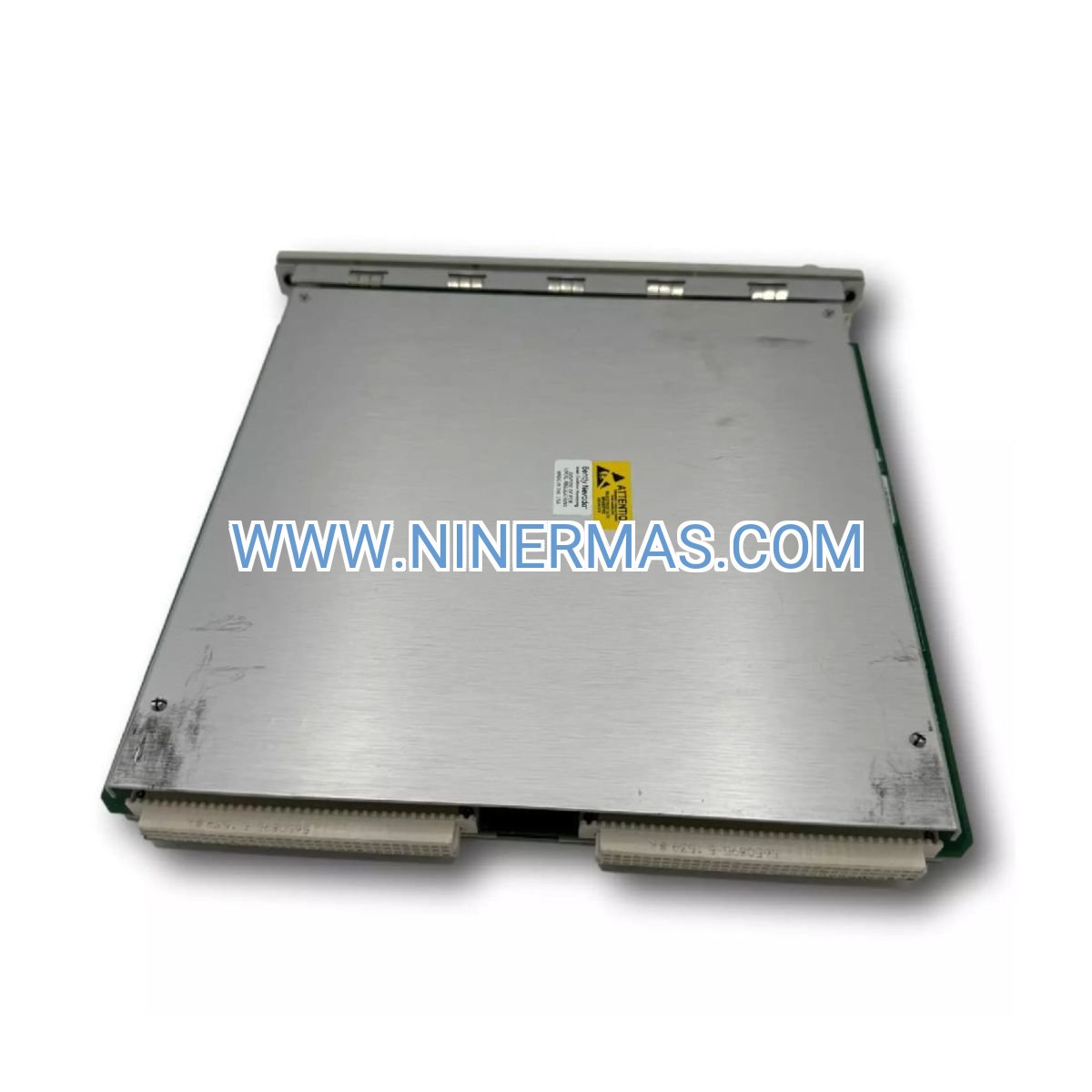

3500/32 Four-Channel Relay Module (Industrial-Grade Alarm Interface)

The Bently Nevada 3500/32 149986-02 delivers mission-critical relay output functionality for turbomachinery protection systems. Engineered as the intelligent bridge between vibration monitors and plant safety systems, this four-channel module transforms digital alarm signals into hardwired relay contacts—enabling automated emergency shutdowns, DCS integration, and fail-safe machinery protection across power generation, oil & gas, and heavy industrial facilities.

Core Features & Industrial Advantages

→ Programmable Logic Engine: Configure AND/OR/NOT/voting logic (2oo3, 2oo4) to eliminate false trips while maintaining SIL-2 safety integrity—critical for turbines where nuisance shutdowns cost $50K+ per event

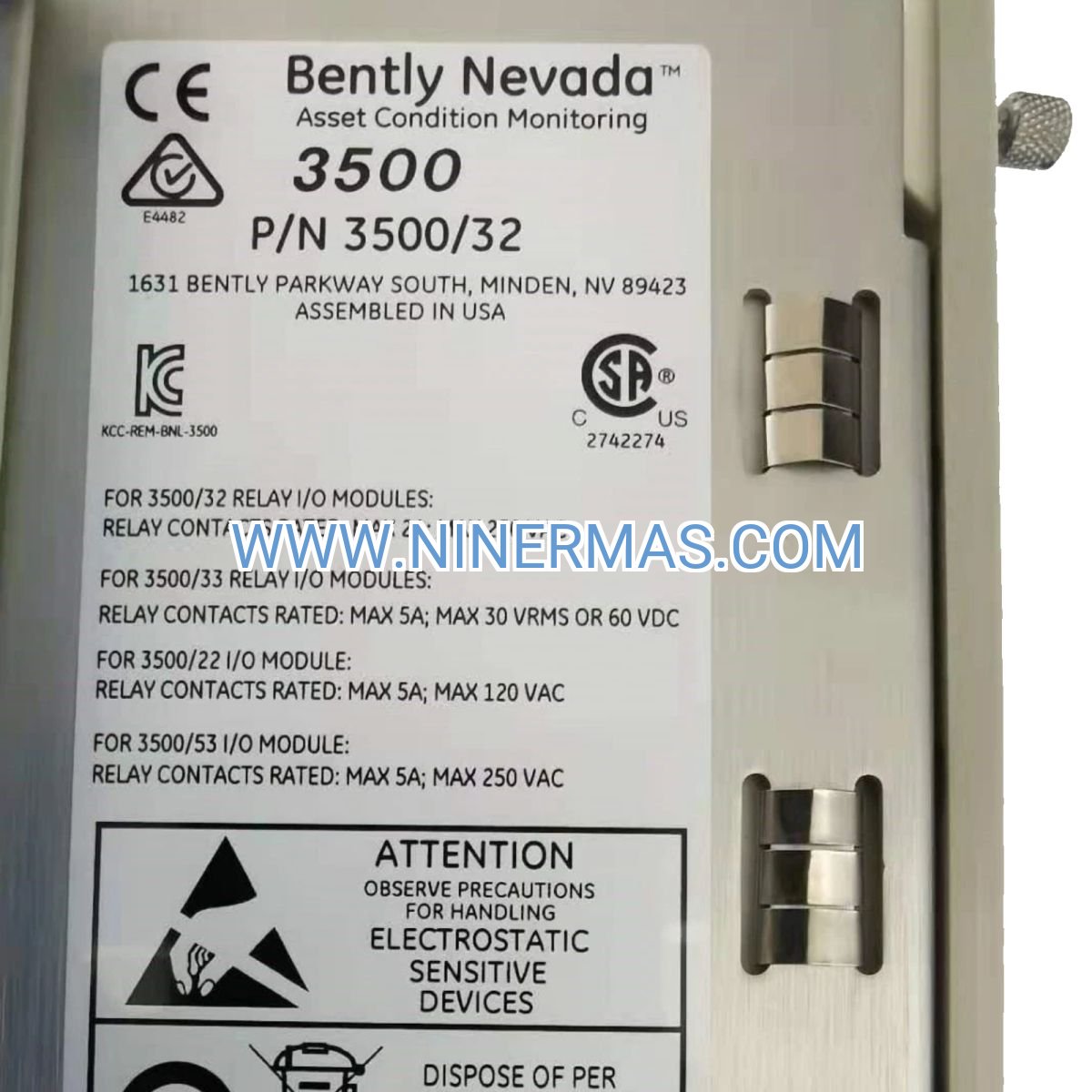

✓ Form C Contact Flexibility: Each channel provides NO/NC/COM terminals with 5A@250VAC rating, supporting both fail-safe and fail-operational architectures for diverse safety requirements

✓ Multi-Source Alarm Aggregation: Single relay can monitor any combination of 3500 rack monitors (vibration, temperature, position), enabling complex protection schemes without external logic solvers

✓ Time-Delay Intelligence: Programmable 0-60 second pickup/dropout delays filter transient disturbances during startups, preventing costly false trips while preserving genuine fault detection

✓ Hot-Rack Architecture: Installs in any 3500/05 rack slot without position restrictions; supports multiple modules for applications requiring 8, 12, or 16+ relay outputs

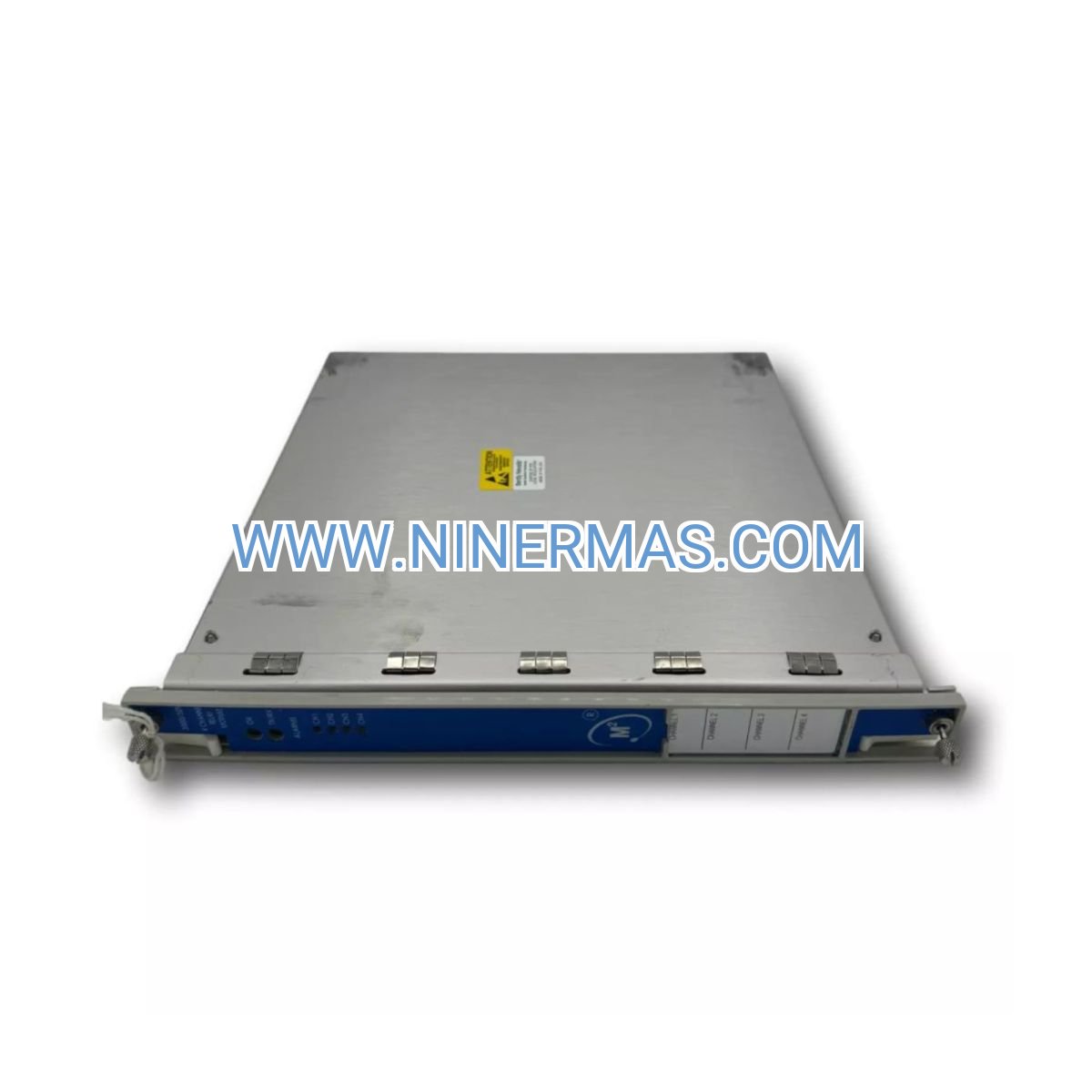

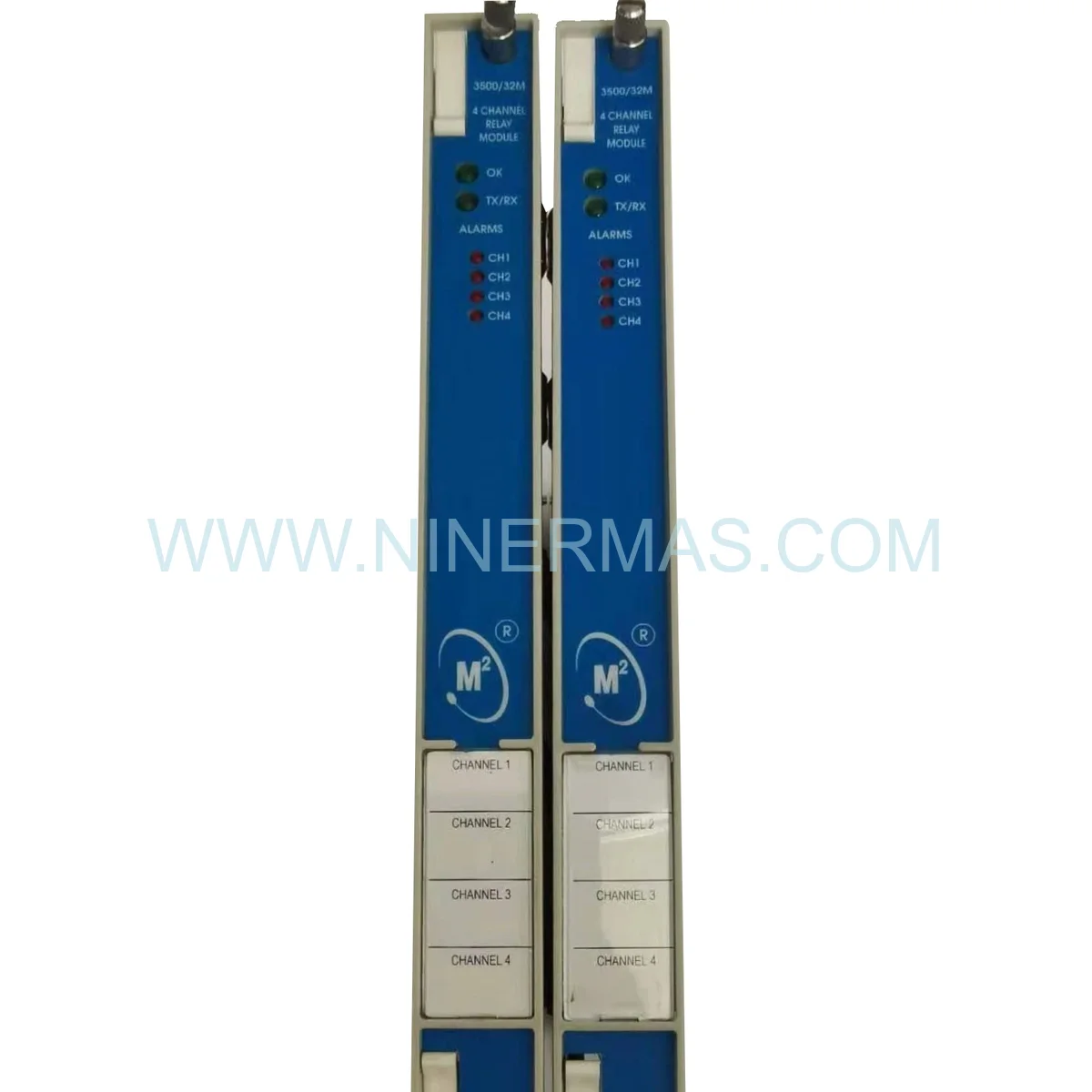

✓ Diagnostic Transparency: Four-LED status array plus embedded operation counters track relay health, predict contact wear, and log last 100 activation events for root-cause analysis

Typical Application Scenarios

Steam Turbine Emergency Shutdown: Petrochemical plants deploy 2oo3 voting logic where two of three radial vibration monitors must exceed 10 mil pk-pk before relay trips turbine stop valve—reducing false trips by 87% versus single-monitor schemes while maintaining API 670 compliance.

Compressor Train Protection: LNG facilities use sequential relay logic to coordinate multi-stage shutdowns: Relay 1 closes anti-surge valve at Alert level (5-second delay), Relay 2 trips driver at Danger level (immediate), Relay 3 activates backup lube oil pump—preventing catastrophic bearing failures during coastdown.

DCS Alarm Annunciation: Power generation sites interface 3500/32 relays with Emerson DeltaV or Honeywell Experion systems, providing real-time vibration alarm status to control room operators while maintaining hardwired trip capability independent of network availability.

PLC-Based Interlock Systems: Manufacturing plants connect relay outputs to Allen-Bradley or Siemens PLCs for automated responses—starting standby pumps when primary unit vibration exceeds thresholds, closing isolation valves during bearing temperature excursions, or activating fire suppression during seal failures.

Redundant Safety Systems: Offshore platforms implement dual 3500/32 modules with separate wiring to SIS logic solvers, achieving SIL-3 capability through 1oo2D architecture—ensuring gas turbine protection even during single-module failures or maintenance activities.

Technical Parameters & Selection Guide

Selection Criteria: Choose 3500/32 for standard 4-output applications; upgrade to 3500/33 when requiring 16+ outputs or when rack slot space is constrained. For SIL-2/3 applications, deploy dual modules with diverse wiring. Verify contact ratings exceed connected load by 50% margin to ensure 10-year service life.

Extended Functions & System Integration

IoT & Remote Monitoring: When paired with 3500/92 Communication Gateway, relay status streams to cloud-based condition monitoring platforms via Modbus TCP or OPC UA—enabling predictive maintenance teams to correlate relay activations with vibration trends and schedule interventions before failures occur.

Advanced Alarm Processing: Latching mode maintains relay state after alarm clears, requiring manual reset via configuration software or external reset input—ensuring operators acknowledge faults and verify corrective actions before restarting equipment.

Customization Options: Factory configuration services available for pre-programmed relay logic, custom terminal labeling, and extended temperature ratings (-40°C to +75°C) for extreme environments like Arctic drilling or desert refineries.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency outages (additional fees apply)

Custom Configuration: 7-10 business days for factory-programmed modules with customer-specific relay logic and terminal labeling

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship; extended 36-month plans available for critical spares inventory

Technical Support: Lifetime application engineering assistance including relay logic design review, contact load calculations, and troubleshooting support via phone/email

Documentation Package: Includes installation manual, relay logic programming guide, terminal wiring diagrams, and 3500 Rack Configuration Software (latest version)

Frequently Asked Questions

Q: How do I interface 3500/32 relay outputs with Allen-Bradley PLC digital inputs?
A: Connect relay COM to PLC common, NO contact to input terminal. Configure PLC input as sinking (NPN) with 24VDC supply. Use shielded cable for runs exceeding 30 meters to prevent EMI-induced false triggers in high-noise industrial environments.

Q: What relay capacity do I need for switching 120VAC solenoid valves rated 0.5A inrush?
A: 3500/32 contacts handle 2A inductive @ 250VAC (cosφ=0.4), providing 4× safety margin for your 0.5A load. Install 0.1µF + 100Ω RC snubber across solenoid coil to suppress inrush spikes and extend contact life beyond 100K operations.

Q: Can I achieve SIL-3 machinery protection using 3500/32 relay modules?
A: Yes, via 1oo2D architecture: Deploy two 3500/32 modules monitoring identical alarm sources with separate wiring to dual-channel SIS logic solvers. Perform quarterly proof testing per IEC 61511 to detect dangerous undetected failures and maintain SIL-3 integrity.

Q: How do I program 2oo3 voting logic to prevent false trips from single vibration monitor failures?
A: In 3500 Rack Configuration Software, select Relay 1 → Add Alarm Sources (Monitor A, B, C) → Set Logic Type: "2 out of 3 Voting" → Configure Danger level trigger. Relay activates only when any two monitors simultaneously exceed setpoints—reducing nuisance trips by 85%.

Q: What's the maximum wire run length for relay contact wiring to remote control panels?
A: 300 meters for resistive loads using 18 AWG wire (voltage drop <2%). For inductive loads or high-EMI environments, limit to 100 meters with shielded twisted-pair cable, grounded at module end only to prevent ground loops.

Q: Does the 3500/32 module support hot-swapping during online operation?
A: No—module replacement requires rack power-down to prevent inadvertent relay activation during insertion/removal. For zero-downtime maintenance, implement redundant relay modules with separate wiring, allowing one module to remain active during the other's replacement.
