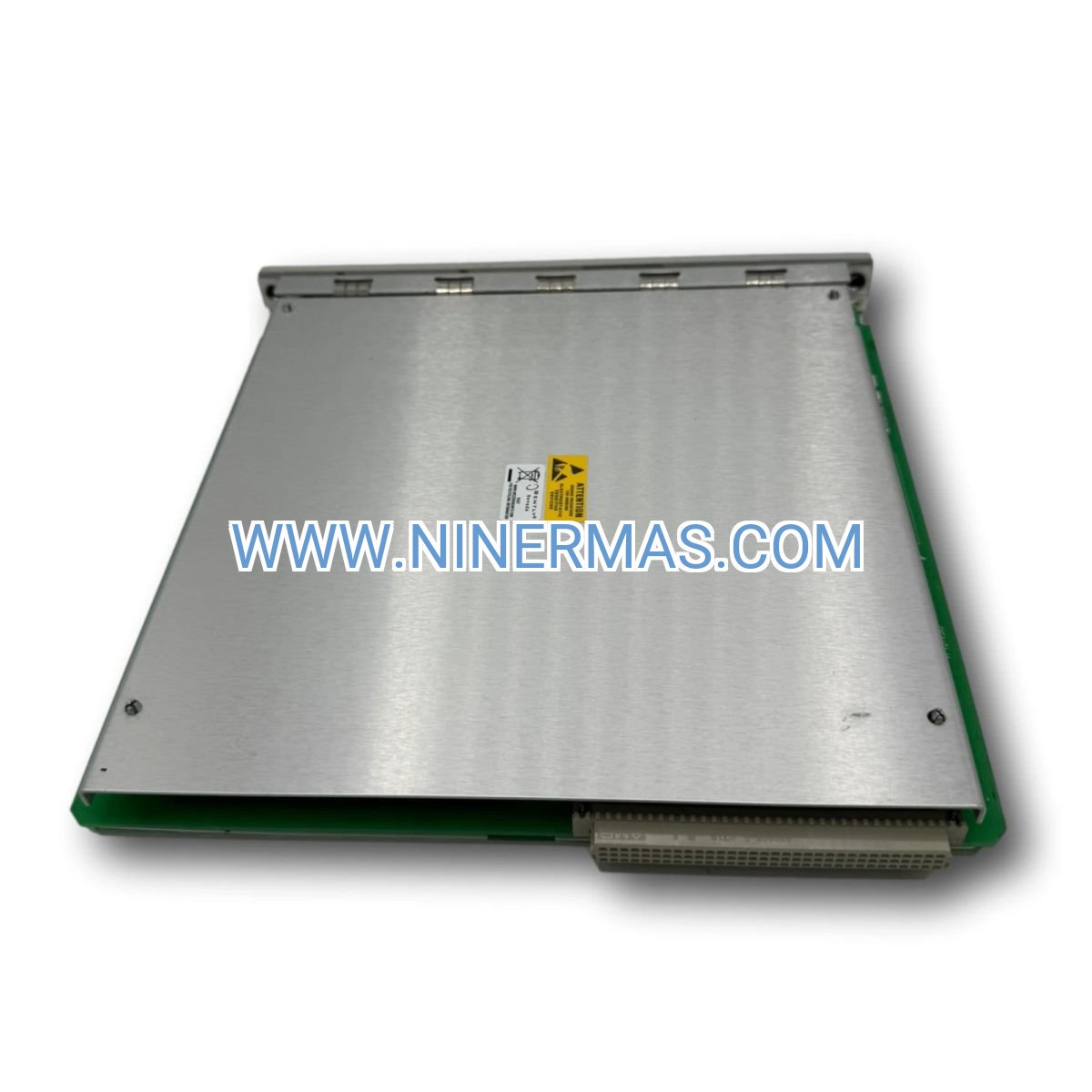

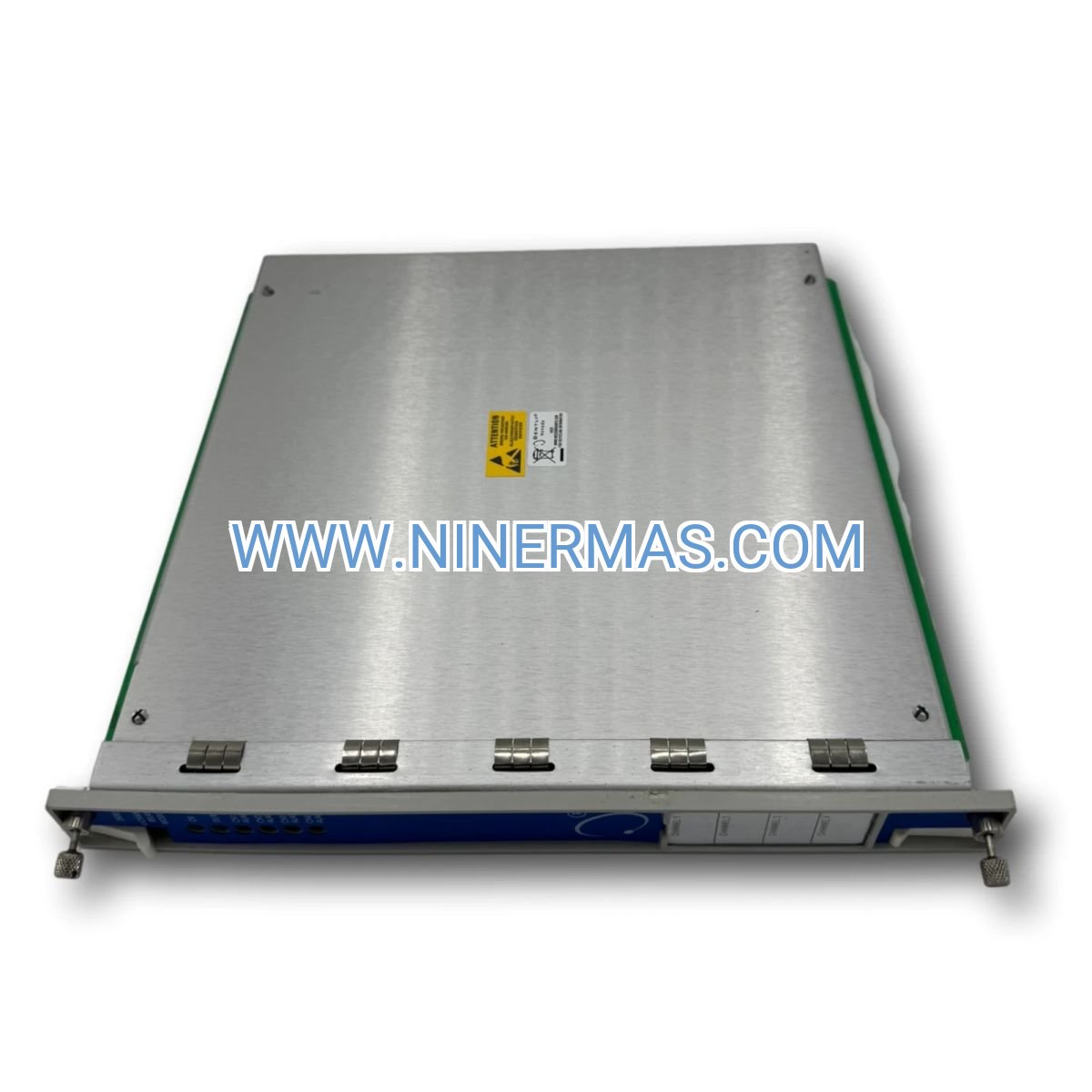

Industrial-Grade 4-Channel Relay Module for Critical Machinery Protection

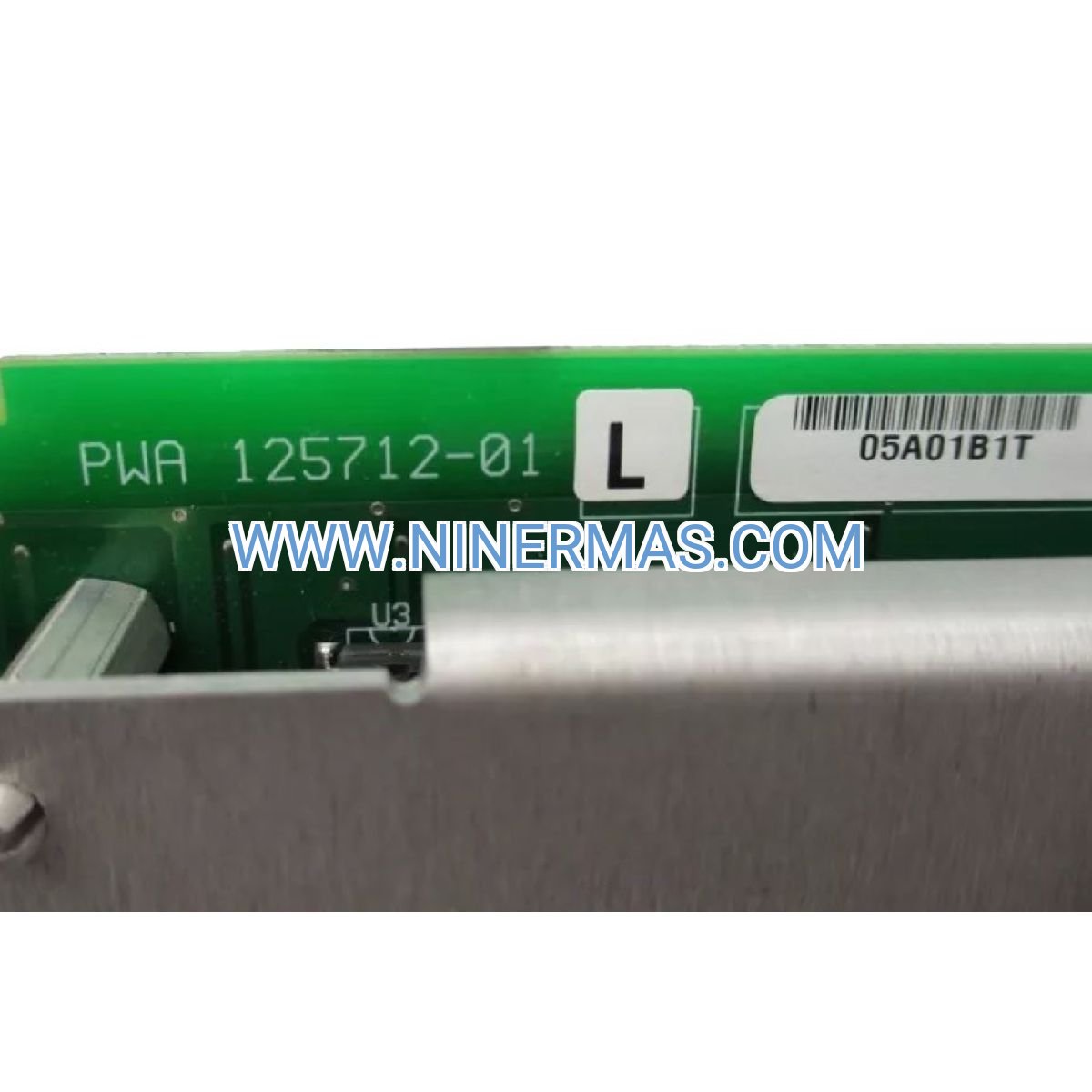

The Bently Nevada 3500/32 Model 125712-01 delivers fail-safe relay output control for rotating equipment monitoring systems across oil & gas, power generation, and heavy industrial sectors. Engineered with programmable voting logic and hot-swappable architecture, this module ensures uninterrupted machinery protection while minimizing maintenance downtime.

Designed for integration with 3500 series vibration monitoring racks, the 125712-01 provides four independently configurable relay channels that trigger automated shutdowns or alarms when critical parameters exceed safe operating thresholds. Factory calibration and API 670 compliance guarantee precision performance in the harshest industrial environments.

Whether safeguarding steam turbines in power plants or monitoring compressor trains in petrochemical facilities, this relay module serves as the critical interface between condition monitoring systems and plant-wide safety protocols. Its dual-mode alarm configuration and LED diagnostics enable rapid troubleshooting and system validation.

Core Features & Technical Advantages

→ Programmable Relay Architecture
Four independent channels support both SPDT and DPDT contact configurations with 5A @ 30VDC/250VAC ratings. Each channel operates autonomously, allowing mixed alarm logic within a single module for complex protection schemes.

→ Advanced Voting Logic
Configurable 1oo2, 2oo2, and 2oo3 voting schemes meet SIL-rated safety requirements. Redundant monitoring paths eliminate nuisance trips while maintaining fail-safe protection for critical assets.

→ Hot-Swappable Design
Field-replaceable without system shutdown or rack power-down. Maintenance teams can swap modules during operation, reducing mean time to repair (MTTR) by up to 75% compared to legacy systems.

→ Dual Alarm Modes
Supports energize-to-alarm (fail-safe on power loss) and de-energize-to-alarm (maintain state during outages) configurations. Alarm behavior adapts to plant safety philosophies and regulatory requirements.

→ Extended Environmental Range
Operates reliably from -30°C to +65°C with 4.5W power consumption. Conformal coating protects circuitry against humidity, dust, and corrosive atmospheres in offshore and desert installations.

→ Visual Diagnostics

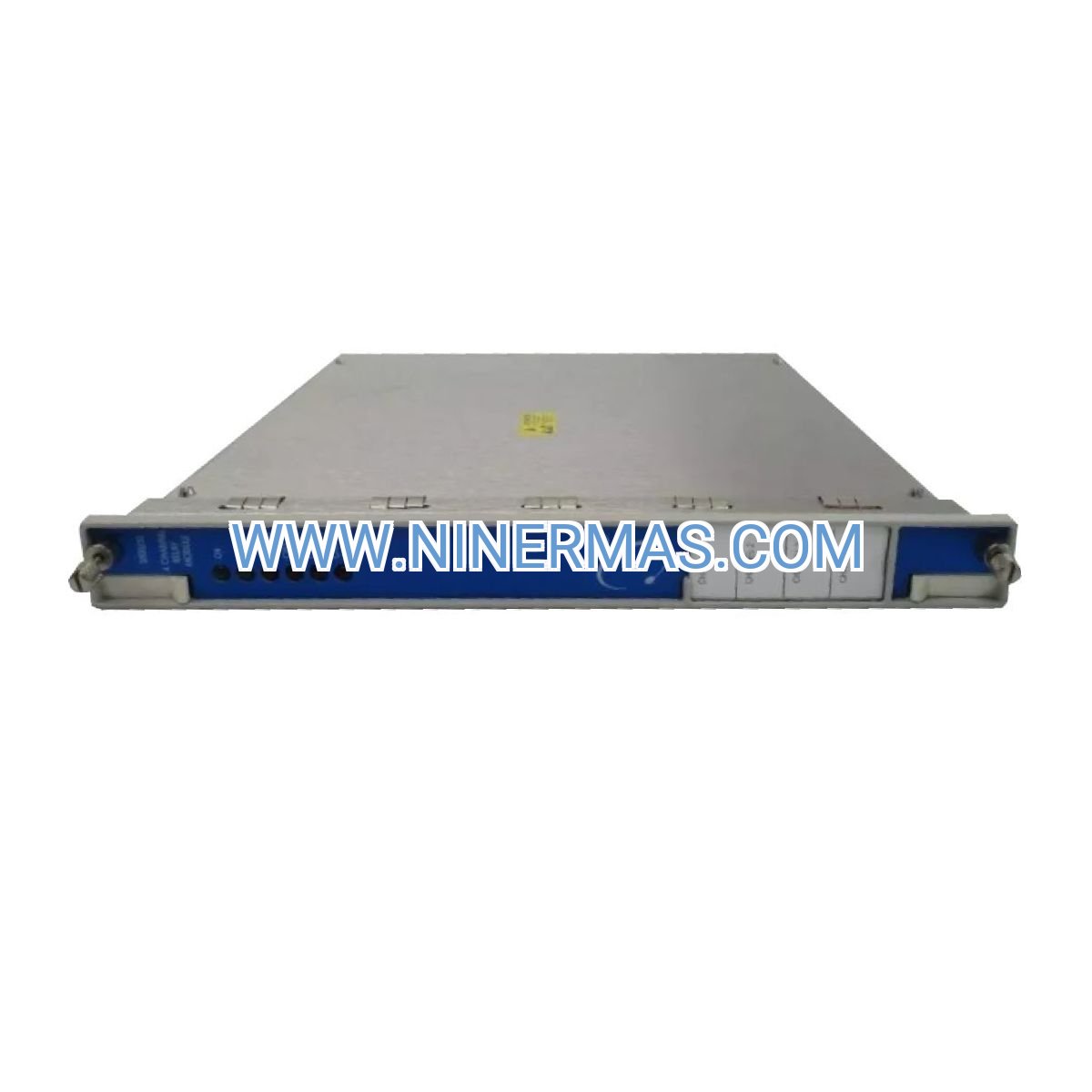

Front-panel LEDs indicate relay status, power supply health, and communication integrity. Technicians diagnose faults without external test equipment or system interruption.

Application Scenarios Across Industries

✓ Turbomachinery Protection Systems
Steam turbines, gas turbines, and centrifugal compressors in power generation and LNG facilities require multi-level alarm and emergency shutdown (ESD) capabilities. The 3500/32 integrates with vibration, temperature, and position monitors to execute coordinated shutdown sequences that prevent catastrophic bearing failures and rotor damage.

✓ Rotating Equipment Monitoring
Pumps, motors, fans, and gearboxes in refineries, chemical plants, and mining operations benefit from continuous condition monitoring. Relay outputs trigger maintenance work orders when vibration trends indicate bearing wear, misalignment, or imbalance—preventing unplanned outages that cost $50,000-$500,000 per incident.

✓ DCS/PLC Integration
Relay contacts interface directly with distributed control systems (DCS) and programmable logic controllers (PLC) for automated process control. When vibration exceeds alarm setpoints, the module signals control systems to reduce load, activate backup equipment, or initiate orderly shutdowns.

✓ Safety Instrumented Systems (SIS)
Voting logic configurations meet IEC 61508 requirements for Safety Integrity Level (SIL) 2 applications. Redundant relay channels provide independent protection layers (IPL) in LOPA (Layer of Protection Analysis) frameworks mandated by process safety regulations.

✓ Offshore Platform Installations
FPSO vessels, drilling rigs, and production platforms operate in extreme marine environments where equipment reliability directly impacts personnel safety and environmental protection. The 3500/32's corrosion-resistant construction and wide temperature range ensure consistent performance in saltwater atmospheres and tropical heat.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 3500/32 when your application requires 4 or fewer relay outputs. For systems needing 5-16 outputs, consider the 3500/33 model. Verify that your existing 3500 rack has available slots and sufficient power capacity (4.5W per module). Confirm compatibility with your monitor modules (3500/40M, 3500/42M, etc.) through the 3500 Rack Configuration Software.

Extended Functionality & Integration Options

IoT Connectivity: When paired with the 3500/20 Rack Interface Module and 3500/92 Communication Gateway, relay status and alarm history integrate with SCADA systems, cloud-based condition monitoring platforms, and mobile alert applications. Real-time notifications enable remote diagnostics and predictive maintenance workflows.

Custom Alarm Logic: The 3500 Rack Configuration Software allows engineers to program complex alarm sequences including time delays, hysteresis bands, and conditional logic based on multiple input parameters. Custom configurations address unique machinery characteristics and operational requirements.

Redundant Power Options: Dual power supply configurations eliminate single points of failure in critical protection systems. The module automatically switches between primary and backup power sources without interrupting relay operation or losing alarm state.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier. Tracking information provided within 24 hours of order confirmation.

Custom Configuration: Factory-programmed modules with specific voting logic or relay settings ship within 7-10 business days. Configuration files provided for customer verification before shipment.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Warranty includes free replacement and expedited shipping for confirmed failures.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting guidance, and system optimization recommendations. Phone and email support available during business hours (GMT+8).

Documentation Package: Each module ships with installation manual, configuration guide, wiring diagrams, and compliance certificates. Digital copies available for download immediately after purchase.

Frequently Asked Questions

Q: How do I configure mixed SPDT and DPDT relay outputs on the same module?
A: Use the 3500 Rack Configuration Software to independently program each of the four channels. Channels 1-2 can operate as SPDT while channels 3-4 function as DPDT, or any combination that meets your application requirements. Configuration changes take effect immediately upon download to the rack.

Q: What cable specifications are recommended for relay output wiring?
A: Use 18-22 AWG shielded twisted-pair cable with 300V minimum insulation rating. For runs exceeding 100 meters, increase wire gauge to 16 AWG to minimize voltage drop. Shield connections should terminate at the module end only to prevent ground loops.

Q: Can this module replace older 3300 XL relay modules in existing systems?
A: No, the 3500/32 is mechanically and electrically incompatible with 3300 XL racks. System upgrades require migrating to a complete 3500 series rack infrastructure. Contact our engineering team for migration planning assistance and compatibility assessments.

Q: How is voting logic configured for redundant monitoring applications?
A: Voting schemes are programmed through the rack configuration software's alarm logic editor. Select from preset templates (1oo2, 2oo2, 2oo3) or create custom logic using Boolean operators. The software validates configurations against SIL requirements and generates documentation for safety audits.

Q: What happens to relay states during rack power interruptions?
A: Relay behavior depends on your selected alarm mode. De-energize-to-alarm configuration triggers all relays during power loss (fail-safe for emergency shutdown systems). Energize-to-alarm mode maintains last state until power restoration (preferred for alarm annunciation panels). Configure mode based on your plant's safety philosophy.

Q: Are factory calibration certificates included with each module?
A: Yes, every 3500/32 module ships with a calibration certificate traceable to NIST standards. Certificates document relay contact resistance, switching time, and isolation voltage test results. Recalibration services are available on a 3-year cycle to maintain compliance with quality management systems.

Ready to Protect Your Critical Assets?

Contact our machinery protection specialists to discuss your specific application requirements, receive configuration recommendations, and obtain a detailed quotation. Our team provides complimentary system design reviews to ensure optimal integration with your existing monitoring infrastructure.
