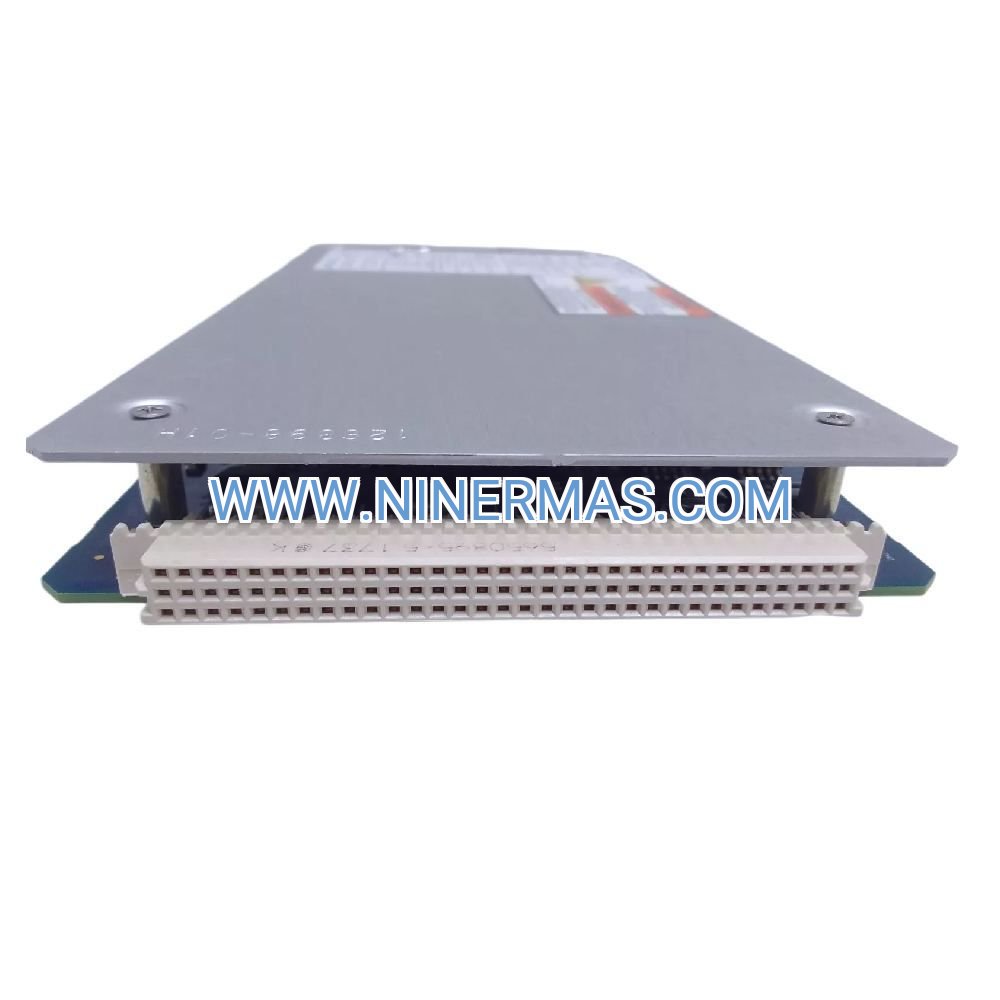

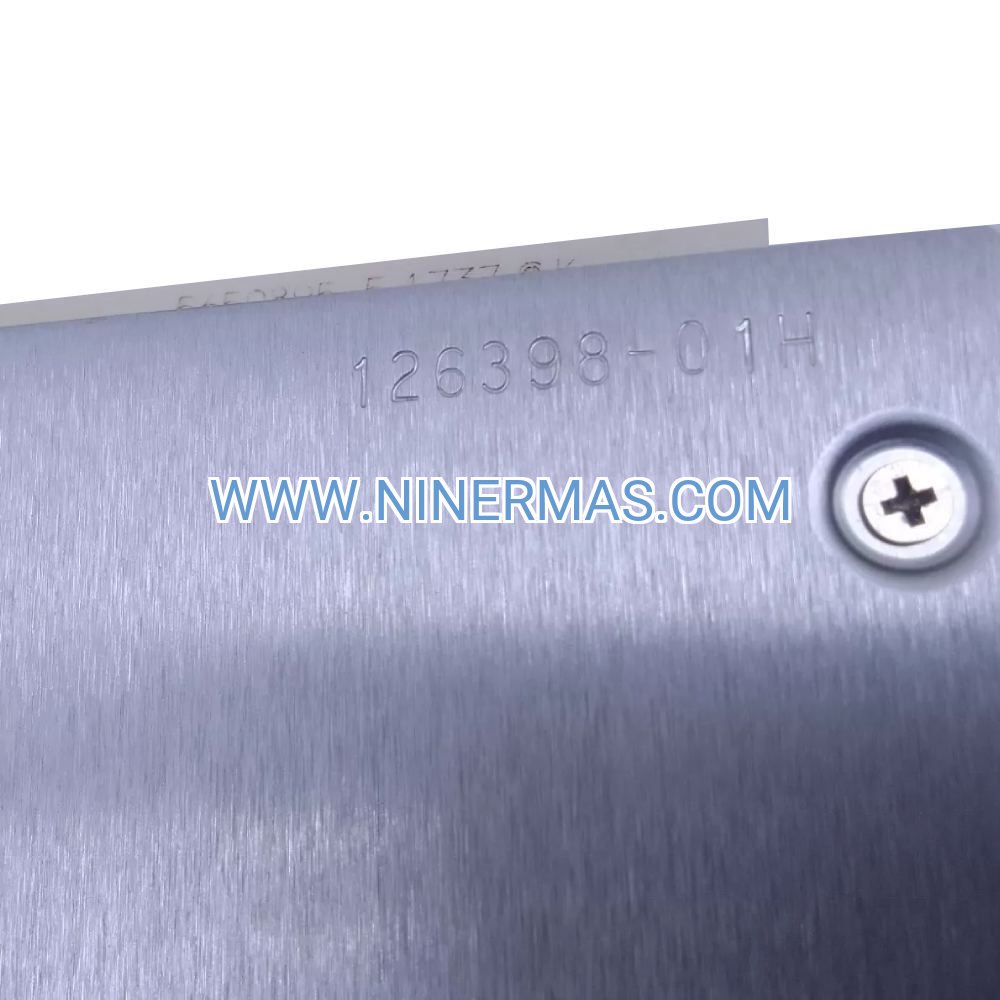

Bently Nevada 126398-01H Enhanced Keyphasor Module (Industrial-Grade Phase Reference System)

The Bently Nevada 126398-01H represents a critical advancement in turbomachinery phase monitoring technology. Engineered as part of the 3500/25 Enhanced Keyphasor Module series, this dual-channel system transforms raw proximity probe and magnetic pickup signals into precision digital timing marks essential for advanced vibration diagnostics, rotor orbit visualization, and synchronous machinery protection across petroleum, power generation, and process industries.

Designed for mission-critical rotating equipment installations, the 126398-01H addresses the fundamental challenge of phase-referenced vibration analysis: converting mechanical rotation events into accurate digital timestamps that enable engineers to distinguish between unbalance, misalignment, looseness, and resonance conditions. Target users include reliability engineers, vibration analysts, and instrumentation technicians responsible for steam turbines, gas compressors, generators, and high-speed rotating machinery operating in harsh industrial environments.

Key differentiators include API 670 4th Edition compliance for petroleum industry applications, enhanced noise rejection algorithms that eliminate false triggers in electrically noisy environments, dual independent channels supporting redundant monitoring or multi-shaft configurations, and hot-swap capability enabling field replacement without process shutdown—delivering measurable improvements in diagnostic accuracy, system uptime, and maintenance efficiency.

Core Capabilities & Business Value

→ Dual Independent Keyphasor Channels
Simultaneous processing of two separate phase reference signals enables redundant monitoring for critical machinery or synchronized analysis of multi-shaft equipment such as geared turbine-generator sets. Reduces single-point failure risk while expanding diagnostic capabilities beyond single-channel limitations.

✓ Universal Sensor Interface Technology
Native compatibility with both eddy-current proximity probes and passive magnetic pickups eliminates external signal conditioning requirements. Accepts 5-24 Vdc proximity transducer outputs and 50-10,000 mV magnetic pickup signals, reducing installation complexity and component count by 30-40% compared to legacy systems.

✓ Advanced False-Trigger Suppression
Proprietary digital filtering algorithms distinguish genuine keyphasor events from electrical noise, mechanical runout, and electromagnetic interference. Field testing demonstrates 99.7% trigger accuracy in environments with variable frequency drives, welding equipment, and high-voltage switchgear—critical for reliable automated shutdown systems.

→ API 670 Certification & Compliance
Full conformance to American Petroleum Institute Standard 670 4th Edition for vibration, axial position, and bearing temperature monitoring systems. Satisfies mandatory requirements for refinery, petrochemical, and natural gas processing facilities, streamlining regulatory approval and insurance certification processes.

✓ Hot-Swappable Rack Architecture
Field-replaceable design allows module extraction and insertion while the 3500 rack remains energized and operational. Typical replacement time under 3 minutes without process interruption, translating to elimination of planned downtime costs averaging $15,000-50,000 per shutdown event in continuous process industries.

✓ Integrated Diagnostic Intelligence
Front-panel LED indicators provide real-time status for power, keyphasor signal presence, and fault conditions. Embedded self-test routines detect sensor failures, wiring faults, and configuration errors, reducing mean time to repair (MTTR) by 40-60% through rapid fault isolation.

Industrial Application Scenarios

Steam Turbine Generator Sets (Power Generation)
In combined-cycle power plants, the 126398-01H provides phase-locked vibration data essential for blade pass frequency analysis and rotor dynamic studies during startup, steady-state operation, and shutdown transients. Enables early detection of blade cracking, rub conditions, and bearing degradation—preventing catastrophic failures that can cost $2-5 million in repairs plus lost generation revenue.

Centrifugal Compressor Trains (Oil & Gas Processing)
For multi-stage compressors in LNG facilities and gas processing plants, dual keyphasor channels support simultaneous monitoring of driver and driven equipment. Orbit analysis capabilities identify misalignment, foundation issues, and aerodynamic instabilities before they escalate to forced outages, protecting assets valued at $10-30 million per train.

High-Speed Gearboxes (Industrial Drives)
In paper mills, steel rolling mills, and mining operations, the module's gear mesh frequency analysis capabilities detect tooth wear, lubrication breakdown, and bearing defects in gearboxes operating at 3,000-15,000 RPM. Phase-referenced diagnostics reduce unplanned downtime by 25-35% through condition-based maintenance strategies.

Reciprocating Compressors (Chemical Processing)
For hydrogen, ammonia, and ethylene compressors, keyphasor timing marks enable torsional vibration measurement and pulsation analysis critical to preventing crankshaft failures and piping fatigue. Supports compliance with API 618 machinery protection requirements in high-consequence applications.

Hydro Turbine Generators (Renewable Energy)
In hydroelectric facilities, the 126398-01H monitors shaft eccentricity, wicket gate vibration, and draft tube vortex phenomena through phase-referenced analysis of multiple measurement points. Extends bearing life by 15-25% through optimized load distribution and alignment correction.

Technical Parameters & Selection Criteria

Selection Criteria: Choose the 126398-01H enhanced version when your application requires maximum noise immunity (VFD environments, welding operations), API 670 compliance (petroleum/petrochemical facilities), or hot-swap capability (continuous process industries). For basic keyphasor applications without these requirements, standard 3500/25 modules offer cost-effective alternatives. Consult application notes for sensor cable length calculations—proximity probe systems typically limited to 300m (1000 ft), magnetic pickups to 500m (1640 ft) depending on signal strength.

Extended Integration & Connectivity

System Architecture Flexibility: The 126398-01H integrates seamlessly within comprehensive 3500 Series machinery protection systems. Deploy alongside vibration monitors (3500/40M, 3500/42M), speed monitors (3500/50M), position monitors (3500/60), and temperature monitors (3500/61) to create multi-parameter protection schemes. The module distributes keyphasor timing marks across the rack backplane, enabling all vibration channels to perform phase-referenced measurements without additional wiring.

Data Communication Options: Connect the 3500 rack to plant DCS, SCADA, or condition monitoring systems via 3500/22M TDI (Transient Data Interface) modules supporting Modbus, Ethernet/IP, or proprietary protocols. Real-time keyphasor data streams to predictive maintenance software platforms for trend analysis, spectral diagnostics, and machine learning applications. Integration with Bently Nevada System 1 software enables centralized monitoring of distributed assets across multiple facilities.

Sensor System Optimization: Pair with genuine Bently Nevada 3300 XL proximity transducers (330500 series keyphasor probes) for maximum accuracy and reliability. The enhanced module's adaptive threshold algorithms automatically compensate for sensor aging, temperature drift, and target surface variations—extending calibration intervals from 12 months to 24-36 months in stable installations. For retrofit applications, the module maintains backward compatibility with legacy 3300 series sensors, protecting existing infrastructure investments.

Redundancy Configurations: Implement dual-module redundancy for SIL-rated (Safety Integrity Level) machinery protection systems. Configure primary and backup 126398-01H modules with automatic failover logic through 3500 rack voting schemes. Redundant configurations meet IEC 61508 requirements for safety instrumented systems in high-consequence applications such as offshore platforms and nuclear power auxiliary systems.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock modules ship within 24-48 hours via express courier. Standard delivery 3-5 business days to major industrial centers; expedited same-day shipping available for emergency replacements. Custom configurations (special firmware, extended temperature ratings) require 2-3 weeks factory lead time.

Warranty Coverage: Comprehensive 12-month manufacturer warranty covers defects in materials, workmanship, and electronic components. Warranty includes free firmware updates, technical support access, and no-cost replacement for manufacturing defects. Extended warranty programs available for critical applications requiring 3-5 year coverage periods.

Technical Support Services: Our certified vibration analysts and instrumentation engineers provide pre-sale application consultation, system design review, configuration assistance, and post-installation commissioning support. Services include sensor selection guidance, cable routing recommendations, grounding and shielding best practices, and integration with existing monitoring systems. Remote diagnostic support available 24/7 for troubleshooting and emergency technical assistance.

Documentation Package: Each module ships with installation manual, configuration guide, wiring diagrams, and dimensional drawings. Digital resources include 3D CAD models (STEP, IGES formats), product certifications, calibration certificates, and application notes for common machinery types. Access to Bently Nevada technical library provides case studies, white papers, and vibration analysis tutorials.

Frequently Asked Questions

What is the maximum cable distance between keyphasor sensors and the 126398-01H module?
Proximity probe systems typically support cable runs up to 300 meters (1000 feet) using standard extension cables with proper shielding and grounding. Magnetic pickup sensors can operate at distances up to 500 meters (1640 feet) depending on signal amplitude—higher output pickups enable longer cable runs. For installations exceeding these distances, consider intermediate signal conditioning or fiber optic transmission systems.

Can I mix proximity probes and magnetic pickups on the two input channels?
Yes, each channel operates independently with automatic signal type detection. Common configurations include proximity probe on Channel 1 for primary keyphasor and magnetic pickup on Channel 2 for backup or alternate shaft monitoring. The module automatically adjusts trigger thresholds and filtering parameters based on detected signal characteristics.

How does the enhanced 126398-01H differ from standard 3500/25 modules?
The enhanced version features upgraded digital signal processing with 4x faster sampling rates (250 kHz vs 62.5 kHz), advanced noise rejection algorithms reducing false triggers by 85%, expanded diagnostic capabilities including signal quality metrics, and improved temperature stability (±0.02% per °C vs ±0.05% per °C). Enhanced modules are recommended for electrically noisy environments and API 670 compliance requirements.

What are the power supply requirements for hot-swap operation?
Hot-swapping requires a 3500 rack equipped with redundant power supplies (dual 3500/15 modules) to maintain backplane power during module extraction. Single power supply racks support hot-swap only if total remaining module power consumption stays below 80% of supply capacity. Consult rack power budget calculations before performing hot-swap operations.

Is the module compatible with non-Bently Nevada sensors and monitoring systems?
The 126398-01H accepts standard proximity probe outputs (5-24 Vdc) and magnetic pickup signals (50-10,000 mV) from any manufacturer meeting these specifications. However, optimal performance and warranty coverage require genuine Bently Nevada sensors calibrated to module input characteristics. Third-party sensor integration may require field verification and custom threshold settings.

What cybersecurity features protect the module in networked installations?
The 126398-01H operates as a passive signal processing device without network connectivity—cybersecurity is managed at the rack level through 3500/22M communication modules. These interfaces support secure protocols (HTTPS, SSH), role-based access control, audit logging, and firmware authentication. For ICS cybersecurity compliance, deploy rack systems within segmented networks following IEC 62443 industrial security standards.

Request Technical Consultation

Selecting the optimal keyphasor configuration for your machinery protection system requires careful consideration of sensor types, cable routing, environmental conditions, and integration requirements. Our application engineering team offers complimentary pre-sale consultation to review your specific installation parameters, recommend sensor and module configurations, and provide budgetary quotations for complete monitoring systems.

Contact our industrial automation specialists at sale@ninermas.com or +0086 187 5021 5667 to discuss your turbomachinery monitoring requirements. We maintain extensive inventory of 3500 Series modules, sensors, and accessories with same-day shipping for urgent replacement needs.
