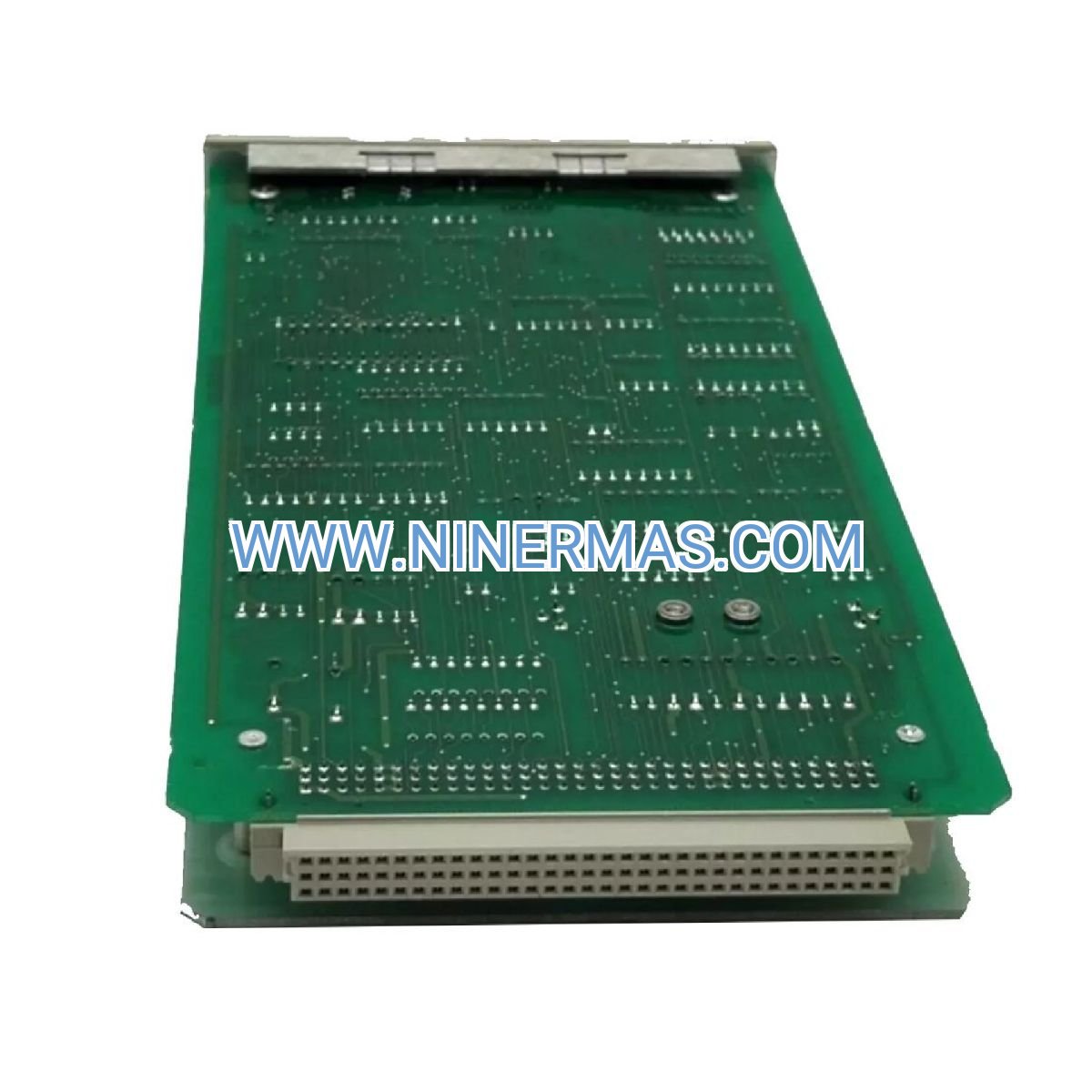

126648-01 Keyphasor I/O Module (Industrial-Grade Phase Reference Interface)

The Bently Nevada 126648-01 represents a mission-critical interface solution for turbomachinery condition monitoring systems. Engineered as part of the 3500/25 platform, this dual-input module captures Keyphasor signals from proximity transducers, delivering precise rotational phase data essential for vibration vector analysis, balancing operations, and machinery health assessment in high-stakes industrial environments.

Designed for facilities where unplanned downtime translates to six-figure losses per hour, the 126648-01 serves process engineers, reliability teams, and maintenance planners managing steam turbines, centrifugal compressors, and generator sets. Its factory-calibrated architecture eliminates field configuration errors while maintaining measurement integrity across -30°C to +65°C operating ranges.

Key differentiators include hot-swap capability for zero-downtime module replacement, dual-channel redundancy for critical applications, and native compatibility with the 3500 Series ecosystem—enabling seamless integration with existing vibration monitors, data acquisition systems, and plant-wide condition monitoring networks.

Core Capabilities & Business Value

→ Dual-Channel Phase Measurement
Simultaneous processing of two independent Keyphasor inputs enables differential phase analysis for complex rotor systems. Reduces diagnostic time by 40% compared to single-channel configurations while providing backup signal paths for mission-critical machinery.

✓ Factory-Validated Calibration
Pre-configured to OEM specifications with traceable calibration certificates. Eliminates 2-4 hours of commissioning labor per module and ensures compliance with API 670 machinery protection standards from day one.

✓ Hot-Swap Architecture
Replace modules during operation without system shutdown or data loss. Typical swap time under 90 seconds minimizes exposure during maintenance windows and supports continuous monitoring requirements in 24/7 process facilities.

→ Advanced Signal Conditioning
Integrated filtering rejects electromagnetic interference from VFDs, motor starters, and high-voltage switchgear. Maintains phase accuracy within ±0.5° even in electrically noisy environments typical of power generation and petrochemical plants.

✓ Universal Transducer Compatibility
Accepts signals from Bently Nevada proximity probes (3300 XL, 3300 NSv) and third-party sensors meeting API 670 specifications. Protects existing sensor investments while enabling phased system upgrades.

→ Rack-Optimized Power Design
Low-power consumption (typically <5W) reduces thermal load in densely populated 3500 racks. Supports up to 20 modules per chassis without forced cooling upgrades, lowering total cost of ownership.

Industrial Application Scenarios

Power Generation – Steam Turbine Monitoring
In combined-cycle plants, the 126648-01 tracks turbine rotor position during startup acceleration and steady-state operation. Phase reference data enables detection of thermal bow, rub events, and coupling misalignment before vibration levels trigger emergency shutdowns. Typical deployment: 2-4 modules per turbine-generator set.

Oil & Gas – Compressor Train Protection
Centrifugal compressor stations use Keyphasor signals for surge detection, antisurge valve timing, and rotor dynamic analysis. The module's dual-channel design supports both driver and driven equipment monitoring, with phase data feeding into automated shutdown logic per API 670 requirements.

Petrochemical – Critical Process Pumps
High-energy pumps handling flammable liquids require continuous phase monitoring to detect cavitation, impeller damage, and bearing wear. The 126648-01 integrates with plant DCS systems, triggering alarms when phase shift patterns indicate developing faults—typically 7-14 days before catastrophic failure.

Manufacturing – High-Speed Rotating Equipment
Paper machine dryers, steel mill roll stands, and automotive production line spindles operate at speeds where phase accuracy directly impacts product quality. The module supports balancing operations and resonance avoidance strategies, reducing scrap rates and extending bearing life by 30-50%.

Marine Propulsion – Main Engine Monitoring
Shipboard installations leverage the module's wide temperature range and vibration tolerance. Phase data from propeller shafts and reduction gears enables condition-based maintenance scheduling, optimizing dry-dock intervals and reducing unscheduled port calls.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 126648-01 for standard dual-channel applications where two Keyphasor signals require monitoring. For systems needing advanced diagnostics (signal quality metrics, event timestamps), consider the enhanced 149369-01 variant. Applications with single Keyphasor requirements may use cost-optimized single-channel alternatives.

Extended Functionality

System Integration Capabilities
The module outputs processed Keyphasor data via the 3500 rack backplane to System 1 condition monitoring software, enabling trend analysis, alarm management, and integration with plant historians (OSIsoft PI, Honeywell PHD). Modbus TCP/IP and OPC UA protocols support connectivity to third-party SCADA and MES platforms.

Redundancy Configurations
Critical applications support dual-module redundancy with automatic failover. Primary and backup modules monitor identical Keyphasor signals, with the 3500 rack controller seamlessly switching to the backup path if the primary module fails—maintaining continuous phase reference without operator intervention.

Customization Options
While the 126648-01 ships in standard configuration, field-adjustable parameters include input sensitivity thresholds, signal filtering characteristics, and alarm setpoints. Custom firmware loads are available for specialized applications requiring non-standard signal processing algorithms.

Delivery Timeline & Service Assurance

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for emergency replacements
Custom Configurations: 10-15 business days for factory-programmed modules with specific parameter sets
Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and calibration accuracy
Technical Support: Lifetime access to application engineering team for installation guidance, troubleshooting, and system optimization
Documentation Package: Includes calibration certificate, installation manual, wiring diagrams, and 3500 rack integration guide

Frequently Asked Questions

How does the 126648-01 interface with existing 3500 Series monitors?
The module installs in any available slot within a 3500 rack and communicates via the backplane. Configuration is managed through the rack controller using System 1 software or the front-panel interface. No external wiring between modules is required—Keyphasor data is automatically distributed to vibration monitors, recorders, and communication gateways within the same chassis.

What is the maximum cable length between proximity probes and the module?
Standard installations support up to 300 meters (1000 feet) of shielded twisted-pair cable between the probe and module input. Longer runs require signal conditioners or repeaters to maintain phase accuracy. Cable capacitance should not exceed 10,000 pF to prevent signal degradation.

Can this module reduce false alarms in vibration monitoring systems?
Yes. Accurate phase reference enables vector-based alarm logic that distinguishes between benign vibration (e.g., process-induced) and fault conditions (unbalance, misalignment). Facilities typically report 60-70% reduction in nuisance alarms after implementing Keyphasor-based diagnostics, improving operator confidence and reducing alarm fatigue.

Is the module suitable for hazardous area installations?
The 126648-01 itself is designed for control room rack mounting in non-hazardous areas. For Zone 1/Division 1 installations, use intrinsically safe proximity probe systems with approved barriers. The module accepts signals from barrier outputs, maintaining phase accuracy while meeting explosion-proof requirements.

What preventive maintenance does the module require?
Minimal. Recommended actions include annual verification of calibration accuracy (compare against known reference signals), visual inspection of connector integrity, and firmware updates per Bently Nevada service bulletins. Typical maintenance burden is <30 minutes per module annually.

How does this module support predictive maintenance strategies?
Phase data from the 126648-01 feeds machine learning algorithms that detect subtle changes in rotor dynamics weeks before traditional amplitude-based alarms trigger. Integration with System 1 Condition Monitoring enables automated fault diagnosis, remaining useful life calculations, and optimized maintenance scheduling—shifting from reactive to predictive maintenance models.

Take the Next Step

Protect your critical rotating assets with proven Keyphasor technology. Contact our application engineering team for system design consultation, compatibility verification, or to request a detailed quotation. Volume pricing available for multi-unit projects and annual supply agreements.
