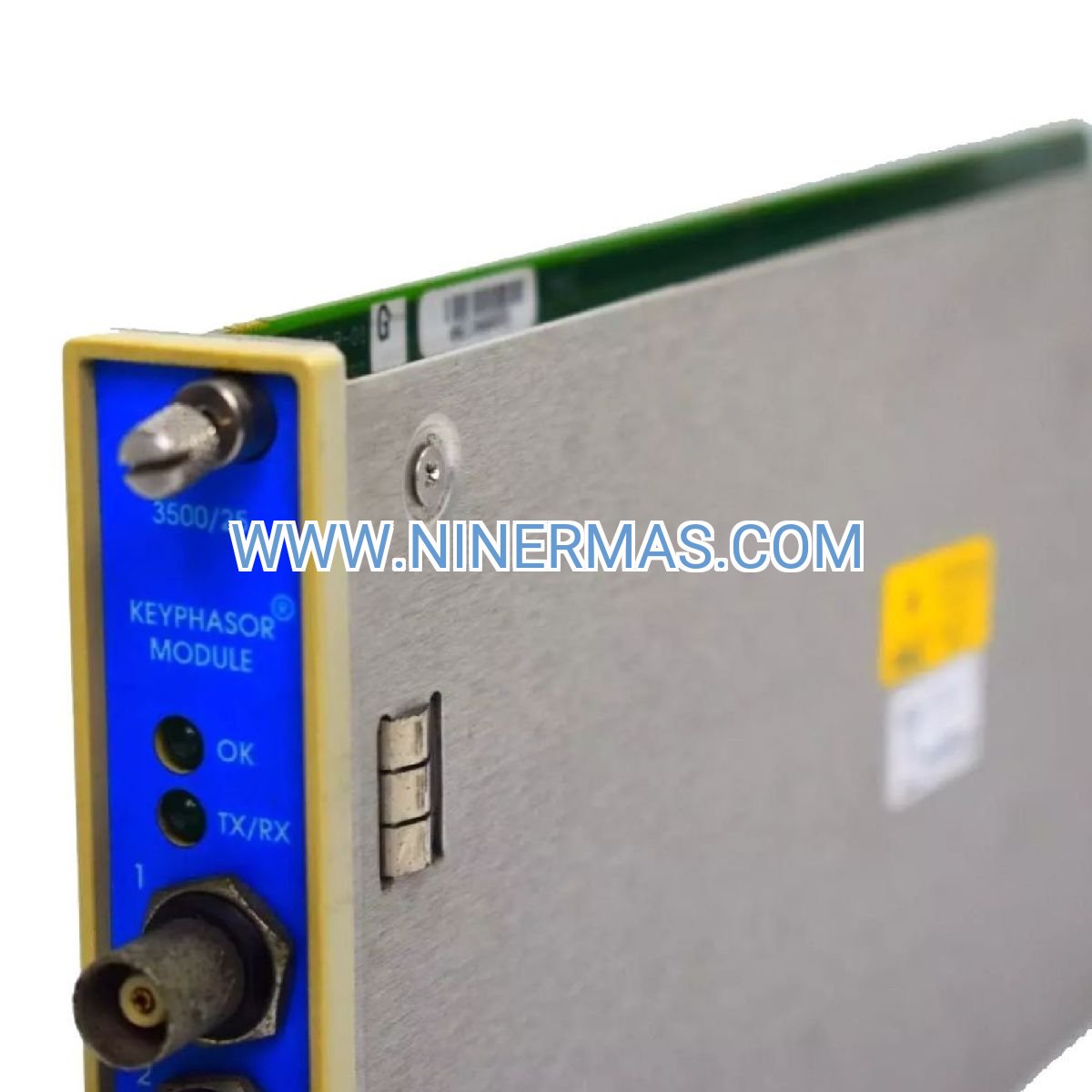

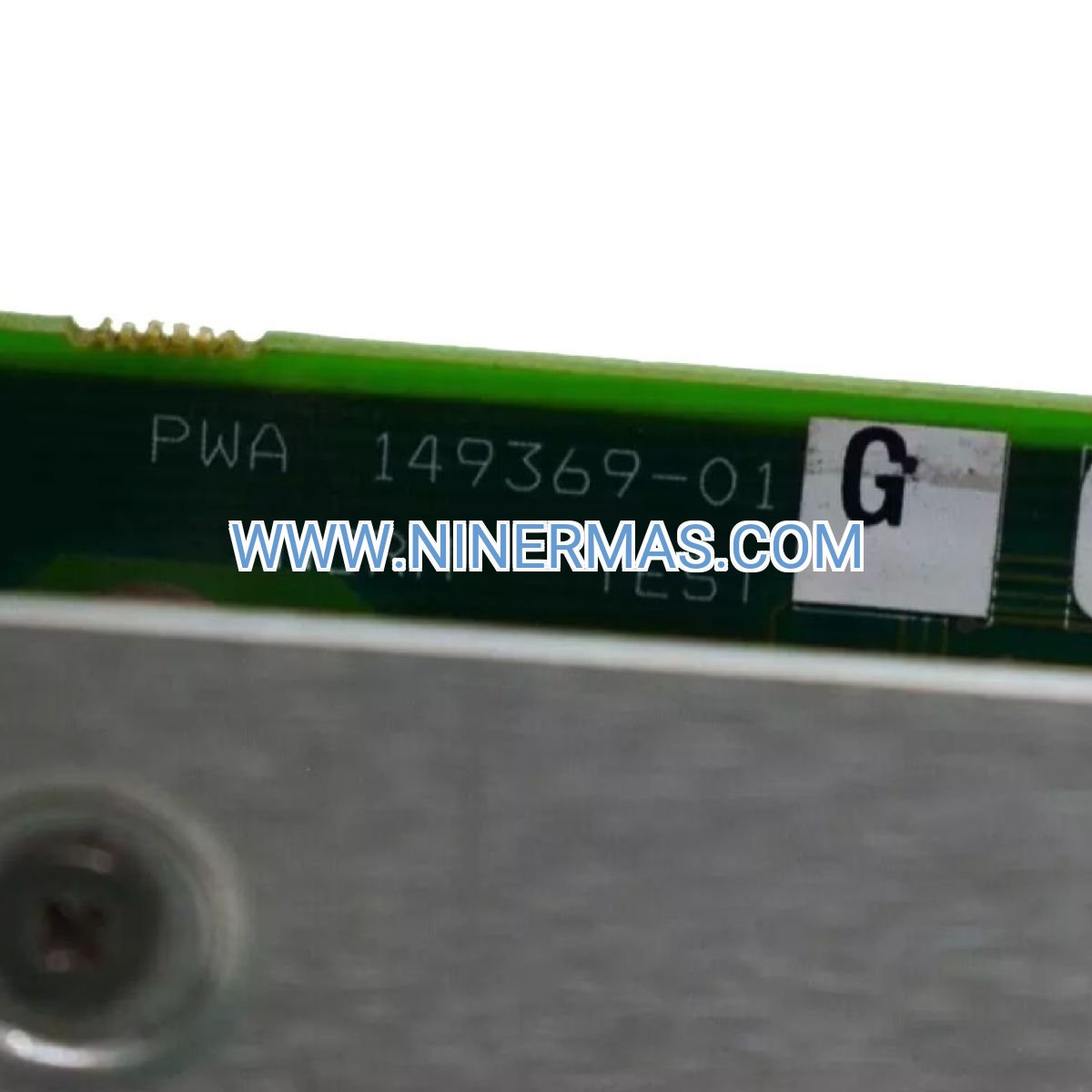

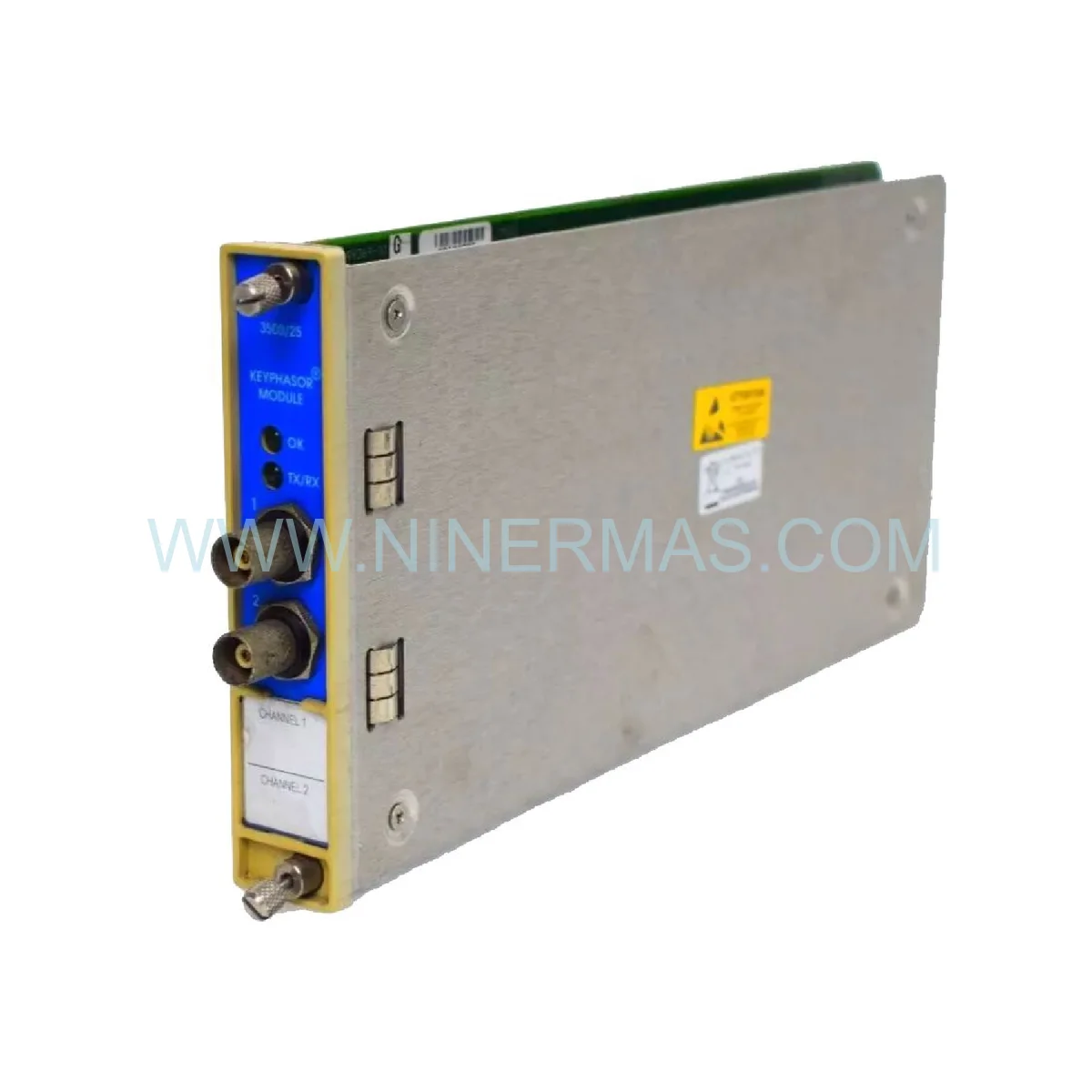

149369-01 Enhanced Keyphasor Module (Industrial-Grade Phase Reference System)

The 149369-01 Enhanced Keyphasor Module from Bently Nevada's 3500/25 series represents a critical advancement in rotational phase measurement technology for industrial machinery protection systems. This dual-input module transforms raw proximity probe or magnetic pickup signals into precision-conditioned TTL-compatible outputs, serving as the timing backbone for comprehensive vibration analysis in mission-critical rotating equipment.

Designed for plant engineers and reliability teams managing turbomachinery assets, this module addresses the fundamental challenge of accurate once-per-revolution signal processing in electrically hostile environments. By delivering phase-locked reference signals with microsecond-level accuracy, it enables advanced diagnostics including vector vibration analysis, shaft orbit reconstruction, and transient event correlation across multi-stage compressor trains, steam turbines, and generator sets.

Key differentiators include enhanced noise rejection algorithms that maintain signal integrity in VFD-heavy installations, factory-validated calibration traceable to NIST standards, and hot-swap architecture that eliminates planned downtime for module replacement. When integrated with 3500 rack monitoring systems, the 149369-01 provides the foundational timing reference that transforms raw sensor data into actionable machinery health intelligence.

Core Capabilities & Business Value

→ Dual Independent Channels
Simultaneous processing of two Keyphasor inputs supports redundant monitoring configurations or multi-shaft applications. Eliminates single-point-of-failure risks in critical machinery protection schemes while reducing hardware costs compared to dual-module implementations.

✓ Advanced Signal Conditioning
Proprietary filtering algorithms reject common-mode noise from variable frequency drives, welding equipment, and high-voltage switchgear. Maintains phase accuracy within ±0.5° across the full operating temperature range, ensuring reliable vector analysis during transient startup and shutdown events.

✓ Zero-Downtime Serviceability
Hot-swap capability allows module extraction and replacement during live operation without interrupting monitoring coverage. Reduces mean time to repair (MTTR) by 75% compared to systems requiring shutdown for maintenance activities.

✓ Universal Sensor Compatibility
Auto-adaptive input conditioning accepts signals from 5mm, 8mm, and 11mm proximity probes plus magnetic pickups ranging from 50mV to 20Vpp. Simplifies spare parts inventory and enables standardization across mixed sensor populations.

✓ Integrated Diagnostics

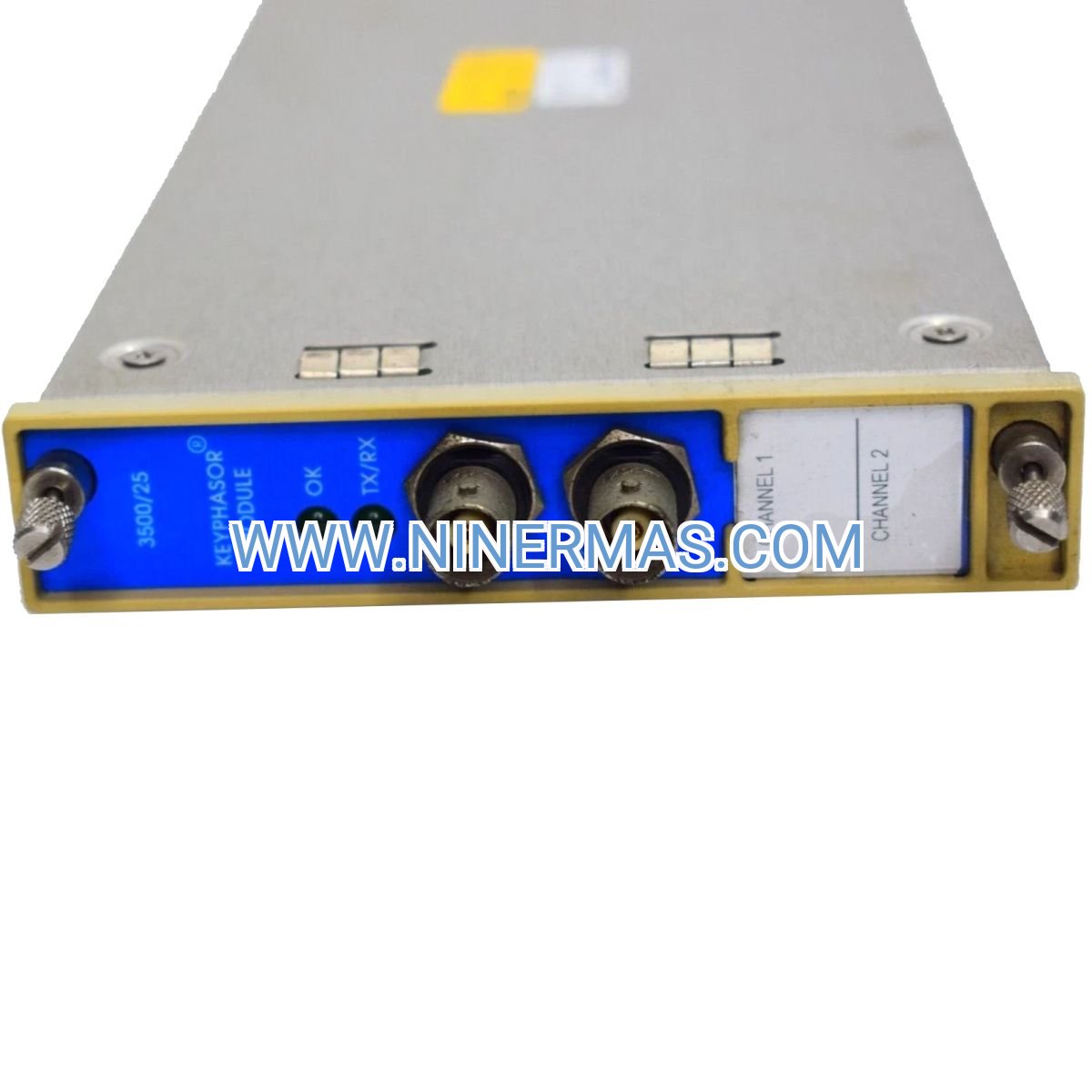

Front-panel LED array provides real-time indication of signal presence, amplitude adequacy, and module health status. Accelerates troubleshooting during commissioning and reduces false alarm investigations by 60% through immediate visual feedback.

✓ Extended Environmental Range
Qualified for operation from -30°C to +65°C with conformal coating protection against humidity, salt fog, and industrial contaminants. Proven reliability in offshore platforms, desert refineries, and arctic pipeline facilities.

Industrial Application Scenarios

Power Generation Turbine Trains
In combined-cycle plants, the 149369-01 provides phase reference for steam turbine LP/IP/HP sections and gas turbine monitoring. Enables differential expansion tracking and torsional vibration analysis critical for grid synchronization and load ramping operations. Typical deployment: one module per turbine with channels allocated to generator and turbine Keyphasor probes.

Petrochemical Compressor Monitoring
Refinery and LNG facilities deploy this module for multi-stage centrifugal compressor protection, where independent Keyphasor signals from low-pressure and high-pressure sections enable stage-specific vibration vector analysis. Supports surge detection algorithms and anti-surge valve timing verification in critical process gas service.

Offshore Platform Rotating Equipment
Marine and offshore installations leverage the module's extended temperature rating and conformal coating for gas compression, crude oil pumping, and seawater injection systems. Dual-channel architecture provides redundancy mandated by API 670 4th Edition for unmanned platform applications.

Pulp & Paper Mill Drive Systems
Paper machine drive trains utilize Keyphasor signals for torsional vibration monitoring across multi-motor configurations. The 149369-01 processes timing marks from each drive section, enabling detection of coupling misalignment and gearbox tooth wear before catastrophic failure.

Mining Conveyor & Crusher Systems
Heavy-duty mining operations apply this module to monitor large grinding mills, SAG mills, and conveyor drive systems where phase-accurate speed measurement supports predictive maintenance programs. Harsh dust and vibration environments demand the module's industrial-grade construction.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 149369-01 when your application requires dual Keyphasor inputs, enhanced noise immunity in VFD environments, or extended temperature operation beyond standard module ratings. For single-channel applications with benign electrical environments, consider the standard 3500/25 variant. Systems requiring SIL-3 certification should implement redundant module pairs with voting logic.

Extended Functionality & Integration

The 149369-01 integrates seamlessly with Bently Nevada System 1 condition monitoring software, providing Keyphasor timing data to advanced diagnostic modules including orbit analysis, Bode plots, and cascade plots. When networked via 3500/92 communication gateways, Keyphasor events trigger automated data capture for transient analysis and root cause investigation.

IoT-enabled deployments leverage the module's timing signals for cloud-based analytics platforms, enabling fleet-wide machinery health benchmarking and predictive maintenance scheduling. Custom firmware options support specialized applications including torsional vibration monitoring, blade pass frequency analysis, and synchronous averaging for gear mesh diagnostics.

Field-configurable parameters include input sensitivity thresholds, hysteresis settings, and output pulse width adjustments to accommodate non-standard sensor configurations or legacy system integration requirements.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with full tracking and insurance. All modules ship in anti-static packaging with shock-absorbing foam inserts rated for international air freight.

Custom Configuration: 7-10 business days for factory programming of non-standard parameters or firmware versions. Includes pre-shipment functional testing and configuration documentation.

Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and factory calibration accuracy. Extended warranty programs available for critical spares inventory.

Technical Support: Lifetime application engineering assistance including configuration guidance, troubleshooting support, and system integration consulting. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Each module includes installation manual, configuration quick-start guide, calibration certificate, and dimensional drawings. System 1 software integration notes provided upon request.

Frequently Asked Questions

What sensor types are compatible with the 149369-01 Keyphasor module?
The module accepts both eddy-current proximity probes (5mm, 8mm, 11mm) and passive magnetic pickups. Proximity probes are recommended for API 670 compliance due to superior signal-to-noise ratio. Magnetic pickups work well for retrofit applications where probe installation is impractical.

Can I use this module in hazardous area classifications?
The 149369-01 itself is not intrinsically safe rated. For Class I Division 2 installations, mount the 3500 rack in a purged enclosure or safe area with barriers on sensor wiring. For Division 1 applications, use intrinsically safe barriers between sensors and module inputs.

How does the enhanced version differ from standard 3500/25 modules?
Enhanced modules feature improved EMI/RFI filtering (40dB rejection at 400Hz), wider operating temperature range (-30°C vs -20°C lower limit), and advanced diagnostics including input signal quality metrics. Enhanced versions are recommended for installations near VFDs, welders, or high-power RF equipment.

What configuration software is required for module setup?
3500 Rack Configuration Software (version 6.0 or later) is used for parameter programming. Basic installations use default factory settings requiring no configuration. Advanced features like custom hysteresis or pulse width adjustment require software access via RS232/RS485 rack interface.

Is firmware upgradeable in the field?
Yes, firmware updates are performed via the 3500 rack communication interface using Rack Configuration Software. Updates typically address compatibility with new sensor types or enhanced diagnostic features. Current firmware version is displayed during rack power-up sequence.

What's the typical lifespan in continuous operation?
Mean time between failures (MTBF) exceeds 150,000 hours in controlled environments. Actual service life depends on operating temperature, electrical transient exposure, and environmental contamination. Modules in clean, climate-controlled installations routinely exceed 20 years of service.
