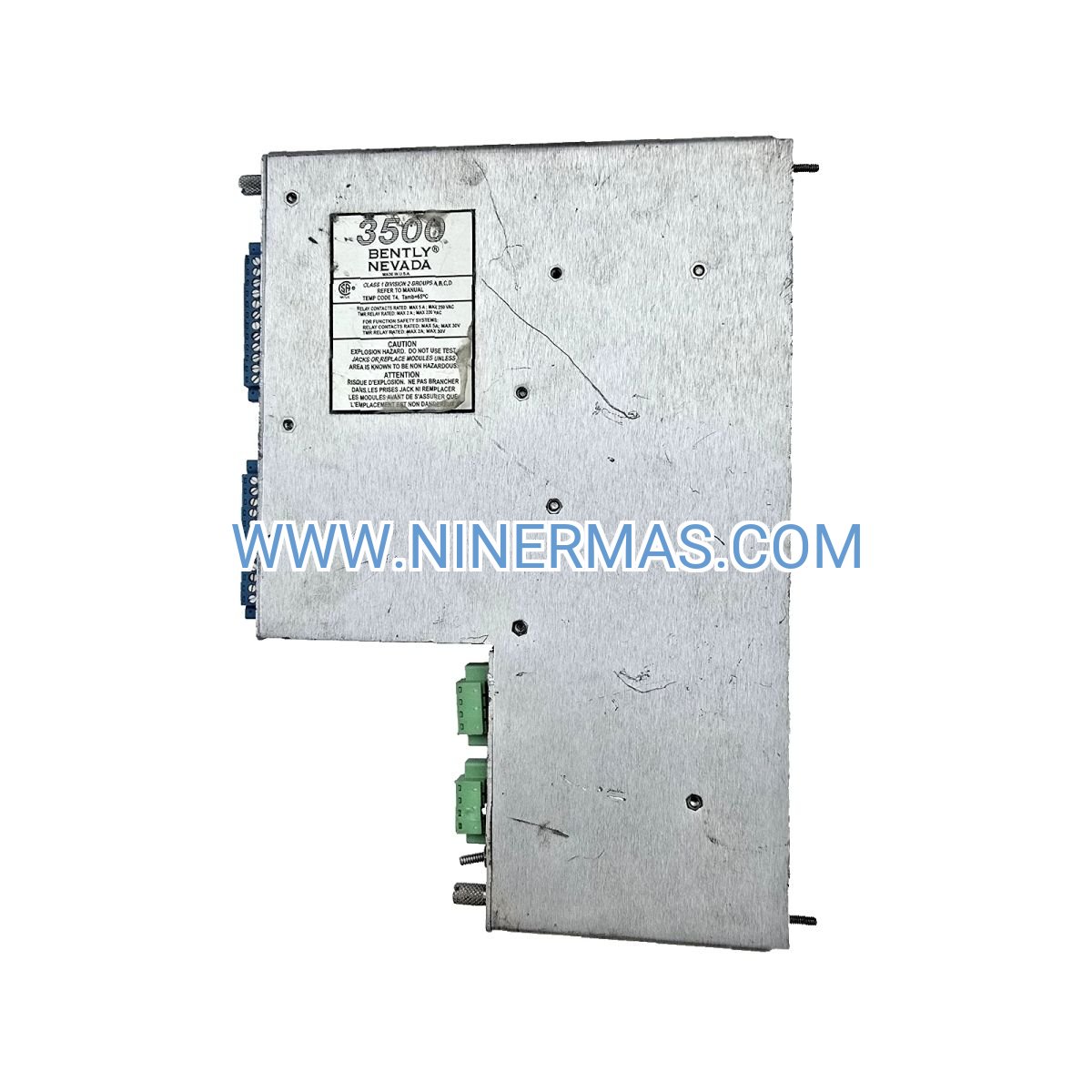

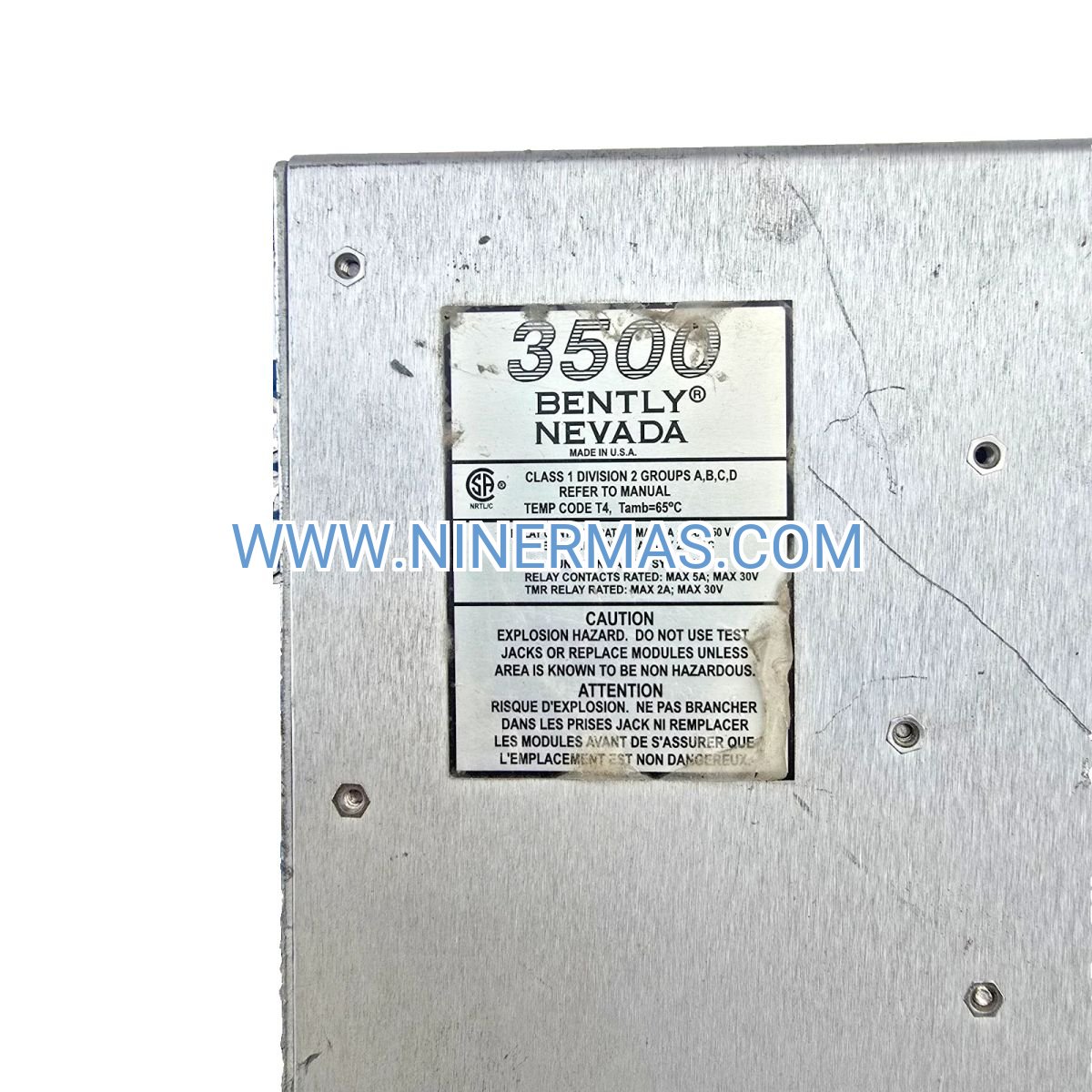

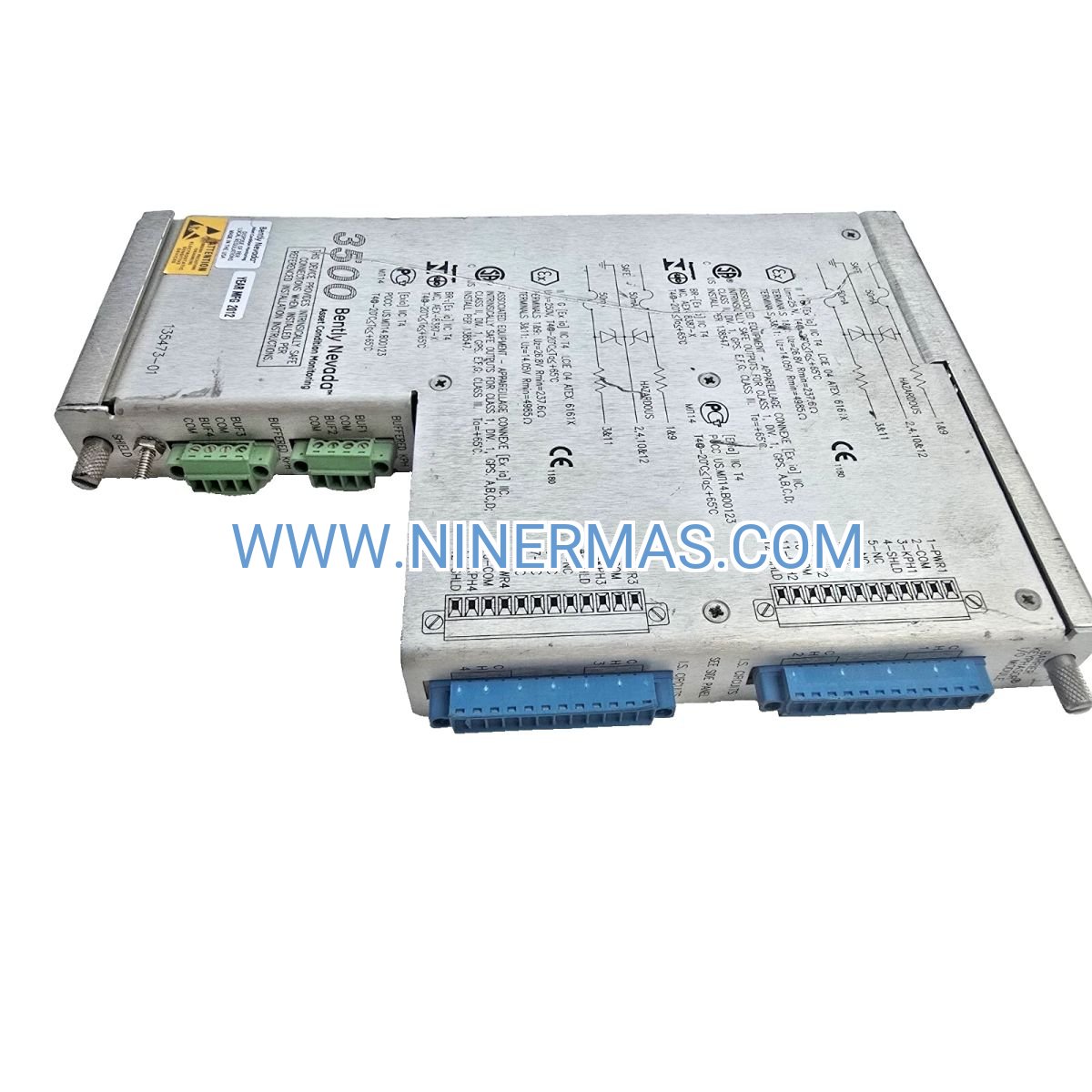

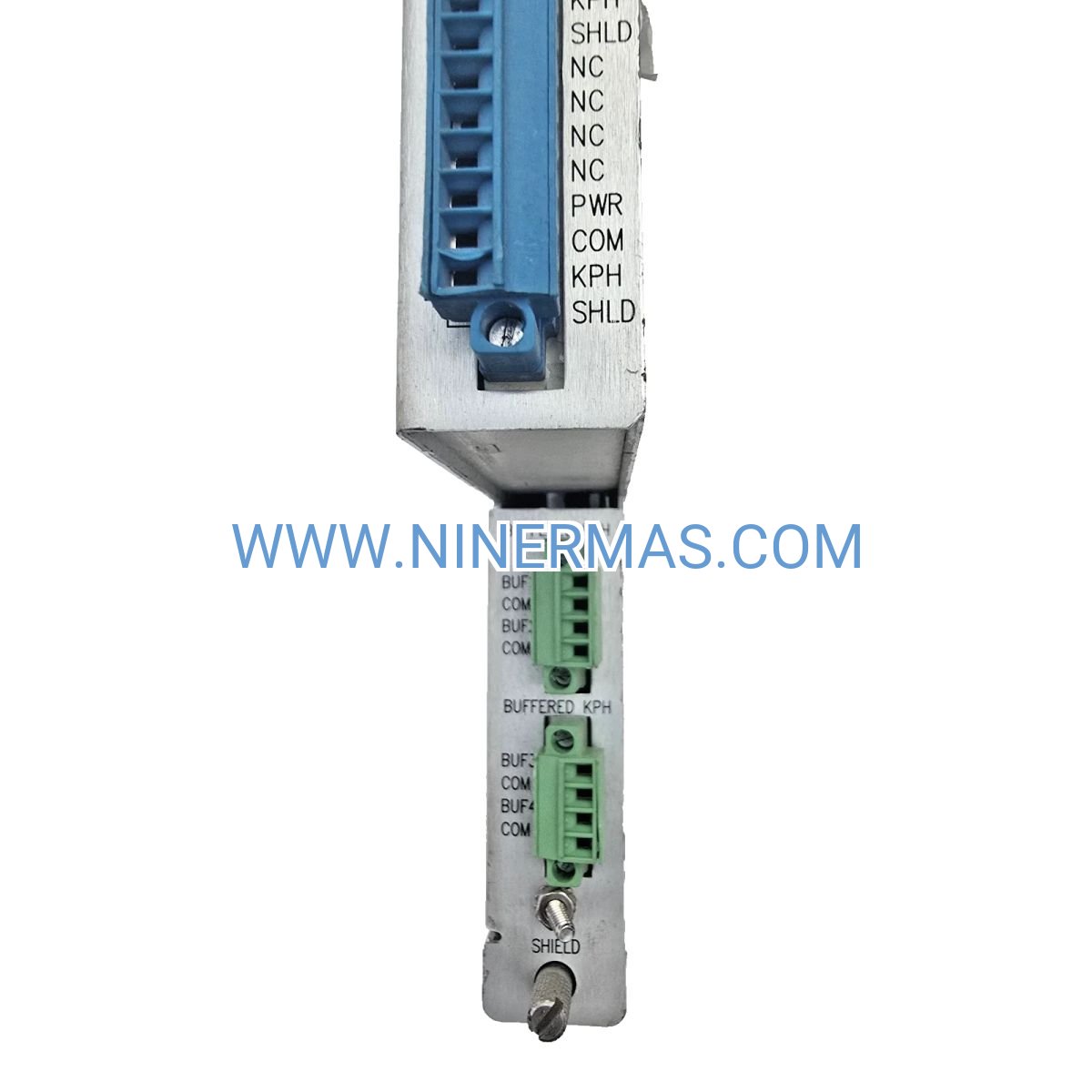

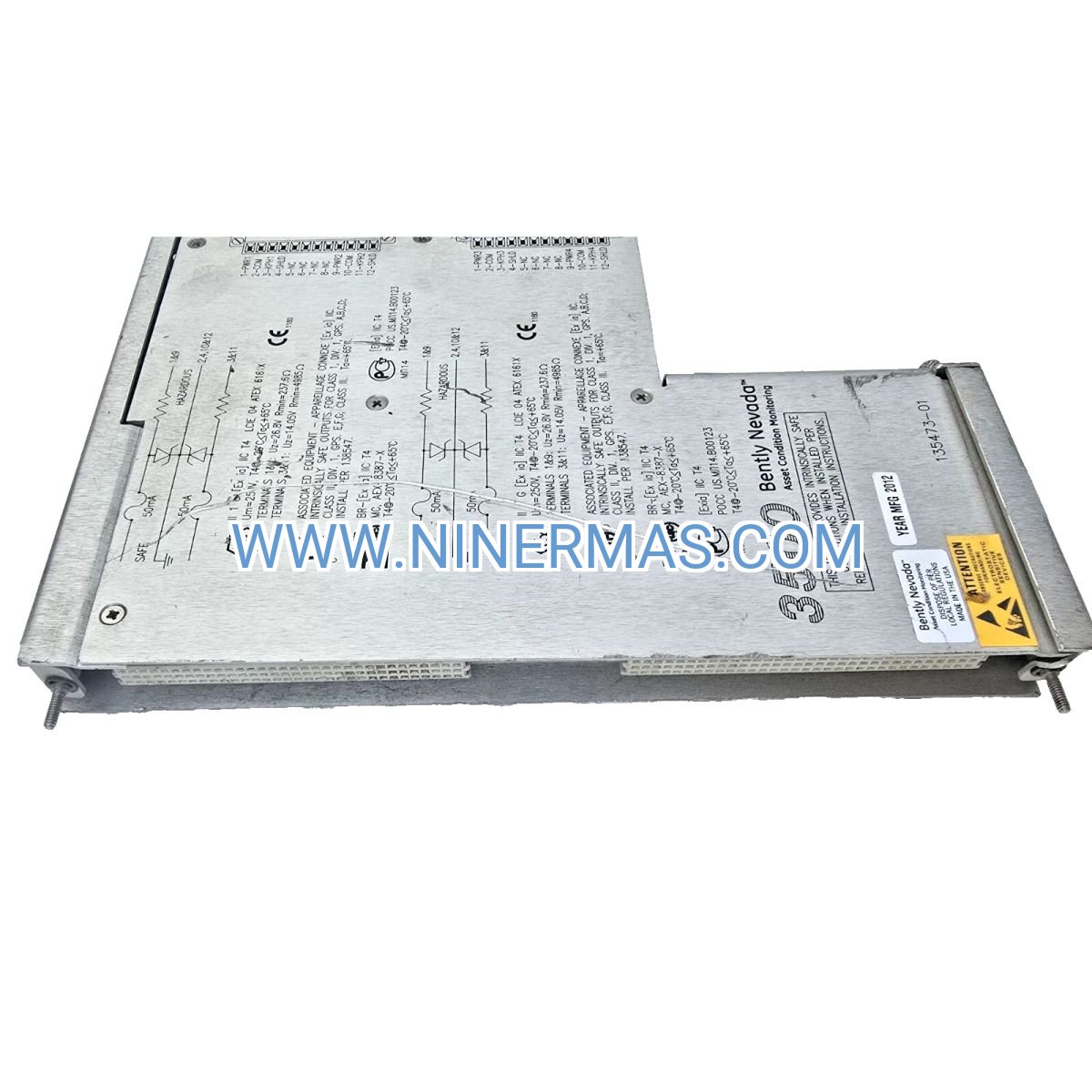

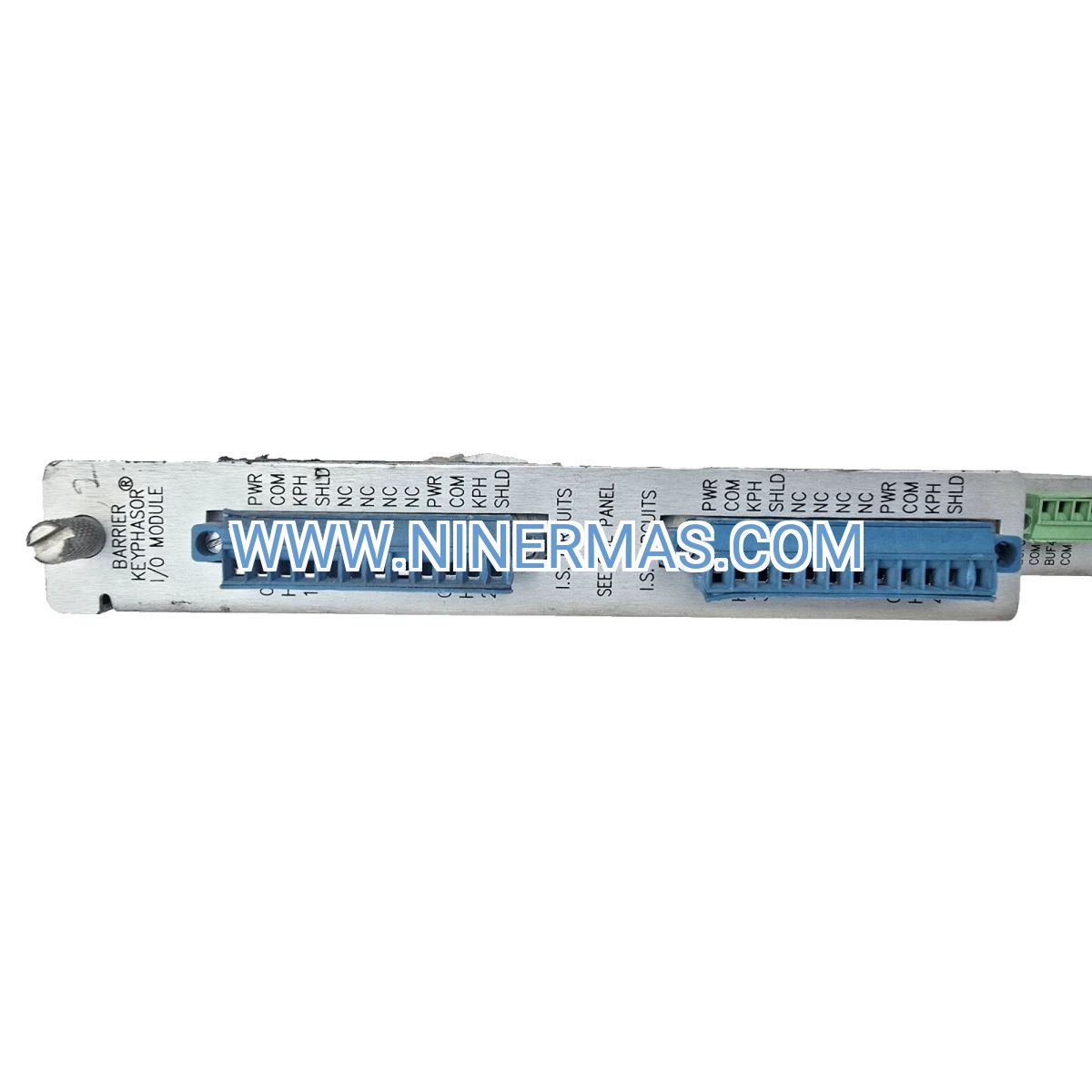

135473-01 Enhanced Keyphasor Module (Industrial-Grade Phase Reference Solution)

The 135473-01 Enhanced Keyphasor Module represents a critical advancement in turbomachinery condition monitoring, delivering precision phase reference signals essential for comprehensive vibration diagnostics. Engineered for the Bently Nevada 3500 monitoring ecosystem, this module transforms raw Keyphasor transducer inputs into synchronized digital timing signals distributed across your entire rack configuration. Designed for mission-critical applications where equipment uptime directly impacts operational profitability, the 3500/25 series module ensures your monitoring infrastructure captures every rotational event with microsecond-level accuracy.

Industrial facilities operating high-value rotating assets—steam turbines, centrifugal compressors, generator sets—require absolute certainty in phase measurement to detect emerging faults before catastrophic failure. This module addresses that imperative by providing dual-channel redundancy, automatic failover capability, and seamless integration with proximitor, seismic, and temperature monitors throughout your 3500 rack. Whether you're managing a power generation facility, petrochemical processing plant, or heavy manufacturing operation, the 135473-01 delivers the foundational timing intelligence your predictive maintenance program depends on.

With factory calibration traceable to international standards, environmental hardening for -30°C to +65°C operation, and compliance with API 670 machinery protection requirements, this Keyphasor module eliminates guesswork from your vibration analysis workflow. Reduce unplanned downtime by 40-60%, extend bearing life through early imbalance detection, and gain diagnostic confidence that transforms maintenance from reactive firefighting to strategic asset optimization.

Core Capabilities & Technical Advantages

✓ Dual-Channel Redundant Architecture
Two independent Keyphasor input channels with automatic switchover ensure continuous phase reference even during transducer failure. Your monitoring system maintains full diagnostic capability without manual intervention, protecting against single-point failures that could mask developing machinery faults.

✓ Universal 3500 Rack Integration
Distributes synchronized Keyphasor signals to all monitor modules in your rack configuration—proximitor monitors, seismic monitors, tachometer modules—enabling phase-coherent analysis across multiple measurement points. Eliminates timing skew that compromises cross-channel diagnostics and modal analysis accuracy.

✓ High-Noise Immunity Signal Processing
Advanced filtering algorithms reject electrical interference, mechanical noise, and false triggers common in industrial environments. Maintains signal integrity in high-EMI locations near VFDs, welding equipment, and high-voltage switchgear where conventional modules produce erratic outputs.

✓ Extended Environmental Tolerance
Operates reliably across -30°C to +65°C ambient temperatures without derating or recalibration. Conformal coating and sealed construction withstand humidity, dust, and corrosive atmospheres typical of offshore platforms, chemical plants, and outdoor installations.

✓ Real-Time Speed Tracking & Validation
Continuously calculates shaft rotational speed from Keyphasor events, providing independent verification against tachometer modules. Detects speed measurement discrepancies that indicate encoder problems, gear tooth damage, or coupling issues before they escalate.

✓ API 670 Compliance Certification
Meets all requirements of API Standard 670 for vibration, axial position, and bearing temperature monitoring in petroleum, chemical, and gas industry services. Simplifies regulatory compliance documentation and third-party inspection processes.

Industrial Application Scenarios

→ Power Generation Turbine Monitoring
Steam and gas turbines driving generators require precise phase measurement to detect blade fouling, rotor imbalance, and bearing degradation. The 135473-01 enables Bode plots, polar plots, and cascade diagrams that reveal subsynchronous vibration, oil whirl, and thermal bow conditions invisible to amplitude-only monitoring. Facilities report 35% reduction in forced outages after implementing phase-based diagnostics.

→ Petrochemical Compressor Train Protection
Multi-stage centrifugal compressors in ethylene crackers, LNG facilities, and refinery hydrogen units operate at extreme speeds where millisecond-level phase accuracy determines whether you catch surge inception or experience catastrophic wheel failure. Dual-channel redundancy ensures your machinery protection system never loses phase reference during process upsets or electrical transients.

→ Pulp & Paper Machine Drive Systems
Large synchronous motors and gearbox-driven paper machines generate complex vibration signatures requiring phase discrimination between gear mesh frequencies, motor pole-pass components, and structural resonances. The module's high-resolution timing enables order tracking analysis that isolates specific fault mechanisms within crowded spectra.

→ Steel Mill Rolling Equipment
Hot strip mills, cold reduction stands, and continuous casters subject rolling mill motors and gearboxes to shock loads and thermal cycling that accelerate bearing wear. Phase-based trending detects the 0.3-0.5× subsynchronous components characteristic of fluid-film bearing instability weeks before amplitude thresholds trigger—allowing planned maintenance during scheduled production gaps.

→ Marine Propulsion & Auxiliary Systems
Shipboard gas turbines, diesel generators, and propulsion motors operate in high-vibration, corrosive environments where monitoring reliability directly impacts vessel safety. Conformal-coated electronics and wide temperature range ensure continuous operation from Arctic to tropical deployments without recalibration or component drift.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the 135473-01 Enhanced version when your application involves high electrical noise environments, variable-speed operation requiring wide dynamic range, or when you need maximum immunity to false triggering from shaft surface defects. For basic fixed-speed applications with clean electrical environments, consult our team regarding standard 3500/25 variants that may offer cost optimization.

Advanced Integration & Customization Options

System 1 Condition Monitoring Software Integration
When networked via 3500/92 communication gateway, Keyphasor data feeds directly into System 1 software for automated trending, alarm management, and diagnostic reporting. Enables remote monitoring from central control rooms and integration with plant-wide asset management systems.

Modbus TCP/IP & OPC Connectivity
Through rack-level communication modules, Keyphasor event data and calculated speed values export to DCS, SCADA, and historian platforms. Supports predictive analytics initiatives leveraging machine learning algorithms trained on phase-amplitude relationships.

Custom Alarm Logic Programming
Configure speed-dependent alarm setpoints, rate-of-change detection, and cross-channel voting logic tailored to your specific machinery characteristics. Reduces nuisance alarms while tightening detection sensitivity for critical fault modes.

Hazardous Area Certifications
Available with ATEX, IECEx, and CSA certifications for installation in Zone 1/Division 1 classified locations. Consult technical support for intrinsically safe barrier requirements and installation documentation.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outage support
Custom Configuration: 7-10 business days for factory programming with customer-specific alarm setpoints and I/O mapping
Warranty Coverage: 12-month comprehensive warranty covering materials, workmanship, and performance under rated conditions
Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and integration guidance
Documentation Package: Installation manual, configuration software, calibration certificates, and compliance declarations included with every shipment

All modules ship with factory calibration traceable to NIST standards, pre-installation functional test reports, and recommended spare parts lists. Our support team provides remote commissioning assistance via video call to ensure first-time-right installation and optimal performance from day one.

Frequently Asked Questions

How does the Enhanced Keyphasor Module improve upon standard versions?
The 135473-01 incorporates adaptive filtering algorithms that automatically adjust trigger thresholds based on signal quality, reducing false events from shaft surface irregularities by 80% compared to fixed-threshold designs. This proves critical on machinery with keyways, coupling hubs, or surface damage that create multiple events per revolution.

Can this module interface with non-Bently transducers?
While optimized for Bently Nevada 3300 XL proximity probes, the module accepts any Keyphasor transducer producing -8V to -2V pulses with 200-500 microsecond duration. Consult our integration guide for third-party sensor compatibility verification and any required signal conditioning.

What happens if both Keyphasor channels fail simultaneously?
The module generates a critical fault alarm transmitted to all connected monitors and communication gateways. Dependent monitors revert to amplitude-only operation, maintaining machinery protection while alerting operators to degraded diagnostic capability. Dual-channel failure typically indicates upstream wiring issues or transducer mounting problems requiring immediate investigation.

Does installation require specialized tools or training?
Standard installation uses a Phillips screwdriver for rack mounting and terminal connections—no special tools required. However, we strongly recommend commissioning by personnel trained in Bently Nevada 3500 systems to ensure proper grounding, shielding, and configuration. We offer remote commissioning support and can recommend certified service partners in your region.

How do I verify the module is functioning correctly after installation?
The 3500 Rack Configuration Software provides real-time display of Keyphasor event timing, calculated speed, and signal quality metrics. During commissioning, rotate the monitored shaft and verify event counts match expected once-per-revolution behavior. Our installation manual includes detailed acceptance test procedures with pass/fail criteria.

What cybersecurity measures protect networked configurations?
The module itself operates on isolated rack backplane communications with no direct network exposure. When integrated via 3500/92 gateways, implement network segmentation, firewall rules, and encrypted VPN tunnels per IEC 62443 industrial cybersecurity guidelines. We provide hardening checklists and vulnerability assessment support for IT/OT convergence projects.

Take the Next Step Toward Predictive Reliability

Transform your vibration monitoring from basic amplitude tracking to comprehensive phase-based diagnostics. Our application engineers are ready to discuss your specific machinery configuration, integration requirements, and performance objectives. Contact us today for technical consultation, custom quotations, or to schedule a live demonstration of phase analysis capabilities.
