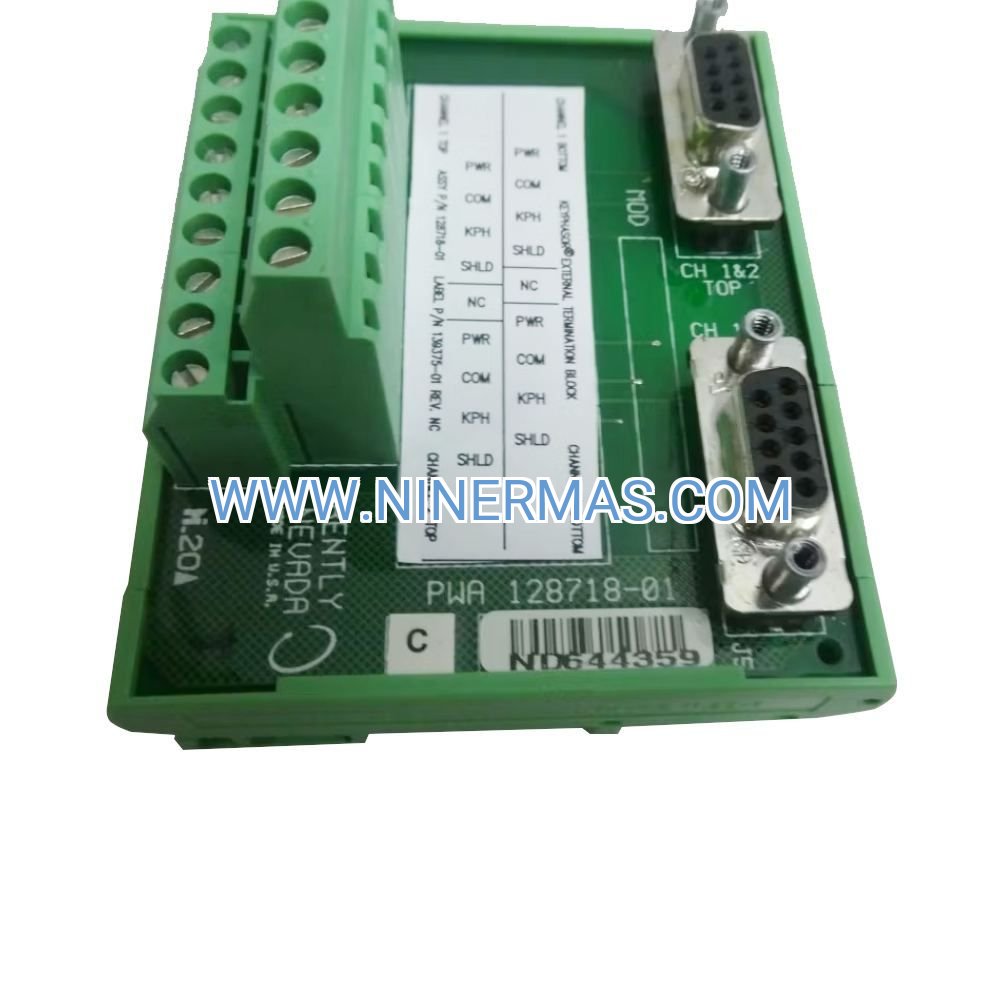

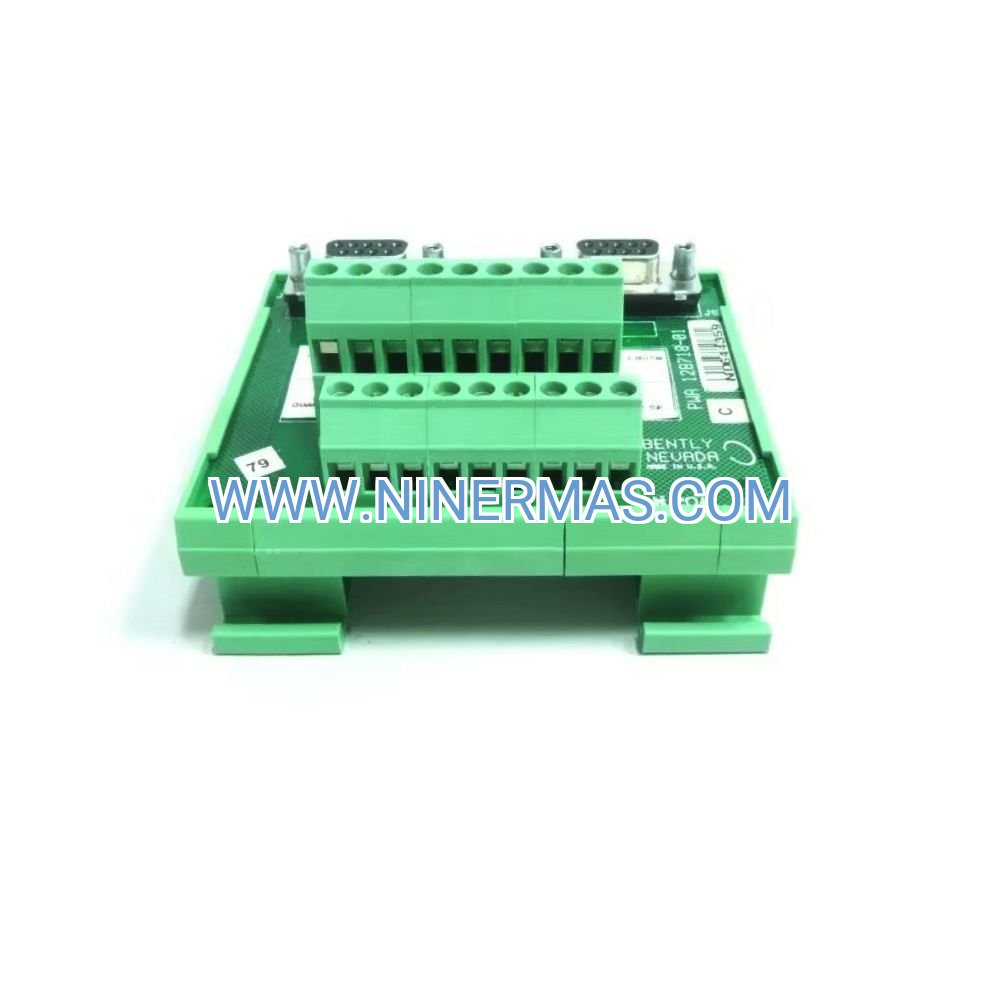

128718-01 Keyphasor External Terminal Block (Industrial-Grade Phase Reference Distribution)

The 128718-01 represents a field-proven solution for distributing Keyphasor phase reference signals across Bently Nevada 3500 monitoring architectures. This external termination assembly consolidates dual-channel signal conditioning in a single, rack-mountable module designed for continuous operation in harsh industrial environments. Built to support critical rotating equipment protection schemes, the unit delivers consistent once-per-revolution event detection for steam turbines, centrifugal compressors, and high-speed generators.

Maintenance teams benefit from accessible terminal points that eliminate the need for monitor module removal during cable servicing. Plant engineers gain reliable phase synchronization across up to ten monitoring channels simultaneously, enabling advanced diagnostics including orbit analysis, shaft centerline position tracking, and transient event capture. The module integrates seamlessly with existing 3500 rack infrastructure while meeting stringent API 670 machinery protection standards.

Whether upgrading legacy systems or commissioning new installations, the 128718-01 provides the signal integrity and installation flexibility demanded by power generation, oil & gas, and heavy manufacturing facilities worldwide.

Core Capabilities & Technical Advantages

→ Dual Independent Keyphasor Channels
Processes two separate proximity probe inputs with isolated signal paths, supporting redundant speed measurement or multi-shaft monitoring configurations without cross-channel interference.

→ Five-Module Distribution Per Channel
Each input distributes conditioned Keyphasor signals to five downstream monitor modules, reducing wiring complexity and eliminating the need for external signal splitters in multi-point monitoring arrays.

→ External Screw Terminal Access
Field-accessible connection points enable rapid cable replacement and troubleshooting without rack disassembly, cutting maintenance downtime by up to 60% compared to internal termination designs.

→ Factory-Calibrated Signal Conditioning
Pre-configured threshold detection and pulse shaping circuitry ensure accurate event timing across temperature extremes (-30°C to +65°C), maintaining ±0.1° phase accuracy critical for balancing operations.

→ Backplane Power Integration
Draws operating power directly from the 3500 rack backplane, eliminating external power supplies and simplifying installation in space-constrained control rooms.

✓ EMI-Hardened Construction
Shielded enclosure and filtered inputs reject electrical noise from VFDs, welders, and high-voltage switchgear, maintaining signal fidelity in electrically hostile plant environments.

Industry Applications & Use Cases

Power Generation Turbine Monitoring
Steam and gas turbine installations require precise shaft position data for thrust bearing wear detection and blade tip timing analysis. The 128718-01 distributes Keyphasor references to vibration monitors, differential expansion modules, and eccentricity measurement systems, enabling comprehensive turbine health assessment from a single phase reference source.

Petrochemical Compressor Train Protection
Multi-stage centrifugal compressor trains demand synchronized vibration data across multiple bearing housings. This terminal block feeds phase-locked signals to radial vibration monitors and thrust position sensors, allowing operators to correlate vibration events with specific rotor positions during surge conditions or mechanical rubs.

Pulp & Paper Machine Drive Systems
High-inertia rotating equipment in paper mills benefits from continuous torsional vibration monitoring. The dual-channel capability supports simultaneous tracking of motor and driven equipment shafts, revealing coupling misalignment and gearbox resonance issues before catastrophic failure.

Marine Propulsion Shaft Monitoring
Ship propulsion systems operating under variable load conditions utilize Keyphasor-synchronized data to detect propeller cavitation, shaft whip, and bearing oil film instability. The module's vibration-resistant mounting withstands continuous vessel motion while maintaining measurement accuracy.

Industrial Fan & Blower Arrays
Large induced-draft fans and forced-draft blowers in cement kilns and steel mills require phase-referenced vibration trending to identify imbalance growth from material buildup. The external termination design simplifies retrofits into existing monitoring systems without production interruptions.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 128718-01 external termination block when field wiring accessibility is prioritized over panel space conservation. For installations where multiple monitor modules require the same Keyphasor reference, this model reduces cable runs and simplifies troubleshooting compared to daisy-chained internal terminations. Verify that your 3500 rack has available slot positions and that proximity probe cable lengths remain within manufacturer-specified limits (typically 9 meters maximum for standard Bently Nevada extension cables).

Advanced Integration Features

DCS & SCADA Connectivity
The conditioned Keyphasor outputs interface directly with distributed control systems requiring speed feedback for turbine startup sequencing, load ramping, and emergency shutdown logic. Standard TTL-level signals ensure compatibility with Honeywell, Emerson, and Siemens control platforms.

Redundant Monitoring Architectures
Dual-channel design supports 2oo3 (two-out-of-three) voting logic in safety-instrumented systems, where independent Keyphasor sources feed separate monitor chains for critical machinery protection applications governed by IEC 61508 functional safety requirements.

Retrofit & Upgrade Pathways
Backward-compatible with earlier 3500 rack generations, enabling phased system modernization without complete rack replacement. Existing proximity probe wiring and monitor modules remain functional during incremental upgrades.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 2-3 business days via expedited carrier. Custom configurations or bulk orders (10+ units) typically require 4-6 weeks for factory preparation and quality verification.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Warranty includes advance replacement service to minimize unplanned downtime.

Technical Support: Lifetime access to application engineers for installation planning, wiring diagrams, and integration troubleshooting. Remote diagnostic assistance available via phone and email during commissioning phases.

Documentation Package: Each unit ships with installation manual, terminal wiring diagrams, rack mounting instructions, and calibration certificates. Digital copies of user guides and firmware updates available through customer portal.

Frequently Asked Questions

How does external termination improve maintenance efficiency compared to internal designs?
External terminal blocks position all field wiring connections outside the monitor module housing, allowing technicians to inspect, tighten, or replace cables without removing the module from the rack. This reduces maintenance time by approximately 40 minutes per service event and eliminates the risk of disturbing adjacent module configurations during routine inspections.

What cable specifications are required for Keyphasor signal integrity?
Use shielded twisted-pair cable with 18-22 AWG conductors and drain wire for proper grounding. Bently Nevada-certified extension cables (part numbers 330130-xxx series) are recommended for lengths exceeding 3 meters. Maximum cable length should not exceed 9 meters to maintain signal rise time specifications. Avoid routing Keyphasor cables in the same conduit as AC power lines or VFD motor leads.

Can this module distribute Keyphasor signals to third-party monitoring equipment?
The 128718-01 outputs TTL-compatible logic levels (0-5V) that conform to industry-standard digital signal specifications. While designed for Bently Nevada 3500 series monitors, the outputs can interface with third-party systems that accept TTL inputs. Verify input impedance and voltage threshold compatibility with your specific equipment before integration.

Does the terminal block require configuration or programming after installation?
No software configuration is needed. The module performs automatic signal conditioning upon power-up. Simply connect proximity probe cables to the input terminals and distribution cables to the output terminals according to the wiring diagram. The unit begins processing Keyphasor signals immediately when the rack is energized.

What is the maximum number of monitor modules that can share a single Keyphasor input?
Each of the two input channels can distribute signals to five monitor modules, for a total of ten modules per 128718-01 unit. If your application requires more than five modules per Keyphasor source, install a second terminal block or consult factory engineering for custom fanout solutions.

How do I verify proper Keyphasor signal quality during commissioning?
Use a digital oscilloscope to measure the output signal at the terminal block. A healthy Keyphasor signal displays clean square-wave transitions with rise times under 10 microseconds and amplitude between 4.5-5.0V. Irregular pulse widths, excessive ringing, or amplitude below 4.0V indicate probe gap issues, cable damage, or electrical interference requiring correction before system activation.

Take the Next Step

Ensure uninterrupted phase reference distribution for your critical rotating equipment. Contact our application specialists to verify compatibility with your existing 3500 rack configuration, discuss quantity pricing for multi-unit installations, or request expedited shipping for emergency replacements.
